Product Name	Mobile Commercial Egg Candler
Product Image
Product Overview	The Mobile Commercial Egg Candler is a professional hatchery inspection device designed to illuminate poultry eggs so operators can visually evaluate internal egg conditions without opening the shell. The mobile configuration combines a high-intensity LED candling light with an adjustable stand, allowing the working height and inspection position to be adapted to different operators, egg trays and hatchery workstations. Portable battery operation can also support inspection in areas where permanent electrical connections are inconvenient. The equipment is suitable for commercial hatcheries, breeder farms, egg quality laboratories and poultry production projects requiring flexible inspection of fertile eggs during incubation.
Key Features	Mobile stand configuration allows convenient movement between hatchery workstations. Vertically adjustable light position supports different operator heights and egg inspection layouts. High-intensity LED illumination provides strong light penetration for visual egg inspection. Suitable for inspection of both white-shell and brown-shell eggs. Touch-controlled light adjustment allows brightness to be adapted to shell color and inspection conditions. Low-heat LED technology helps limit unnecessary heat exposure around eggs during inspection. Battery-powered or mains-powered configurations support flexible hatchery operation. Lightweight construction simplifies relocation, cleaning and storage. Can be used as mobile equipment or installed at a fixed candling workstation.
Structural Components	High-Intensity LED Candling Light: Provides concentrated illumination through the eggshell for internal inspection. Adjustable Vertical Stand: Allows the candling fixture to be positioned at a comfortable working height. Candling Fixture: Supports the primary inspection light and directs illumination toward the egg. Auxiliary Work Light: Can provide additional illumination around the workstation according to configuration. Brightness Controls: Allow the operator to increase or decrease LED output as required. Portable Base: Provides stable support while allowing the unit to be repositioned within the hatchery. Battery Pack: Provides cordless operation in mobile configurations. DC Power Supply: Allows continuous mains operation and battery charging according to configuration.
Working Principle	Egg candling works by directing a concentrated beam of light through the eggshell. Differences in light transmission allow trained operators to visually evaluate internal structures and identify eggs with different developmental conditions. During hatchery incubation, viable developing eggs normally show internal structures such as blood vessels, embryo shadows or increasing dark areas. Clear eggs, eggs with abnormal development or eggs requiring additional evaluation can be identified and handled according to the hatchery's quality-control procedure. The adjustable mobile stand allows the light source to be positioned close to the egg inspection area while minimizing unnecessary handling and maintaining an efficient workflow.
Technical Specifications	Product Type Mobile commercial egg candler Primary Application Visual inspection of poultry eggs Light Source High-intensity LED Brightness Adjustment Adjustable / touch-controlled according to configuration Working Height Vertically adjustable Installation Mode Mobile stand, benchtop or shelf-mounted configuration Power Options Battery or external DC power supply Reference DC Supply 12V DC in the referenced mobile configuration Reference Battery Runtime Approximately 8 hours in the referenced mobile package Shell Compatibility White and brown poultry eggs Stand Configuration Mobile / adjustable Dimensions Available upon request
Applications	Commercial poultry hatcheries Broiler breeder hatcheries Layer breeder hatcheries Turkey and duck hatcheries Hatching egg quality-control stations Breeder farms and egg collection facilities Poultry genetics and multiplication centers Veterinary and poultry research laboratories Hatchery modernization and livestock equipment projects
Customization Options	The Mobile Commercial Egg Candler can be configured according to hatchery workflow, egg type and inspection requirements. Available options may include stand height, mounting arrangement, power configuration, battery package, inspection light output, workstation arrangement and packaging. For complete hatchery projects, the candling station can be coordinated with setter tray handling, transfer tables, hatcher baskets and other poultry hatchery equipment according to project requirements.
Installation & Maintenance	Position the mobile candler on a stable floor close to the egg inspection workstation. Adjust the vertical stand so the light source is aligned with the operator's preferred inspection height and does not interfere with tray movement. For best visual contrast, candling should be carried out under reduced ambient lighting where practical. Eggs should be handled carefully and inspection time should be kept efficient to minimize unnecessary exposure outside the controlled incubation environment. Routine maintenance mainly involves cleaning the light housing and stand, checking the power cable or battery connection, inspecting adjustment hardware and keeping the optical surface free from dust. The LED assembly should not normally require the frequent bulb replacement associated with conventional incandescent candlers.

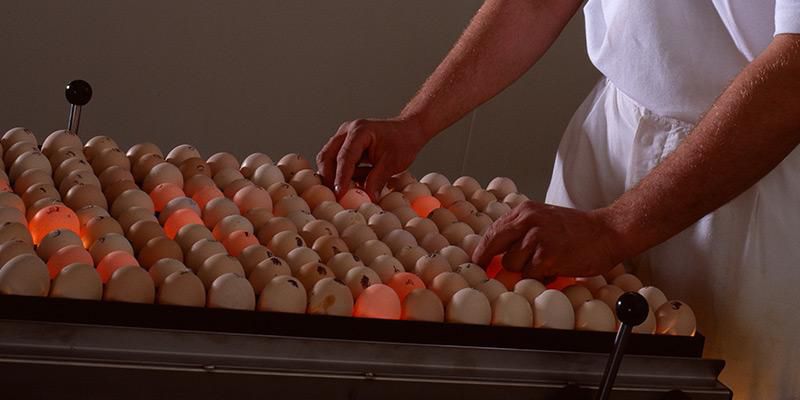

Project Cases	In commercial hatcheries, a mobile candler can be moved between setter rooms, egg inspection areas and transfer stations according to the production schedule. This is useful where one inspection device is shared by several incubator groups or where sample trays are checked at different points in the hatchery. For larger installations, portable candling equipment can complement fixed commercial candling tables. Fixed tables can illuminate complete setter trays, while the mobile unit provides flexible inspection for individual eggs, sample trays and quality-control checks.
Product FAQ	Q: What is a mobile commercial egg candler used for? A: It uses concentrated light to visually inspect the internal condition of poultry eggs during hatchery or egg quality-control operations. Q: Can it inspect both white and brown eggs? A: Yes. A high-intensity adjustable LED system can be used for both white-shell and brown-shell poultry eggs. Q: Is the working height adjustable? A: Yes. Mobile stand configurations can provide vertical adjustment to suit different operators and hatchery workstations. Q: Can it operate without mains electricity? A: Battery-powered configurations are available for portable operation. The referenced mobile system provides approximately eight hours of battery runtime under its specified operating conditions. Q: Does LED lighting generate significant heat? A: LED technology produces substantially less heat at the inspection point than conventional high-temperature incandescent lighting, making it suitable for repeated egg inspection. Q: Can the unit be used as a stationary candler? A: Yes. Depending on configuration, the candling fixture can be used with a mobile stand, benchtop installation or shelf mounting. Q: What information is required for quotation? A: Recommended information includes poultry species, egg shell color, intended inspection workflow, preferred mobile or fixed installation, power requirements and order quantity.
