Product Name	Floor Poultry Waterline Flushing System
Product Image
Product Overview	The Floor Poultry Waterline Flushing System is designed for automatic cleaning and flushing of nipple drinking lines in floor-reared poultry houses. It uses controlled high-flow flushing to move accumulated residues and stagnant water toward the end of each drinking line and into the drainage system. A typical system combines a programmable flushing controller, automatic flush actuator, pressure regulator, flush breather unit and drain components. The controller can initiate flushing according to a preset schedule, helping reduce the labor required for manual waterline cleaning. The system is suitable for broiler, breeder and pullet houses and can be integrated into new poultry farm construction, livestock equipment upgrades and steel structure building projects. Existing compatible drinking systems can also be retrofitted with automatic flushing components.
Key Features	Automatic flushing for floor poultry nipple drinking lines. Programmable flushing duration and starting time. Individual drinking lines can be flushed separately. Multiple lines can also be grouped according to system configuration. High-flow flushing helps remove sediment and residues from drinking pipes. Automatic flush breather unit manages the line-end flushing process. Drain kit directs discharged flushing water toward the drainage pipe. Reduces routine manual flushing work in commercial poultry houses. Suitable for retrofit installation on compatible existing drinking systems. Expandable configuration for large commercial poultry projects.
Structural Components	A typical floor poultry waterline flushing system may include: Programmable flushing controller Automatic flush actuator or solenoid Flush-compatible pressure regulator Drinking water line Flush breather unit Water-column indicator tube Drain kit Drain hose or drainpipe connection Controller extension modules for additional drinking lines Electrical cables and installation accessories Final component quantities depend on the number and layout of drinking lines.

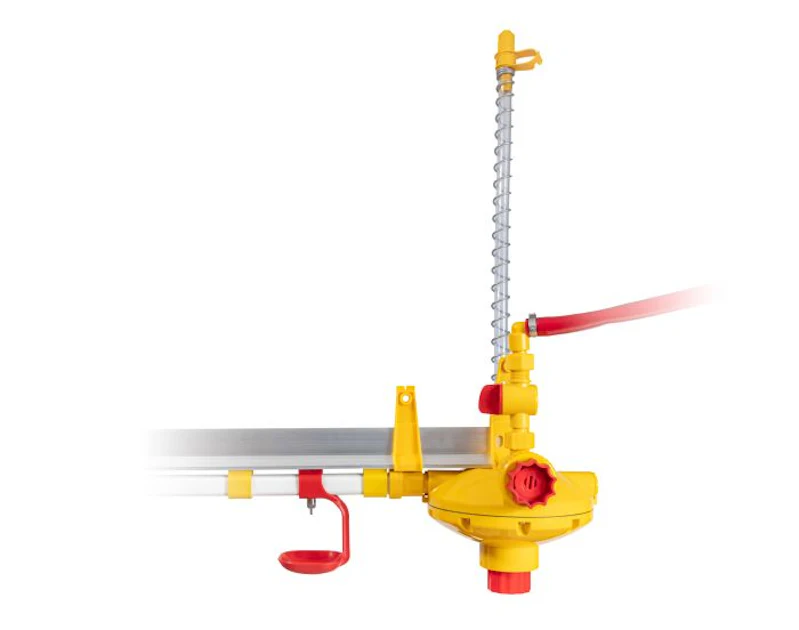

Working Principle	During normal operation, the pressure regulator maintains the required water column for poultry drinking. When a programmed flushing cycle begins, the controller activates the actuator connected to the flush-compatible pressure regulator. The regulator switches into flushing mode and allows higher water flow through the drinking line. At the far end of the line, the automatic flush breather responds to flushing pressure and directs the outgoing water through the drain kit toward the farm drainage system. Each drinking line can be flushed according to the programmed sequence. The duration can be adjusted according to line length and project requirements, helping achieve sufficient flushing while controlling unnecessary water consumption.
Technical Specifications	Product Type Automatic Poultry Drinking Line Flushing System Application Floor poultry nipple drinking systems Control Method Programmable electronic controller with automatic actuator Reference Controller Capacity Up to 10 drinking lines in the standard control configuration Expansion Additional line capacity available through extension modules Reference Extension Capacity 8 additional drinking lines per extension box Reference Actuator Supply 24 V DC Flush Duration Adjustable according to line length and project requirements Flush Sequence Individual or grouped line configuration Installation Type New installation or compatible system retrofit
Applications	Broiler floor drinking systems Breeder poultry houses Pullet rearing facilities Floor-rearing poultry houses Commercial poultry drinking water systems Automatic nipple drinking lines Poultry waterline hygiene projects New poultry farm construction Steel structure poultry buildings Existing drinking line retrofit projects
Customization Options	Number of controlled drinking lines: Customizable Controller configuration: According to project requirements Flush duration and sequence: Programmable Extension control modules: Available upon request Pressure regulator configuration: According to drinking line design Line-end breather configuration: Available upon request Drain hose and drainage arrangement: Customizable Retrofit accessory package: According to existing system configuration Complete installation layout: Designed according to local climate and farm conditions
Installation & Maintenance	The controller should be installed in an accessible and protected location inside the poultry facility. Automatic actuators are connected to compatible flushing pressure regulators at the inlet of the drinking lines, while flush breather units are installed at the line ends. Drain kits and hoses should be arranged so that discharged water is carried away from the poultry litter and directed toward a suitable drainage system. Electrical wiring, controller connections and water-line components should be installed according to the system design. Flush duration should be adjusted according to drinking line length and farm conditions. After installation, each line should be tested individually to confirm correct actuator operation, adequate flushing flow and proper drainage. Routine maintenance should include checking actuators, pressure regulators, breather units, drain hoses and controller connections. Drinking lines should also be inspected for deposits and flushed after medication or water-treatment programs when required.
Project Cases	Automatic flushing systems are suitable for commercial poultry farms with multiple parallel drinking lines where manual flushing requires significant labor. In a floor-rearing poultry project, each drinking line can be connected to an automatic flushing actuator and line-end breather. The central controller manages the flushing sequence, while drain lines remove discharged water from the poultry area. For larger livestock equipment and steel structure building projects, the flushing system can be planned together with water filtration, medication equipment, pressure regulators, nipple drinking lines and drainage infrastructure.
Product FAQ	Q: What does an automatic poultry waterline flushing system do? A: It automatically increases water flow through selected drinking lines and directs the flushing water to the drainage system, reducing the need for manual flushing. Q: How many drinking lines can the reference controller manage? A: The reference LUBING LCW Touch Control can automatically manage up to 10 drinking lines in its standard configuration. Q: Can the system control more than 10 lines? A: Yes. The reference system can be expanded with extension boxes, each supporting additional drinking lines. Q: Can flushing time be adjusted? A: Yes. Flush duration and starting time can be programmed according to drinking line length and farm management requirements. Q: Can the system be added to an existing poultry house? A: Yes. Compatible existing drinking systems can be retrofitted with automatic flushing components. Q: Where does the flushing water go? A: The line-end flush breather and drain kit direct flushing water through a hose or pipe toward the designated farm drainage system.
