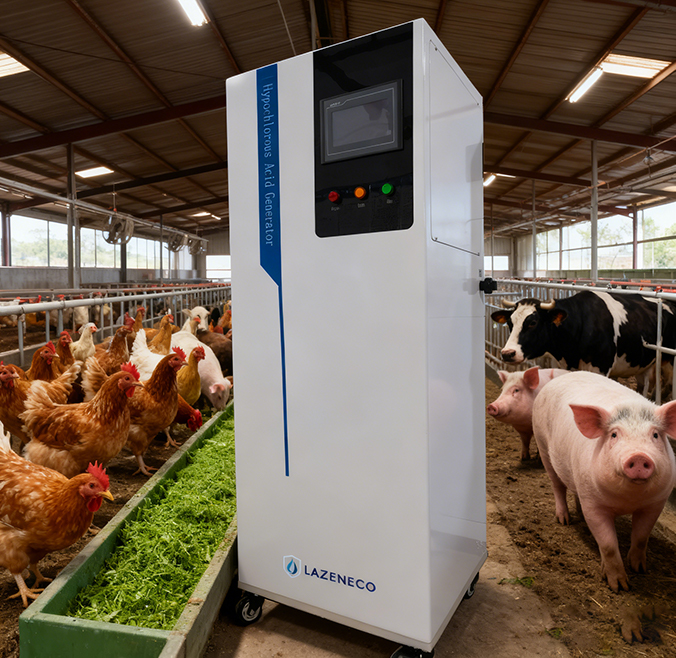

Electrolyzed Water Disinfection System

The Electrolyzed Water Disinfection System is designed for automated treatment of drinking water in commercial poultry farms, pig farms and other livestock production facilities. The system uses electrochemical technology to generate a disinfecting solution on site from water, salt and electricity, reducing dependence on conventional chemical storage and handling.

The generated electrolyzed water can be introduced into the livestock drinking water network to support microbial control and waterline hygiene. Electrolyzed water technology is used in animal drinking water applications and has also been studied for continuous drinking-water sanitation in commercial poultry houses. :contentReference[oaicite:1]{index=1}

• On-site generation of electrolyzed disinfectant water.
• Suitable for automated livestock drinking water treatment.
• Supports microbial control and waterline sanitation.
• Reduces the need for transportation and storage of conventional disinfectant chemicals.
• Low-salt and low-energy configurations can be selected according to system design.
• Compact modular structure for convenient integration into existing water treatment rooms.
• Suitable for commercial poultry and pig production facilities.
• Optional monitoring and automatic control can be incorporated according to project requirements.

Electrochemical activation systems are commercially available for livestock water treatment, with configurations ranging from compact plug-and-play units to larger systems for agricultural operations. :contentReference[oaicite:2]{index=2}

Depending on the selected configuration, the complete system may include:

• Electrolytic cell or electrochemical activation module.
• Salt solution preparation or brine supply unit.
• Water inlet and pretreatment section.
• Flow control and water pressure components.
• Generated solution storage or buffer tank, where required.
• Dosing or injection pump.
• Electrical control cabinet and operating interface.
• Flow, level and water quality monitoring components.
• Pipeline, valves, fittings and safety protection components.

The exact configuration is customizable according to water quality, treatment capacity, farm layout and required automation level.

The system prepares a controlled salt solution and passes it through an electrochemical cell. Electrical energy drives electrochemical reactions that generate an active disinfecting solution. Depending on the system architecture, the generated solution may contain hypochlorous acid and other active chlorine species.

The treated solution is then delivered into the livestock drinking water pipeline at a controlled rate. Water flow, dosing requirements and optional monitoring signals can be used to regulate treatment according to farm operating conditions. Electrolyzed water has been studied as a drinking-water sanitation method for poultry waterlines and is recognized as an emerging technology for microbial control in livestock and poultry production. :contentReference[oaicite:3]{index=3}

Specific output capacity, active chlorine concentration, water flow range, power consumption and electrical configuration are available upon request and should be selected according to water quality, farm scale and local operating conditions.

The system can be integrated into a wide range of commercial livestock projects, including:

• Commercial broiler and layer farms.
• Pig farrowing, nursery and finishing houses.
• Breeder and replacement livestock facilities.
• Large-scale integrated livestock production groups.
• Steel structure poultry buildings and modern pig farm buildings.
• New livestock farm construction and farm modernization projects.
• Turnkey agricultural engineering and water treatment projects.
• Existing drinking water systems requiring improved waterline sanitation.

Electrolyzed water has applications across livestock and poultry production, including animal drinking water and waterline sanitation. :contentReference[oaicite:4]{index=4}

SHEWUYOU can develop customized electrolyzed water treatment solutions according to the farm's water demand, water quality and building arrangement.

• Generator capacity according to farm size and water consumption.
• Single-line or multi-line drinking water treatment configuration.
• Integration with poultry nipple drinking systems or pig drinking water lines.
• Optional water filtration and pretreatment equipment.
• Automatic dosing and flow-proportional control.
• Optional pH, ORP and available-chlorine monitoring.
• Customized control cabinet and alarm functions.
• Wall-mounted, skid-mounted or equipment-room installation according to project conditions.
• Solutions designed according to local climate, water quality and farm conditions.

The system is normally installed downstream of the main water supply and appropriate pretreatment equipment. The installation layout should provide sufficient access for inspection, salt replenishment, cell maintenance and electrical servicing.

For integration with poultry nipple drinking lines or pig drinking systems, the injection point and hydraulic arrangement should be selected to provide effective mixing and stable delivery throughout the water distribution network.

Routine maintenance includes checking the electrolytic cell, water filters, salt supply, pumps, valves, sensors, electrical connections and pipeline condition. Regular water quality monitoring is recommended to verify treatment performance under actual farm conditions.

The Electrolyzed Water Disinfection System is suitable for international livestock engineering projects where automated drinking water sanitation is required. It can be incorporated into complete farm construction packages together with drinking water lines, water filtration, water storage, environmental control and other livestock equipment.

For large pig farm or poultry farm projects, the system can be engineered around the number of animals, water consumption, building layout, water source and required automation level. Electrolyzed water systems are commercially available for livestock operations and can be configured for different production scales. :contentReference[oaicite:5]{index=5}

Q: What is an electrolyzed water disinfection system?
A: It is a water treatment system that uses electrochemical technology to generate an active disinfecting solution, typically from water, salt and electricity, for controlled water sanitation.

Q: Can it be used for pig farms?
A: Yes. Electrolyzed water systems can be integrated into pig drinking water systems and other livestock water treatment applications. :contentReference[oaicite:6]{index=6}

Q: Can it be connected to an existing drinking water line?
A: Yes. The system can be integrated into an existing poultry or pig drinking water network when the hydraulic layout and water quality conditions are suitable.

Q: Does the system require conventional disinfectant chemicals?
A: The system is designed to generate the disinfecting solution on site, reducing dependence on conventional disinfectant storage and chemical transport. Salt and electricity requirements depend on the selected technology.

Q: Can the output capacity be customized?
A: Yes. Generator capacity, dosing arrangement, monitoring functions and system layout can be customized according to project requirements.

Q: What parameters should be considered before installation?
A: Water source quality, flow rate, daily water consumption, animal population, drinking line layout, required treatment level and local electrical conditions should be evaluated before system selection.
