Chlorine Dioxide Water Disinfection Generator

The Chlorine Dioxide Water Disinfection Generator is designed for on-site production and controlled dosing of chlorine dioxide into poultry and livestock drinking water systems. It provides an integrated solution for water sanitation, microbial control and waterline hygiene in commercial farming operations.

The system can continuously generate chlorine dioxide from suitable precursor chemicals and introduce the prepared disinfectant into the water supply through controlled metering equipment. Depending on project requirements, the complete installation can include chemical dosing pumps, a reaction chamber, bypass pipework, water flow monitoring, safety devices and an automatic control system.

For commercial poultry farms, pig farms and other livestock facilities, the generator can be integrated into centralized water treatment rooms, drinking water supply pipelines and nipple drinking systems. System capacity, chemical configuration and control method can be selected according to farm water demand and local operating conditions.

• On-Site Chlorine Dioxide Generation: Produces chlorine dioxide at the treatment location for controlled water disinfection.
• Continuous Water Treatment: Suitable for continuous generation and dosing into farm drinking water systems.
• Accurate Chemical Metering: Metering pumps provide controlled delivery of precursor chemicals according to the selected system configuration.
• Effective Waterline Hygiene: Supports microbial control and biofilm management in poultry and livestock drinking water networks.
• Automatic Control: Can be configured for manual, flow-proportional or automated dosing according to project requirements.
• Compact Installation: Wall-mounted, panel-mounted or skid-mounted configurations are available for equipment rooms and centralized water treatment stations.
• Flexible Integration: Can be combined with filtration, pressure regulation, water meters, storage tanks and drinking water distribution systems.
• Project Customization: Generation capacity, pipeline connections and control functions can be selected according to farm conditions.

• Chlorine dioxide reaction or generation unit
• Precursor chemical metering pumps
• Chemical suction lines
• Reaction chamber
• Bypass water pipeline
• Water inlet and outlet connections
• Flow monitoring device where required
• Isolation and control valves
• Non-return valves and safety components
• Control cabinet or controller
• Alarm and status indication devices
• Chemical containers and containment accessories where required
• Mounting panel, frame or integrated skid

The final component arrangement depends on generation capacity, chemical process, water flow and farm installation requirements.

The system generates chlorine dioxide on site by accurately feeding suitable precursor chemicals into a controlled reaction process. In an acid/chlorite configuration, diluted sodium chlorite and acid solutions are metered separately into the reaction section, where chlorine dioxide is produced under controlled conditions.

The generated chlorine dioxide solution is then transferred into a bypass or main water stream and mixed with the incoming drinking water. The treated water subsequently enters the farm distribution network and is supplied to poultry or livestock drinking points.

Where flow-proportional control is installed, the dosing output can respond to changes in water consumption. This helps the treatment system adapt to varying drinking water demand throughout the production cycle.

Note: Chlorine dioxide output, precursor concentration, water treatment capacity, pressure, electrical requirements and dosing configuration must be confirmed according to the selected generator and actual farm water conditions.

• Broiler house drinking water systems
• Layer farm drinking water networks
• Breeder poultry farms
• Pullet rearing facilities
• Pig farm drinking water treatment
• Commercial livestock farms
• Nipple drinking water lines
• Centralized farm water treatment rooms
• Water storage and distribution systems
• Waterline sanitation programs
• Livestock equipment projects
• Pig farm construction projects
• Steel structure poultry building projects

The equipment is suitable for both new farm construction and renovation of existing water treatment systems. It can be configured as part of a centralized sanitation system serving one or multiple livestock buildings.

• Chlorine dioxide generation capacity
• Water treatment flow capacity
• Chemical metering pump configuration
• Flow-proportional dosing control
• Water meter integration
• Automatic control cabinet
• Alarm and monitoring functions
• Bypass pipeline configuration
• Pipeline connection size
• Chemical storage arrangement
• Wall-mounted or skid-mounted construction
• Centralized multi-house water treatment system

SHEWUYOU can configure the system according to source water quality, livestock population, daily water demand, pipeline layout, local climate and farm operating conditions.

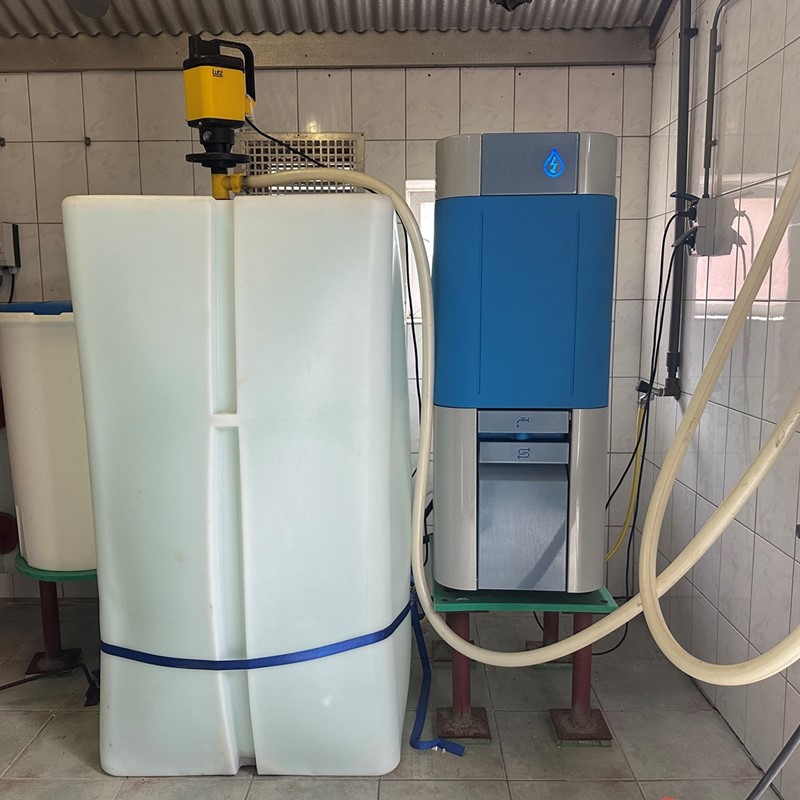

The chlorine dioxide generator is normally installed in a dedicated water treatment or utility area upstream of the livestock drinking water distribution network. Adequate space should be provided around the system for chemical replacement, inspection, calibration and routine servicing.

The installation should include suitable ventilation, water supply connections, electrical supply, chemical containment and drainage according to the selected equipment configuration and applicable local requirements.

Before commissioning, chemical suction lines, metering pumps, reaction components, valves, bypass pipework and control signals should be checked. Dosing settings should be established according to water quality and the required farm sanitation program.

Routine maintenance includes inspection of metering pumps, hoses, seals, valves, filters, reaction components and control instruments. Chemical handling and servicing should follow the equipment manufacturer's safety instructions.

For commercial poultry and pig farms, the chlorine dioxide generator can be incorporated into a centralized drinking water treatment station together with filtration equipment, pressure regulators, flow meters, storage tanks, medication dosing equipment and water distribution pipelines.

In new pig farm construction or steel structure building projects, water treatment equipment can be planned together with livestock equipment and utility pipelines. This simplifies installation and provides convenient access for future inspection and maintenance.

For existing farms, compact panel-mounted or skid-mounted equipment can help reduce modification requirements and simplify connection to the existing drinking water network.

Q: What is a chlorine dioxide water disinfection generator?
A: It is a water treatment system that produces chlorine dioxide on site and meters it into a water supply for controlled disinfection.

Q: Can the system be used for poultry drinking water?
A: Yes. Chlorine dioxide treatment is used in poultry drinking water and waterline sanitation applications when the equipment and dosing program are correctly designed.

Q: Is it suitable for pig farms?
A: Yes. Chlorine dioxide systems can also be integrated into pig farm drinking water treatment installations according to water quality and project requirements.

Q: Can dosing follow changes in farm water consumption?
A: A suitable system can use a water meter or external flow signal to support flow-proportional dosing.

Q: Can the generator be customized for a large commercial farm?
A: Yes. Generation capacity, metering equipment, pipeline connections, controls and installation layout can be selected according to the required treatment capacity.

Q: Where should the equipment be installed?
A: It is normally installed in a dedicated water treatment area upstream of the drinking water distribution system with sufficient space for safe operation and maintenance.
