Product Name	Three-Door Poultry Hatcher

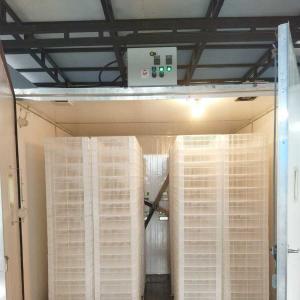

Product Image
Product Overview	The Three-Door Poultry Hatcher is a commercial final-stage incubation system designed for professional poultry hatcheries. Its three-door configuration accommodates three double-size hatch trolleys and is engineered to maintain stable airflow circulation throughout the hatching chamber. After eggs complete the main incubation period in a setter, they are transferred into hatch baskets and loaded into the hatcher. The system then maintains controlled temperature, humidity and airflow conditions during internal pipping, external pipping and chick emergence. The three-door layout is particularly suitable for commercial hatcheries requiring organized trolley handling, efficient batch transfer and consistent environmental conditions across a relatively large hatching chamber.
Key Features	Three-door chamber configuration for commercial poultry hatchery applications. Three double-size hatch trolleys provide organized egg and chick handling. Internal configuration designed to maintain stable airflow circulation. Temperature and humidity sensing supports controlled hatching conditions. Fan coil system assists air circulation and thermal management within the chamber. Spray-nozzle humidification supports humidity control during the hatch period. High-temperature alarm provides additional operating protection. Large-capacity configuration suitable for intensive hatchery production. Simple internal access supports routine cleaning, disinfection and maintenance.
Structural Components	Three-Door Hatching Chamber: Provides separate front access across the commercial hatching cabinet. Double-Size Hatch Trolleys: Three trolleys carry hatch baskets inside the chamber. Hatch Baskets: Hold transferred eggs during the final incubation and chick emergence stages. Temperature and Humidity Sensor: Monitors chamber environmental conditions for automatic control. Fan Coil Unit: Supports temperature regulation and stable internal airflow distribution. Humidifying Nozzle: Introduces controlled moisture into the chamber when required. Chamber Box: Houses important system components in an organized arrangement. High-Temperature Alarm: Alerts operators when chamber temperature exceeds the defined operating range. Control System: Coordinates environmental management according to the selected hatch program.
Working Principle	At the end of the setter period, fertile eggs are transferred from setter trays into hatch baskets. The baskets are placed on double-size trolleys and moved into the three-door hatching chamber. The environmental control system maintains suitable temperature and humidity while the fan coil arrangement circulates conditioned air through the chamber. Stable airflow is particularly important in a large hatcher because late-stage embryos generate substantial metabolic heat. Unlike the setter stage, eggs normally remain stationary in hatch baskets during final incubation. After chicks emerge and the hatch cycle is completed, the trolleys are removed for chick processing, while the baskets and chamber are prepared for cleaning and disinfection.
Technical Specifications	Product Type Three-door commercial poultry hatcher Hatcher Configuration 3-door type Hatch Trolleys 3 double-size trolleys Eggs per Basket 144 or 168 eggs depending on basket configuration Reference Capacity 12,960 or 15,120 eggs depending on basket configuration Reference Length 2,100 mm Reference Width 3,020 mm Reference Height 1,923 mm Power Supply Single-phase / three-phase, 100 / 200 / 220 V, 50 / 60 Hz Reference Electric Power 2,367 W Humidification Spray nozzle Humidifying Water Pressure 0.3-0.5 MPa Temperature / Humidity Monitoring Integrated sensor system High-Temperature Alarm Included in reference configuration
Applications	Commercial broiler hatcheries Layer chick hatcheries Poultry breeder hatcheries Integrated poultry production companies Large-scale chick production centers Poultry genetics and multiplication projects New commercial hatchery construction Existing hatchery expansion and modernization Turnkey poultry and agricultural equipment projects
Customization Options	Commercial hatching projects can be configured according to poultry species, weekly egg transfer volume, hatch basket arrangement, production schedule and available hatchery space. Available options may include basket configuration, trolley arrangement, controller functions, monitoring system, utility connections, alarm requirements and electrical specification. Complete hatchery layouts can be designed according to local climate and farm conditions, building dimensions, hatchery sanitation zoning and future production expansion requirements.
Installation & Maintenance	The hatcher should be installed on a stable and level hatchery floor with sufficient clearance for opening all three doors and moving double-size hatch trolleys safely. Before commissioning, confirm electrical supply, humidification water pressure, drainage, ventilation and service access. Utility connections should comply with the approved hatchery engineering design and applicable local requirements. Routine maintenance includes inspecting temperature and humidity sensors, fan coil components, humidifying nozzles, alarm devices, door seals, electrical connections and trolley wheels. After every hatch cycle, hatch baskets, trolleys and internal chamber surfaces should be thoroughly cleaned and disinfected according to the hatchery biosecurity program.
Project Cases	In commercial hatchery projects, three-door hatchers can be installed downstream of setter and egg-transfer areas. Double-size trolleys provide an efficient method of transporting large batches of hatch baskets between the transfer room, hatcher and chick handling area. For large poultry groups, multiple hatcher units can be arranged according to weekly setter schedules and hatch-day production requirements. Hatcher positioning can also be coordinated with clean and dirty traffic routes, drainage, ventilation systems and service corridors during hatchery building design.
Product FAQ	Q: What is the main advantage of the three-door configuration? A: The reference three-door design uses three double-size trolleys and is designed to provide stable airflow circulation inside the hatching chamber. Q: How many eggs can the hatcher hold? A: The reference configuration provides a capacity of approximately 12,960 eggs with 144-egg baskets or 15,120 eggs with 168-egg baskets. Q: How many hatch trolleys are used? A: The three-door reference configuration uses three double-size trolleys. Q: Does the hatcher require egg turning? A: Egg turning is generally discontinued after transfer to the hatcher because embryos have reached the final stage of incubation. Q: How is humidity controlled? A: The reference system uses spray-nozzle humidification, with specified operating water pressure of 0.3-0.5 MPa. Q: Does the system include temperature monitoring? A: Yes. The reference three-door configuration includes temperature and humidity sensing together with a high-temperature alarm. Q: What information is required for a project quotation? A: Recommended information includes poultry species, weekly transfer volume, preferred basket capacity, hatchery room dimensions, available electrical supply, water pressure and required automation level.
