High-Capacity Feed Line Drop Outlet

The High-Capacity Feed Line Drop Outlet is a large-discharge distribution component designed for automatic livestock feeding systems where rapid and complete transfer of dry feed from the main conveying line is required.

Installed directly beneath or around the conveying tube, the outlet creates a controlled discharge point that directs feed into a drop pipe, hopper, feeder, dispenser or secondary conveying line. The wide outlet opening helps reduce material bridging and supports complete discharge of the transported feed.

The product is suitable for chain conveying systems, cable feed systems and compatible flex-auger installations. Depending on the project, the outlet can be configured with manual, pneumatic or electric opening mechanisms for local or automatic feed distribution.

It is particularly suitable for commercial pig farms, poultry houses, livestock production complexes and integrated pig farm construction projects requiring reliable, high-volume feed transfer at selected points along the conveying route.

• Large Discharge Opening: Designed for high-capacity conveying lines where rapid and complete feed discharge is required.
• Complete Feed Drop: Wide internal passage helps reduce residual feed around the outlet and supports efficient material transfer.
• Multiple Operating Modes: Manual, pneumatic or electric opening configurations are available according to control requirements.
• Durable Mixed-Material Construction: High-quality engineering plastic and stainless steel components can be combined for strength, corrosion resistance and smooth operation.
• Dust and Moisture Protection: Suitable designs provide a well-sealed outlet body for demanding livestock-house environments.
• High-Capacity Conveyor Compatibility: Suitable for large-diameter feed conveying pipes used in commercial livestock projects.
• Remote Operation: Pneumatic or electric actuators can be integrated with feeding controllers for automatic opening and closing.
• Flexible Drop Connection: Can discharge into rigid or flexible drop pipes, hoppers, feeders or other compatible downstream equipment.
• Easy Maintenance: Simple sliding or gated discharge mechanisms provide convenient inspection and servicing.
• Project-Specific Configuration: Tube diameter, drop size, actuator type and mounting arrangement can be selected according to project requirements.

• Outlet Housing: Surrounds the feed-line discharge opening and directs material toward the drop connection.
• Large Feed Opening: Provides the main transfer passage between the conveying tube and the downstream drop pipe.
• Sliding Closer / Gate: Opens or closes the feed discharge path and helps control material flow.
• Stainless Steel Closing Plate: Available in suitable high-capacity models to improve sliding performance and durability.
• Manual Operating Mechanism: Allows direct local opening and closing where automation is not required.
• Pneumatic Actuator: Optional air-cylinder arrangement for automatic remote operation.
• Electric Actuator: Optional electrically powered opening device for integration with automated feed control systems.
• Limit / Micro Switches: Available with suitable electric versions to confirm gate position and improve control reliability.
• Drop Pipe Connection: Connects the outlet to downstream feeders, storage hoppers or secondary feed distribution equipment.

Dry feed moves through the main conveying tube by chain, cable-disc or compatible auger transport. When the selected drop outlet is opened, the feed passes through the large discharge aperture and falls by gravity into the connected drop pipe or receiving hopper.

The closing plate or sliding gate controls whether feed remains in the main conveying line or exits at the selected location. The large opening is designed to support complete discharge and reduce material retention in high-throughput systems.

In pneumatic versions, compressed air moves the actuator to open or close the outlet. Electric versions use a powered actuator and can incorporate position switches for automatic control feedback.

When connected to a feed controller, individual outlets can be operated according to feeding schedules, livestock groups or feed routing requirements.

• Commercial pig farm feeding systems
• Sow, nursery and finishing pig houses
• Poultry feeding and feed distribution lines
• Chain-disc automatic feed conveying systems
• Cable-disc feed transport systems
• Flex-auger feed distribution systems
• Feed transfer to intermediate hoppers
• Feed transfer to volumetric dispensers
• New pig farm construction projects
• Livestock farm automation upgrades
• Steel structure livestock buildings
• Feed mill and bulk material distribution projects

• Conveying pipe diameter
• Outlet opening size
• Manual, pneumatic or electric actuation
• Stainless steel closing plate configuration
• Drop pipe diameter and connection type
• Feed hopper or dispenser interface
• Position switches for electric models
• Pneumatic valve and cylinder configuration
• Remote-control arrangement
• Material selection according to farm environment
• OEM configuration available upon request
• Designed according to local climate and farm conditions

Outlet Position: Select the drop location according to feeder layout, required discharge capacity and feed-line routing before cutting or preparing the conveying tube.

Pipe Interface: The outlet should be correctly matched to the conveying tube diameter and securely fixed to prevent feed leakage or movement during operation.

Drop Alignment: The downstream drop pipe should be vertically or suitably aligned to maintain free gravity flow and minimize feed bridging.

Pneumatic Installation: Pneumatic models require a suitable compressed-air supply, tubing and control valve arrangement according to the automation design.

Electrical Installation: Electric actuators and switches should be wired according to the selected controller and local electrical requirements.

Routine Maintenance: Periodically inspect the sliding closer, actuator, stainless steel surfaces, fasteners and seals. Remove accumulated feed or dust that could restrict full opening or closing.

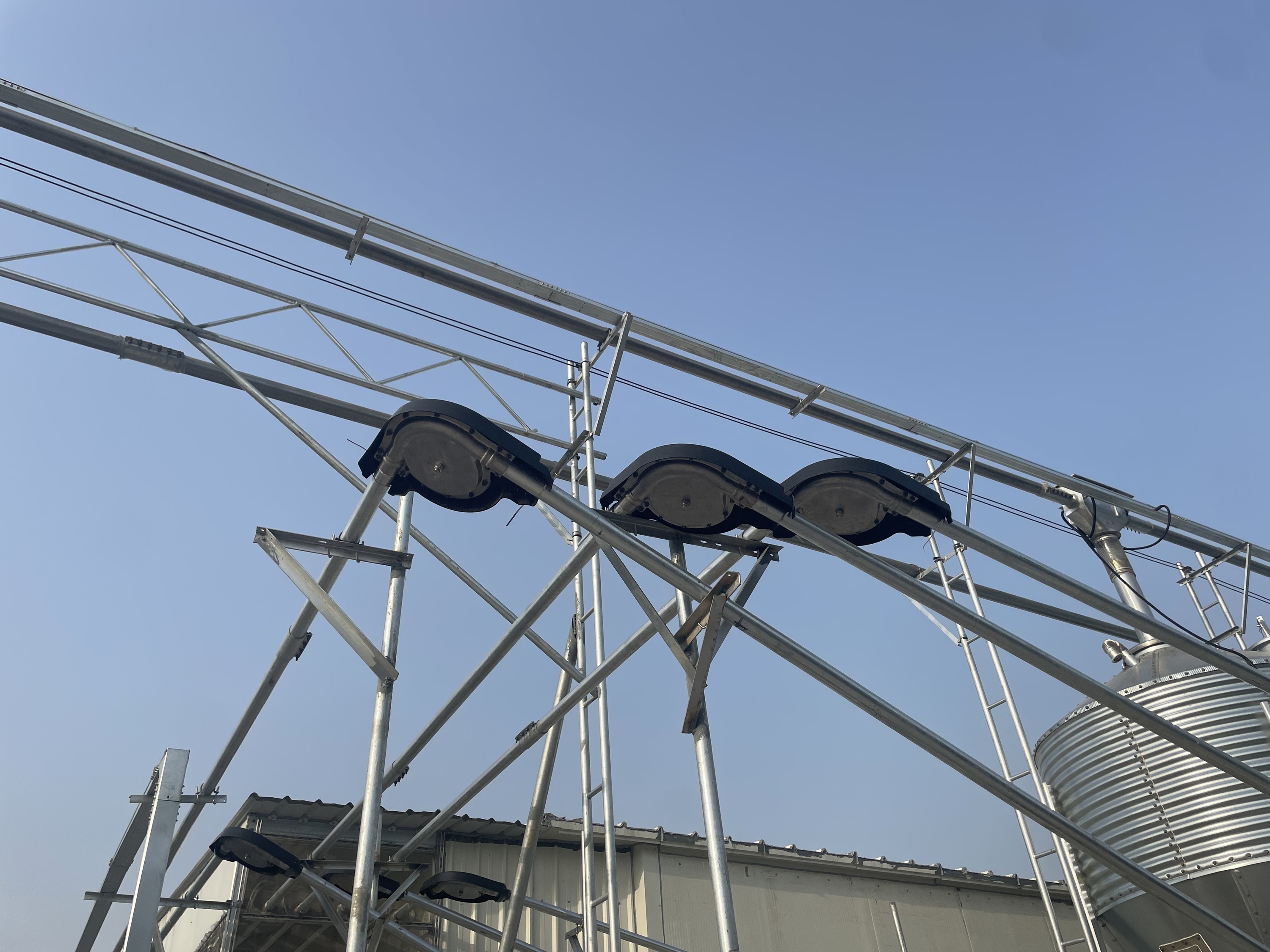

In large commercial livestock projects, high-capacity drop outlets can be positioned along the main feed conveyor to transfer material into separate barns, intermediate hoppers or feeding zones.

Pneumatic or electric versions are suitable for centralized automatic feeding where individual discharge points must open and close according to programmed feed distribution schedules.

Final outlet selection should consider conveying pipe diameter, feed characteristics, required discharge rate, downstream equipment, actuator preference and available control infrastructure.

Q: What is a high-capacity feed line drop outlet?

A: It is a large-discharge fitting installed on a livestock feed conveying line to transfer feed from the main pipe into a drop pipe, hopper, dispenser or feeder.

Q: Which conveying systems can use this outlet?

A: Suitable versions can be used with chain, cable-disc and compatible flex-auger feed transport systems.

Q: What pipe sizes are available?

A: High-capacity reference models are available for conveying tubes of approximately 102 mm, 114 mm and 125 mm. Other sizes can be selected according to project requirements.

Q: Can the outlet be opened automatically?

A: Yes. Pneumatic and electric actuator options can be integrated with automatic feeding controllers.

Q: Why is a large outlet opening important?

A: A larger opening improves discharge capacity and helps reduce residual feed or bridging when transferring bulk feed from large conveying lines.

Q: Is the product suitable for pellets and meal feed?

A: Yes. It can be configured for common dry livestock feed including pellets, crumbles, meal and compatible granular materials.

Q: Can the outlet be installed in existing feed systems?

A: Retrofit installation is possible when the conveying pipe dimensions, structural clearance and downstream equipment are compatible.

Q: What information is required for a quotation?

A: Please provide conveying system type, pipe diameter, feed type, required discharge points, drop pipe size, preferred manual or automatic operation and details of the existing control system.
