Stainless Steel Chain Disc Corner Wheel

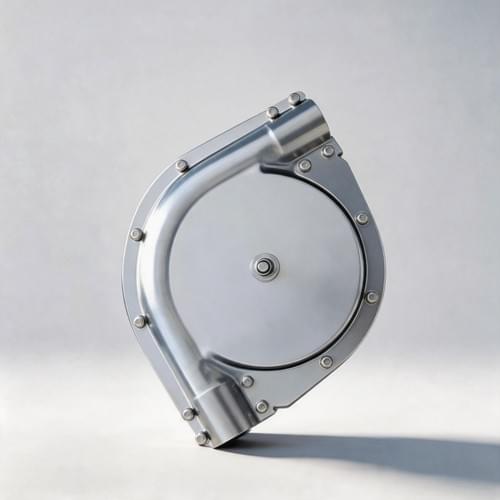

The Stainless Steel Chain Disc Corner Wheel is a directional component used in automatic chain disc feeding systems for commercial pig farms and other livestock facilities. It is installed where the conveying pipe changes direction and guides the moving chain and discs smoothly through the corner.

The stainless steel housing provides good corrosion resistance and durability in dusty, humid and demanding livestock environments. A freely rotating internal wheel supports the chain as it passes around the bend, helping reduce friction, chain tension and unnecessary wear on the conveying system.

The component is suitable for new pig farm construction, livestock equipment upgrades and steel structure building projects. Corner angle, pipe connection size, housing design and internal wheel configuration can be selected according to the feed-line layout and project requirements.

• Stainless Steel Construction: Provides strong resistance to corrosion, moisture and routine washing in livestock production environments.
• Smooth Direction Change: Guides the chain disc assembly through bends while maintaining stable chain movement.
• Reduced Friction: The rotating corner wheel helps reduce sliding resistance compared with unsupported directional changes.
• Lower Chain Tension: Proper wheel support can reduce unnecessary tension in long or complex feed-line circuits.
• Improved Wear Resistance: Correct chain guidance helps reduce wear on chain links, discs and pipe connections.
• Sealed Housing: Enclosed construction helps keep feed inside the conveying circuit and limits external contamination.
• Quick Maintenance Access: Suitable housing designs allow the cover to be removed for inspection, cleaning and wheel replacement.
• Multiple Angle Options: 90-degree, 135-degree or other directional configurations can be supplied according to project requirements.
• Flexible System Integration: Compatible with chain disc pipes, drive units, feed drops, dispensers and automatic feeding controllers.

• Stainless Steel Housing: Forms the enclosed directional feed path and protects the internal wheel assembly.
• Corner Wheel / Pulley: Rotates freely and supports the chain disc assembly as it changes direction.
• Central Shaft: Supports the wheel and maintains correct alignment during operation.
• Bearings: Allow low-resistance wheel rotation and improve operational stability.
• Pipe Connection Ports: Connect the corner to straight feed-conveying pipes.
• Housing Cover: Provides access for inspection, cleaning and maintenance.
• Fasteners: Secure the housing and cover while allowing maintenance access.
• Sealing Components: Help reduce feed leakage, moisture entry and contamination around the housing joint.

As the drive unit pulls the chain and carrier discs through the feed pipe, the chain enters the corner housing and engages with the internal wheel.

The wheel rotates with the moving chain and changes the direction of travel while supporting the chain around the bend. This controlled guidance helps maintain smoother movement and reduces the friction that would otherwise occur if the chain were forced directly against the corner housing.

After passing through the corner, the chain disc assembly continues into the next straight pipe section and transports feed toward downstream dispensers, hoppers or feeding points.

• Commercial pig farm chain disc feeding systems
• Sow gestation and breeding houses
• Farrowing houses
• Piglet nursery facilities
• Growing and finishing pig houses
• Multi-barn livestock feed distribution lines
• Horizontal feed-line direction changes
• Vertical feed-line transitions
• New pig farm construction
• Existing livestock feeding system upgrades
• Steel structure livestock buildings
• Automatic feed conveying and distribution projects

• Corner angle
• Feed pipe diameter
• Housing thickness and structure
• Stainless steel grade according to project requirements
• Internal wheel diameter
• Bearing configuration
• Pipe connection design
• Quick-release or bolted housing cover
• Sealing arrangement
• Horizontal or vertical installation
• OEM dimensions available upon request
• Designed according to complete chain disc feeding system requirements

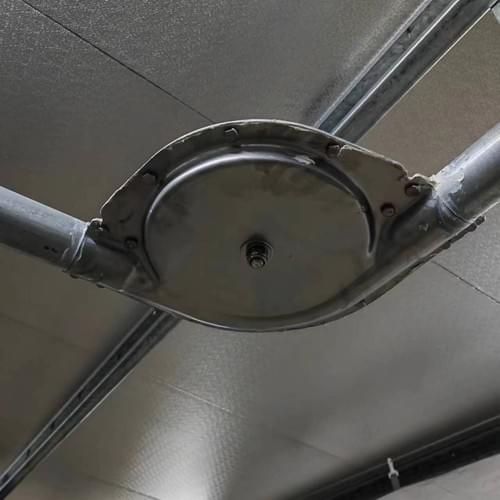

Corner Position: Install the corner wheel at each required directional change in the chain disc conveying circuit according to the approved feed-line drawing.

Pipe Alignment: Straight pipe sections entering and leaving the corner should be correctly aligned to avoid additional side loading, chain friction and premature wear.

Structural Support: The corner housing should be securely supported by suitable brackets or the livestock building structure. Unsupported weight from long pipe sections should not be transferred directly to the corner housing.

Chain Tension: Chain tension should be checked after corner installation because each directional change contributes resistance to the complete conveying circuit.

Wheel Inspection: Check that the internal wheel rotates freely before system commissioning and during scheduled maintenance.

Bearing Maintenance: Inspect bearings for abnormal noise, resistance or excessive play and replace damaged components when necessary.

Cleaning: Periodically open the housing and remove accumulated feed, dust or foreign materials that could interfere with free wheel rotation.

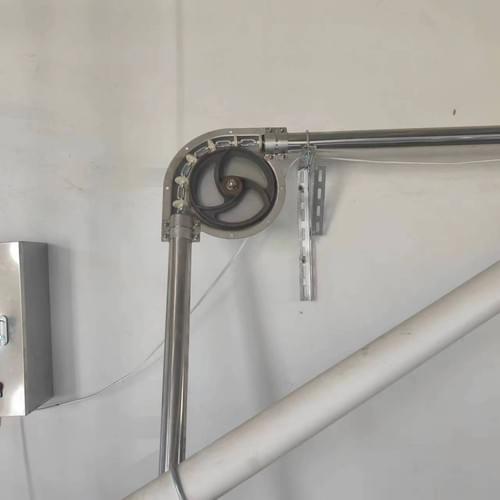

In a typical commercial pig farm, multiple corner wheels are installed between straight conveying pipes to route the chain disc feed line around barn walls, structural columns, livestock pens or elevation changes.

Corner units allow the feeding circuit to follow the actual pig house layout instead of requiring a completely straight route. This makes chain disc feeding particularly suitable for complex pig farm construction and modernization projects.

The total number and angle of corners should be considered when selecting drive power, chain length and tensioning equipment because additional directional changes increase overall conveying resistance.

Q: What is the main purpose of a chain disc corner wheel?

A: It guides the moving chain and carrier discs through a directional change in the feed-line circuit while helping reduce friction and chain resistance.

Q: Why use stainless steel for the housing?

A: Stainless steel provides good corrosion resistance, mechanical strength and durability in humid and dusty livestock-farm environments.

Q: What corner angles are available?

A: 90-degree and 135-degree corner units are commonly used, while other angles or special configurations can be supplied according to project requirements.

Q: Does the internal wheel reduce chain wear?

A: Yes. A freely rotating wheel supports and redirects the chain more smoothly, helping reduce unnecessary friction, chain tension and component wear.

Q: Can the corner be installed vertically?

A: Suitable corner units can be installed in horizontal or vertical directional changes according to the complete feed-line design and supporting structure.

Q: How many corners can be used in one feeding line?

A: The allowable number depends on chain length, drive capacity, conveying speed, feed characteristics and system design. Additional corners increase overall system resistance and should be considered during engineering.

Q: Is the housing easy to maintain?

A: Yes. Suitable models use removable or quick-access covers so the wheel, bearings and internal feed path can be inspected and cleaned.

Q: What information is required for a quotation?

A: Please provide the required corner angle, conveying pipe diameter, chain disc dimensions, installation orientation, quantity and details of the existing or planned feeding system.
