Chain Disc Feed Line Drive Unit

The Chain Disc Feed Line Drive Unit is the main power and traction assembly for enclosed chain disc feed conveying systems used in commercial pig farms and other livestock production facilities. It drives the endless chain and carrier discs through the feed transport pipe circuit, providing stable movement of dry feed from storage or intake points to dispensers, hoppers and feeders.

A typical unit combines an electric motor, reduction gearbox, drive wheel, chain guide mechanism, tensioning components and protective housing. The assembly is engineered to maintain controlled chain movement under continuous agricultural operating conditions while helping reduce excessive chain slip, vibration and mechanical wear.

Drive unit capacity and configuration can be selected according to total circuit length, pipe diameter, number of corners, conveying capacity, feed characteristics and barn layout. The unit is suitable for new pig farm construction, existing feeding system upgrades and complete livestock equipment projects.

• Reliable Chain Traction: Designed to pull the chain and carrier discs smoothly through enclosed feed transport circuits.
• Geared Motor Drive: Motor and reduction gearbox provide the torque required for long feed circuits and multiple direction changes.
• Automatic or Adjustable Chain Tension: Suitable tensioning arrangements help compensate for normal chain elongation and maintain stable engagement with the drive mechanism.
• Overload Protection: Compatible electrical protection can stop the drive under abnormal operating loads to help protect the motor, chain and conveyor components.
• Heavy-Duty Housing: Protective enclosure shields moving transmission components and supports safer operation in livestock buildings.
• Compact Installation: The integrated design can be suspended or structurally supported as part of the feed pipe circuit.
• System Compatibility: Suitable for integration with chain-disc tubes, corner wheels, feed intake units, outlets, level sensors and automatic controllers.
• Commercial Farm Durability: Components can be selected for dusty, humid and corrosive livestock production environments.
• Project-Specific Configuration: Motor power, operating speed, voltage, housing material and control functions are customizable according to project requirements.

• Electric Motor: Supplies mechanical power to the feed conveying system.
• Reduction Gearbox: Converts motor speed into suitable torque and operating speed for the chain-disc circuit.
• Drive Wheel / Sprocket: Engages the chain assembly and transfers driving force into the conveyor circuit.
• Chain Guide Assembly: Maintains correct chain positioning as the chain enters and leaves the drive section.
• Tensioning Mechanism: Maintains controlled chain tension and compensates for normal service elongation.
• Drive Housing: Encloses rotating and moving components while providing structural support.
• Inspection Cover: Provides service access for inspection, cleaning and maintenance.
• Safety Switches: Optional limit, cover or overload protection devices can be incorporated according to control requirements.
• Pipe Connections: Connect the drive unit with the incoming and outgoing conveying tubes.
• Mounting / Suspension Assembly: Supports installation from steel roof structures, dedicated brackets or other engineered support points.

When the feeding controller starts the conveying cycle, the electric motor transfers power through the reduction gearbox to the drive wheel. The drive mechanism engages the chain and pulls the chain-disc assembly continuously through the enclosed transport tubes.

Carrier discs attached to the chain move dry feed through the pipe circuit toward the required outlets. Corner wheel assemblies guide the chain through horizontal and vertical direction changes, while the drive unit maintains the traction required to overcome circuit resistance.

The chain tensioning mechanism maintains proper engagement between the chain and drive components as operating conditions change. In an automated system, level sensors or feeding controllers start and stop the drive according to feed demand at downstream dispensers or feeders.

Motor overload protection and safety switches can be incorporated to stop operation if excessive resistance, blockage or another abnormal condition occurs.

• Commercial pig farm automatic feeding systems
• Sow gestation and breeding houses
• Farrowing house feed distribution
• Piglet nursery facilities
• Growing and finishing pig houses
• Multi-barn livestock production complexes
• Dry feed conveying from feed silos to livestock houses
• Volumetric dispenser filling systems
• Automatic feeder supply circuits
• New pig farm construction projects
• Existing feed line modernization projects
• Steel structure livestock building projects

• Motor power and gearbox ratio
• 50 Hz or 60 Hz electrical configuration
• Local voltage configuration
• Drive speed according to feed conveying requirements
• Compatible pipe and chain-disc dimensions
• Galvanized or stainless steel housing
• Chain tensioning configuration
• Motor overload protection
• Safety switch configuration
• Suspension or steel support brackets
• Local manual or automatic controller
• Integration with feed level sensors
• Connection with centralized farm control systems
• OEM configuration available upon request
• Designed according to local climate and farm conditions

Drive Location: Install the unit at the engineered position in the chain-disc circuit where adequate structural support, service access and electrical connection are available.

Structural Support: Suspension chains, brackets or support frames should be securely fixed to suitable load-bearing members of the livestock house steel structure. The feed pipes and drive unit should not impose uncontrolled loads on lightweight building components.

Pipe Alignment: Incoming and outgoing tubes must align correctly with the drive unit to reduce friction and abnormal chain loading.

Chain Tension: Set the initial chain tension according to the system configuration. Correct tension is important for reliable drive-wheel engagement and smooth circuit operation.

Electrical Commissioning: Confirm motor rotation, overload protection, emergency-stop functions, safety switches and automatic controller logic before loading the system with feed.

Routine Inspection: Periodically check the chain, drive wheel, tensioning mechanism, gearbox, motor, electrical wiring and pipe connections for wear or abnormal operation.

Cleaning: Remove accumulated feed and dust from service areas as required. Electrical components should be protected from water and unsuitable corrosive cleaning agents during barn cleaning.

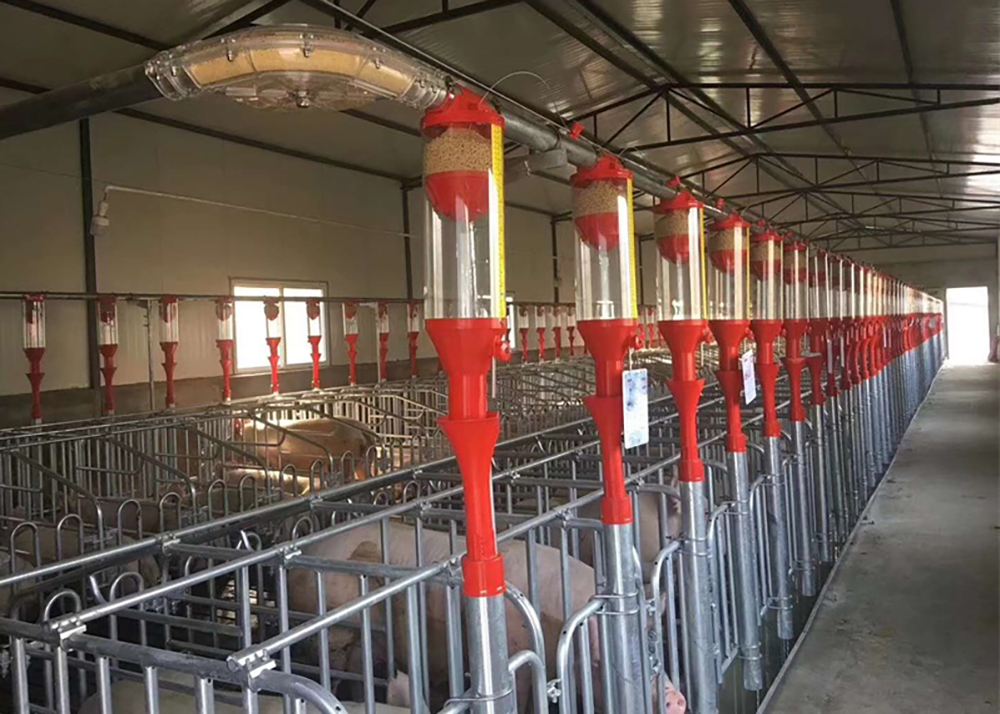

For compact sow or farrowing houses, a correctly sized drive unit can operate a dedicated chain-disc circuit supplying individual feed dispensers. Larger commercial pig farms can use higher-capacity drive configurations for longer circuits with more feeding points and multiple corner assemblies.

Where a feed distribution route extends across several livestock buildings, drive selection should consider total circuit resistance, conveying distance, elevation changes, feed density and the number of corners rather than motor power alone.

SHEWUYOU can configure the drive unit together with feed pipes, chain discs, corner wheels, silo intake components, outlets, sensors and control equipment as part of a complete pig farm feed distribution project.

Q: What is the function of a chain disc feed line drive unit?

A: The unit supplies the mechanical power needed to pull the chain and carrier discs through the enclosed feed transport circuit, allowing dry feed to move between intake and discharge points.

Q: How should the correct drive unit be selected?

A: Selection should consider required feed throughput, circuit length, pipe diameter, number of corners, elevation changes, feed characteristics and expected operating time.

Q: Can one drive unit operate a long feed circuit?

A: Yes, provided the total circuit is within the operating limits of the selected drive configuration. Longer or higher-resistance systems require specific engineering assessment.

Q: Does the drive unit include chain tension adjustment?

A: Suitable designs include an adjustable or self-compensating tensioning mechanism to maintain proper chain engagement during operation.

Q: Can overload protection be included?

A: Yes. Motor overload protection, current monitoring and safety interlocks can be configured according to the electrical control system and project requirements.

Q: Is stainless steel available?

A: Stainless steel housings or corrosion-resistant configurations are available upon request for demanding livestock environments.

Q: Can the unit be used for an existing pig farm feed line?

A: Retrofit applications are possible when the existing chain, disc, pipe and circuit dimensions are compatible with the selected drive unit.

Q: What information is required for a quotation?

A: Please provide feed type, required conveying capacity, pipe diameter, approximate circuit length, number of corners, number of feeding points, electrical supply, livestock house drawings and details of the existing system if the project is a retrofit.
