| Product Name |

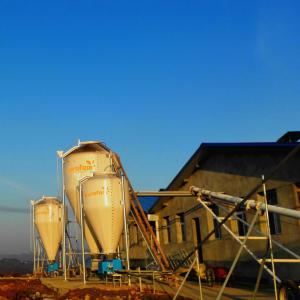

Fiberglass Feed Silo |
| Product Image |
 |
| Product Overview |
The Fiberglass Feed Silo is designed for outdoor bulk storage of compound feed, grain and compatible dry feed materials on commercial livestock and poultry farms.
The silo body is manufactured from fiberglass reinforced plastic for excellent corrosion resistance, weather resistance and low maintenance requirements. Its smooth inner surface and optimized hopper angle promote reliable feed flow, while the translucent structure or feed-level viewing area allows operators to check the remaining feed conveniently.
The silo can be connected directly to auger, flexible spiral or chain-disc feeding systems for automated feed delivery from bulk storage to livestock houses. |
| Product Gallery |
- FRP silo body with galvanized steel support frame
- Weather-resistant outdoor feed storage installation
- Conical hopper for smooth gravity discharge
- Feed outlet connected to automatic conveying equipment
- Access ladder and top filling arrangement
- Multiple capacities for different farm sizes
|
| Key Features |
- Corrosion Resistant: FRP construction does not rust and performs well in outdoor farm environments.
- Easy Feed-Level Check: Translucent sections allow convenient visual monitoring of stored feed.
- Smooth Discharge: Optimized hopper geometry and smooth internal surfaces help prevent feed bridging.
- Weather Protection: Enclosed silo construction protects feed from rain and external contamination.
- Automatic Feeding Ready: Compatible with common auger and automatic feed conveying systems.
- Flexible Capacity: Different silo sizes and accessories can be customized for individual farm projects.
|
| Working Principle |
Bulk feed is loaded into the silo from the top through pneumatic filling equipment or an auger conveying system. The enclosed FRP body stores and protects the feed until it is required by the farm feeding system.
Feed moves downward by gravity through the conical hopper toward the bottom outlet. From there, an auger, flexible spiral or other conveying system transfers the feed automatically to livestock or poultry houses.
The smooth inner wall and optimized discharge angle help maintain continuous feed flow and reduce material accumulation inside the silo. |
| Technical Specifications |
| Product Type |
Fiberglass reinforced plastic feed silo |
| Silo Material |
Fiberglass reinforced plastic (FRP) |
| Support Structure |
Galvanized steel frame and legs |
| Typical Capacity Range |
Approx. 2.5-10.5 tons |
| Typical Volume Range |
Approx. 4.5-19 m³ |
| Typical Diameter |
Approx. 2.0 m / 2.4 m |
| Feed Loading |
Pneumatic filling or auger loading |
| Feed Discharge |
Gravity discharge to automatic conveying system |
| Feed-Level Inspection |
Visual level checking through translucent FRP body or viewing area |
| Outlet Operation |
Mechanical rod, pulley rope or customized mechanism |
| Conveying Compatibility |
Auger, flexible spiral and compatible automatic feed systems |
| Optional Accessories |
Ladder, feed-level sensor, weighing system, filling pipe and discharge accessories |
Capacity, dimensions, support structure, outlet configuration and conveying equipment can be customized according to feed density, farm capacity and project layout.
|
| Applications |
- Commercial pig farms
- Layer and broiler poultry farms
- Breeder poultry farms
- Cattle and livestock feeding projects
- Automatic feed storage and conveying systems
- Feed mills and farm feed distribution points
|
| Installation & Maintenance |
- Prepare a level concrete foundation according to silo capacity and structural requirements.
- Secure all support legs and anchor bolts before filling the silo.
- Check body joints, seals, filling pipes and discharge connections after installation.
- Keep the silo cover closed to prevent rainwater and contamination from entering.
- Inspect the support frame, ladder, fasteners and outlet mechanism regularly.
- Empty and clean the silo periodically to prevent old feed accumulation.
|
| Product FAQ |
What is the advantage of an FRP feed silo?
FRP is corrosion resistant, weather resistant and has relatively low thermal conductivity, making it suitable for outdoor feed storage on livestock farms.
Can the feed level be checked from outside?
Yes. The translucent FRP structure or dedicated viewing area allows operators to check the approximate feed level without opening the silo.
Can the silo connect to an automatic feeding system?
Yes. The bottom outlet can be connected to auger, flexible spiral or other compatible feed conveying equipment.
Can the silo capacity be customized?
Yes. Capacity, diameter, height, outlet configuration and support structure can be selected according to farm requirements.
What information is required for a quotation?
Please provide required storage capacity, feed type, daily feed consumption, farm type, conveying method, installation location and required accessories.
|
