Farrowing Pen Accessories

Farrowing Pen Accessories include the functional components used to complete, upgrade or maintain sow farrowing crates, variable-restraint pens and loose-farrowing systems in commercial pig farms.

A complete farrowing station requires more than the main pen structure. Feeding equipment, drinking systems, piglet nests, heating plates, heat lamps, creep barriers, flooring components, protection rails, gates, brackets and fixing hardware work together to create separate functional areas for the sow and newborn piglets.

Accessory configurations can be selected according to farrowing-pen dimensions, sow genetics, litter size, flooring system, manure-pit design, feeding method, local climate and farm management requirements. Components are suitable for both new pig farm construction and renovation of existing farrowing houses.

• Complete Accessory Range: Components can cover feeding, drinking, heating, flooring, piglet protection, handling and pen installation requirements.
• Modular Configuration: Accessories can be selected individually or supplied as part of a complete farrowing-pen package.
• Sow & Piglet Zoning: Separate equipment can be used to meet the different feeding, thermal and resting requirements of the sow and litter.
• Piglet Microclimate: Piglet nests, heating plates and heat lamps help create a localized warm resting area without overheating the sow zone.
• Efficient Feeding: Sow troughs, feed dispensers and automatic feeding components can support controlled lactation feeding programs.
• Reliable Water Supply: Nipple drinkers, drinking bowls and water-line accessories can provide convenient access to clean drinking water.
• Piglet Protection: Creep barriers, anti-crush components and protected resting areas help separate piglets from critical sow movement zones.
• Corrosion-Resistant Materials: Stainless steel, galvanized steel, livestock-grade polymers and composite materials are available according to application.
• Easy Cleaning: Smooth surfaces, removable components and open-access designs facilitate washing and disinfection between farrowing batches.
• Fast Replacement: Modular spare parts simplify maintenance and replacement of worn components without rebuilding the complete pen.
• New-Build & Retrofit Use: Suitable for new commercial pig houses and modernization of existing farrowing facilities.
• Project Customization: Dimensions, materials and mounting arrangements can be adapted to different farrowing systems.

Farrowing-pen accessories create functional zones around the main sow housing structure. The sow area is arranged for feeding, drinking, controlled movement and convenient management, while the piglet area is configured for warmth, protection, supplementary feeding and safe resting.

Piglet nests and heating equipment create a localized microclimate because newborn piglets require substantially more warmth than the sow. Heating only the creep area allows the room temperature to remain more suitable for the lactating sow.

Sow feeders and drinking components are normally positioned for easy access from the sow area and service aisle. Automatic feed dispensers can be connected to centralized feed lines where required.

Slatted flooring, floor supports and manure openings allow manure and wash water to move into the pit below. Gates, barriers and protection rails provide controlled access while maintaining safe separation between animal and personnel working zones.

• Traditional sow farrowing crates
• Variable-restraint farrowing pens
• Free-farrowing and loose-sow pens
• Commercial farrowing houses
• Piglet creep and nest areas
• Sow feeding and drinking stations
• New commercial breeding farms
• Nucleus and multiplier sow farms
• Large-scale integrated pig production facilities
• Prefabricated steel structure pig houses
• Existing farrowing-house renovation
• Replacement and maintenance projects
• Turnkey livestock engineering projects

Accessory packages can be selected according to the farrowing system, sow genetics, litter size, barn layout, feeding program, flooring system and climate requirements.

• Sow trough material and dimensions
• Fixed or tilting trough configuration
• Manual or automatic feeding
• Feed dispenser capacity and control method
• Sow and piglet drinking equipment
• Piglet nest dimensions
• Left-hand or right-hand piglet nest arrangement
• Piglet creep barrier configuration
• Electric heating plates
• Hot-water heating plates
• Heat lamps and lamp holders
• Heating controllers
• Piglet supplementary feeders
• Milk-feeding equipment

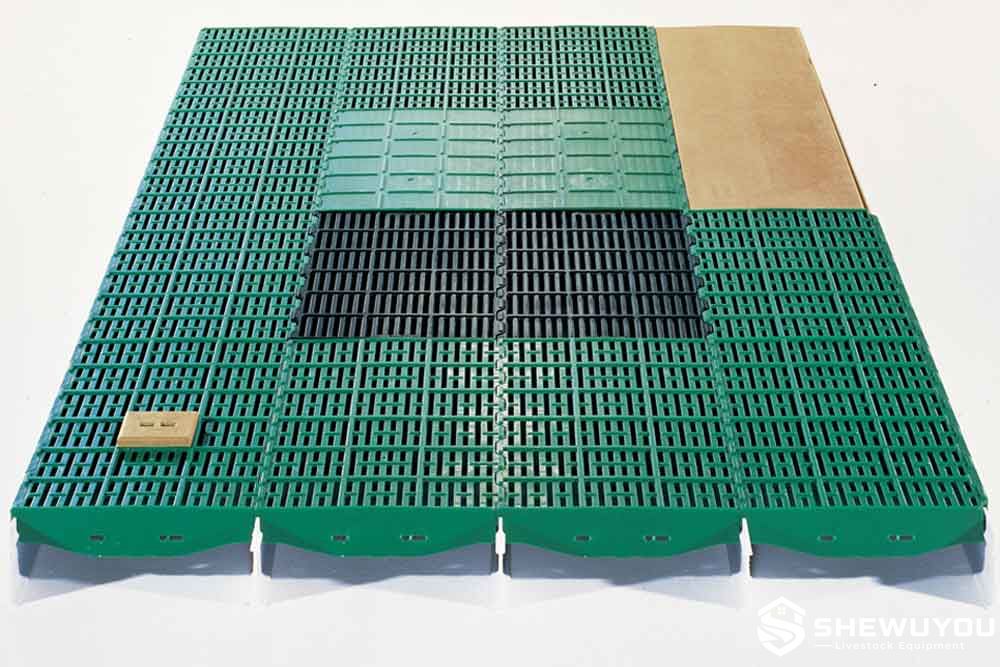

• Plastic and cast iron flooring components
• Rear gates and locking components
• Anti-crush rails and protection bars
• Brackets, clamps and installation hardware

Installation Process:

1. Confirm the farrowing-pen model, dimensions, flooring layout and accessory requirements.
2. Check mounting points on the crate frame, partitions, flooring and building structure.
3. Install the sow trough, feed dispenser and feed-line components according to the feeding layout.
4. Install water pipes, sow drinkers and piglet drinking equipment at suitable operating positions.
5. Position the piglet nest and creep barrier according to the pen layout.
6. Install heating plates, heat lamps and temperature-control equipment where required.
7. Fit gates, protection rails, brackets and adjustment components.
8. Install flooring accessories and verify that manure-drainage openings remain unobstructed.
9. Check all fasteners, electrical connections, water connections and moving components.
10. Complete operational and safety checks before animals enter the pen.

Maintenance Recommendations:

• Wash and disinfect accessories between farrowing batches.
• Inspect feeders, drinkers and water connections for leakage or blockage.
• Check heat lamps, electrical cables and heating plates before each production cycle.
• Inspect piglet nests and barriers for cracks, damage or loose components.
• Check gates, hinges, handles and locking mechanisms for smooth operation.
• Inspect galvanized and stainless steel components for abnormal damage or corrosion.
• Retighten loose brackets, bolts, clamps and floor fixings when required.
• Replace worn or damaged accessories before continued livestock use.

Q1: What accessories are normally required for a farrowing pen?
Common components include a sow feeder, drinking equipment, piglet nest, heating plate or heat lamp, creep barrier, flooring components, protection rails, gates and installation hardware.

Q2: Can accessories be purchased separately?
Yes. Individual spare parts or complete accessory packages can be supplied according to project requirements.

Q3: Why is a separate piglet nest important?
Newborn piglets require a warmer environment than the sow. A covered or protected nest helps create a localized microclimate for resting without increasing the temperature of the entire farrowing house.

Q4: Can heating plates and heat lamps be used together?
Yes. A combined heating system can be used where required, with the final configuration selected according to climate, barn temperature and farm management strategy.

Q5: Are electric and hot-water heating plates available?
Yes. Both heating methods are commonly used in commercial farrowing systems and can be selected according to the farm's energy infrastructure.

Q6: Can automatic sow feeding equipment be installed?
Yes. Feed dispensers and automatic dry feeding lines can be integrated with compatible farrowing pens.

Q7: Can the accessories fit existing farrowing crates?
Many components can be adapted for renovation projects after confirming the existing crate dimensions, mounting points and floor layout.

Q8: Are accessories available for loose-farrowing systems?
Yes. Piglet nests, heating systems, feeders, drinkers, barriers and other components can be configured for conventional, variable-restraint and loose-sow pens.

Q9: What materials are recommended for commercial pig farms?
Galvanized steel, stainless steel, livestock-grade polymers and corrosion-resistant composite materials are commonly selected according to the component and operating environment.

Q10: What information is required for a quotation?
Please provide the accessory list, required quantity, farrowing-pen type, pen dimensions, sow size, flooring system, feeding method, heating requirements, project country and available photos or drawings of the existing installation.
