Boar Pen System

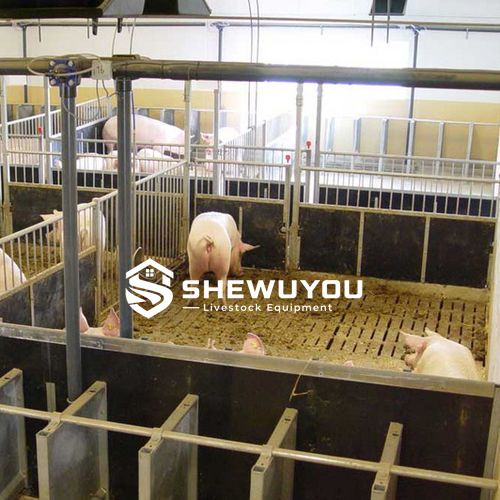

The Boar Isolation Pen is a heavy-duty livestock penning system designed for the individual housing, controlled separation and safe management of breeding boars in commercial pig farms. It can be installed in mating units, breeding areas, boar holding sections and controlled animal-handling zones.

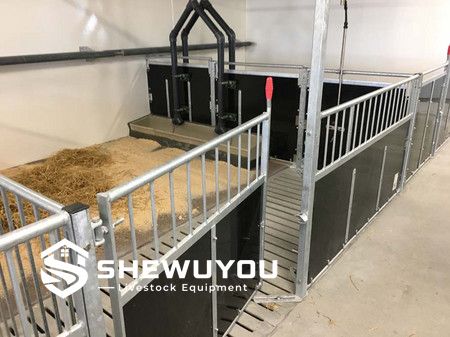

The system combines strong galvanized steel posts and rails with solid livestock-grade partition panels to create a stable enclosure capable of handling the higher mechanical loads generated by mature boars. Solid lower partitions can reduce direct contact between neighboring animals, while open upper sections can maintain visibility and airflow where required.

Pen dimensions, partition materials, gate configurations, flooring interfaces and feeding or drinking equipment can be customized according to boar size, breeding-house layout, animal movement routes and project requirements. The modular construction is suitable for both new pig-house construction and renovation of existing breeding facilities.

• Heavy-Duty Construction: Reinforced steel posts, rails and structural connections are designed for the demanding loads associated with mature breeding boars.
• Secure Individual Housing: Creates a defined enclosure for controlled housing and separation of individual boars.
• Flexible Partition Materials: PVC board profiles, impact-resistant fiber panels, solid steel panels or combined configurations are available according to project requirements.
• Corrosion Resistance: Hot-dip galvanized and stainless steel components support long service life in humid livestock-house environments.
• Improved Hygiene: Smooth solid surfaces and well-designed profile connections help reduce dirt accumulation and simplify washing and disinfection.
• Safe Animal Handling: Strong gates and practical locking systems allow controlled entry, exit and movement of boars.
• Clear Staff Overview: Open-bar sections can provide good visibility for inspection without requiring staff to enter the pen.
• Flexible Barn Layout: Modular components can be configured around breeding stalls, service aisles, boar passages and existing structural columns.
• Flooring Compatibility: Suitable for concrete, partially slatted and other project-specific pig-house flooring systems.
• Commercial Breeding Application: Suitable for breeding farms, genetic farms, sow units and integrated commercial pig production projects.

• Main Support Posts: Heavy-duty galvanized steel posts anchored to the prepared floor structure.
• Partition Panels: PVC board profiles, impact-resistant fiber panels, steel plates or other livestock-grade solid materials.
• Upper Rail Structure: Horizontal or vertical galvanized steel pipes can be incorporated above solid partition sections.
• U-Profiles: Stainless steel profiles support panel edges and help create durable, hygienic connections.
• Lower Reinforcement: Reinforced lower steel profiles provide additional resistance against animal pressure.
• Boar Gate: Heavy-duty hinged gate designed for secure animal movement and controlled access.
• Gate Lock: Pin-lock, twist-lock or customized locking system available according to project requirements.
• Foot Plates: Structural base plates secure posts and gates to concrete or other suitable floor structures.
• Fasteners: Corrosion-resistant bolts, screws and brackets for reliable long-term assembly.
• Optional Equipment: Feed troughs, drinking bowls, nipple drinkers and enrichment equipment can be incorporated upon request.

The Boar Isolation Pen forms a structurally reinforced enclosure around an individual animal. Pressure from the boar is transferred through the partition panels and galvanized rails into vertical posts, foot plates and the building floor structure.

Solid lower sections provide physical separation between neighboring animals and can reduce unwanted contact, while upper rail sections may be used where visibility, ventilation or controlled animal interaction is required.

A reinforced access gate provides a controlled route for moving the boar between the isolation pen, mating area and service passage. Depending on the farm workflow, gates can be positioned to support direct transfer while reducing unnecessary contact between staff and animals.

Modular construction allows individual sections, gates or panels to be replaced or reconfigured without rebuilding the complete pen line, making the system suitable for long-term commercial farm use.

• Product Type: Individual boar housing and separation pen
• Typical Equipment Height: Approximately 1100 mm for comparable heavy-duty sow and boar penning configurations
• Pen Length: Customizable
• Pen Width: Customizable
• Support Posts: 50 × 50 mm galvanized posts available for comparable configurations
• Galvanized Rail Option: Approximately 33.7 × 2.65 mm according to comparable penning configuration
• PVC Board Profiles: 35 mm or 40 mm options available
• Fiber Panel: 10 mm impact-resistant panel option available
• Steel Panel: Heavy-duty steel plate option available according to project requirements
• Stainless Steel U-Profile: Approximately 1.5 mm in comparable configurations
• Gate Lock: Pin-lock, twist-lock or customized mechanism
• Flooring: Solid concrete, partially slatted or project-specific flooring system
• Feeding Equipment: Individual trough or customized feeding arrangement available upon request
• Drinking Equipment: Nipple drinker or drinking bowl available upon request
• Overall Configuration: Designed according to boar size, building layout and farm management requirements

• Breeding boar housing areas
• Commercial sow breeding farms
• Mating and insemination units
• Boar holding areas
• Boar collection and movement pens
• Controlled animal separation areas
• Genetic and nucleus breeding farms
• Large integrated pig production facilities
• New breeding-house construction projects
• Existing mating-house renovation projects
• Turnkey commercial pig farm projects

The Boar Isolation Pen can be engineered according to breeding-house dimensions, animal size, flooring conditions and farm workflow. Available customization includes:

• Pen length and width
• Partition height
• 35 mm or 40 mm PVC board profiles
• Impact-resistant fiber panels
• Heavy-duty steel panel configurations
• Solid or combined solid-and-bar partitions
• Hot-dip galvanized structural components
• Gate width and opening direction
• Pin-lock or twist-lock gate mechanisms
• Long-handle boar gate option
• Individual feeding trough
• Drinking bowl or nipple drinker
• Solid or slatted floor interface
• Service aisle and boar passage arrangement
• Integration with mating and insemination stalls
• Complete breeding-house layout according to project requirements

Installation:

1. Confirm the breeding-house layout, boar movement route, service aisles and required pen dimensions.
2. Check concrete floors, slatted-floor interfaces and structural anchoring positions.
3. Mark post, gate and partition positions according to installation drawings.
4. Install galvanized support posts and secure structural foot plates.
5. Install solid board profiles, fiber panels or steel partition sections.
6. Fit upper rails, reinforcement profiles and structural connections.
7. Install the boar gate, hinges and locking mechanism.
8. Install feeding and drinking equipment where included.
9. Tighten structural connections and inspect all fixing points.
10. Test gate operation and confirm that all animal-contact surfaces are secure before use.

Maintenance:

• Wash and disinfect the pen according to the farm biosecurity program.
• Inspect galvanized posts, rails and structural connections regularly.
• Check panels for impact damage, excessive wear or deformation.
• Inspect gate hinges, handles and locking mechanisms for secure operation.
• Keep lower profiles and panel joints free of manure accumulation.
• Inspect anchor bolts and foot plates periodically.
• Check feeding and drinking equipment for damage or leakage.
• Replace damaged components promptly to maintain structural integrity and safe animal handling.

Typical project configurations include:

• Commercial Breeding Farm: Individual boar pens installed beside the mating unit with direct access to controlled boar passages.

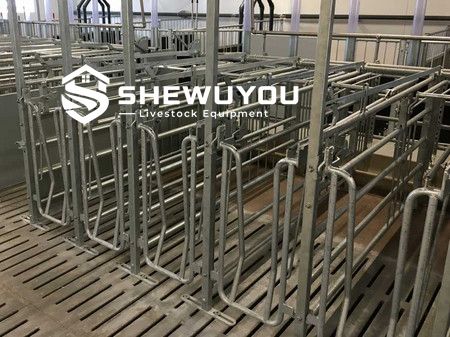

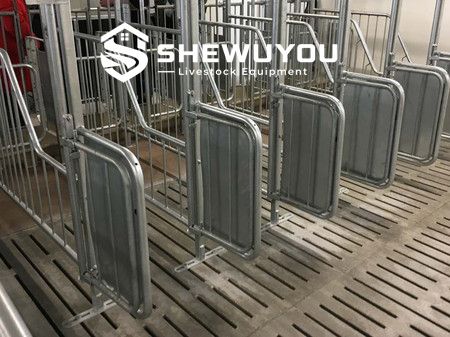

• Large Sow Farm: Heavy-duty boar housing integrated with mating stalls, drinking systems and service corridors.
• Boar Collection Area: Strong pen partitions and controlled gates configured to support efficient boar movement and staff observation.
• Breeding-House Renovation: Modular pen sections customized around existing columns, slatted floors, manure channels and aisles.
• Genetic Breeding Facility: Individual boar housing arranged for organized animal identification, handling and controlled access.

Q: What is a Boar Isolation Pen?
A: It is a heavy-duty individual housing pen designed to separate and manage breeding boars safely within a commercial mating or breeding facility.

Q: Why does boar penning require stronger construction?
A: Mature boars can generate substantial mechanical loads against gates and partitions, so reinforced posts, panels, rails and anchoring systems are normally required.

Q: Can the pen size be customized?
A: Yes. Length, width, partition height and gate arrangement can be designed according to boar size, building dimensions and farm management requirements.

Q: What partition materials are available?
A: PVC board profiles, impact-resistant fiber panels, steel plates and combined steel-and-panel configurations are available according to project requirements.

Q: Can the pen include an open-bar section?
A: Yes. Solid lower partitions can be combined with galvanized upper rails where greater airflow, visibility or controlled animal contact is required.

Q: Can a long-handle boar gate be supplied?
A: Yes. Long-handle gate configurations are available for projects requiring safer gate operation from outside the animal passage.

Q: Can feeding and drinking equipment be integrated?
A: Yes. Individual troughs, nipple drinkers, drinking bowls and water-line connections can be incorporated according to the farm layout.

Q: Can the system be installed in an existing pig house?
A: Yes. Modular penning can be adapted to many renovation projects, subject to existing floor conditions, structural columns, manure channels and available space.

Q: Is an isolation pen the same as a quarantine facility?
A: No. The pen provides individual physical separation. Veterinary quarantine requires an appropriate biosecurity plan, dedicated isolation procedures and, where required, a separately designed facility.

Q: What information is required for a quotation?
A: Recommended information includes the number of boars, target pen dimensions, animal size, barn layout, flooring type, preferred partition material, gate arrangement, feeding and drinking requirements, and project location.
