Variable-Restraint Farrowing Pen

The Variable-Restraint Farrowing Pen is a welfare-oriented sow housing system designed to combine controlled restraint during the critical farrowing period with increased freedom of movement during lactation. It provides a practical alternative between a conventional fixed farrowing crate and a completely unrestricted free-farrowing pen.

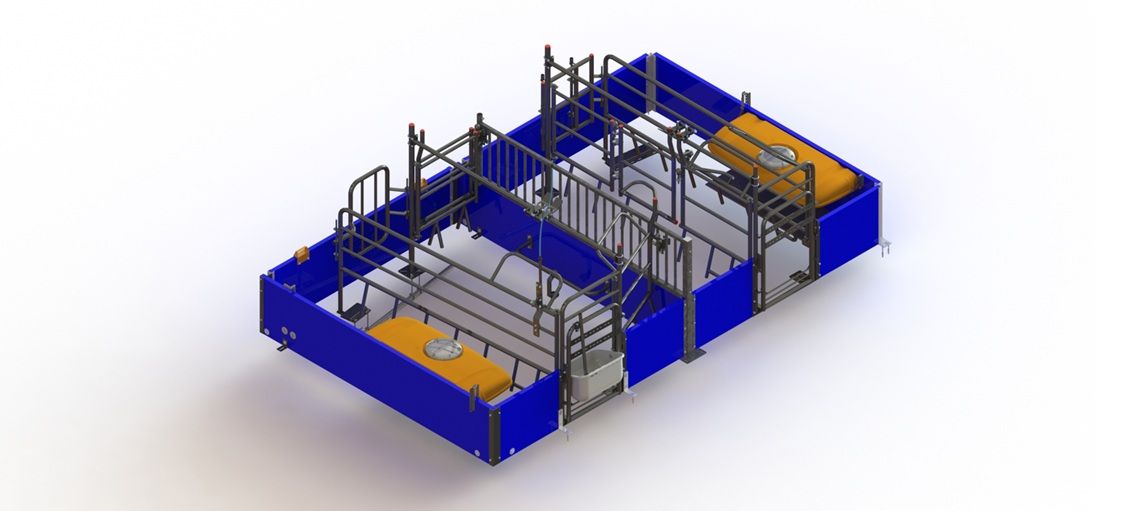

The system typically incorporates an adjustable or opening farrowing frame, piglet protection areas, a heated creep or resting zone, pen partitions, sow and piglet flooring, feeding and drinking equipment, and safe access for farm personnel.

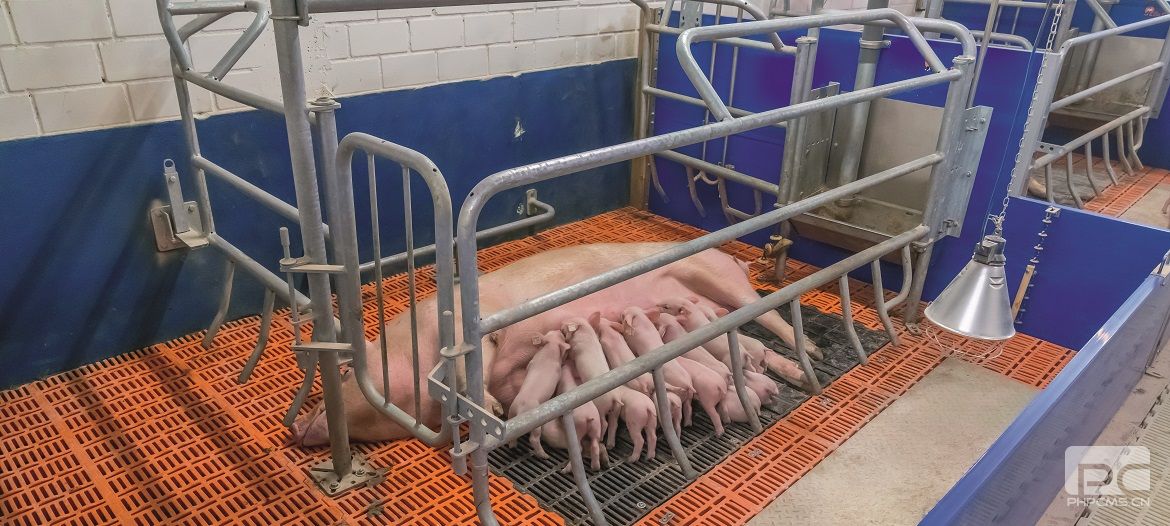

During farrowing and the early period when newborn piglets are especially vulnerable to accidental crushing, the restraint frame can be closed according to the farm's management protocol. After the critical period, the frame can be opened to provide the sow with a larger usable area for standing, turning and natural movement while remaining together with her litter.

• Variable Restraint: Allows temporary confinement of the sow during selected management periods and increased movement space after the frame is opened.
• Piglet Protection: Side rails, protective zones and creep areas help provide piglets with safer spaces away from sow movement and lying areas.
• Improved Sow Mobility: The open configuration gives the sow more usable floor area compared with a conventional permanently closed farrowing crate.
• Heated Piglet Area: Compatible with heated creep areas, heating plates, heat lamps or other piglet warming systems according to project requirements.
• Easy Farrowing Assistance: Door and frame configurations can be designed to provide convenient access for observation and assistance during farrowing.
• Good Pen Visibility: Low or optimized partition designs can provide better visibility for daily livestock inspection and management.
• Worker Safety: Locking, opening and adjustment points can be positioned to reduce unnecessary entry into the sow's active movement zone.
• Durable Construction: Galvanized steel tubing, corrosion-resistant hardware and livestock-grade plastic components are available according to project requirements.
• Flexible Layout: Suitable for installation parallel to the service aisle or in other configurations according to farrowing-house dimensions.
• Hygienic Design: Open structural sections, slatted flooring and removable or accessible components facilitate routine cleaning and disinfection.
• Commercial Farm Compatibility: Suitable for new farrowing houses, welfare upgrades and modernization of commercial sow farms.
• Integrated Equipment: Feeders, drinkers, flooring, heating, piglet covers and pen partitions can be coordinated as a complete farrowing station.

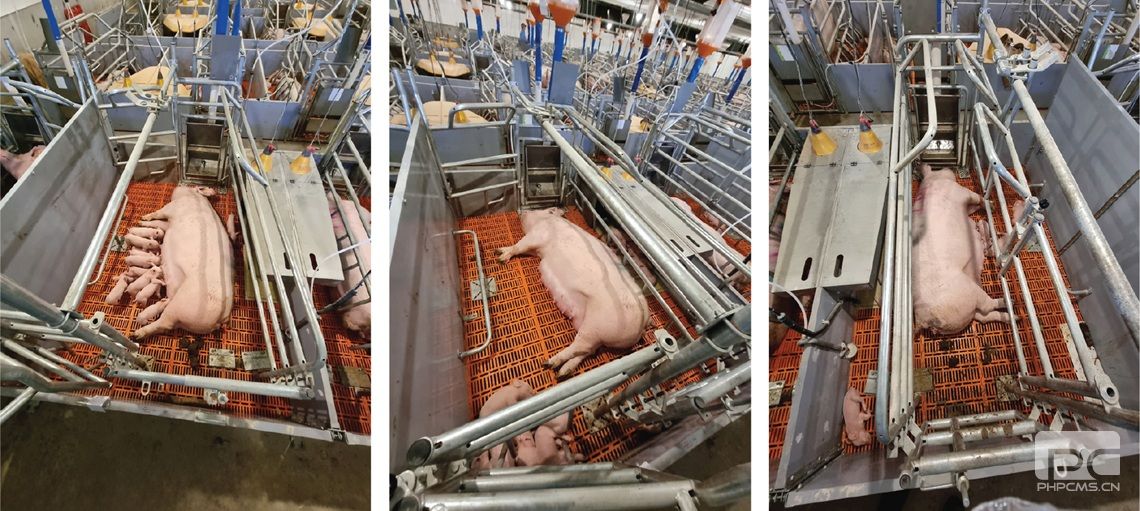

The variable-restraint concept divides farrowing management into different operating stages instead of keeping the sow permanently confined.

1. Farrowing and Early Piglet Stage

The restraint frame can remain closed around farrowing and during the initial period after birth. The controlled sow area helps manage sow movement while piglets are still small and less able to avoid the sow.

2. Transition to Open Housing

When the farm's management protocol determines that the litter is sufficiently established, the restraint frame can be opened. The sow then gains access to a larger portion of the pen and has more freedom to stand, turn and change position.

3. Piglet Protection and Thermal Zoning

Piglets can use a protected creep or heated resting zone separate from the sow's main lying area. This creates different functional zones within the same farrowing pen for sow comfort, piglet warmth and safer resting.

The result is a flexible farrowing environment that supports piglet protection during the most critical stage while providing greater sow mobility later in lactation.

• Commercial sow breeding farms
• Farrowing houses for intensive pig production
• Animal-welfare-oriented pig farms
• Breeding nucleus and multiplier farms
• Large livestock groups and integrated pork producers
• New prefabricated steel-structure pig houses
• Concrete or conventional livestock buildings
• Existing farrowing-house renovation projects
• Transition projects from fixed crates to higher-welfare housing
• Turnkey pig farm construction projects
• Agricultural engineering and livestock investment projects

The Variable-Restraint Farrowing Pen can be configured according to sow genetics, body size, farrowing-house dimensions, manure system, feeding method, climate conditions, labor management and applicable welfare requirements.

• Overall pen length and width
• Farrowing frame width and adjustment range
• Frame opening direction
• Front and rear door configuration
• Parallel or perpendicular barn layout
• Galvanized steel specifications
• Plastic or metal pen partitions
• Partition height
• Plastic and cast-iron slat combinations
• Sow feeder type
• Automatic feeding system compatibility
• Nipple or bowl drinking system
• Piglet heating plate
• Piglet creep cover
• Piglet supplementary feeding area
• Manure pit and floor-support arrangement
• Integration with ventilation and climate-control systems
• Configuration for new-build or retrofit projects

Installation:

1. Confirm farrowing-house dimensions, aisle arrangement, manure pit, drainage system and required pen quantity.
2. Determine pen orientation and coordinate the frame position with feeders, water pipes, floor supports and piglet heating areas.
3. Install floor-support beams and slatted flooring according to the project drawings.
4. Fix pen posts, partitions and the main variable-restraint frame.
5. Install front and rear doors, locking mechanisms and piglet protection components.
6. Install the sow feeder, drinker, piglet creep, heating equipment and supplementary feeding equipment where required.
7. Check all bolts, locks, hinges and adjustment mechanisms before commissioning.
8. Test opening and closing functions to ensure smooth operation and adequate clearance.

Maintenance:

• Clean and disinfect the complete pen between production cycles according to the farm's biosecurity program.
• Inspect hinges, locking points, bolts and movable frame components regularly.
• Replace damaged or excessively worn components promptly.
• Inspect galvanized surfaces for corrosion or mechanical damage.
• Keep feeders, water lines, drinkers and heating equipment clean and functional.
• Check plastic and cast-iron flooring for damage or loose sections.
• Keep manure passages and floor openings unobstructed.
• Verify that all restraint adjustments are appropriate for the sow before use.

Q1: What is a variable-restraint farrowing pen?
It is a farrowing system that allows the sow to be temporarily restrained during selected periods and later provides a larger movement area after the restraint frame is opened.

Q2: How is it different from a conventional farrowing crate?
A conventional crate generally keeps the sow confined within a fixed area throughout lactation. A variable-restraint design can provide controlled confinement during the critical farrowing stage and greater freedom of movement later.

Q3: Does the sow remain restrained during the entire lactation period?
Not necessarily. The opening schedule depends on farm management procedures, animal condition, litter development and applicable welfare requirements.

Q4: How does the system help protect piglets?
The design can incorporate a controlled sow area, protective side structures and a separate heated piglet creep to reduce exposure of newborn piglets to sow movement and lying behavior.

Q5: Can the pen dimensions be customized?
Yes. Pen dimensions, frame dimensions and internal equipment arrangement can be customized according to project requirements, sow genetics and farrowing-house layout.

Q6: Can the system be installed in an existing pig house?
Yes, subject to available floor area, manure-pit dimensions, floor-support arrangement, service aisles and building conditions. Retrofit design can be prepared after reviewing the existing layout.

Q7: Can automatic feeding be integrated?
Yes. Individual sow feeders, feed drop systems, volume dispensers or other automatic feeding equipment can be integrated according to the farm design.

Q8: What flooring can be used?
Plastic slats, cast-iron slats and combined flooring systems can be selected according to sow comfort, piglet requirements, climate conditions and manure management.

Q9: Can a heated piglet creep be included?
Yes. Heating plates, piglet covers, heat lamps or other heating solutions can be incorporated according to local climate and farm conditions.

Q10: What information is required for a quotation?
Please provide the number of farrowing pens, expected sow size, building dimensions, manure-pit layout, preferred pen dimensions, feeding method, flooring requirements, heating system and project country. Drawings or existing farm layouts are helpful for detailed engineering.
