Pig Pen Gate

The Pig Pen Gate is a modular access component designed for commercial pig housing systems, providing controlled entry and exit for pigs while giving farm personnel convenient access for inspection, feeding, cleaning, sorting and animal movement.

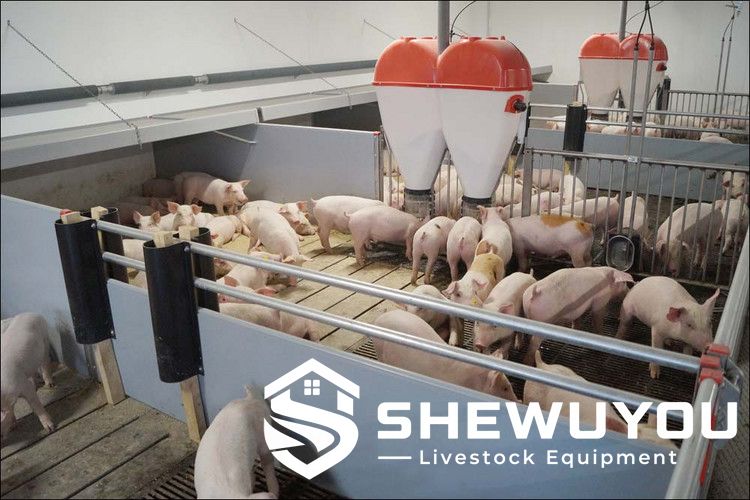

The gate can be integrated with PVC pen partitions, fiber panels, galvanized steel railings or other livestock penning systems. Depending on the application, the gate may use an open tubular structure, a solid lower panel, a full-width configuration or a combination of panels and steel rails.

Durable stainless steel, hot-dip galvanized steel and livestock-grade plastic components can be selected for demanding pig house environments where humidity, manure gases, washing and frequent daily operation require reliable corrosion resistance.

Gate dimensions, hinge direction, locking mechanism, panel material and mounting method can be customized according to pig category, pen layout, aisle width and project requirements.

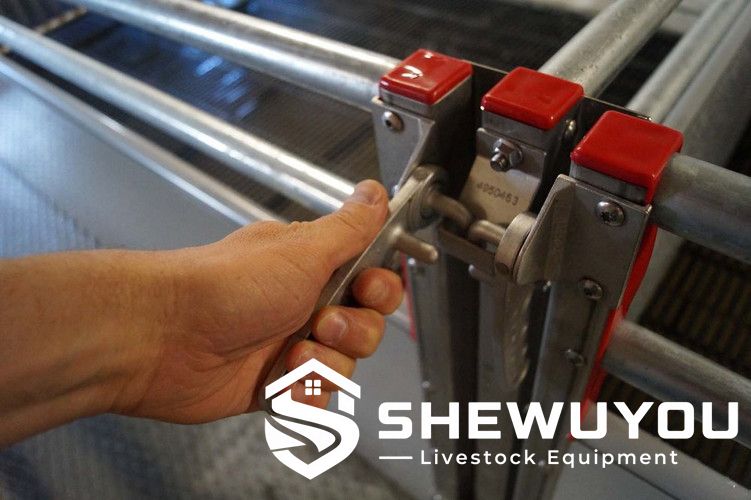

• One-Hand Operation: User-friendly locking options allow farm staff to open and close the gate efficiently during daily management.
• Secure Locking: Pin locks, twist locks, latch systems or project-specific locking mechanisms can be selected according to operational requirements.
• Durable Construction: Stainless steel and hot-dip galvanized steel components provide reliable performance in humid livestock environments.
• Flexible Gate Design: Full-width, tubular, solid-panel or combined gate configurations are available according to project requirements.

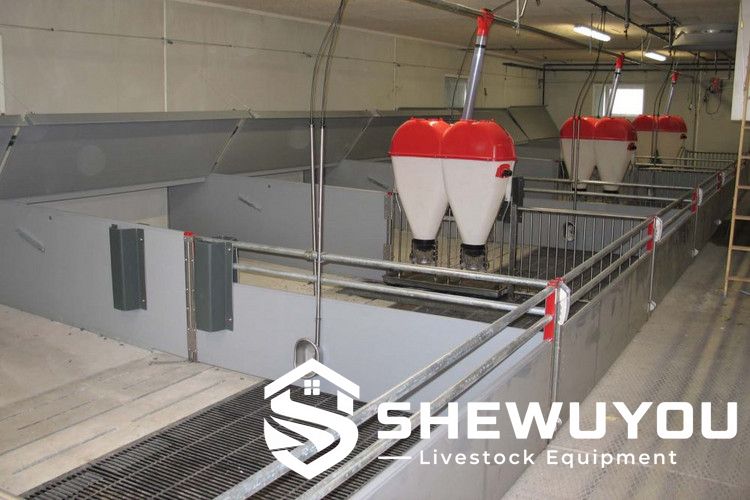

• PVC Pen Compatibility: Can be integrated with reinforced PVC board partitions commonly used in nursery and finishing pig houses.
• Safe Animal Contact: Rounded edges and smooth surfaces help reduce sharp contact points within the pig pen.
• Easy Cleaning: Smooth metal and plastic surfaces simplify washing and disinfection between production batches.
• Reversible Installation: Left-hand or right-hand opening configurations can be provided according to pen and aisle layouts.
• Strong Floor Support: Gate posts and supporting structures can be anchored securely to concrete or compatible livestock flooring systems.
• Modular Construction: Designed for easy integration into new pig houses, renovation projects and standardized commercial penning systems.
• Multiple Pig Categories: Suitable for piglets, weaners, grower pigs and finishing pigs when configured to the appropriate dimensions and strength level.

• Gate Frame: Main structural frame manufactured from galvanized or stainless steel components according to project requirements.
• Gate Infill: Vertical steel bars, horizontal rails, PVC panels, fiber panels or combined configurations.
• Hinge Assembly: Heavy-duty hinge components designed for repeated opening and closing.
• Locking Mechanism: Pin lock, rotary lock, single-hand latch or customized gate locking system.

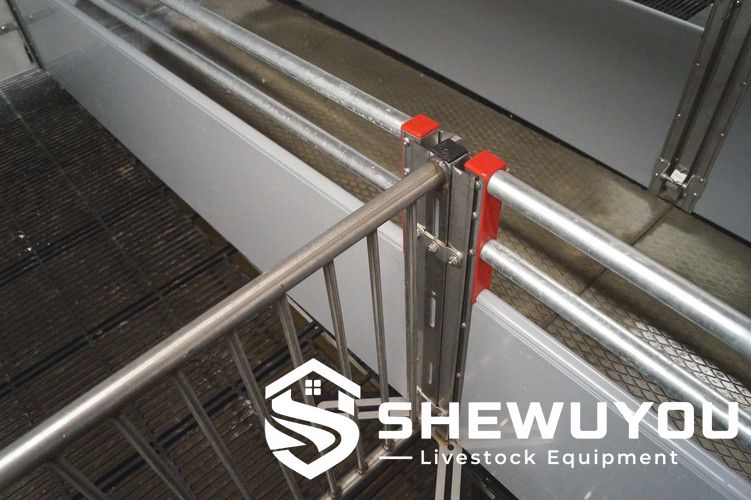

• Gate Post: Structural support positioned at the hinge or locking side of the gate.
• Support Foot Plate: Floor-mounted plate used to stabilize posts and transfer operational loads to the floor.
• Partition Connection: Stainless steel profiles, brackets or clamps used to connect the gate with adjacent pen walls.
• Fasteners: Bolts, anchors and corrosion-resistant mounting hardware according to installation requirements.
• Optional Solid Panel: PVC or fiber panel can be incorporated to create a more enclosed lower section.
• Optional Top Rails: Galvanized or stainless steel tubes can increase gate height and structural strength.

Gate Operation: The gate rotates around a reinforced hinge point mounted to a structural post or pen partition. When closed, the opposite side engages with a locking mechanism that keeps the gate securely positioned.

Controlled Pig Movement: Farm personnel can open selected gates to guide pigs between pens, alleys, sorting areas or loading routes while keeping adjacent groups separated.

Structural Support: Operational forces generated by repeated opening, closing and animal contact are transferred through the gate frame, hinges, posts and floor anchors.

Pen Integration: The gate forms part of the complete pig pen partition system and can be coordinated with feeders, drinkers, service aisles and flooring layouts.

• Product Type: Pig pen access gate
• Application: Commercial pig housing and penning systems
• Gate Width: Customizable
• Gate Height: According to pig category and project requirements
• Frame Material: Galvanized steel or stainless steel
• Panel Material: Steel bars, PVC board, fiber panel or combined configuration
• Surface Protection: Hot-dip galvanizing or corrosion-resistant finish available upon request
• Opening Direction: Left-hand or right-hand
• Gate Configuration: Full-width, suspended, tubular, solid-panel or combined design
• Lock Type: Pin lock, twist lock, single-hand latch or customized mechanism
• Hinge Type: Heavy-duty livestock gate hinge
• Post Material: Stainless steel or galvanized steel according to project requirements
• Floor Fixing: Anchor bolts, foot plates or project-specific mounting system
• Partition Compatibility: PVC, fiber, steel and modular pig pen systems
• Installation: Mechanical assembly
• Customization: Available according to project requirements

• Piglet nursery pens
• Weaner pig pens
• Wean-to-finish pig pens
• Grower pig pens
• Finishing pig pens
• Commercial pig housing systems
• Pig sorting and transfer areas
• Service aisle access points
• New pig house construction projects
• Existing pig house renovation projects
• Large-scale commercial swine farms
• Turnkey livestock equipment projects

• Gate width and height
• Left-hand or right-hand opening
• Full-width gate configuration
• Open tubular gate
• Solid-panel gate
• Combination panel and tubular gate
• Galvanized steel construction
• Stainless steel components
• PVC board infill
• Fiber panel infill
• Vertical or horizontal steel rails
• Pin locking system
• Twist locking system
• Single-handed gate latch
• Gate post and support configuration
• Floor-mounted or partition-mounted installation
• Gate height according to pig production stage
• Integration with automatic feeders
• Integration with service aisles and sorting areas
• Customized configuration for renovation projects

Typical Installation Process

1. Confirm the pig pen layout, gate width, opening direction and aisle arrangement.
2. Verify the floor condition and adjacent partition structure.
3. Mark hinge-post and locking-post positions.
4. Install floor anchors, support plates and structural posts.
5. Mount the gate hinge assembly to the support structure.
6. Install the gate frame and adjust the opening clearance.
7. Install the latch or locking mechanism.
8. Connect the gate to surrounding PVC, fiber or steel partitions.
9. Check that the gate opens and closes freely without interference.
10. Confirm that locks, hinges and animal-contact surfaces are secure before use.

Routine Maintenance

• Inspect hinges, locks and fasteners regularly.
• Check gate alignment and opening clearance.
• Tighten loose floor anchors and mounting bolts when required.
• Inspect galvanized surfaces for mechanical damage or corrosion.
• Clean manure and dirt from locking mechanisms.
• Wash smooth panel surfaces during routine barn cleaning.
• Replace damaged PVC, fiber or steel components when necessary.
• Ensure gate locks engage securely before pigs are returned to the pen.

Pig pen gates can be installed throughout nursery, wean-to-finish and finishing buildings as part of modular penning systems. Gate positions are normally coordinated with feeding equipment, service aisles, animal-flow routes and room layouts during project planning.

In large commercial pig houses, different gate configurations may be used within the same project. Full-width gates can support group movement, while smaller access gates can provide convenient entry for routine inspection and maintenance.

For renovation projects, custom gate widths, posts and mounting brackets can be developed according to existing pen dimensions and floor conditions.

Pen layouts, gate configurations and complete pig housing equipment packages are available upon request according to farm requirements.

Q: What is a Pig Pen Gate?
A: A pig pen gate is an access component installed within a pig penning system to control animal movement and provide staff access for feeding, inspection, cleaning and handling.

Q: Can the gate size be customized?
A: Yes. Gate width and height can be customized according to pig category, pen dimensions and aisle layout.

Q: What materials are available?
A: Galvanized steel, stainless steel, PVC boards, fiber panels and combined configurations are available according to project requirements.

Q: Can the gate be operated with one hand?
A: Yes. Single-handed locking systems can be supplied to improve efficiency during daily pig house operation.

Q: What locking systems are available?
A: Pin locks, twist locks, latch systems and customized locking mechanisms can be selected according to the pen design.

Q: Can the gate open in either direction?
A: Left-hand or right-hand opening configurations can be supplied according to aisle and pen layout requirements.

Q: Can the gate be used with PVC pig pen partitions?
A: Yes. Pig pen gates can be integrated with modular PVC board systems and stainless steel support profiles.

Q: Is a full-width gate available?
A: Yes. Full-width gates can be supplied where easier movement of pig groups is required.

Q: Is the gate suitable for finishing pigs?
A: Yes. Gate dimensions, structural strength and mounting systems can be configured for finishing pig applications.

Q: Is the gate resistant to corrosion?
A: Hot-dip galvanized steel and stainless steel options are available for humid and corrosive pig house environments.

Q: Can the gate be installed in an existing pig house?
A: Yes. Custom dimensions and mounting brackets can be developed for renovation projects after confirming the existing pen and floor conditions.

Q: What information is required for a quotation?
A: Please provide the required quantity, gate width and height, pig category, pen layout, partition material, preferred lock type, opening direction and available project drawings.
