Fiber Pig Pen Partition System

The Fiber Pig Pen Partition System is a modular livestock penning solution designed primarily for weaner, growing and finishing pig houses. The system uses slim solid compact laminate panels to create strong, hygienic and space-efficient partitions for commercial swine production.

Compared with hollow-profile partition systems, the solid-panel construction minimizes internal cavities and difficult-to-clean areas. Tube ends can be sealed with adapters or end caps, while smooth panel surfaces simplify pressure washing and routine disinfection between production batches.

Different partition heights, top-rail configurations, gate styles and pen layouts can be selected according to pig size, group capacity, feeding method, barn dimensions and management requirements. The system can be integrated into prefabricated steel structure pig houses as well as conventional concrete livestock buildings.

• Solid Compact Panel Construction: Uses thin but rigid compact laminate panels suitable for demanding livestock environments.
• Space-Efficient Design: Slim partition panels reduce unnecessary wall thickness and help maximize usable pen area inside the pig house.
• Smooth Hygienic Surfaces: Closed surfaces reduce cavities and hidden areas where manure, feed residues and dirt can accumulate.
• Easy Cleaning: Smooth panel faces support efficient washing, disinfection and batch-to-batch sanitation.
• Sealed Tube Ends: Top rails and tubes can be finished with adapters or plugs to reduce exposed openings and difficult cleaning points.
• Durable for Commercial Use: Designed for repeated animal contact, routine washing and intensive pig farm operation.
• Flexible Heights: Different partition heights can be selected for weaner, growing and finishing pig applications.
• Multiple Gate Options: Compatible with suspended gates, full-width gates and customized access arrangements.
• Good Animal Management: Closed lower partitions help define pig groups, while upper rails can provide visibility and airflow.
• Feeding System Integration: Suitable for dry feeding, wet/dry feeding and liquid feeding layouts.
• Modular Installation: Components can be planned according to individual pen dimensions and commercial barn layouts.
• New-Build & Retrofit Use: Suitable for new pig houses, farm expansions and renovation of existing finishing barns.

Solid Compact Panels: Thin, rigid partition boards forming the principal closed section of the pig pen.

Top Rails: Galvanized or stainless steel tubes positioned above the compact panel according to required pen height.

Gate Assemblies: Suspended gates, full-width gates or customized access gates for pig movement and stockperson access.

Gate Handles & Locks: Mechanical locking components designed for convenient daily opening and secure closure.

Adapters & End Caps: Used to close tube ends and create a cleaner finished construction.

Connection Brackets: Stainless steel, galvanized steel or other corrosion-resistant fittings used to connect partitions, gates and structural elements.

Wall Connections: Brackets and profiles for terminating partition sections against livestock building walls.

Feeding Interfaces: Customized partition arrangements can accommodate feeders, troughs, water equipment and liquid-feeding walls.

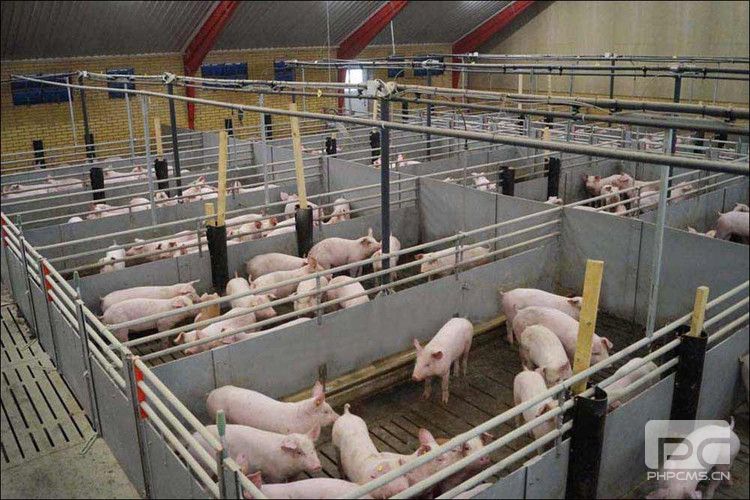

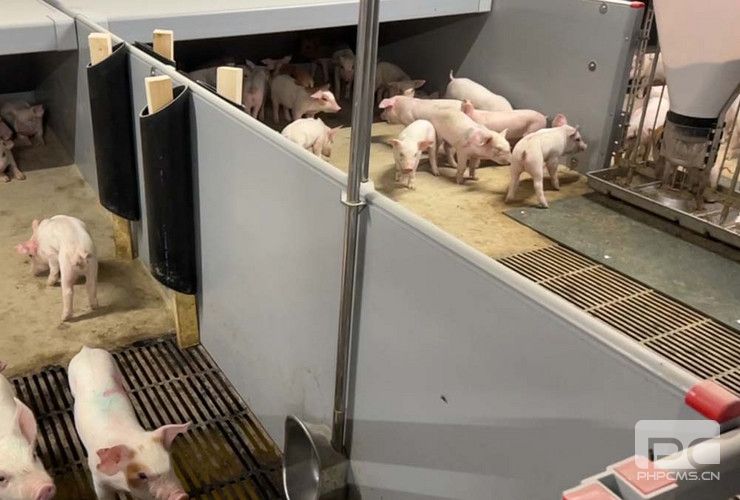

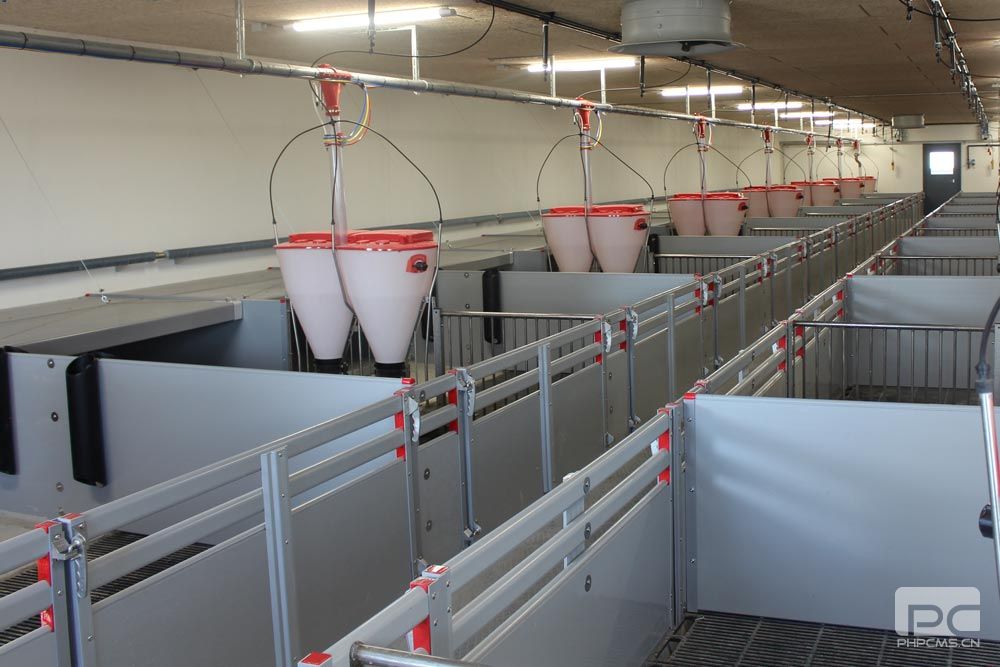

The system divides a pig barn into individual group pens using solid compact partitions combined with horizontal steel rails and access gates. The compact panels form the main separation surface between groups, while the upper rail configuration provides additional structural height and stability.

The slim solid-panel concept minimizes hollow spaces inside the partition structure. Tube ends can be closed with adapters or plugs, reducing places where contamination may accumulate and simplifying barn sanitation.

Gates provide controlled movement between pens and service aisles. Full-width gates can provide a large opening for moving groups of pigs, while suspended gate configurations can be selected where conventional personnel and livestock access is preferred.

When combined with slatted flooring, manure and wash water can pass through the floor into the manure pit or collection system below. Feeders, drinking equipment and automated feed lines can be positioned according to the selected production and pen layout.

Product Type: Modular solid-panel pig pen partition system

Primary Application: Weaners, growers and finishing pigs

Reference Panel Thickness: 10 mm solid compact panel

Reference System Heights: 750 mm, 875 mm and 1000 mm configurations

750 mm Configuration: Compact panel with one top rail

875 mm Configuration: Compact panel with two top rails

1000 mm Configuration: Compact panel with three top rails

Gate Options: Suspended gate, full-width gate or customized configuration

Panel Length: Customizable according to project requirements

Pen Dimensions: Customizable

Top Rail Material: Galvanized steel or stainless steel available upon request

Connection Hardware: Corrosion-resistant livestock-grade fittings according to project requirements

Flooring Compatibility: Concrete slats, plastic slats, cast-iron sections or combined flooring according to application

Feeding Compatibility: Dry feeding, wet/dry feeding and liquid feeding systems

Installation: Modular assembly according to project drawings

Customization: According to pig size, stocking plan, building layout and farm management requirements

• Commercial weaner pig houses
• Growing pig barns
• Finishing and fattening pig houses
• Wean-to-finish production systems
• Large-scale commercial swine farms
• Automatic feeding pig barns
• Liquid feeding finishing units
• Prefabricated steel structure pig houses
• Concrete livestock buildings
• Pig farm renovation and expansion projects
• Turnkey livestock equipment projects
• Agricultural engineering and pig farm construction projects

Each partition system can be configured according to animal weight, group size, stocking density, feeding strategy, barn dimensions, service aisle arrangement and manure-management design.

• Overall pen length and width
• Partition height
• Compact panel dimensions
• Panel and rail combinations
• One, two or three top-rail configurations
• Suspended gates
• Full-width gates
• Gate opening direction
• Gate locking mechanism
• Galvanized or stainless steel components
• Feed partition arrangement
• Dry feeder integration
• Wet/dry feeder integration
• Liquid feeding wall configuration
• Drinking system arrangement
• Slatted-floor coordination
• Service aisle layout
• New pig house or retrofit installation

Installation Process:

1. Confirm the pig house layout, number of pens, pig group size, service aisles, flooring and feeding system.
2. Mark partition lines, gate positions, feeder locations and wall connection points according to installation drawings.
3. Prepare floor, wall and structural fixing points where required.
4. Install compact partition panels and connecting hardware.
5. Install top rails, tube adapters and end caps according to the selected pen height.
6. Install suspended gates or full-width gates and adjust the locking mechanisms.
7. Connect feeders, drinking equipment and related livestock systems.
8. Inspect all fasteners, gates and clearances before animals enter the pens.

Maintenance Recommendations:

• Wash and disinfect partition surfaces between production batches.
• Inspect panel edges, connection points and fasteners regularly.
• Check gates, hinges, handles and locking mechanisms for smooth operation.
• Replace damaged adapters, end caps or hardware when required.
• Check steel components for corrosion or mechanical damage.
• Keep feeders, drinkers and surrounding floor areas clean.
• Avoid unnecessary mechanical impact from farm machinery during cleaning or livestock movement.

Q1: What is a fiber pig pen partition?
It is a livestock penning system using solid compact laminate panels rather than conventional hollow PVC board profiles. The panels provide a thin, rigid and smooth partition surface for pig housing.

Q2: What pigs can use this partition system?
The system is mainly suitable for weaners, growing pigs and finishers. The final height and configuration should be selected according to animal size and farm requirements.

Q3: How thick is the compact panel?
A 10 mm solid compact panel is a proven reference specification for this type of fiber penning system.

Q4: What partition heights are available?
Reference configurations include approximately 750 mm, 875 mm and 1000 mm. Customized dimensions are available according to project requirements.

Q5: Why use solid compact panels in a pig house?
Their slim profile saves space, while smooth closed surfaces and the reduction of hollow cavities help simplify cleaning and sanitation.

Q6: What gate configurations are available?
Suspended gates, full-width gates and customized gate arrangements can be supplied according to pen layout and pig movement requirements.

Q7: Can the partitions be used with liquid feeding?
Yes. Pen layouts can be coordinated with liquid feeding troughs and specialized feeding-wall configurations according to project requirements.

Q8: Can the system be installed in an existing pig barn?
Yes. Retrofit installation is possible after confirming existing floor dimensions, manure pits, walls, service aisles and equipment positions.

Q9: Is it suitable for steel structure pig houses?
Yes. The modular penning system can be coordinated with prefabricated steel livestock buildings as well as conventional pig barn structures.

Q10: What information is required for a quotation?
Please provide the project country, pig weight range, number of pigs, pigs per pen, building dimensions, required pen quantity, feeding system, flooring type, manure system and available layout drawings.
