PVC Pig Pen Partition System

The PVC Pig Pen Partition System is a modular penning solution developed for modern pig housing, including nursery, weaner, grower and finishing facilities. Rigid PVC board profiles form solid pen walls that help separate animal groups, define resting and feeding areas, and create an organized layout for commercial pig production.

The system can combine livestock-grade PVC boards with stainless steel or galvanized steel U-profiles, support posts, floor brackets, gates and fastening components. Smooth, non-porous surfaces are well suited to routine washing and disinfection, while corrosion-resistant structural components support long-term use in humid pig-house environments.

Panel height, board thickness, pen dimensions, gate arrangement and supporting structure can be customized according to pig weight, production stage, barn layout and project requirements. The modular construction is suitable for both new pig farm construction and renovation of existing housing facilities.

• Rigid PVC Construction: Internal structural reinforcement helps provide dimensional stability and resistance to pressure and twisting during normal farm operation.
• Corrosion Resistant: PVC panels do not rust, making them suitable for humid livestock buildings and frequent cleaning environments.
• Hygienic Surface: Smooth, non-porous panel surfaces are easy to wash, disinfect and dry between production batches.
• Solid Pen Separation: Closed partitions help reduce direct contact between neighboring groups and can limit manure transfer toward service aisles.
• Modular Installation: Boards, profiles, posts and gates can be assembled into different pen dimensions according to barn layout.
• Animal-Friendly Design: Smooth surfaces and appropriately finished edges help reduce sharp contact points inside the pen.
• Compatible with Slatted Floors: Suitable for pig houses using plastic, concrete or other livestock flooring systems according to project design.
• Feeding System Integration: Can be coordinated with dry feeders, wet/dry feeders, liquid feeding walls and automatic feed-delivery systems.
• Easy Daily Management: Gates and locking components can be incorporated for convenient animal movement and staff access.
• Scalable for Commercial Farms: Standardized modular sections can be repeated throughout large nursery, grower and finisher houses.

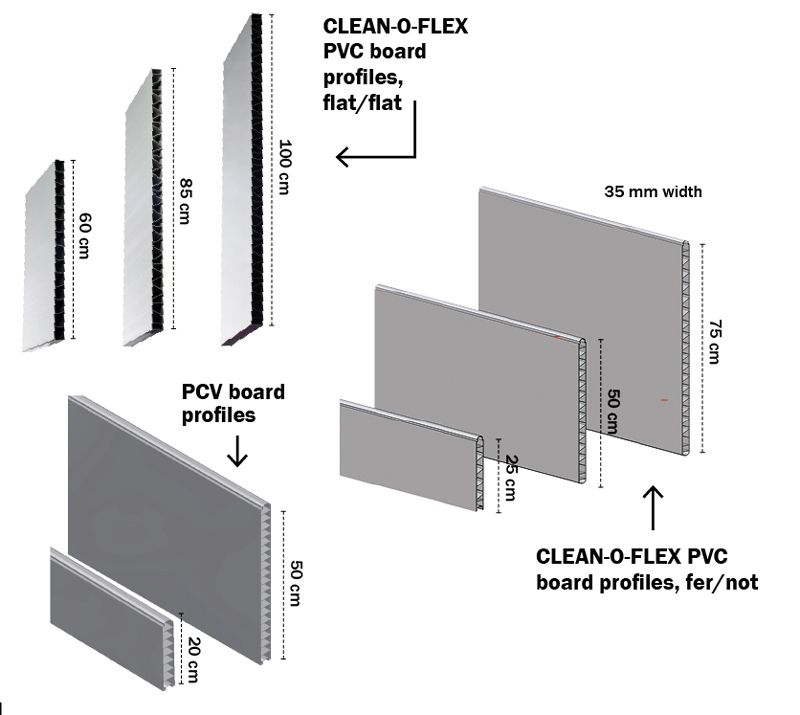

• PVC Board Profiles: Rigid livestock-grade boards used to create solid pen walls and internal partitions.

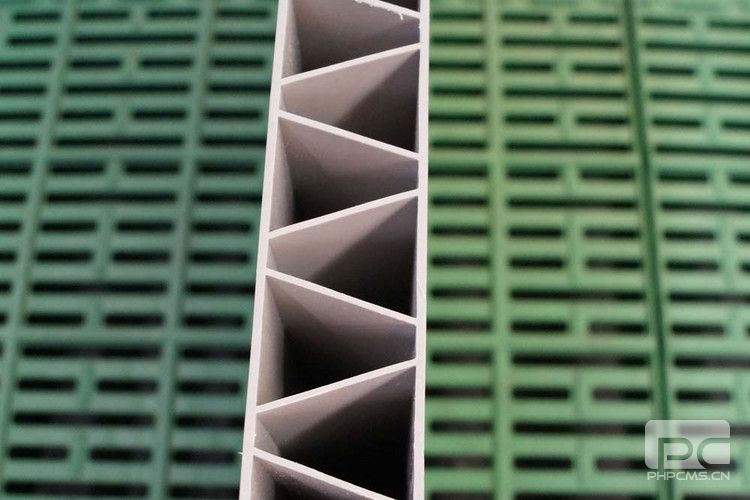

• Internal Reinforcement: Hollow profile construction with reinforcing webs or lamellas improves panel rigidity while controlling overall weight.
• U-Profiles: Stainless steel, galvanized steel or compatible PVC profiles secure board edges to walls, posts and floors.
• Support Posts: Vertical structural posts provide stability at corners, gates and longer partition sections.
• Foot Plates: Floor-mounted brackets anchor partition structures to concrete or suitable structural flooring.
• Top Profiles: Protective or reinforcing profiles can be fitted along the upper edge of the partition.
• Connection Profiles: Joining profiles allow multiple PVC sections to form longer continuous partitions.

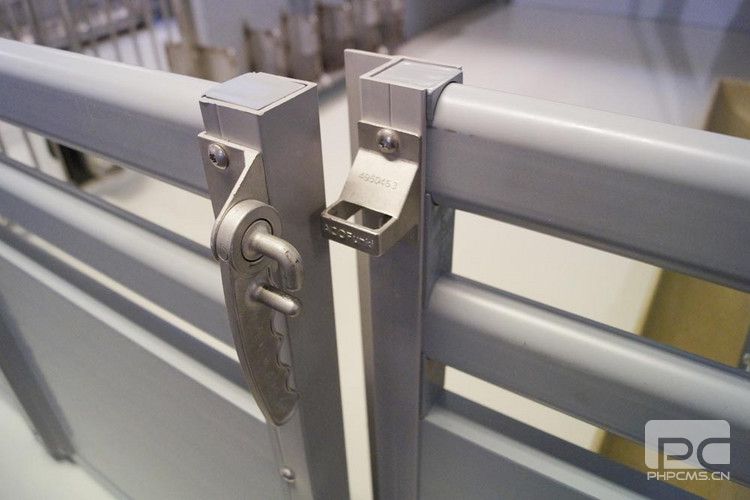

• Gate Assemblies: PVC-panel or steel-frame gates can be incorporated according to animal movement requirements.
• Fasteners: Stainless steel bolts, screws and related corrosion-resistant hardware are available according to project requirements.
• Accessories: Water-pipe holders, feeder brackets, corner connections, end caps and other installation components are available upon request.

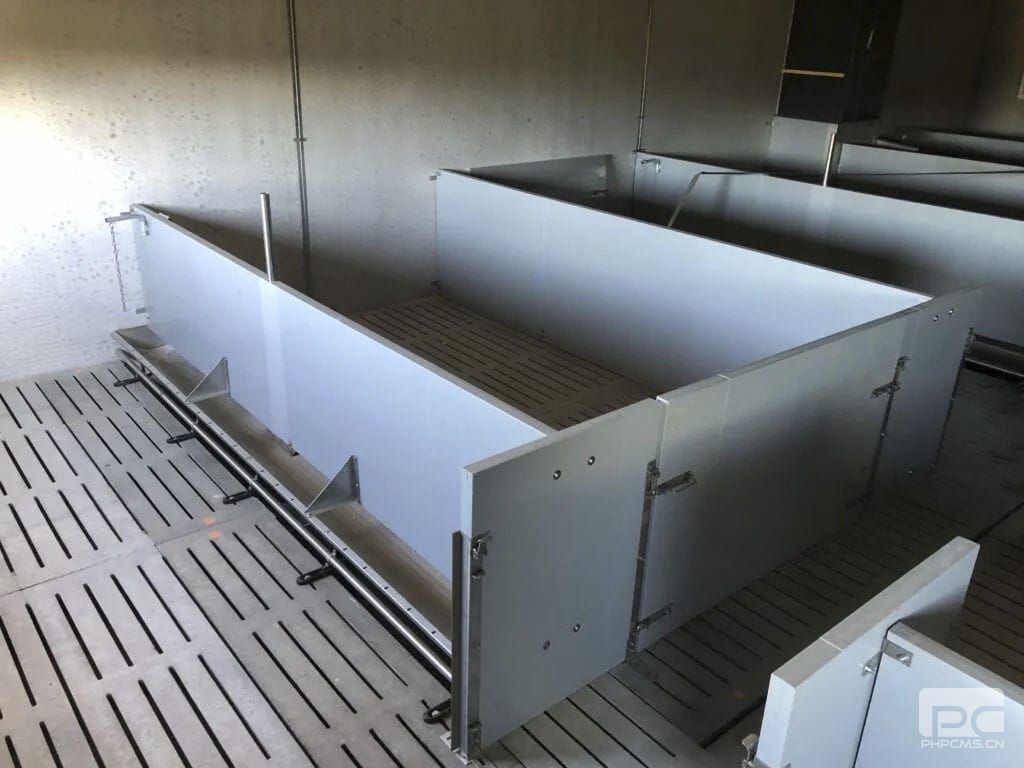

The system uses rigid PVC boards as the primary enclosure material. Boards are installed horizontally or according to the selected pen design and are secured by U-profiles, posts, wall channels and floor-mounted brackets.

The internal profile structure distributes mechanical loads through the panel and helps resist bending or deformation when pigs push against the partition. Steel or reinforced connection components transfer these loads to the floor, wall or adjacent pen structure.

Solid PVC surfaces separate neighboring groups and create clearly defined animal zones. Depending on the housing design, solid lower partitions can also be combined with open steel grids above to provide additional visibility and airflow.

Because the partition system is assembled from modular boards and profiles, pen length, height, gate position and internal arrangement can be adapted without requiring a completely different construction system for each barn section.

• Product Type: Modular PVC pig pen partition system
• Primary Material: Rigid livestock-grade PVC board profiles
• Board Construction: Hollow reinforced profile construction or project-specific configuration
• Board Thickness: Customizable / available upon request
• Panel Height: According to pig category and project requirements
• Panel Length: Customizable according to pen layout and transportation requirements
• Support Profiles: Stainless steel, galvanized steel or compatible PVC profiles
• Support Posts: Stainless steel or galvanized steel options available upon request
• Fasteners: Corrosion-resistant bolts and screws
• Gate Type: PVC-panel gate, steel-frame gate or customized configuration
• Floor Interface: Concrete floor, slatted floor support structure or customized installation base
• Pen Configuration: Solid, partially open or combined partition design
• Application Stage: Nursery, weaner, grower and finisher housing according to configuration
• Color: Available according to production and project requirements
• Overall Dimensions: Designed according to pig-house layout and farm conditions

• Piglet nursery pens
• Weaner pig housing
• Grower pig pens
• Finishing pig pens
• Wean-to-finish housing systems
• Pig isolation and treatment pens
• Internal pig-house separation walls
• Commercial breeding farms
• Large integrated swine production facilities
• New pig farm construction projects
• Existing pig-house renovation projects
• Turnkey livestock equipment projects

The partition system can be customized according to pig category, stocking strategy, barn dimensions and equipment layout. Available options include:

• PVC board thickness
• Partition height and overall length
• Solid or combined open/solid partition design
• Stainless steel or galvanized support profiles
• Wall-mounted or free-standing installation
• Gate dimensions and opening direction
• Single-row or double-row pen layouts
• Central aisle or side-aisle configuration
• Feeder openings and mounting points
• Water-pipe and drinker mounting accessories
• Integration with plastic, concrete or cast-iron slatted flooring
• Integration with dry or liquid feeding systems
• Manure-channel interface
• Complete pig-house pen layout according to project requirements

Installation:

1. Confirm pen dimensions, aisles, feeder locations and manure-system layout.
2. Mark partition centerlines and structural fixing points according to installation drawings.
3. Install wall and floor U-profiles where required.
4. Position support posts and secure foot plates to the prepared floor structure.
5. Insert or connect PVC board profiles to form the required partition height and length.
6. Install top profiles, corner connections and end components.
7. Mount gates, hinges and locking mechanisms.
8. Install feeders, drinking lines and related brackets where included.
9. Check alignment, connections and gate operation before pigs enter the building.

Maintenance:

• Wash and disinfect partitions between production batches.
• Inspect PVC boards for impact damage, excessive deformation or loose connections.
• Check support posts, foot plates and structural fasteners regularly.
• Inspect gate hinges and locking mechanisms for smooth operation.
• Keep joints and lower partition areas free of accumulated manure and feed residue.
• Replace damaged fasteners or connection components when necessary.
• Avoid holding concentrated high-pressure cleaning jets at very short distance from PVC joints for prolonged periods.

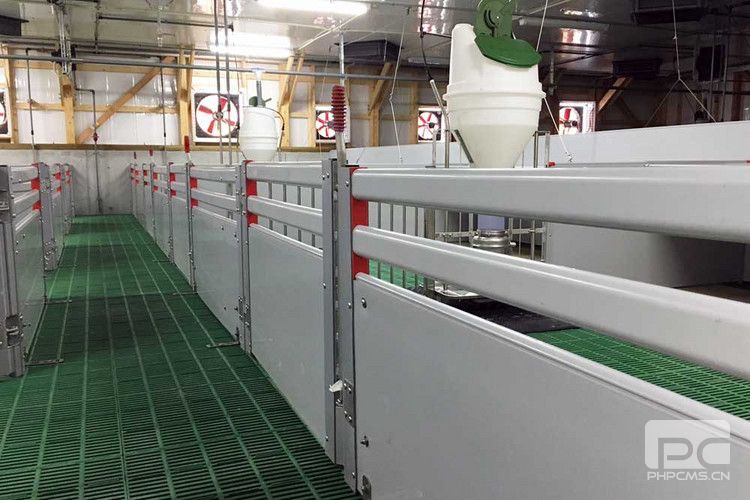

• Commercial Nursery House: PVC partitions combined with plastic slatted floors, piglet feeders and drinking systems to create standardized group pens.
• Finishing Pig House: Higher and reinforced partition configurations used to separate larger finishing pigs in intensive production facilities.
• Wean-to-Finish Project: Modular partitions configured for flexible pen sizes as pigs progress through different production stages.
• Farm Renovation: Custom-cut partition sections adapted around existing structural columns, manure channels and service aisles.
• Large Pig Farm Project: Standardized partition modules repeated throughout multiple rooms and integrated with feeding, drinking, ventilation and manure-management equipment.

Q: What is a PVC Pig Pen Partition System?
A: It is a modular livestock penning system that uses rigid PVC board profiles together with structural supports, gates and fastening components to create internal pig-house partitions.

Q: Why is PVC suitable for pig-house partitions?
A: PVC does not rust and provides a smooth, non-porous surface that is suitable for frequent cleaning and disinfection in livestock buildings.

Q: Can the partition dimensions be customized?
A: Yes. Panel length, height, thickness and support arrangement can be configured according to pig size, barn dimensions and project requirements.

Q: Is the system suitable for nursery pigs?
A: Yes. Lower partition configurations can be designed for nursery and weaner housing and coordinated with plastic slatted floors, feeders and drinkers.

Q: Can it also be used for finishing pigs?
A: Yes. Reinforced and higher partition configurations are available for grower and finishing pig applications according to project requirements.

Q: Can solid PVC panels be combined with steel grids?
A: Yes. Combined solid and open partition configurations can be designed where greater visibility, contact or airflow is required.

Q: Can feeders and drinking lines be mounted to the partition?
A: Yes. Suitable brackets and structural supports can be incorporated for feeders, water pipes, nipple drinkers and related equipment.

Q: Can the partition system be installed in an existing pig house?
A: Yes. Modular PVC systems are suitable for many renovation projects because partition lengths, gate positions and fixing arrangements can be adapted to existing barn dimensions.

Q: How should PVC partitions be cleaned?
A: Routine washing and disinfection are recommended. Cleaning pressure, nozzle distance and chemicals should be appropriate for the PVC material and connection system.

Q: What information is required for a quotation?
A: Recommended information includes pig-house dimensions, pig production stage, number of pens, required pen dimensions, partition height, flooring type, gate layout, feeding system and project location.
