Loose Sow Farrowing Pen

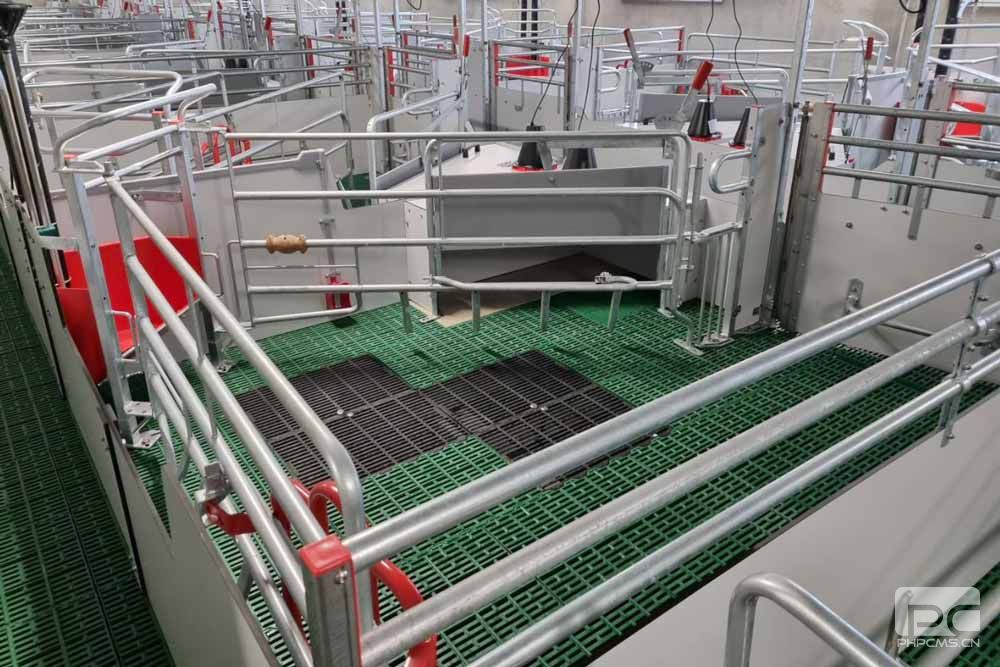

The Loose Sow Farrowing Pen is a welfare-oriented farrowing housing system designed to provide greater freedom of movement for lactating sows while maintaining a protected environment for newborn piglets. Unlike a conventional fixed farrowing crate, the pen allows the sow to stand, turn, lie down and interact more naturally with her litter during appropriate stages of the farrowing and lactation period.

The system combines a spacious sow activity area, adjustable or movable farrowing rails, a protected piglet creep area, durable pen partitions and hygienic slatted flooring. Depending on farm management requirements, the sow can be temporarily restrained during farrowing, veterinary treatment, inspection or the first critical days after birth, then released for greater freedom of movement.

The modular design is suitable for new pig houses as well as renovation projects and can be integrated with sow feeding systems, drinking equipment, piglet heating, manure collection systems and modern environmental control systems.

• Greater Sow Freedom: Provides sufficient space for the sow to stand, turn around, lie down and change position during lactation.
• Temporary Restraint Function: Movable or pivoting side rails can be configured to restrain the sow temporarily when required for piglet protection or farm management.
• Piglet Protection: Farrowing rails, anti-crush zones and protected creep areas help reduce contact between resting piglets and the sow when she changes posture.
• Separate Piglet Microclimate: The piglet nest can be equipped with a heated floor, heating lamp, cover or other warming equipment while maintaining a cooler environment for the sow.
• Easy Observation: Pen layout can provide clear access and visibility for staff during farrowing, nursing and routine inspection.
• Durable Construction: Galvanized steel frames, livestock-grade partitions and corrosion-resistant components are suitable for intensive pig-house environments.
• Hygienic Flooring: Plastic, cast-iron or combined slatted flooring can be selected according to sow load, piglet comfort and manure-management requirements.
• Flexible Barn Layout: Pen dimensions and orientation can be adapted to different farrowing-house layouts.
• Equipment Integration: Compatible with sow troughs, nipple drinkers, piglet drinkers, automatic feeding equipment and environmental control systems.
• Commercial Farm Application: Designed for breeding farms, sow units, large livestock groups and welfare-oriented pig production projects.

• Main Pen Frame: Galvanized steel posts, rails and structural connection components.
• Movable Farrowing Rails: Adjustable or pivoting side sections for temporary sow restraint and piglet protection.
• Sow Activity Area: Open space allowing the sow to stand, turn and lie down naturally.

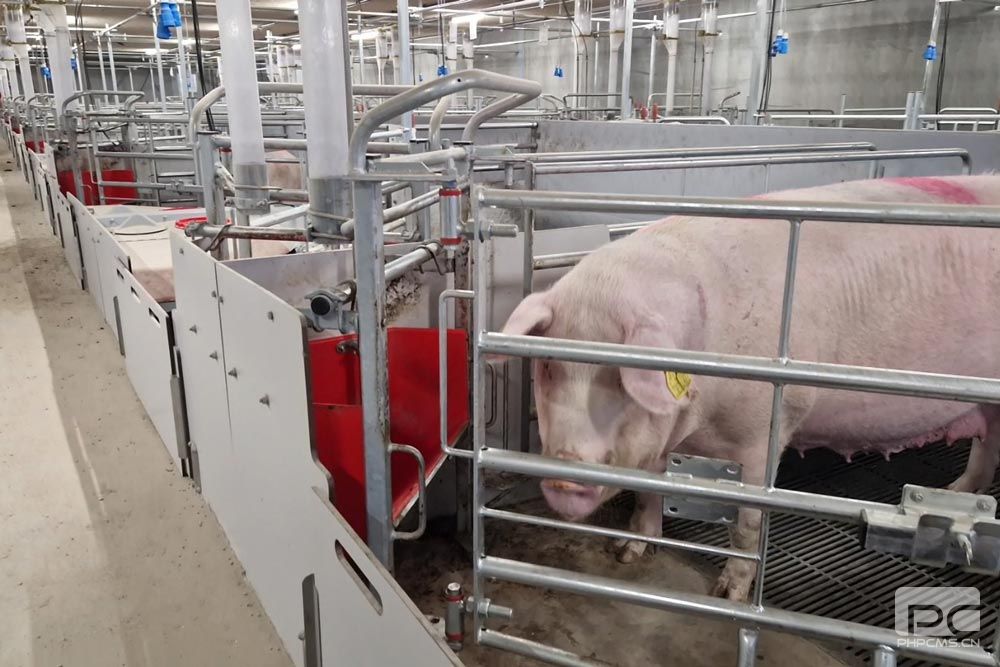

• Piglet Creep Area: Separate protected resting zone that the sow cannot easily enter.
• Piglet Heating System: Heating plate, heat lamp, covered nest or other heating options available upon request.
• Pen Partitions: Livestock-grade PVC boards, fiber-composite panels or other washable partition materials.
• Flooring System: Plastic slats, cast-iron slats or combined flooring selected according to animal zone and project design.
• Sow Feeding Area: Fixed, adjustable or tilting trough options can be incorporated.
• Water Supply: Sow and piglet drinking equipment can be installed according to farm requirements.
• Access Gates: Staff and animal access points designed for convenient sow movement, inspection and pen cleaning.

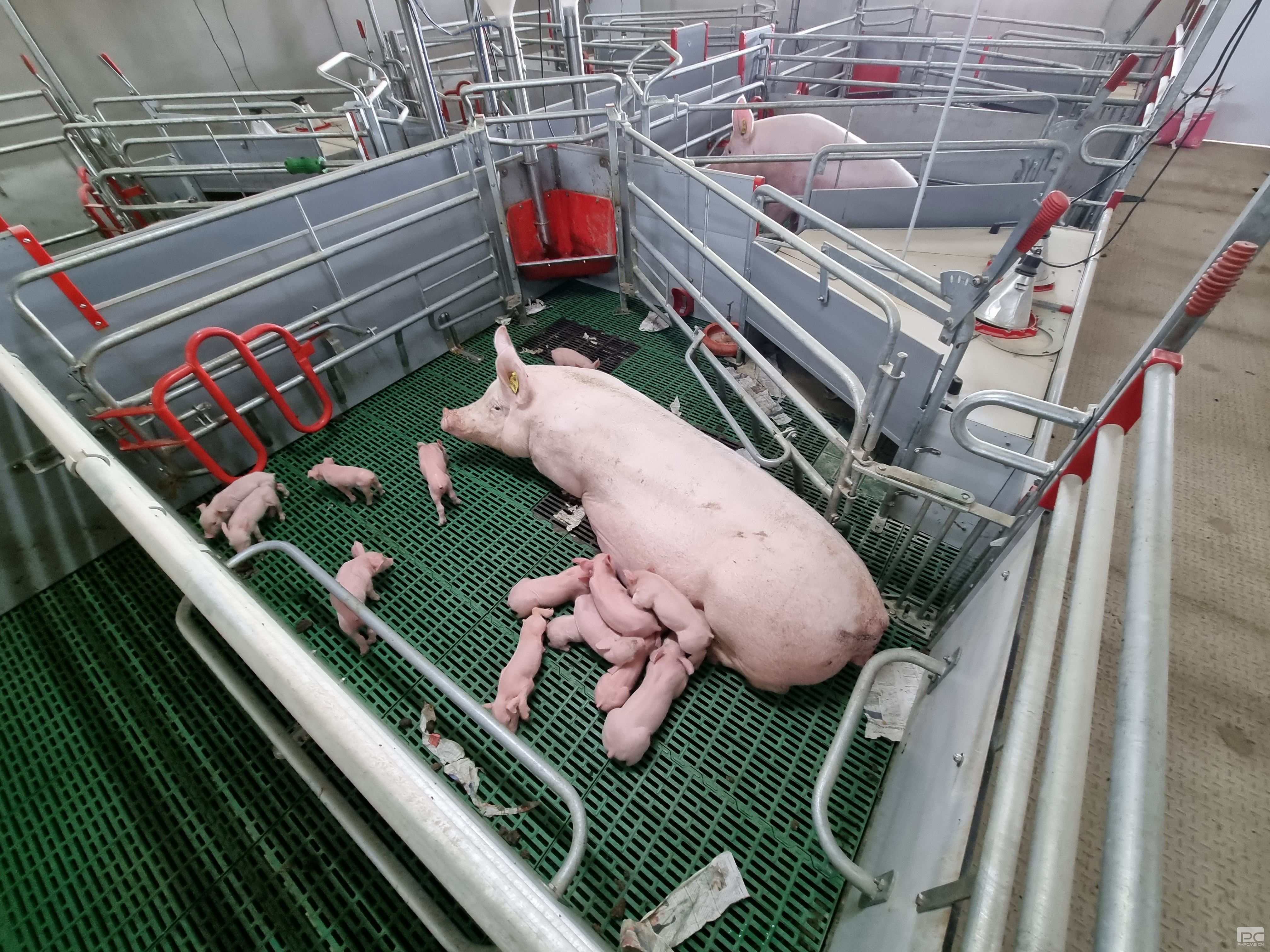

The loose farrowing concept divides the pen into functional zones for the sow and piglets. The sow receives a larger movement area than in a conventional fixed crate, while piglets have access to a separate protected and warmer creep zone.

During the period when newborn piglets are most vulnerable, adjustable side rails or a movable farrowing frame can be positioned to restrict excessive sow movement. The rails also provide support when the sow lies down and create additional clearance for piglets along the sides.

After the initial farrowing period, the restraint structure can be opened according to farm management procedures, giving the sow more usable floor area and greater freedom of movement for the remaining lactation period.

The piglet nest maintains a separate microclimate and protected resting area. This zoning principle helps address the different thermal requirements of the sow and newborn piglets while improving accessibility for daily livestock management.

• Product Type: Loose sow / free-movement farrowing pen
• Application: Farrowing and lactation housing for sows and piglets
• Pen Dimensions: Customizable according to project requirements
• Pen Layout: Multiple configurations available according to barn dimensions and management system
• Main Frame: Galvanized steel or equivalent corrosion-resistant livestock housing material
• Partition Material: PVC board, fiber-composite panel or customized livestock-grade panel
• Flooring: Plastic slats, cast-iron slats or combined floor configuration
• Farrowing Rail: Adjustable, movable or pivoting configuration available
• Piglet Nest: Available according to project requirements
• Piglet Heating: Heating plate, heat lamp or other heating system available upon request
• Sow Trough: Stainless steel, polymer or other suitable configuration available upon request
• Drinking System: Nipple drinker, drinking bowl or customized configuration
• Manure Removal: Compatible with under-floor manure channels and standard pig-house manure-management systems
• Installation: Modular assembly for new construction or pig-house renovation
• Configuration: Designed according to sow size, welfare requirements, barn layout and farm management conditions

• Commercial sow farrowing houses
• Breeding pig farms
• Animal-welfare-oriented swine farms
• Large integrated pig production complexes
• New farrowing-house construction projects
• Existing farrowing-house renovation projects
• Research and demonstration pig farms
• Government and agricultural development projects
• Livestock equipment distributor projects
• International turnkey pig farm projects

The Loose Sow Farrowing Pen can be configured according to farm capacity, barn dimensions, production management and local animal-welfare requirements. Available customization includes:

• Pen length and width
• Sow movement area
• Farrowing rail configuration
• Left-hand or right-hand pen arrangement
• Piglet nest dimensions and location
• Piglet nest cover and barrier system
• Heating plate or heat lamp configuration
• PVC, composite or alternative partition panels
• Plastic and cast-iron floor combinations
• Sow trough configuration
• Sow and piglet drinking system
• Automatic feeding system interface
• Inspection access and aisle orientation
• Manure channel interface
• Complete farrowing-house layout design according to project requirements

Installation:

1. Confirm farrowing-house dimensions, aisle layout and manure-channel positions.
2. Prepare flooring, support points and fixing positions according to project drawings.
3. Install galvanized posts and main pen partitions.
4. Assemble movable farrowing rails, gates and restraint components.
5. Install piglet nest panels, covers and heating equipment where required.
6. Install sow troughs and drinking equipment.
7. Check gate movement, locking mechanisms and adjustable components.
8. Inspect the complete installation before animals enter the farrowing room.

Maintenance:

• Wash and disinfect the pen between farrowing batches.
• Inspect galvanized surfaces, bolts and structural connections regularly.
• Check hinges, movable rails, locking devices and gates for smooth operation.
• Inspect plastic or composite panels for damage.
• Keep slatted floors and manure openings clear.
• Check piglet heating equipment before each new litter.
• Inspect drinkers and troughs regularly to maintain reliable feed and water access.

Typical project configurations include:

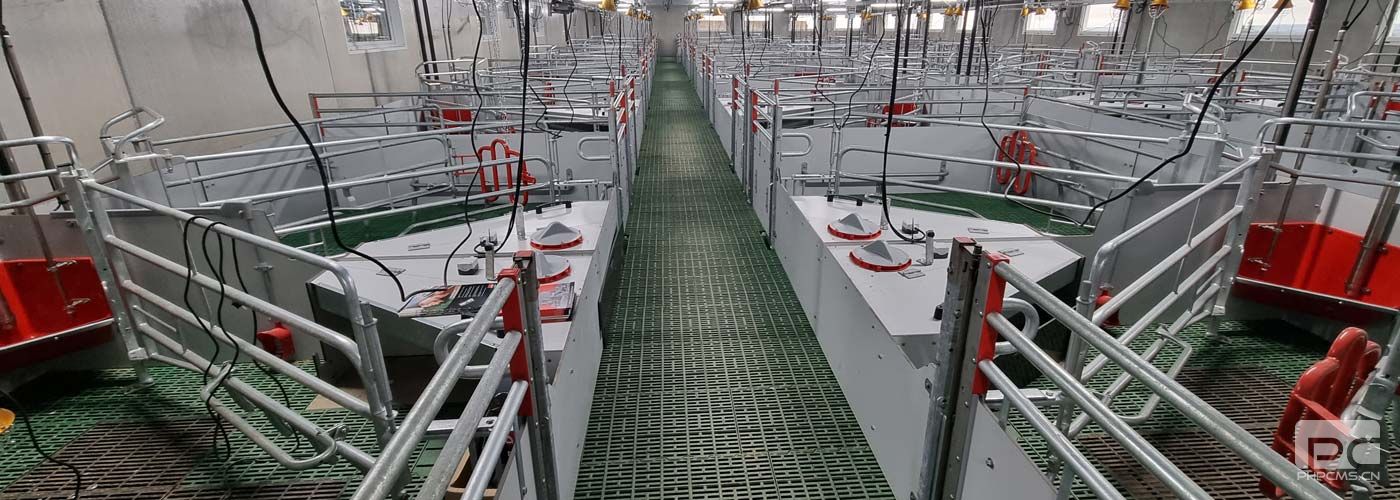

• New Commercial Farrowing House: Multiple loose farrowing pens arranged along service aisles with integrated piglet nests, heating and manure channels.
• Existing Barn Renovation: Modular pen equipment configured according to existing building dimensions, flooring and manure pits.
• Welfare Upgrade Project: Conventional farrowing accommodation replaced or supplemented with variable-restraint or free-movement systems.
• Large Breeding Farm: Standardized farrowing rooms incorporating feeding, drinking, piglet heating and environmental control equipment for consistent batch management.

Q: What is a Loose Sow Farrowing Pen?
A: It is a farrowing housing system that provides the sow with more freedom of movement than a conventional fixed farrowing crate while maintaining dedicated protection and resting areas for piglets.

Q: Can the sow still be restrained when necessary?
A: Yes. Depending on the selected configuration, movable or pivoting farrowing rails can provide temporary restraint during farrowing, veterinary treatment or other management procedures.

Q: How are piglets protected from crushing?
A: The system can incorporate piglet protection rails, controlled sow-restraint functions, wall clearance zones and a separate piglet creep area.

Q: Can the piglet area be heated?
A: Yes. Heated floor plates, heat lamps, covered creep areas and other heating solutions are available according to project requirements.

Q: Can pen dimensions be customized?
A: Yes. Dimensions can be designed according to sow size, barn layout, available floor area, production system and applicable welfare requirements.

Q: Can this system be installed in an existing pig house?
A: In many projects, loose farrowing equipment can be incorporated into renovation work. The final layout depends on existing room dimensions, manure pits, flooring and service aisles.

Q: What flooring can be used?
A: Plastic slats, cast-iron slats and combined flooring systems can be selected according to the sow area, piglet area and manure-management design.

Q: Can feeding and drinking systems be included?
A: Yes. Sow troughs, automatic feeding interfaces, nipple drinkers, drinking bowls and piglet water systems can be integrated.

Q: Is the equipment suitable for large commercial farms?
A: Yes. Modular pen layouts can be repeated across multiple farrowing rooms for breeding farms, livestock groups and large pig-production projects.

Q: What information is required for a quotation?
A: Recommended information includes the number of sows, farrowing places required, barn dimensions, floor and manure-pit layout, preferred pen size, feeding system, piglet heating requirements and project location.
