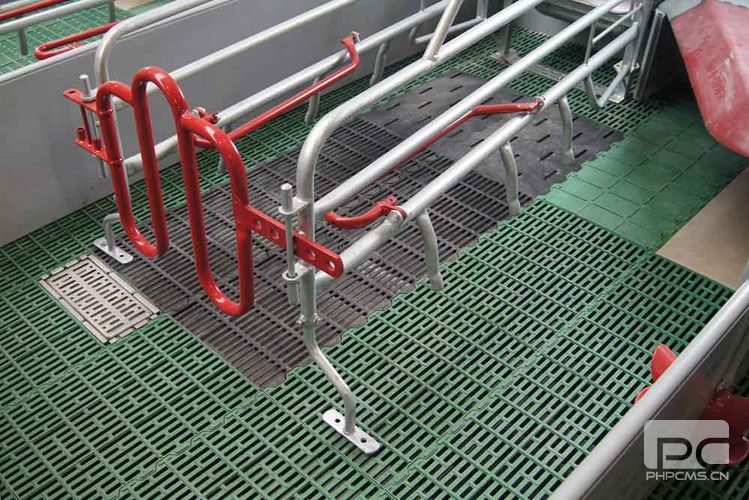

Traditional Sow Farrowing Crate

The Traditional Sow Farrowing Crate is a specialized pig housing system designed for sow farrowing and lactation management in commercial swine farms. The central sow crate provides a controlled lying and standing area, while the surrounding pen provides dedicated space for newborn and nursing piglets.

The system is designed to improve daily management during the critical farrowing period. Adjustable crate components can accommodate different sow body sizes, while protective side rails and anti-crush structures help create safer separation between the sow and piglets when the sow changes position or lies down.

A complete farrowing position can integrate the sow crate, piglet creep area, heating plate or heat lamp, feeder, drinking equipment, pen partitions, slatted flooring and manure collection system. These components can be configured according to farm layout, sow genetics, production system and local management requirements.

Traditional farrowing crates are suitable for intensive breeding farms requiring standardized sow management, convenient observation, efficient sanitation and predictable room layouts. They can be installed in new farrowing houses or incorporated into renovation and expansion projects.

• Adjustable Sow Space: The crate length, front section, rear section or internal width can be configured according to sow body size and project requirements.
• Piglet Protection: Side rails, anti-crush bars or tiltable protection structures help reduce direct contact between piglets and the sow during lying movements.
• Easy Sow Access: Rear gates and optional front-access configurations facilitate sow entry, exit and routine farm management.

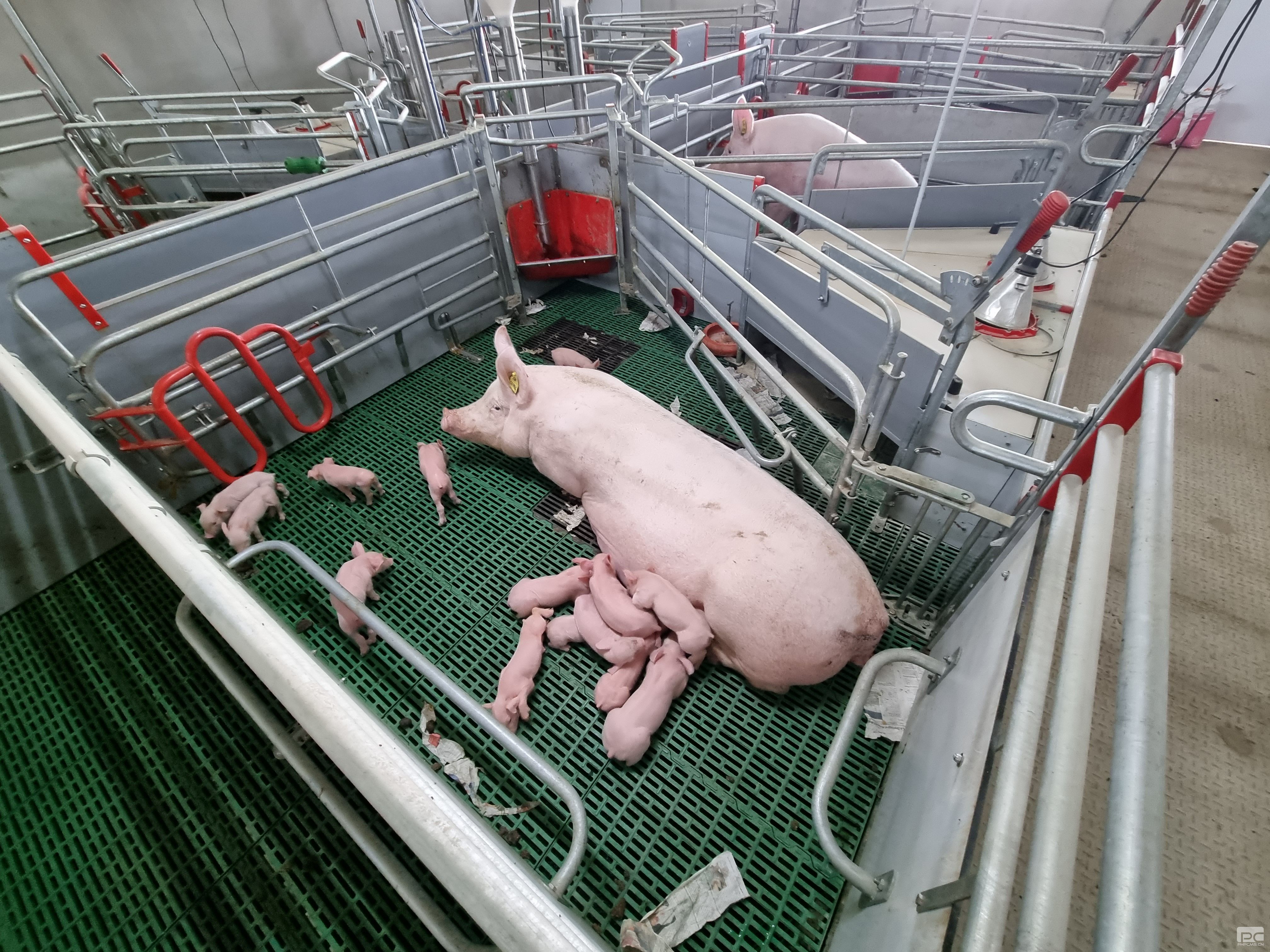

• Dedicated Piglet Area: The surrounding pen provides nursing and resting space for piglets while maintaining access to the sow's udder.
• Localized Piglet Heating: Heating plates, heat lamps or covered piglet nests can create a warmer microclimate for newborn piglets.
• Durable Construction: Galvanized steel, stainless steel and durable polymer components are available according to farm environment and project requirements.
• Flexible Pen Partitions: PVC boards, fiber panels or other washable pen partition materials can be selected according to barn design.
• Slatted Flooring Compatibility: Compatible with plastic, cast iron or combination flooring systems for improved manure drainage and cleaning.
• Feeding Integration: Fixed or tiltable sow troughs can be combined with manual or automatic feeding systems.
• Reliable Water Supply: Sow and piglet drinkers can be integrated into the farrowing position.
• Easy Inspection: Open crate structures and organized service aisles provide convenient access for observation, feeding and farrowing assistance.
• Commercial Farm Layout: Suitable for installation in repeated rows for medium and large sow farms.

• Main Sow Crate: Galvanized or stainless steel tubular structure used to position the sow during farrowing and lactation.
• Front Frame: Supports the feeding and drinking area and can be configured according to the selected crate design.
• Rear Gate: Provides sow access and can incorporate adjustable or tilting functions according to the selected configuration.
• Side Rails: Tubular rails define the sow lying area and provide separation from the surrounding piglet zone.
• Anti-Crush Protection: Side wings, protection rails or similar structures can provide additional space for piglets when the sow lies down.
• Sow Feeder: Plastic, stainless steel or other corrosion-resistant trough options are available.
• Sow Drinker: Nipple drinker, drinking bowl or integrated water supply according to project requirements.
• Piglet Nest: Protected resting area that can be equipped with a climate cover, heat lamp or heating plate.
• Piglet Drinker: Optional drinking equipment positioned for convenient piglet access.
• Pen Partitions: PVC board, fiber panel or project-specific partition material.
• Flooring System: Plastic slats, cast iron slats or combination floors selected according to sow and piglet requirements.
• Support Structure: Floor supports, mounting brackets, posts and fasteners used to stabilize the complete installation.

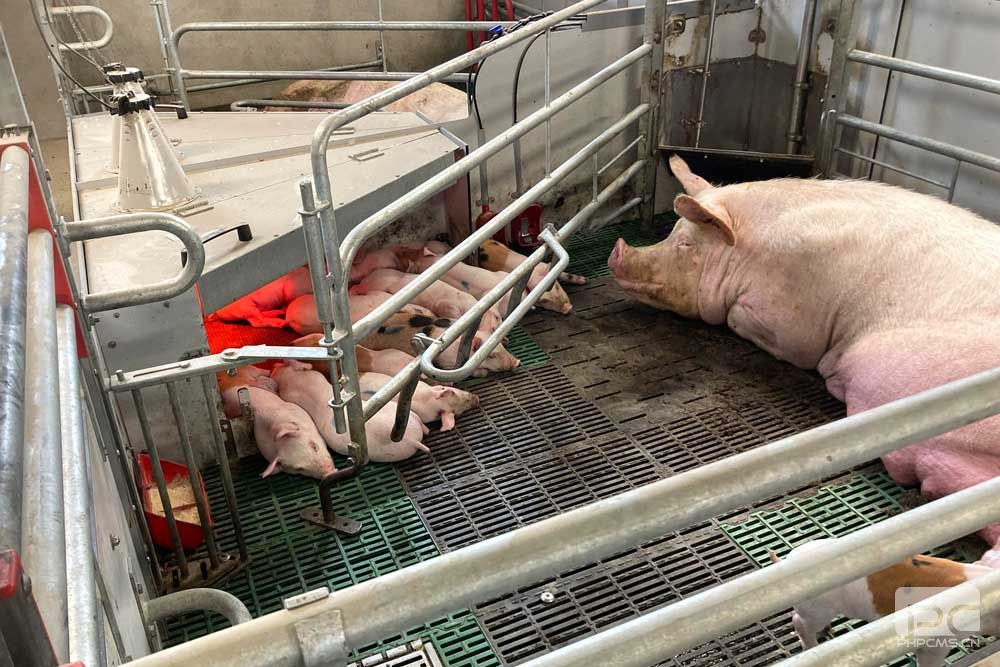

Sow Positioning: The sow remains within the central crate during the farrowing and nursing period. The crate provides controlled space for standing and lying while allowing piglets to reach the udder from both sides.

Piglet Protection: Structural rails and optional anti-crush components create protected spaces along the sow's body. When the sow lowers herself, these structures provide additional opportunity for piglets to move away from the sow.

Dual Thermal Zones: Adult sows and newborn piglets have different thermal requirements. A separate heated creep area allows piglets to receive localized warmth without increasing the temperature of the entire farrowing room.

Feeding and Drinking: The sow can receive feed through an individual trough connected to manual or automatic feed delivery. Dedicated water equipment provides continuous access to drinking water. Additional piglet water and creep feeding equipment can be added when required.

Manure Drainage: Slatted flooring permits manure and liquids to pass through the floor into the manure collection system below, helping maintain cleaner animal contact surfaces and simplifying routine washing.

• Commercial sow farms
• Farrowing and lactation houses
• Breeding pig farms
• Multiplier and genetic breeding farms
• Farrow-to-finish pig farms
• Large-scale integrated swine farms
• New farrowing house construction projects
• Existing farrowing barn renovation
• Pig farm expansion projects
• Turnkey commercial pig farm projects

The Traditional Sow Farrowing Crate can be configured according to sow genetics, farrowing-room dimensions, production capacity, flooring design and farm management requirements.

• Crate length and internal width
• Front and rear crate adjustment
• Fixed or adjustable rear gate
• Tiltable rear protection structure
• Anti-crush side rail configuration
• Galvanized steel or stainless steel structure
• PVC or fiber pen partitions
• Side-facing or front-exit layout
• Service aisle orientation
• Fixed or tiltable sow trough
• Manual or automatic feeding interface
• Sow nipple drinker or drinking bowl
• Piglet drinking equipment
• Standard or enlarged piglet nest
• Left-hand or right-hand piglet creep area
• Heat lamp system
• Electric or hot-water heating plate
• Plastic slatted flooring
• Cast iron sow flooring
• Combination farrowing floor
• Floor support beams and mounting systems
• Automatic milk or creep-feeding interfaces
• Configuration for new barns or renovation projects

Typical Installation Process

1. Confirm the farrowing-room layout, aisle position and number of sow places.
2. Verify flooring, manure pit, support beam and drainage arrangement.
3. Mark the centerline and mounting positions for each farrowing pen.
4. Install floor supports and slatted flooring where required.
5. Position and secure the main sow crate structure.
6. Install front frames, rear gates and side protection rails.
7. Install PVC, fiber or other pen partitions.
8. Install sow feeders and drinking equipment.
9. Install the piglet nest, heating plate or heat lamp system.
10. Connect automatic feeding, water and optional control systems.
11. Adjust the crate configuration and confirm smooth gate operation.
12. Check bolts, brackets, floor interfaces and animal-contact surfaces before use.

Routine Maintenance

• Inspect crate rails, posts and structural connections regularly.
• Check rear gates, hinges and locking mechanisms for smooth operation.
• Inspect galvanized surfaces for damage and repair corrosion protection where necessary.
• Clean feeders and drinking equipment between production batches.
• Check water valves and drinkers for leaks or blockage.
• Inspect piglet heating equipment before each farrowing batch.
• Remove manure and debris from slatted flooring and drainage areas.
• Check plastic and cast iron flooring for damaged sections.
• Wash and disinfect the complete farrowing pen according to farm biosecurity procedures.
• Allow cleaned pens to dry thoroughly before introducing the next group of sows.

Traditional sow farrowing crates can be installed as individual positions or arranged in repeated rows within commercial farrowing rooms. The number of positions per room can be planned according to sow inventory, breeding schedule, batch production system and available building dimensions.

For new pig farm projects, farrowing crates can be coordinated with floor systems, manure pits, automatic feeding, drinking lines, ventilation, piglet heating, environmental control and room-level biosecurity during the engineering stage.

For renovation projects, customized pen dimensions and mounting arrangements can help adapt new farrowing equipment to existing buildings, flooring systems and service aisles.

Project layouts, equipment configurations and technical proposals are available upon request according to farm capacity and site conditions.

Q: What is a Traditional Sow Farrowing Crate?
A: It is a pig housing system used during farrowing and lactation. The sow is positioned within a central crate while piglets occupy the surrounding pen and have access to the udder, resting area and optional heated creep zone.

Q: Can the crate be adjusted for different sow sizes?
A: Yes. Adjustable crate configurations are available to accommodate different sow sizes and farm management requirements.

Q: How does the crate help protect piglets?
A: Side rails and optional anti-crush structures create protected areas beside the sow and help provide piglets with additional space when the sow lies down.

Q: Can a heated piglet nest be included?
A: Yes. Piglet nests, climate covers, heat lamps and heating plates can be supplied according to project requirements.

Q: What flooring can be used?
A: Plastic slats, cast iron slats and combination flooring can be selected according to sow comfort, piglet requirements and manure management design.

Q: Can the sow trough be tilted for cleaning?
A: A tiltable trough configuration is available upon request and can improve access during routine cleaning.

Q: Can automatic feeding be connected to the crate?
A: Yes. Individual feed drops and automatic feeding lines can be integrated according to the farm feeding system.

Q: Are PVC and fiber partitions available?
A: Yes. Different partition materials can be selected according to hygiene requirements, ventilation strategy and project budget.

Q: Is the equipment suitable for existing pig house renovation?
A: Yes. Pen dimensions, mounting positions and equipment interfaces can be customized according to existing building and floor conditions.

Q: Can the system include drinking equipment for both sow and piglets?
A: Yes. Separate sow and piglet drinking equipment can be incorporated into the farrowing pen.

Q: Is galvanized steel suitable for commercial pig farms?
A: Hot-dip galvanized steel is commonly used for livestock pen equipment because of its durability and corrosion resistance. Stainless steel options are also available for selected components.

Q: What information is required for a quotation?
A: Please provide the number of farrowing places, sow type or approximate size, preferred pen dimensions, floor system, feeder type, piglet heating requirements, drinking system and farrowing-house layout when available.
