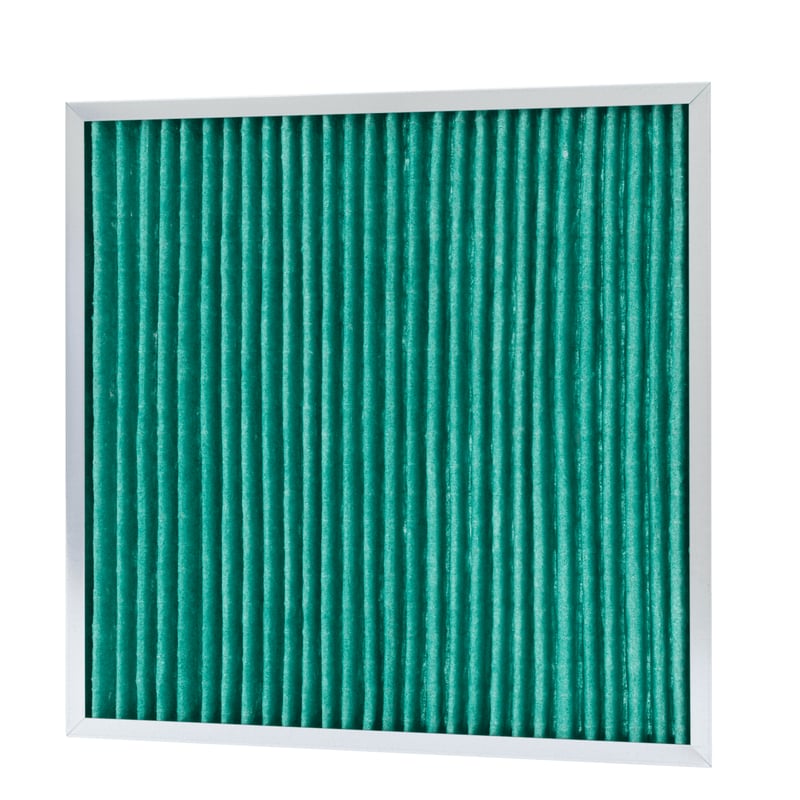

Metal-Frame Pre-Filter for Pig House Ventilation

The Metal-Frame Pre-Filter for Pig House Ventilation is designed for first-stage air filtration in commercial pig farms, breeding facilities and livestock ventilation systems. It helps capture coarse dust, feed particles, bedding debris and other airborne contaminants before the air reaches downstream fans, cooling equipment, air-handling units or higher-efficiency filtration stages.

The filter combines pleated synthetic media with a rigid metal frame to provide stable structural support in demanding agricultural environments. The increased filtration area created by the pleated media supports practical dust-holding capacity while maintaining airflow through mechanically ventilated pig houses. Dimensions, frame thickness and installation configuration can be customized according to project requirements.

• Rigid metal-frame construction suitable for livestock ventilation applications.
• Pleated synthetic filter media provides increased filtration surface area within a compact panel design.
• Designed for first-stage capture of coarse dust and suspended particles.
• Helps protect downstream filters, ventilation fans, cooling systems and air-handling equipment.
• Metal support structure helps maintain pleat stability during continuous airflow operation.
• Suitable for front-access or side-access filter housings depending on project design.
• Available in customized dimensions for new pig house construction and retrofit ventilation projects.
• Suitable for centralized air intake systems, filter walls and modular livestock ventilation equipment.

Fresh or recirculated ventilation air passes through the pleated filter media before entering the pig house ventilation system or a downstream filtration stage. Larger airborne particles are retained by the media while filtered air continues through the system. The pleated configuration increases the effective media area, helping distribute airflow across the filter surface. The metal frame and support structure keep the filter stable inside the housing during continuous operation.

Final filter dimensions, airflow performance, pressure drop and filtration grade should be confirmed according to the pig house ventilation design and project specification.

• Commercial pig house fresh-air intake systems
• Sow farms, nursery barns and finishing houses
• Centralized livestock ventilation filter walls
• Air-handling units serving pig production facilities
• Pre-filtration before higher-efficiency panel, bag or compact filters
• Ventilation systems connected to cooling pads or evaporative cooling equipment
• Livestock house environmental control systems
• New steel-structure pig farm construction projects
• Existing farm ventilation system upgrades

• Filter Dimensions: Width, height and depth can be customized according to the filter housing or air inlet opening.
• Frame Material: Galvanized steel and alternative metal specifications are available upon request.
• Media Grade: Selected according to required filtration performance and ventilation system design.
• Filter Depth: Available according to airflow, installation space and dust-loading requirements.
• Holding Frame: Mounting frames and modular filter banks can be designed according to project requirements.
• Farm Conditions: Configuration can be designed according to local climate, humidity, dust concentration and pig house operating conditions.

Install the filter securely inside the designated frame or housing and ensure that the panel fits tightly around the perimeter to minimize unfiltered air bypass. The supporting structure should be properly aligned with the ventilation airflow and accessible for inspection and replacement.

In commercial pig houses, filter inspection frequency should be determined by dust concentration, animal density, feed handling conditions, seasonal ventilation rate and outdoor air quality.

Replace the filter when the project-defined final resistance is reached, airflow is reduced beyond acceptable limits, or the filter media or frame shows visible damage. Holding frames and sealing surfaces should also be cleaned and inspected during filter replacement.

Commercial Pig House Air Intake: Metal-frame pre-filters can be installed in centralized fresh-air filter walls to reduce coarse dust entering mechanically ventilated pig houses.

Multi-Stage Filtration Project: The pre-filter can be installed upstream of higher-efficiency filters to reduce downstream dust loading and extend maintenance intervals.

Ventilation Retrofit Project: Customized filter dimensions and mounting frames can be supplied to match existing ventilation openings and air-handling equipment.

Q: Why use a metal-frame pre-filter in a pig house?
A: The rigid frame provides stable support for the filter media and is suitable for fixed ventilation housings where durability and dimensional stability are important.

Q: What contaminants can the pre-filter remove?
A: It is mainly intended for coarse airborne dust, feed particles, bedding debris and similar particulate contamination before downstream filtration or ventilation equipment.

Q: Can the filter dimensions be customized?
A: Yes. Width, height, depth and frame configuration can be customized according to project requirements and existing ventilation openings.

Q: Can it be installed before a higher-efficiency filter?
A: Yes. It is suitable as a first-stage pre-filter in multi-stage livestock air filtration systems.

Q: How often should the filter be replaced?
A: Replacement frequency depends on dust loading, airflow, operating hours and the allowable final pressure drop specified for the ventilation system.

Q: Can complete filter banks and holding frames be supplied?
A: Filter panels, supporting frames and related installation configurations are available according to project requirements.
