| Product Showcase | Content |
| Product Name | Positive Pressure Air Filter Wall for Pig Houses |
| Product Image |  |

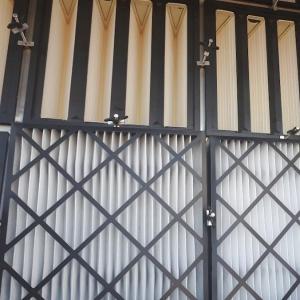

| Product Overview | The Positive Pressure Air Filter Wall for Pig Houses is a modular livestock ventilation filtration system designed for commercial swine buildings requiring controlled, filtered supply air. Multiple high-efficiency V-bank filter modules are arranged in a sealed wall bank and integrated with the fresh-air inlet and supply-fan system. During operation, ventilation fans draw outdoor air through the filter wall and deliver filtered air into the pig house. Properly engineered airflow allows the building to operate at a controlled positive pressure relative to the outdoor environment, helping reduce uncontrolled infiltration through doors, joints and other leakage points. The system is suitable for breeding farms, sow farms, boar studs, nursery facilities and other pig production projects where ventilation performance and farm biosecurity are important design considerations. Filter-wall dimensions, filtration grade, structural frame and airflow capacity can be engineered according to project requirements. |
| Key Features |
|
| Structural Components |
|
| Working Principle / Structural Principle | Outdoor air is drawn through the V-bank filter wall by the mechanical supply ventilation system. Airborne particles are captured by the filter media while filtered air passes into the clean-air plenum and is subsequently distributed throughout the pig house. The supply system is engineered so that filtered air enters the building at a controlled rate. When supply airflow exceeds uncontrolled leakage and managed exhaust requirements by the designed amount, a slight positive pressure can be maintained inside the livestock building. This pressure differential helps limit untreated outdoor air from entering through unintended openings. The V-bank geometry increases the available media surface area compared with a flat filter of similar face dimensions. This configuration is commonly used where high airflow, compact installation and efficient particulate filtration are required. |
| Technical Specifications |
Product Type: Positive-pressure V-bank air filter wall Primary Application: Commercial pig house filtered-air ventilation Filter Configuration: Multi-module V-bank filter wall Filtration Efficiency: Customizable according to project requirements Filter Media: High-efficiency synthetic or glass-fiber media, available upon request Filter Module Dimensions: Customizable Overall Wall Dimensions: According to project requirements Airflow Capacity: Designed according to pig house ventilation demand System Pressure Drop: Depends on filter grade, filter loading, airflow rate and system configuration Holding Frame Material: Galvanized steel, coated steel, stainless steel or project-specified material Sealing Method: Gasketed and mechanically secured according to project design Ventilation Mode: Positive-pressure mechanical ventilation Pre-Filter Compatibility: Available according to system design Environmental Design: Designed according to local climate and farm conditions |
| Applications |
|
| Customization Options | The filter wall can be engineered according to building dimensions, animal production stage, local climate, ventilation strategy and required air filtration performance.
|
| Installation & Maintenance | The filter holding structure should be installed square, rigid and properly sealed to the surrounding pig house wall or air intake chamber. All joints between filter modules, structural frames and building openings should be checked to minimize bypass leakage. Fan selection should consider the designed airflow together with pressure losses generated by filters, inlet openings, plenums, ducts and other ventilation components. Adequate service clearance should be reserved so that filters can be inspected and replaced safely. During operation, filter condition and system pressure differential should be checked regularly. Filter replacement should be based on pressure-drop development, dust loading, physical condition, farm operating procedures and manufacturer recommendations rather than on a universal fixed service interval. Gaskets, holding frames and sealing surfaces should also be inspected whenever filters are replaced. |
| Project Cases | Typical applications include centralized filtered-air supply systems for commercial breeding pig farms where multiple V-bank filters are installed as a continuous wall ahead of a clean-air plenum and mechanical supply fans. For new pig farm construction, the filter wall can be integrated into the steel structure building design together with ventilation chambers, fan openings, air distribution components and maintenance corridors. For renovation projects, the existing ventilation capacity, wall openings, structural strength, available maintenance space and building leakage characteristics should be evaluated before determining the final filter-wall arrangement. Final system configuration is designed according to project requirements and local farm conditions. |
| Product FAQ | Q1: What is a positive-pressure air filter wall? It is a bank of air filters integrated with a mechanical supply ventilation system. Outdoor air passes through the filtration wall before entering the pig house, while the ventilation system is designed to maintain controlled positive indoor pressure. Q2: Why are V-bank filters suitable for pig house filter walls? The V-bank configuration provides a large filtration surface within a compact module, making it suitable for high-volume ventilation systems where filtration efficiency and airflow resistance must be considered together. Q3: Can the filtration grade be customized? Yes. The filtration level can be selected according to project biosecurity requirements, ventilation design and applicable filtration standards. Q4: Can a pre-filter be installed before the main V-bank filters? Yes. A suitable pre-filter stage can capture larger dust particles and reduce loading on downstream high-efficiency filters. Q5: Can this system be used for existing pig houses? Retrofit installation is possible when the existing building structure, ventilation equipment, inlet arrangement and available installation space are suitable. Q6: How is the required filter-wall size determined? Wall size is calculated according to total ventilation airflow, acceptable face velocity, selected filter performance, pressure-drop requirements and available building space. Q7: Does positive pressure require special fan selection? Yes. Supply fans should be selected based on required airflow and the total static pressure of the complete filtration and air distribution system. Q8: What information is required for a project quotation? Recommended information includes pig house dimensions, animal type and production stage, maximum ventilation requirement, existing or proposed fan arrangement, air inlet dimensions, local climate conditions, required filtration level and building drawings. |
| Product Gallery |  |
