Multi-Zone Piglet Nursery Pen

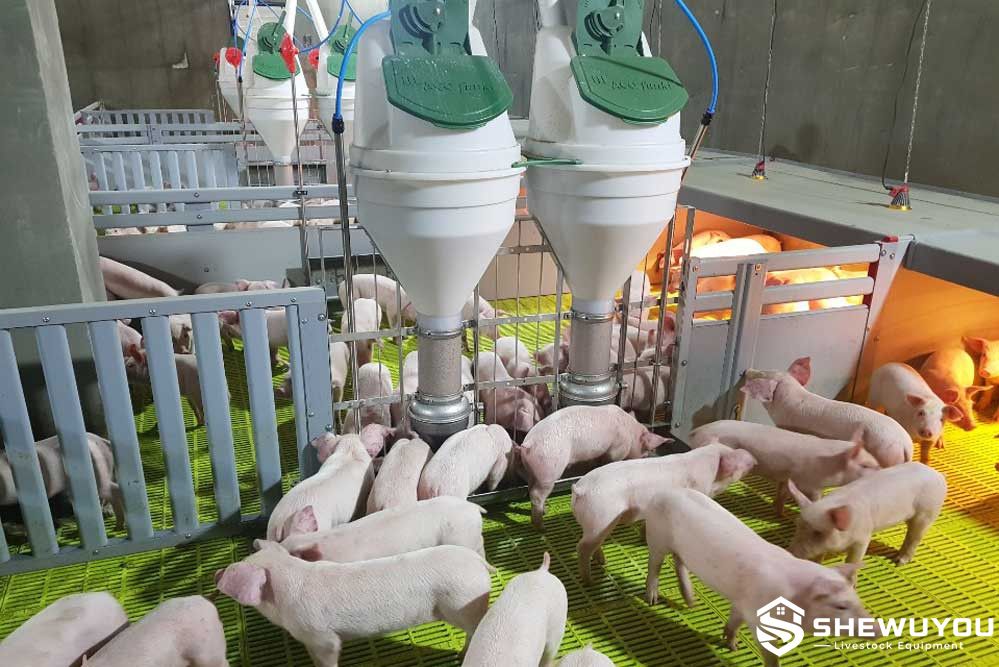

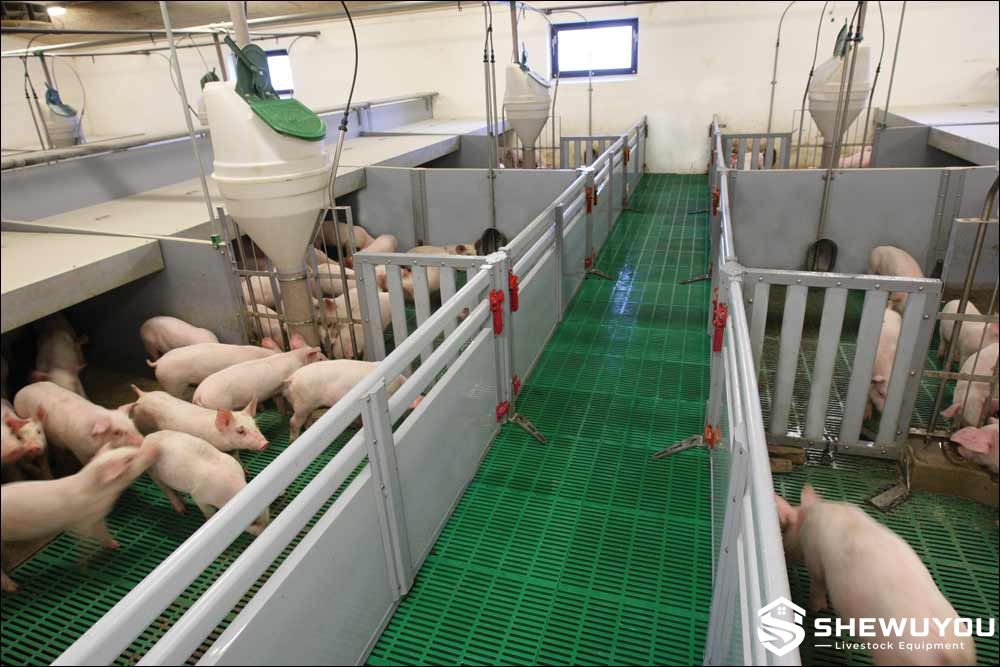

The Multi-Zone Piglet Nursery Pen is a modular housing system designed to organize the nursery pen into functional areas for resting, feeding, drinking, activity and dunging. The layout uses appropriate partition types, flooring, feeding positions, drinking equipment and optional microclimate components to help pigs use different sections of the pen for different behaviors.

Closed partition sections can help create a protected resting area, while ventilated partitions or contact grids can be positioned near the activity and dunging zones. Feeders and drinkers are arranged to support easy access without unnecessarily interfering with the resting section. Where required, sprinkling equipment can be installed in the intended dunging area as part of the overall pen-management strategy.

For recently weaned pigs, an optional two-climate cover can be installed above the resting zone to provide a more protected local microenvironment. The uncovered sections remain connected to the general nursery-house ventilation system.

The modular design is suitable for new commercial pig houses, steel structure livestock buildings and renovation projects. Pen dimensions, zone proportions, materials, feeding equipment and environmental systems can be customized according to pig numbers, farm management practices and local project requirements.

• Functional zone layout: Separates resting, feeding, drinking, activity and dunging functions within the nursery pen.
• Protected resting zone: Closed partitions can reduce unnecessary disturbance and direct drafts around resting pigs.
• Dedicated feeding area: Feeders or troughs can be positioned to provide convenient access while supporting an organized pen layout.
• Independent drinking zone: Water cups or nipple drinkers can be positioned according to pig numbers and management requirements.
• Defined dunging area: Contact grids, suitable flooring and optional sprinkling can help encourage use of a selected section for dunging.
• Closed and ventilated partitions: Different wall configurations can be combined according to the function of each pen zone.
• Optional two-climate system: A climate cover can be installed above the resting section for additional microclimate protection.
• Multiple feeding options: Compatible with dry feeding, wet-dry feeding and liquid feeding systems.
• Flexible flooring: Plastic slats, concrete slats, solid sections or combined flooring can be selected according to zone requirements.
• Hygienic materials: Smooth plastic, PVC or compact fiber partitions support routine washing and disinfection.
• Modular construction: Pen dimensions and equipment layouts can be adapted to different commercial nursery buildings.
• Project integration: Suitable for complete pig-house projects incorporating feeding, drinking, manure handling, heating and ventilation systems.

• Closed partition panels: PVC, plastic or compact fiber panels can form protected resting and separation areas.
• Ventilated partition sections: Horizontal rails or open-grid sections provide additional airflow and visibility where required.

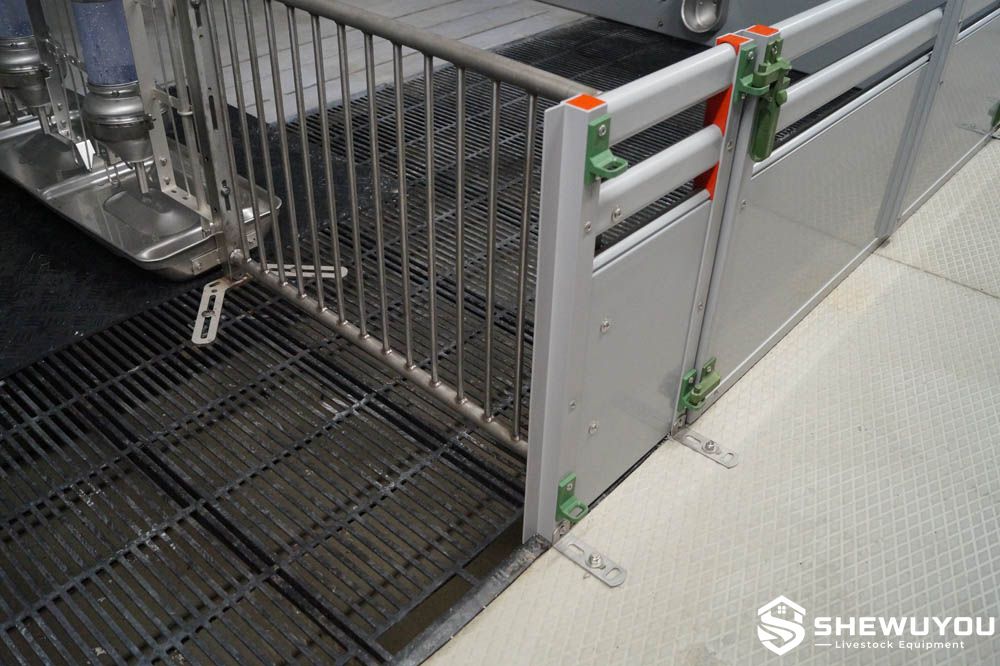

• Contact grid: Galvanized or stainless-steel grid can be positioned between neighboring pens, particularly near activity or dunging areas.
• Support posts and brackets: Stainless steel, galvanized steel or other corrosion-resistant structural components secure the penning system.
• Access gates: Small gates, full-width gates or customized designs provide controlled animal and staff access.
• Feeding equipment: Dry feeders, wet-dry feeders or liquid-feeding troughs can be incorporated into the feeding zone.
• Drinking equipment: Water cups, nipple drinkers or water valves can be positioned according to project requirements.
• Zone-specific flooring: Plastic slats, concrete slats, solid flooring or combined floor layouts can be used.
• Optional sprinkling system: Spray nozzles can be located over the intended dunging area where this management method is appropriate.
• Optional climate cover: Two-part or three-part cover can provide a protected microclimate above the resting zone.
• Optional heating system: Floor heating, heating plates or other approved heating equipment can be incorporated into the resting area.

The Multi-Zone Piglet Nursery Pen uses spatial arrangement and different environmental conditions to help separate major pig behaviors within one enclosure. The objective is to create clearly recognizable functional sections rather than a uniform pen environment.

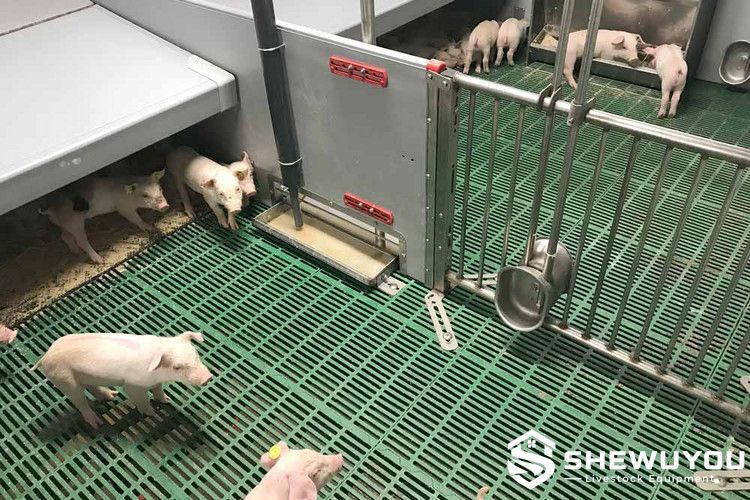

Resting Zone: The resting area can use solid partition walls, suitable flooring and an optional climate cover to provide a quieter, warmer and more protected location.

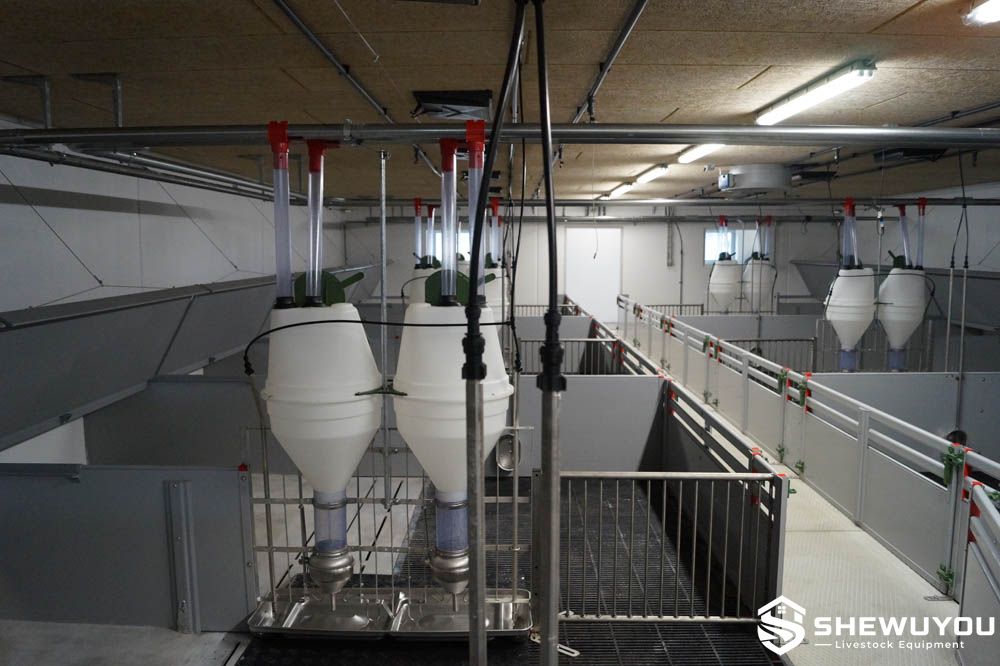

Feeding Zone: Feeders or troughs are positioned where pigs can reach them conveniently without concentrating unnecessary activity in the resting area.

Drinking Zone: Water equipment is positioned for easy access and can be coordinated with slatted flooring to manage water spillage.

Activity and Contact Zone: Open or ventilated partitions can allow visual and controlled physical contact with neighboring pigs while maintaining structural separation between groups.

Dunging Zone: Open contact grids, slatted flooring and, where appropriate, targeted sprinkling can help make a selected area more suitable for dunging than the protected resting section.

Actual pig behavior depends on stocking density, temperature, airflow, feeding arrangement, pen geometry and farm management. The final zoning layout should therefore be designed as part of the complete nursery-house environmental system.

• Commercial piglet nursery houses
• Post-weaning pig production facilities
• Large-scale swine breeding farms
• Two-climate nursery systems
• High-hygiene piglet housing
• Dry-feeding nursery units
• Wet-dry feeding nursery units
• Liquid-feeding nursery systems
• New steel structure pig houses
• Existing nursery barn renovation
• Automated pig farm projects
• Turnkey commercial livestock construction projects

The Multi-Zone Piglet Nursery Pen can be engineered according to the production system, building dimensions and management strategy of each project. Available customization options may include:

• Pen length, width and height
• Number of pigs per pen
• Size and proportion of each functional zone
• Resting-area location
• Feeding and drinking equipment position
• Dunging-area location
• PVC, plastic or compact fiber partition materials
• Closed and ventilated partition combinations
• Galvanized or stainless-steel contact grids
• Gate dimensions and opening direction
• Dry, wet-dry or liquid feeding systems
• Water cups or nipple drinkers
• Zone-specific plastic, concrete or solid flooring
• Dunging-area sprinkling system
• Two-part or three-part climate covers
• Manual or automatic climate-cover operation
• Floor heating or supplementary heating equipment
• Single-row, double-row or multi-row layouts
• Automatic feeding and environmental control integration
• Complete system designed according to local climate, farm conditions and project requirements

Installation:

• Confirm nursery-house dimensions, stocking capacity, aisle arrangement and manure-system layout before installation.
• Define the intended resting, feeding, drinking, activity and dunging zones on the project drawing.
• Coordinate flooring types and slatted-floor positions with each functional zone.
• Mark partition lines, gates and structural fixing points according to approved drawings.

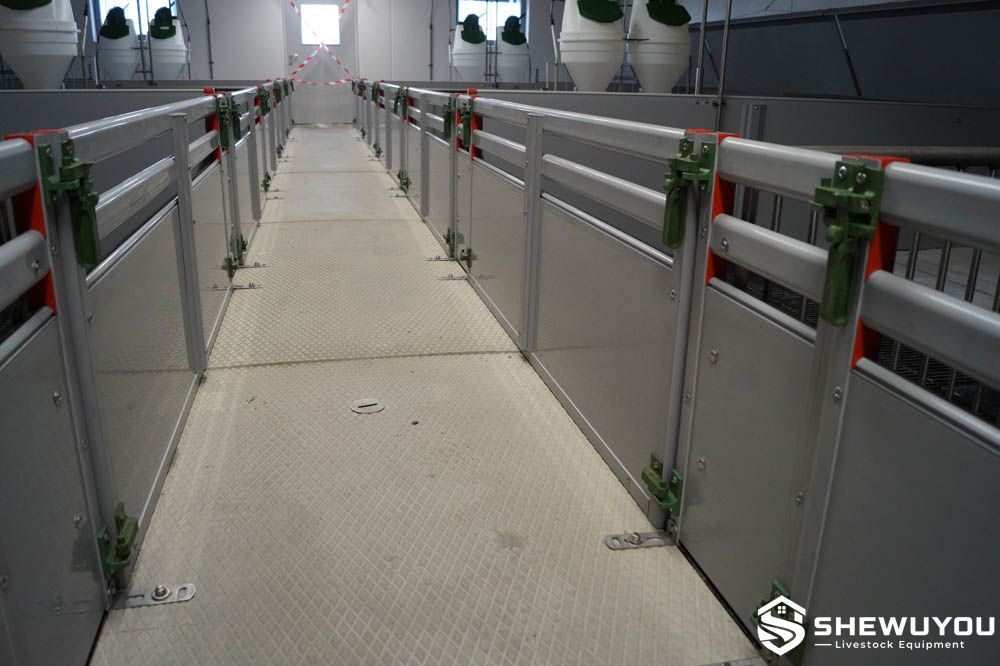

• Install support posts, floor brackets, closed panels and ventilated partitions.
• Install contact grids in the specified locations between neighboring pens.
• Install feeders and drinking equipment according to the planned functional layout.
• Install sprinkling equipment over the designated dunging zone where specified.
• Install climate covers and heating equipment above or beneath the resting section where required.
• Check gate movement, structural stability, fasteners and all animal-contact edges.
• Coordinate ventilation settings with the final pen configuration.
• Clean, disinfect and inspect the complete system before introducing pigs.

Maintenance:

• Wash and disinfect partitions, feeders, drinkers and floor surfaces between production batches.
• Inspect whether pigs are consistently using the intended resting and dunging areas.
• Adjust sprinkling, ventilation or climate-cover settings when pen-use patterns indicate that environmental conditions should be corrected.
• Inspect panels, grids, posts, brackets and floor anchors regularly.
• Check gates, hinges and locking mechanisms for correct operation.
• Maintain feeders and drinking equipment according to the equipment supplier's instructions.
• Clean sprinkling nozzles and check spray distribution where installed.
• Inspect climate-cover hinges, cables or motors where applicable.
• Replace damaged components before the next batch of pigs enters the nursery.

Q: What is a multi-zone piglet nursery pen?
A: It is a nursery pen designed so that different parts of the enclosure serve different functions, typically including resting, feeding, drinking, activity and dunging areas.

Q: Why separate the pen into functional zones?
A: Functional zoning can improve pen organization, simplify manure management and help keep resting areas cleaner when the layout, temperature, airflow and equipment positions are properly coordinated.

Q: How is the resting area defined?
A: Closed partitions, suitable flooring and an optional climate cover can be used to create a more protected resting section.

Q: How can the dunging area be encouraged?
A: A combination of open contact grids, appropriate flooring, airflow and optional targeted sprinkling can be used to make a selected area more attractive for dunging.

Q: Does zoning guarantee that pigs always use the intended areas?
A: No. Pig behavior is also affected by temperature, stocking density, ventilation, feed access and management. The system should therefore be adjusted according to actual animal behavior.

Q: Can a two-climate cover be included?
A: Yes. A two-part, three-part or customized cover can be installed above the resting zone according to project requirements.

Q: What feeding systems can be used?
A: Dry feeders, wet-dry feeders and liquid-feeding trough systems can all be incorporated into a multi-zone layout.

Q: Can different flooring be used in different parts of the pen?
A: Yes. Plastic slats, concrete slats, solid sections or combined flooring can be selected according to the function of each area and local project requirements.

Q: Can the pen dimensions and zone proportions be customized?
A: Yes. The complete layout can be designed according to pig numbers, building dimensions, feeding method, manure system and farm-management requirements.

Q: Is the system suitable for existing nursery houses?
A: Yes. Retrofit projects are possible after checking existing flooring, dimensions, ventilation, manure handling and structural fixing conditions.

Q: What information is required for a quotation?
A: Recommended information includes pig weight range, pigs per pen, total number of pens, building dimensions, preferred zone layout, flooring type, feeding and drinking systems, ventilation design, climate requirements and project location.
