Two-Climate Piglet Nursery Pen

The Two-Climate Piglet Nursery Pen is a modular housing system designed for weaned piglets that require a warmer and more protected resting environment than the general nursery room. The pen combines conventional nursery penning with a partially enclosed climate cover to create separate resting and activity zones within the same enclosure.

The covered resting area reduces direct drafts and limits unnecessary heat loss around resting pigs, while the open section provides access to feeders, drinking equipment, activity areas and dunging zones. This allows the overall pig house to operate with suitable ventilation while providing a localized microclimate where young pigs need additional thermal protection.

The system can be integrated with PVC or plastic panel penning, fiber panels, galvanized or stainless-steel contact grids, plastic or concrete slatted flooring, dry or liquid feeding equipment and optional heating systems. Pen dimensions and climate-cover configurations can be designed according to pig numbers, local climate, building dimensions and commercial farm requirements.

• Two-climate housing concept: Creates a protected resting zone and a separate open activity zone within the same nursery pen.
• Draft-reduced resting environment: Close-fitting cover panels and suitable hinge systems help limit direct air movement around resting piglets.
• Improved microclimate management: The reduced air volume beneath the cover helps retain animal-generated heat and improves the effectiveness of supplementary heating.
• Openable climate cover: Hinged sections provide convenient access for animal inspection, cleaning and routine farm management.
• Flexible cover configurations: Two-part, three-part, straight and sloped arrangements can be selected according to pen dimensions and project requirements.
• Manual or automatic operation: Climate covers can be opened manually or connected to a winch or motorized lifting system.
• Modular pen construction: Pen width, length, partition layout and gate arrangement can be customized for different nursery buildings.
• Hygienic surfaces: Smooth plastic or fiber partition materials and washable cover panels support efficient cleaning and disinfection.
• Corrosion-resistant fittings: Stainless steel, galvanized steel and livestock-grade polymer components are available according to project requirements.
• Feeding-system compatibility: Suitable for dry feeding, wet-dry feeding or liquid feeding configurations.
• New-build and retrofit application: Suitable for new steel structure pig houses as well as renovation of existing nursery facilities.
• Commercial farm scalability: Modular construction supports repeated multi-pen layouts for large-scale swine production projects.

• Nursery pen partitions: PVC board, plastic panel, compact fiber panel or other livestock-grade material according to project requirements.
• Fixed climate-cover section: Forms the permanent sheltered section above the piglet resting area.
• Openable climate-cover section: Hinged panel provides management access and allows the effective covered area to be adjusted.
• Cover panels: Lightweight PVC or equivalent washable polymer panels designed for humid livestock-house environments.
• Hinge system: Flexible rubber hinges, hinge rails or mechanical hinges according to the selected configuration.
• Support posts and brackets: Stainless steel, galvanized steel or equivalent corrosion-resistant structural components.
• Contact grid: Optional galvanized or stainless-steel grid between neighboring pens.
• Pen gates: Full-width or customized access gates for animal movement and daily management.
• Floor anchoring system: Posts, brackets and fasteners secure the modular penning to the structural floor.

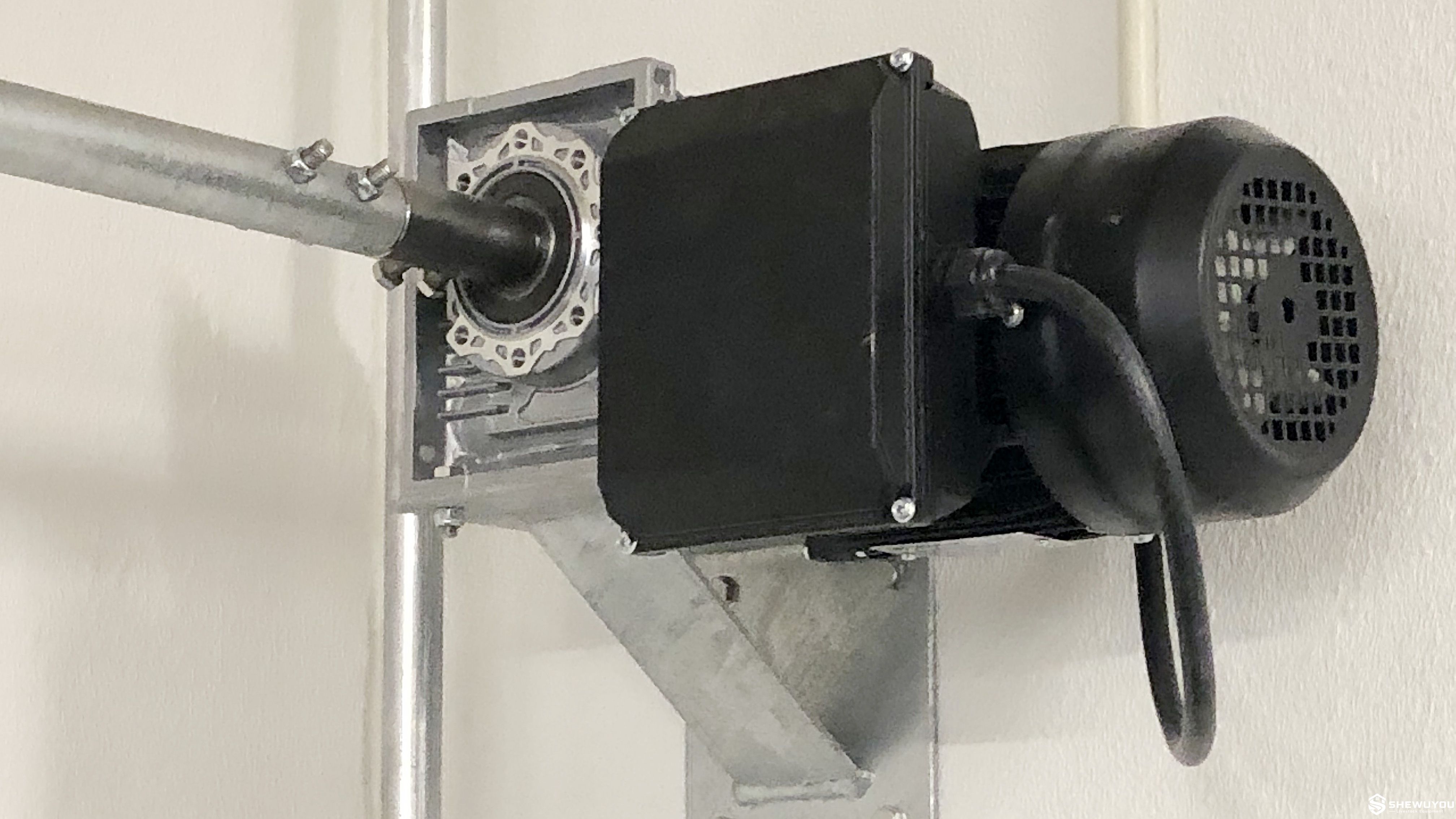

• Optional lifting system: Hand winch, cables or electric motor for centralized or assisted climate-cover opening.
• Optional heating equipment: Floor heating, heating plates or other approved livestock heating solutions can be integrated beneath the protected area.
• Feeding and drinking equipment: Feeders, troughs, nipple drinkers, water cups and related pipelines can be incorporated into the complete pen system.

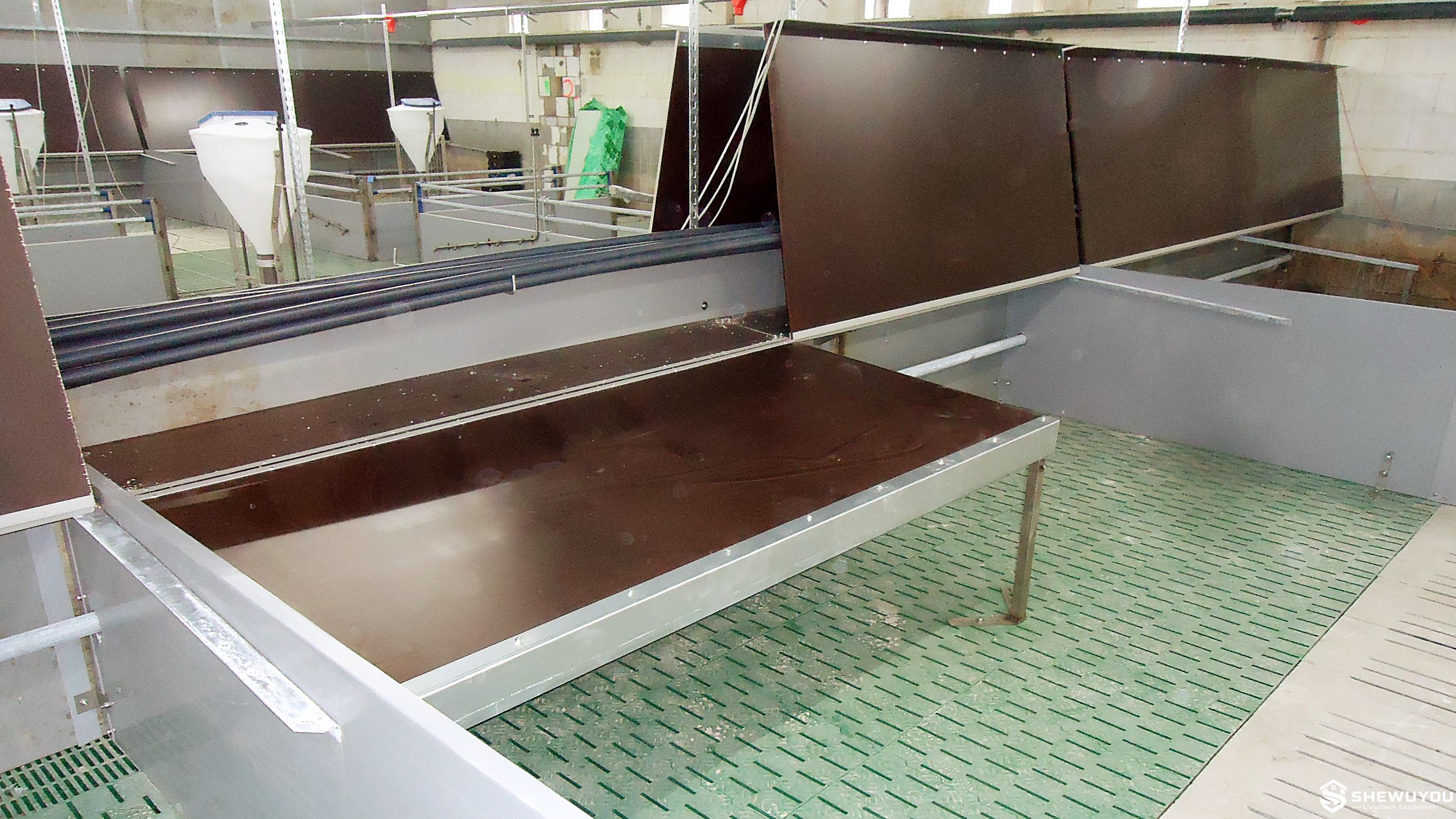

The system divides each nursery pen into functional environmental zones. The climate cover is positioned above the resting area, creating a smaller protected air volume where pigs can rest with reduced exposure to room-level drafts.

Heat generated by the pigs and optional floor or radiant heating is retained more effectively beneath the cover. The remaining uncovered section of the pen stays connected to the general pig-house environment and is normally used for feeding, drinking, activity and dunging.

As pigs grow, their thermal requirements change. The openable section of the cover can therefore be raised or adjusted manually or automatically to increase air exchange and available open space. Cover position can be managed according to pig behavior, age, room temperature and seasonal conditions.

The two-climate pen works as part of the complete environmental control strategy. Adequate building ventilation, air quality management, heating capacity and temperature monitoring remain essential for commercial nursery production.

• Commercial piglet nursery houses
• Post-weaning pig housing facilities
• Two-climate weaner units
• Large-scale swine breeding farms
• Cold-season nursery pig production
• Energy-efficient pig-house projects
• Dry-feeding nursery systems
• Wet-dry feeding nursery systems
• Liquid-feeding nursery facilities
• New steel structure pig houses
• Existing pig barn renovation projects
• Turnkey livestock equipment projects
• Commercial pig farms requiring localized microclimate management

The Two-Climate Piglet Nursery Pen can be engineered according to individual farm layouts and production requirements. Available customization options may include:

• Pen length, width and height
• Number of pigs per pen
• PVC, plastic or fiber partition materials
• Closed, ventilated or combined pen walls
• Full-width or customized gates
• Two-part or three-part climate covers
• Straight or sloped cover configuration
• Climate-cover depth and width
• Manual, winch-assisted or electric opening system
• Individual or centralized lifting arrangement
• Galvanized or stainless-steel contact grids
• Dry, wet-dry or liquid feeding system
• Nipple drinkers or water cups
• Plastic or concrete slatted floors
• Floor heating or supplementary heating systems
• Single-row, double-row or multi-row nursery layouts
• Integration with automatic ventilation and environmental controls
• Complete system designed according to local climate, building conditions and farm management requirements

Installation:

• Confirm building dimensions, pen capacity, aisle layout, flooring, ventilation and heating requirements before installation.
• Mark pen partition lines and structural fixing points according to approved project drawings.
• Install floor brackets, posts, partition panels, contact grids and gates.
• Install the fixed climate-cover section above the designated resting area.
• Connect movable cover sections using the specified hinge or flexible rubber-hinge system.
• Install supporting posts where required by cover width and structural design.

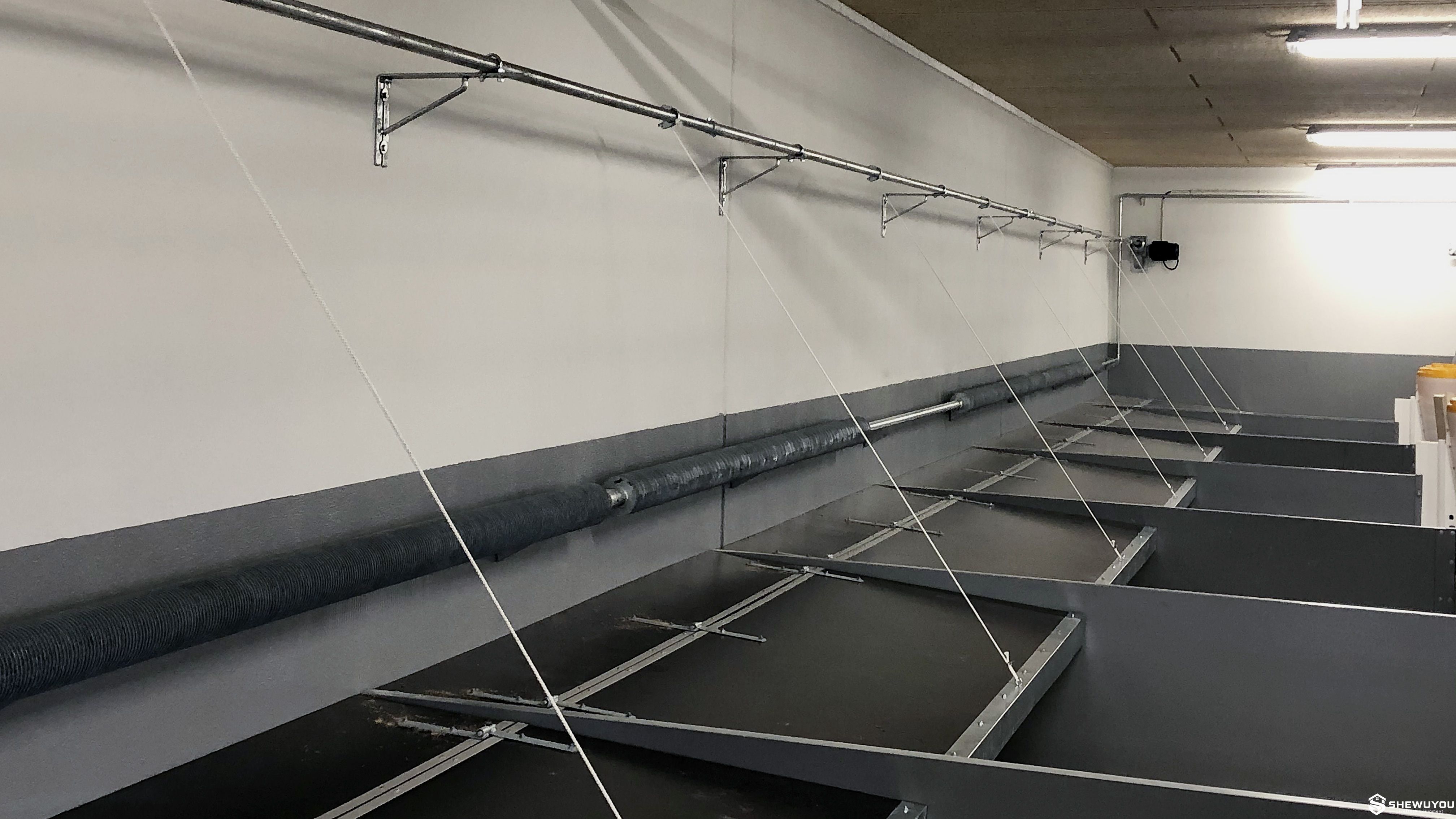

• Install hand winches, cables or electric lifting equipment where assisted opening is specified.
• Position feeders, drinkers and heating equipment according to the approved livestock layout.
• Check that all moving sections operate freely and cannot create hazardous contact points for pigs or workers.
• Coordinate final climate-cover settings with the building ventilation and heating system.
• Clean, disinfect and inspect the complete installation before introducing pigs.

Maintenance:

• Wash and disinfect cover panels and pen partitions between production batches.
• Inspect hinges, rails, brackets, cables, posts and fasteners regularly.
• Check cover panels for cracking, deformation or loose joints.
• Keep lifting mechanisms clean and correctly adjusted.
• Inspect motorized equipment and electrical components according to the applicable maintenance instructions.
• Check gates, feeders, drinkers and floor components during routine nursery maintenance.
• Adjust climate-cover opening according to pig age, behavior and environmental conditions.
• Replace damaged components before the next group of pigs enters the pen.

Q: What is a two-climate piglet nursery pen?
A: It is a nursery pen that combines an enclosed or partially covered resting zone with an open feeding, drinking and activity area, allowing pigs to choose between different local environmental conditions.

Q: Why is a climate cover useful after weaning?
A: Recently weaned pigs have relatively high thermal requirements. A protected resting area helps reduce drafts and concentrates heat around the pigs without requiring the entire nursery room to operate at the same local resting temperature.

Q: Can the climate cover be opened?
A: Yes. The system can include fixed and openable sections so farm personnel can inspect pigs, clean the pen and adjust the protected area as the animals grow.

Q: Are two-part and three-part covers available?
A: Yes. Two-part, three-part and sloped configurations can be supplied according to pen dimensions and project requirements.

Q: Can the cover be opened automatically?
A: Yes. Manual, hand-winch and electric motor systems are available depending on the required degree of automation.

Q: Can the pen dimensions be customized?
A: Yes. Pen dimensions, partition materials, gate locations and covered-area dimensions can be designed according to the required stocking capacity and building layout.

Q: Which flooring systems can be used?
A: The pen can be integrated with plastic slatted flooring, concrete slatted flooring or combined flooring systems appropriate for nursery pigs.

Q: Can heating be installed beneath the climate cover?
A: Yes. Floor heating, heating plates or other suitable livestock heating systems can be integrated according to project and climate requirements.

Q: Does the climate cover replace the building ventilation system?
A: No. The climate cover creates a localized protected resting zone. Adequate room ventilation is still required to control temperature, humidity, gases and overall air quality.

Q: Is the system suitable for existing nursery houses?
A: Yes. Retrofit installation is possible when the existing building dimensions, flooring, structural fixing points and ventilation system are suitable.

Q: What information is required for a quotation?
A: Recommended information includes pig weight range, pigs per pen, number of pens, building dimensions, pen dimensions, partition material, cover configuration, feeding and drinking requirements, flooring type, heating system, ventilation system and project location.
