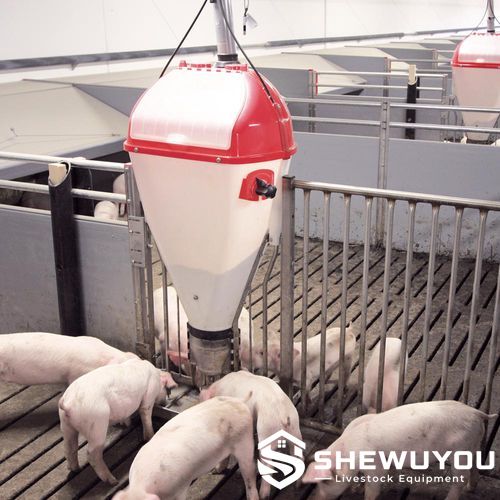

Nursery Pen with Dry Feeding System

The Nursery Pen with Dry Feeding System is an integrated pig housing solution developed for weaned piglets in commercial swine production. The system combines modular nursery penning with an adjustable hopper-type dry feeder to provide convenient group housing, controlled feed access and efficient daily farm management.

The feeder can be supplied manually or connected to an automatic dry feed distribution line. Depending on the selected configuration, pigs activate or access the dispensing mechanism to release controlled amounts of feed into the trough. Adjustable feed delivery helps maintain a suitable feed layer while reducing unnecessary accumulation of feed inside the feeding area.

The complete system can be integrated with PVC partitions, galvanized steel grids, plastic slatted flooring, drinking equipment, heating equipment and environmental control systems. Its modular structure is suitable for new steel-structure pig houses, prefabricated livestock buildings and renovation of existing nursery facilities.

• Integrated nursery pen and dry feeding solution for commercial weaner production.
• Adjustable feed dispensing helps control feed flow according to piglet age and consumption.
• Hopper design supports continuous and reliable dry feed availability.
• Steep or near-vertical hopper walls can help reduce feed bridging.
• Suitable for meal, pellets or other dry feed according to the selected feeder configuration.
• Available for manual filling or connection to an automatic dry feeding line.
• Durable stainless steel or livestock-grade trough options provide good corrosion resistance.
• Transparent or inspection-friendly hopper sections can simplify feed-level monitoring.
• Feed adjustment components are designed for convenient daily operation.
• Compatible with nipple drinkers, drinking cups or integrated drinking options.
• Modular pen dimensions allow flexible arrangement inside different pig house layouts.
• Suitable for repetitive installation in large-scale commercial nursery barns.
• Designed for convenient washing, disinfection and batch-to-batch biosecurity management.

• Nursery Pen Partitions: PVC panels, plastic panels, galvanized steel grids or combined partition systems according to project requirements.
• Support Posts: Galvanized steel or stainless steel posts provide structural stability for the modular pen system.
• Access Gate: Provides convenient access for piglet transfer, inspection, sorting, washing and daily management.
• Feed Hopper: Stores dry feed above the dispensing area and can be connected to a manual or automatic feed supply system.
• Feed Dosing Mechanism: Adjustable dispensing components regulate the amount of feed released into the trough.
• Feeding Trough: Stainless steel, polymer or other livestock-grade material selected according to feeder design.
• Feed Downpipe: Connects the feeder to the central dry feed distribution line where automatic feeding is required.
• Dry Feed Distribution Line: Flexible auger, chain or project-specific conveying system can deliver feed from the silo to individual nursery pens.
• Drinking Equipment: Nipple drinkers, drinking bowls or integrated feeder drinking components are available upon request.
• Slatted Flooring: Plastic nursery slats or other project-specific floor systems support hygiene and manure management.

Dry feed is delivered to the feeder hopper either by manual filling or through a centralized automatic dry feeding system. The hopper stores a controlled quantity of feed and directs it toward the adjustable dispensing mechanism.

Depending on the feeder design, piglets interact with the feeding mechanism or consume feed from a regulated outlet. Small quantities of feed are released into the trough as required. The feed-flow setting can be adjusted to maintain convenient access while limiting excessive feed accumulation and waste.

Hopper geometry is designed to maintain reliable downward feed movement and reduce bridging. Feeders with transparent covers or inspection sections allow farm staff to check the remaining feed without dismantling the unit.

The nursery pen separates piglets into manageable groups while feeders, drinkers, flooring and aisle arrangements are positioned to support efficient feeding, animal observation, cleaning and manure management.

• Commercial piglet nursery houses
• Weaner production facilities
• Large-scale integrated pig farms
• Batch-production nursery units
• Automatic dry feeding pig farms
• Steel-structure pig houses
• Prefabricated livestock buildings
• Existing pig barn renovation and modernization
• Turnkey pig farm construction projects
• Livestock projects for agricultural contractors, distributors and farm groups

• Pen length, width and height
• Number of piglets per pen
• PVC, plastic or galvanized grid partition configuration
• Gate dimensions, position and opening direction
• Single-sided or double-sided feeder arrangement
• Feeder hopper size and feeding capacity
• Feed outlet and dosing configuration
• Manual or automatic feed supply
• Flexible auger or chain feed distribution system
• Feed silo and central feeding line integration
• Separate or integrated drinking system
• Plastic slatted flooring configuration
• Heating and microclimate equipment interfaces
• Single-row, double-row or multi-row nursery house layout
• Designed according to local climate and farm conditions

Installation:

• Confirm the nursery barn layout, pen dimensions, aisle arrangement and feed-line routing.
• Install flooring supports and slatted flooring according to the project drawing.
• Install nursery pen posts, partitions and access gates.
• Position and secure the dry feeder according to the designed stocking arrangement.
• Install feed downpipes and connect feeders to the central dry feed line where required.
• Install drinking equipment and water supply pipelines.
• Adjust the feeder outlet before pigs enter the nursery facility.
• Inspect bolts, anchors, feed outlets, gates and animal-contact surfaces before commissioning.

Maintenance:

• Inspect the feed level and feed-flow adjustment during daily operation.
• Remove accumulated or spoiled feed before refilling when necessary.
• Check feed outlets and hopper sections for bridging or blockage.
• Clean feeder troughs and surrounding areas regularly.
• Wash and disinfect the complete nursery pen between production batches.
• Open accessible feeder sections during washing to improve cleaning and drying.
• Inspect augers, chains, drive units and feed sensors where an automatic system is installed.
• Check bolts, gates, drinkers and structural components periodically.

Q: What pigs is this nursery pen designed for?
A: It is primarily designed for weaned piglets during the nursery production stage. Pen dimensions, feeder configuration and stocking capacity can be adapted to the farm's production program.

Q: Can the feeder be connected to an automatic feeding line?
A: Yes. The feeder can be manually filled or connected to a centralized dry feeding system using suitable feed downpipes and conveying equipment.

Q: Can the feed amount be adjusted?
A: Yes. Adjustable dosing or feed-flow mechanisms can be configured according to the feeder model, feed characteristics and piglet consumption.

Q: What type of feed can be used?
A: Dry meal and pellet feed can be accommodated depending on the selected feeder and feed distribution system.

Q: Can drinking equipment be integrated with the pen?
A: Yes. Nipple drinkers, drinking bowls and selected integrated feeding-and-drinking configurations are available according to project requirements.

Q: Can the pen dimensions and feeding system be customized?
A: Yes. Pen dimensions, partition materials, feeder capacity, feeding line layout, flooring, drinking equipment and other components can be configured according to the pig house design.

Q: Is this system suitable for large commercial pig farms?
A: Yes. The modular pen system can be installed repeatedly throughout commercial nursery barns and coordinated with central feed silos, automatic feeding lines, drinking systems and manure-management equipment.

Q: What information is required for a quotation?
A: Please provide the pig house dimensions, total nursery capacity, number of piglets per pen, preferred pen dimensions, feed type, feeding method, flooring system, project location and available layout drawings.
