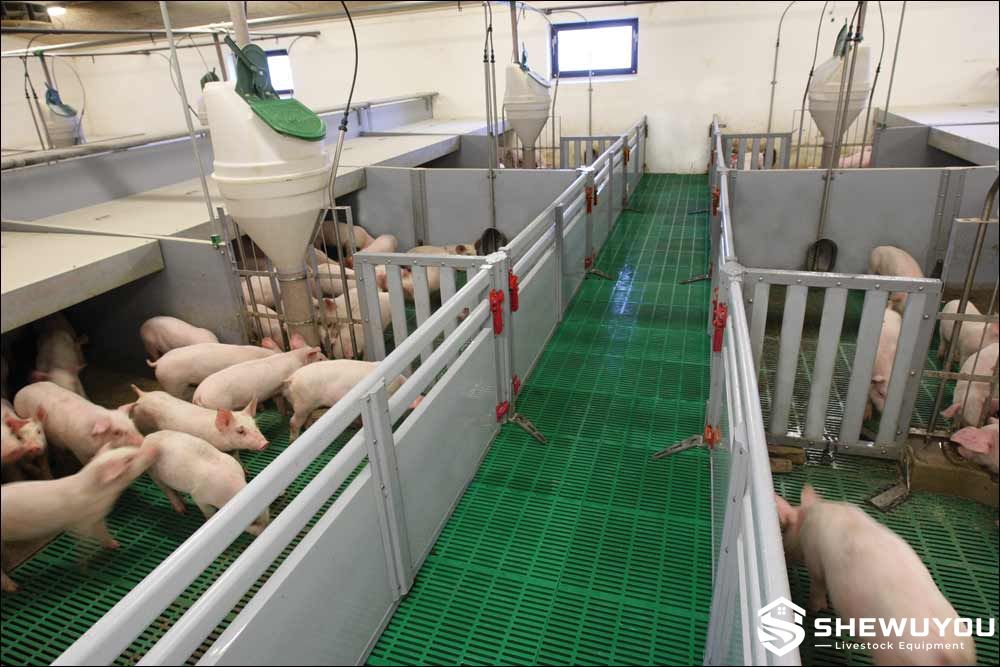

Compact Fiber Panel Piglet Nursery Pen

The Compact Fiber Panel Piglet Nursery Pen is a modular housing solution designed for newly weaned piglets in commercial swine production. The system combines thin, high-strength compact fiber partitions with corrosion-resistant steel components to create a durable and space-efficient nursery environment.

Compact fiber panels provide a smooth, dense surface that is easy to wash and disinfect. Compared with thicker conventional partition systems, the slim panel construction helps maximize usable pen area while maintaining structural strength.

The nursery pen can be integrated with plastic slatted flooring, dry or liquid feeding systems, water cups or drinking valves, contact grids, climate covers and other pig-house equipment according to project requirements.

• Compact fiber panel construction provides high mechanical strength with minimal partition thickness.
• Smooth and dense panel surfaces simplify high-pressure washing, drying and routine disinfection.
• Modular configuration allows pen dimensions and layouts to be adapted to new pig houses and renovation projects.
• Closed and ventilated partition sections can be combined to support different resting and activity zones.
• Corrosion-resistant galvanized or stainless-steel components are suitable for humid livestock-house environments.
• Compatible with dry feeders, liquid-feeding troughs, water cups, drinking valves and automatic feeding systems.
• Full-width or compact access gates can be configured according to aisle layout and pig-handling requirements.
• Optional climate-cover solutions can help create a warmer resting zone for recently weaned piglets.
• Suitable for intensive commercial pig farms, breeding companies and turnkey livestock construction projects.

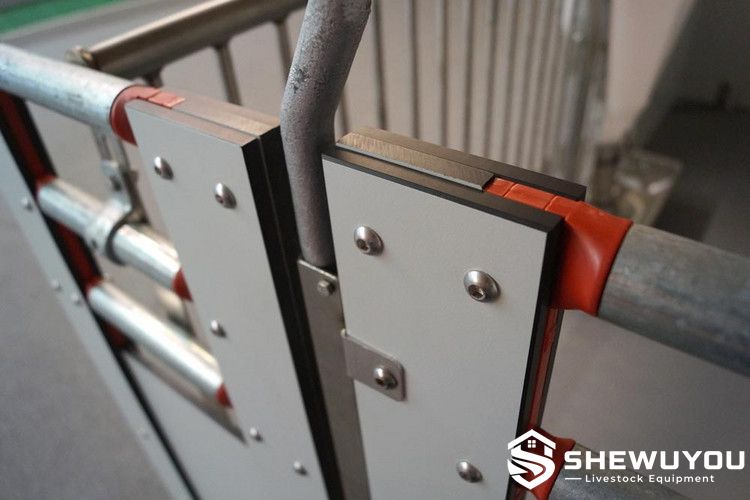

• Compact Fiber Partitions: High-strength, smooth-surface panels forming closed nursery-pen walls.
• Upper Steel Rails: Galvanized or stainless-steel rails can be incorporated above lower solid panels depending on the design.
• Gate System: Fiber-panel or steel-profile gate with dimensions designed according to the pen and aisle arrangement.
• Contact Grid: Galvanized or stainless-steel grid sections can provide controlled visual and physical contact between neighboring groups.
• Anchoring Components: Stainless-steel or corrosion-resistant brackets, fasteners and floor connections according to project requirements.
• Feeding Equipment: Dry feeder, wet/dry feeder or liquid-feeding trough available upon request.
• Drinking Equipment: Water cup or drinking valve connected to the farm water-supply line.

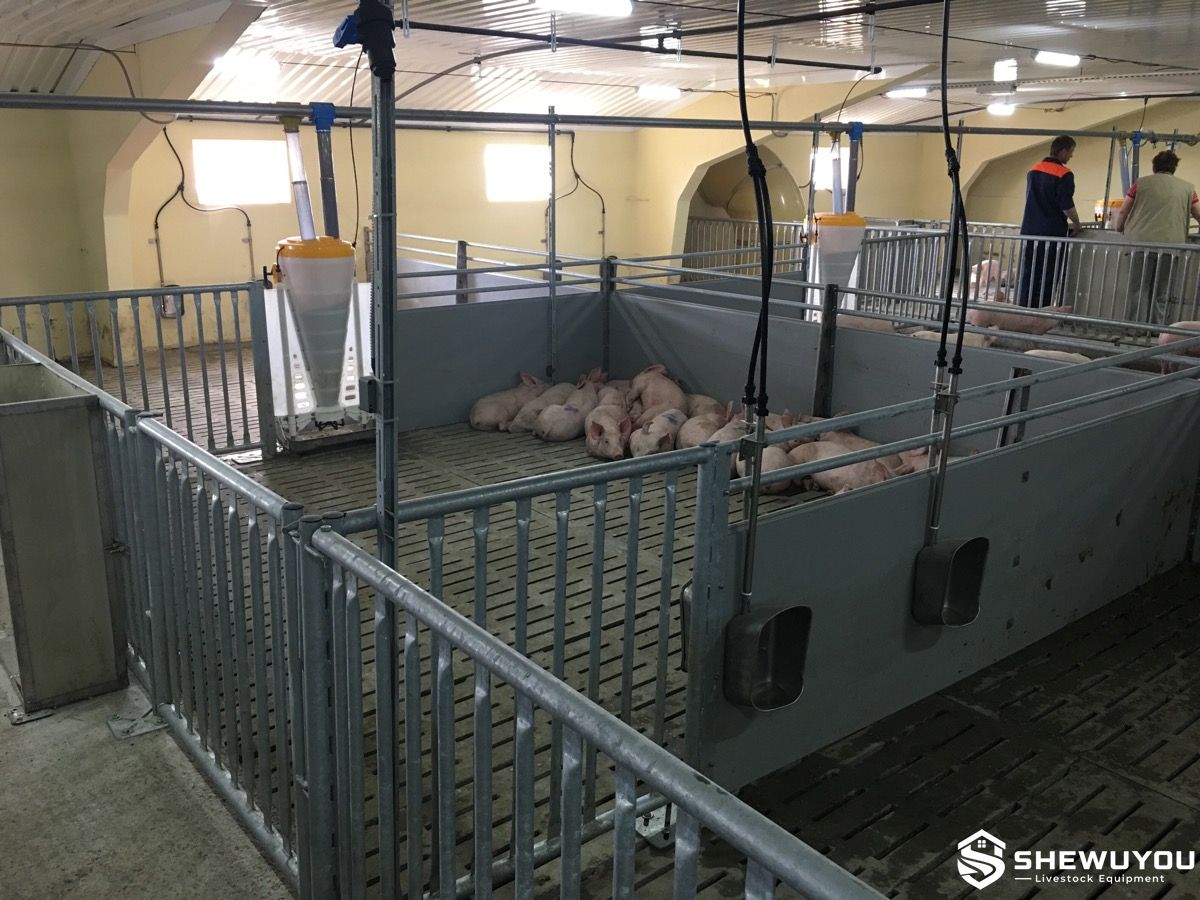

• Flooring: Compatible with livestock plastic slats and other nursery flooring systems selected according to farm design.

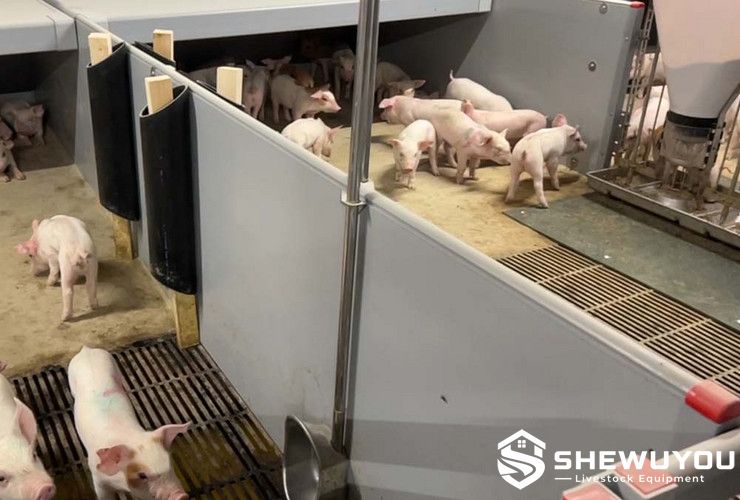

The system divides the nursery barn into controlled groups of weaned piglets using compact solid partitions and selected open-grid sections. Solid fiber panels reduce uncontrolled air movement at piglet level and provide a protected resting environment, while ventilated or contact sections support airflow, observation and group-management requirements.

When combined with a two-zone or climate-cover design, the pen can provide a warmer protected lying area and a more open feeding, drinking and dunging area. This helps operators organize the microenvironment according to the physiological requirements of newly weaned pigs.

Slatted flooring allows manure and spilled water to pass below the animal area, while smooth pen surfaces and corrosion-resistant fittings simplify cleaning between production batches.

Product Type: Piglet nursery pen / weaner pen

Main Partition Material: Compact fiber panel

Reference Fiber Panel Thickness: 10 mm

Reference Penning Height: Approximately 610 mm or 750 mm depending on configuration

Alternative Configuration: Lower solid panel with upper horizontal steel rails

Gate Material: Fiber panel, galvanized steel or project-specific configuration

Contact Grid: Galvanized steel or stainless steel

Feeding System: Dry feeding, wet/dry feeding or liquid feeding according to project requirements

Drinking System: Water cup or drinking valve

Water Pipeline: Plastic or project-specified livestock drinking pipeline

Climate Cover: Available upon request

Pen Length and Width: Customizable according to pig-house layout and stocking plan

Flooring: Plastic slatted flooring or other nursery flooring according to project requirements

Overall Design: Designed according to local climate, animal-management system and farm conditions

• Commercial piglet nursery barns
• Weaned piglet production units
• Large-scale integrated pig farms
• Breeding-company nursery facilities
• New pig-house construction projects
• Existing pig-farm renovation and equipment replacement
• Prefabricated and steel-structure pig-house projects
• Turnkey livestock farming and agricultural development projects

• Pen length, width and group size according to project requirements
• Fiber-panel height and partition configuration
• Closed, semi-open or contact-grid partition arrangement
• Small access gate or full-width gate configuration
• Galvanized or stainless-steel contact grids and hardware
• Plastic slatted flooring layout
• Dry, wet/dry or liquid feeding equipment
• Water cups, nipple drinkers or drinking valves
• Manual or automatic climate-cover opening system
• Integration with automatic feeding, ventilation and environmental-control systems
• Complete layout designed according to local climate and farm conditions

Installation: Pen layouts should first be coordinated with the pig-house building dimensions, aisle arrangement, manure system, flooring, feeding lines and drinking pipelines. Modular panels, gates and hardware are then positioned according to the approved layout and securely connected to the building or flooring structure with suitable corrosion-resistant fasteners and brackets.

Routine Cleaning: Remove organic material after each production cycle and wash panels, gates, feeders, drinkers and flooring thoroughly. Smooth compact panels allow efficient pressure washing and disinfection.

Inspection: Regularly check gate locks, bolts, brackets, steel rails, drinkers and feeder connections. Damaged or loose components should be repaired before the next batch of piglets enters the nursery.

Project Support: Installation drawings, equipment layouts and technical guidance are available upon request.

The Compact Fiber Panel Piglet Nursery Pen can be incorporated into commercial nursery buildings as part of complete pig-farm projects including steel-structure pig houses, flooring systems, feeding lines, drinking systems, ventilation equipment and manure-management systems.

Project layouts, equipment quantities and configurations are prepared according to building drawings, production capacity, local climate, pig-management practices and customer requirements.

Q: What is the main advantage of compact fiber panels?
A: Compact fiber panels combine high strength with a relatively thin profile. Their smooth and dense surfaces are also suitable for regular washing and disinfection in commercial pig houses.

Q: Can the nursery pen dimensions be customized?
A: Yes. Pen dimensions, gate arrangement and partition configuration can be designed according to the pig-house layout, stocking plan and project requirements.

Q: Can the pen be used with plastic slatted flooring?
A: Yes. The system can be integrated with plastic slatted flooring and suitable supporting structures according to the manure-management design.

Q: What feeding systems can be installed?
A: Dry feeders, wet/dry feeders and liquid-feeding trough systems can be supplied or integrated according to the farm feeding program.

Q: Is a climate cover available?
A: Yes. A two-zone climate-cover solution can be provided upon request, with manual or automatic opening options depending on the project.

Q: Can stainless-steel components be supplied?
A: Yes. Stainless-steel contact grids, brackets and other selected components are available according to project requirements.

Q: Is this system suitable for large commercial pig farms?
A: Yes. Its modular design makes it suitable for both individual nursery rooms and large-scale commercial pig-farm projects.

Q: Can SHEWUYOU provide a complete nursery-house equipment package?
A: Yes. Complete project solutions can include pens, flooring, feeding, drinking, ventilation, environmental control and other livestock equipment according to customer requirements.
