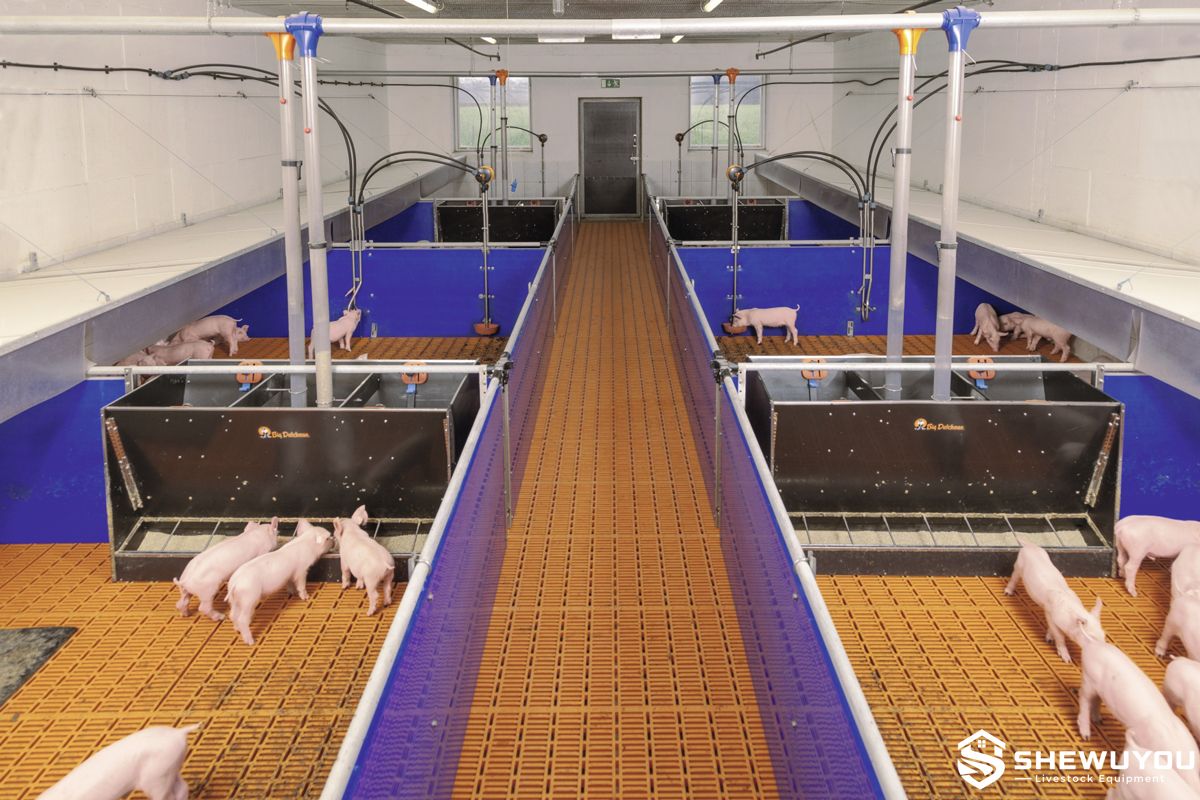

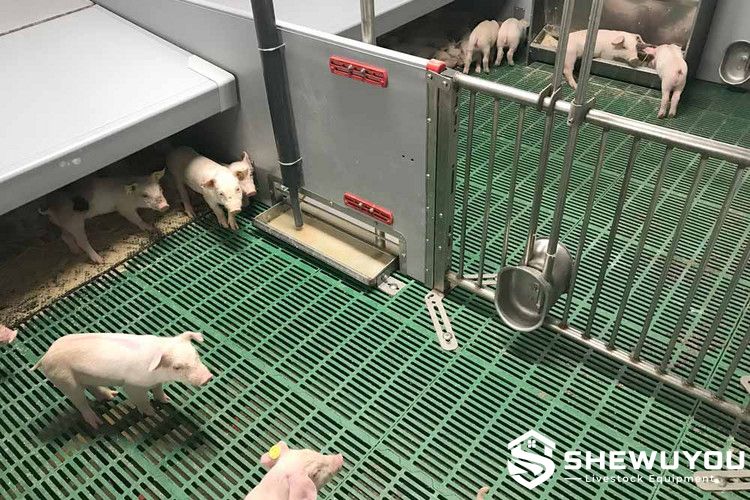

Nursery Pen with Wet-Dry Feeder

The Nursery Pen with Wet-Dry Feeder is an integrated piglet housing and feeding solution designed for commercial weaner production. It combines modular nursery penning with an accessible feeder that provides dry feed together with drinking water at or near the feeding station.

The system is designed to support newly weaned pigs during the transition from sow milk to solid feed. Depending on the selected feeder configuration, pigs can consume dry feed and water separately or combine them at the feeding point to create a moist feed consistency.

The complete pen can incorporate solid or open partitions, plastic slatted flooring, climate covers, automatic feed delivery lines, additional drinking equipment and environmental-control systems. Pen dimensions and equipment configuration are customizable according to project requirements.

• Integrated nursery pen and wet-dry feeding configuration for commercial piglet production.
• Feed and water are conveniently available within the same feeding area.
• Pig-operated or adjustable feeding mechanisms help maintain a controlled supply of fresh feed.
• Wet-dry feeding encourages pigs to alternate between eating and drinking during the feeding process.
• Feeder adjustment can be matched to feed characteristics, pig size and consumption level.
• Trough design helps reduce unnecessary feed spillage and supports practical cleaning.
• Corrosion-resistant feeder components are suitable for humid livestock-house environments.
• Solid and open pen partitions can be combined according to ventilation and management requirements.
• Compatible with automatic dry-feed conveying systems.
• Compatible with plastic slatted flooring and manure-management systems.
• Modular construction simplifies new-project installation and existing pig-house renovation.
• Suitable for commercial farms, breeding companies and turnkey livestock projects.

• Nursery Pen Partitions: Solid plastic panels, compact panels, open steel sections or combined configurations according to project requirements.

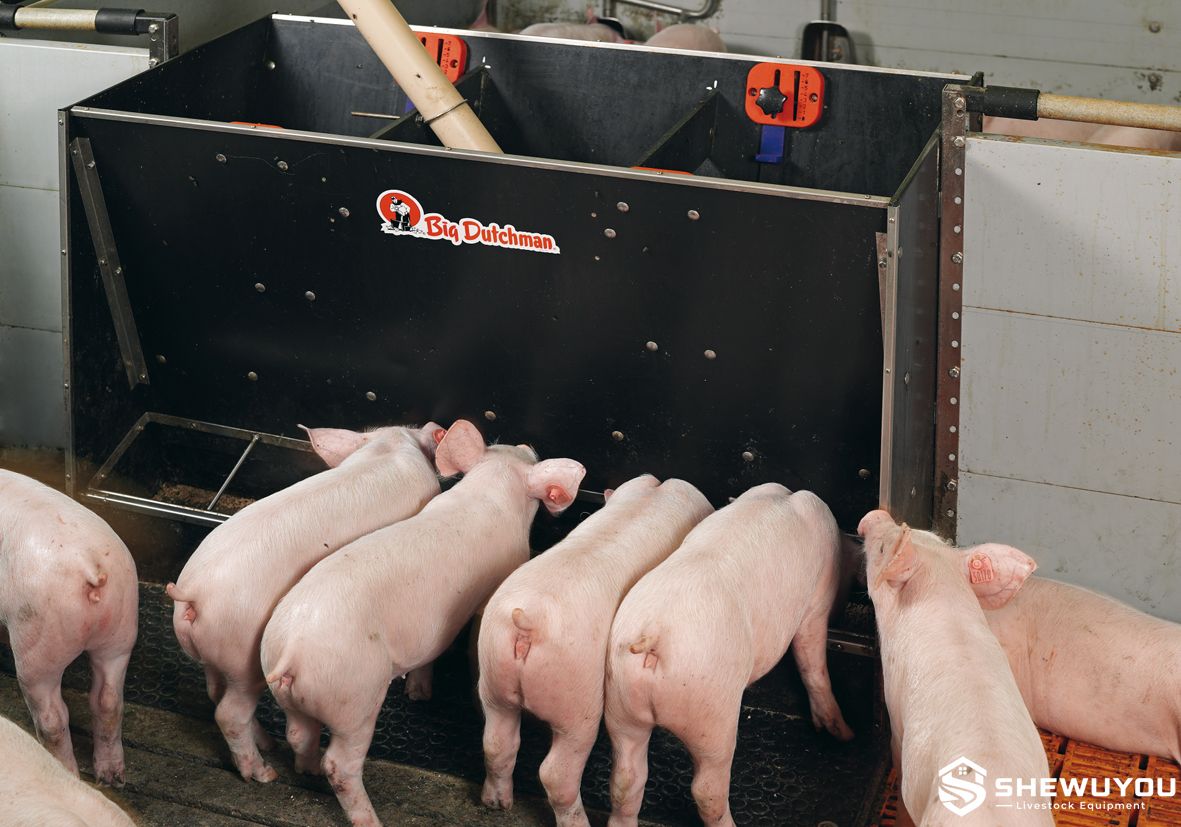

• Wet-Dry Feeder: Feed hopper, adjustable dosing mechanism, feed outlet and feeding trough integrated with water access.
• Feed Hopper: Designed to maintain a practical reserve of dry meal or pellet feed and support reliable downward feed flow.
• Feeding Trough: Stainless-steel or project-specific corrosion-resistant trough with feeding spaces designed for easy pig access.
• Water Supply: Integrated drinking nipples, pressure valves or drinking sections according to feeder configuration.
• Feeder Adjustment: Adjustable feed opening or dosing mechanism for regulating feed availability.
• Gate System: Access gate designed for routine inspection, pig movement and pen cleaning.
• Flooring: Plastic slatted flooring or other nursery flooring according to project requirements.
• Feed Delivery Connection: Compatible with manual filling or automatic feed-drop pipes and dry-feeding lines.
• Optional Climate Cover: Available for creating a protected resting zone for newly weaned piglets.

Dry feed is stored in the feeder hopper and delivered toward the feeding area by gravity or through an animal-operated dosing mechanism. The feed-flow setting can be adjusted according to the type of feed, pig size and required feeding rate.

Fresh drinking water is supplied through valves or nipples integrated into or positioned immediately beside the trough. Depending on the feeder design, pigs can consume feed and water separately or mix small quantities of water with feed while eating.

Animal-operated feeding encourages active interaction with the feeder and helps release feed according to demand. Proper adjustment keeps a limited quantity of feed in the trough, helping to maintain freshness while reducing excessive accumulation and waste.

Within the nursery pen, the feeding station is normally coordinated with resting, drinking and dunging zones. Slatted flooring and washable pen surfaces support routine manure removal, washing and biosecurity management.

Product Type: Piglet nursery pen with integrated wet-dry feeder

Application Stage: Weaned piglets / nursery pigs

Feeding Method: Ad libitum dry feeding with integrated water access

Feed Types: Meal or pellet feed according to feeder configuration

Feeder Material: Stainless steel, engineering polymer or combined construction according to selected model

Stainless-Steel Option: Corrosion-resistant 304 stainless steel available upon request

Water Supply: Integrated nipple, pressure valve or drinking-bowl configuration

Feed Adjustment: Adjustable according to feed characteristics and pig requirements

Feeding Access: Single-side, double-side or round-access configuration available depending on project requirements

Pen Partition Material: Plastic panel, compact fiber panel, galvanized steel or combined configuration

Pen Dimensions: Customizable

Flooring: Plastic slatted flooring or according to project requirements

Automatic Feed-Line Connection: Available upon request

Climate Cover: Available upon request

System Design: Designed according to local climate and farm conditions

• Commercial piglet nursery houses
• Post-weaning pig production units
• Large-scale integrated pig farms
• Pig breeding and multiplication farms
• Wean-to-finish production systems
• New steel structure pig houses
• Prefabricated livestock buildings
• Existing nursery-house renovation projects
• Turnkey pig farm equipment projects
• International livestock development projects

• Pen length and width
• Pig capacity per pen
• Solid, open or combination partition design
• Plastic, compact fiber or steel partition materials
• Single-side or double-side feeder access
• Feeder hopper capacity according to project requirements
• Stainless-steel or polymer feeder construction
• Integrated nipple, pressure valve or drinking-bowl configuration
• Automatic dry-feed conveying line
• Plastic slatted-floor configuration
• Gate size and opening direction
• Climate-cover configuration
• Integration with ventilation and environmental-control systems
• Complete layout designed according to local climate and farm conditions

Layout Planning: The feeder location should be coordinated with the pen dimensions, pig movement pattern, service aisle, flooring, feed-delivery line, water pipeline and manure-management system.

Pen Installation: Partition panels, posts and gates are assembled according to the approved livestock-equipment layout and securely fixed using corrosion-resistant brackets and fasteners.

Feeder Installation: The feeder should be securely anchored or incorporated into the pen partition. Feed-drop pipes and water connections are then connected according to the selected feeding configuration.

Adjustment: Feed flow should be adjusted after pigs enter the pen. The objective is to maintain easy access to fresh feed without allowing excessive feed accumulation in the trough.

Daily Inspection: Check feed flow, water valves, feeder adjustment, trough cleanliness and animal access during routine barn inspections.

Cleaning: Empty residual feed where necessary and thoroughly wash feeders, troughs, pen partitions and flooring between production batches.

Maintenance: Periodically inspect dosing components, drinking valves, hopper connections, fasteners, gate hardware and feed-delivery pipes.

Technical Support: Installation drawings and project-specific equipment layouts are available upon request.

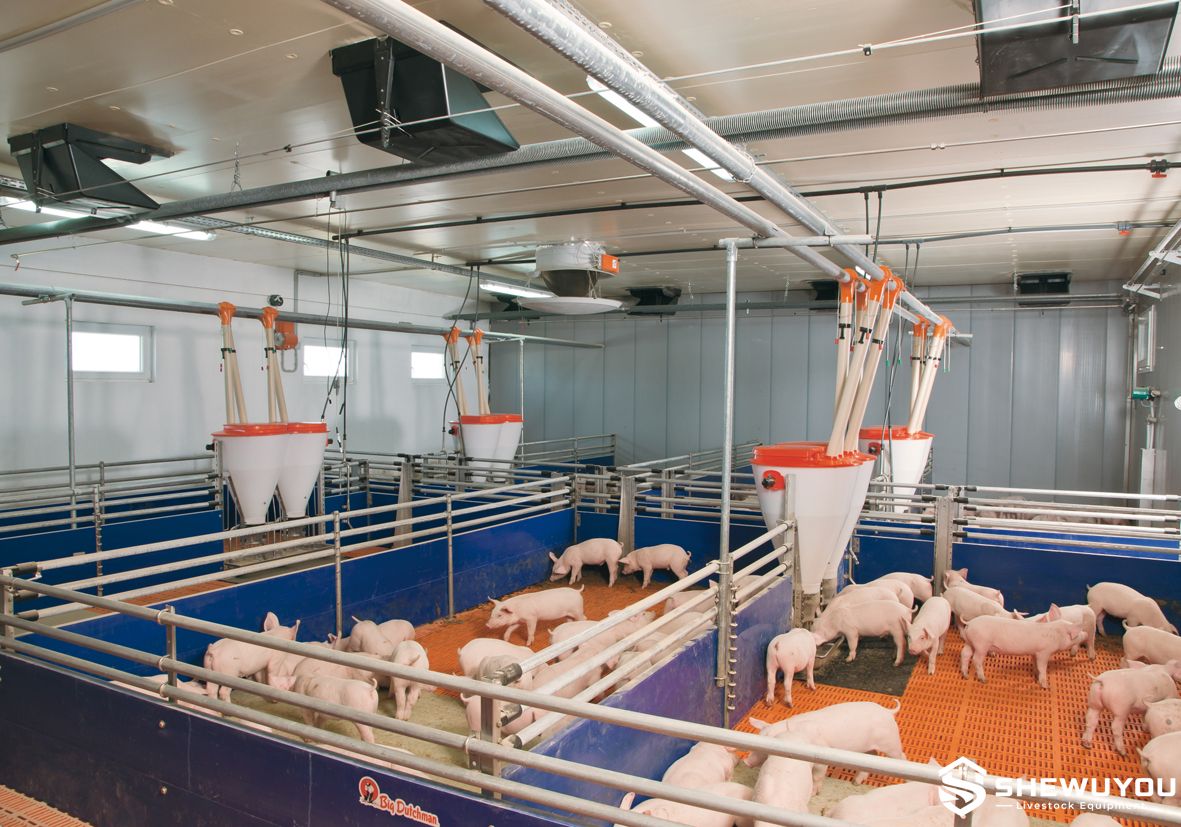

Nursery pens with wet-dry feeders can be incorporated into complete commercial pig-house projects together with steel structure buildings, plastic slatted flooring, feed silos, automatic conveying lines, drinking systems, climate covers, ventilation equipment and manure-management systems.

For new construction and renovation projects, the final configuration can be developed according to building drawings, planned pig capacity, feeding strategy, local climate and farm-management requirements.

Q: What is a wet-dry feeder?
A: A wet-dry feeder provides dry feed together with convenient access to drinking water at the feeding station. Depending on the design, pigs can consume them separately or create a moist feed mixture while eating.

Q: Why use a wet-dry feeder for nursery pigs?
A: It provides convenient access to both feed and water and can help support feed intake during the post-weaning period while simplifying pen management.

Q: Can meal and pellet feed both be used?
A: Yes. Suitable wet-dry feeder configurations can handle meal or pellet feed. The feed adjustment should be set according to feed characteristics.

Q: Is the feed amount adjustable?
A: Yes. The feeder can be configured with an adjustable dosing or feed-opening mechanism to control feed availability.

Q: Can the feeder be connected to an automatic feed line?
A: Yes. Automatic filling through a dry-feed conveying line and drop pipe is available according to project requirements.

Q: Can stainless-steel feeders be supplied?
A: Yes. Corrosion-resistant stainless-steel wet-dry feeders, including 304 stainless-steel configurations, are available upon request.

Q: Can the nursery pen dimensions be customized?
A: Yes. Pen dimensions, group size, partition materials, feeder location and gate arrangement can be customized according to the pig-house layout.

Q: Can the system be used with plastic slatted flooring?
A: Yes. The pen can be integrated with plastic slatted flooring and suitable manure-management systems.

Q: Is the system suitable for existing pig-house renovation?
A: Yes. Modular penning and feeding equipment can be adapted to many existing nursery buildings after confirming dimensions and equipment interfaces.

Q: Can SHEWUYOU supply the complete nursery-house equipment package?
A: Yes. The project scope can include penning, wet-dry feeders, flooring, automatic feeding, drinking equipment, climate control, ventilation and related livestock equipment according to project requirements.
