Nursery Pen with Integrated Liquid Feeding Wall

The Nursery Pen with Integrated Liquid Feeding Wall is a modular pig housing solution designed for weaned piglets and nursery-stage pigs in modern commercial swine production. The system combines pen partitions, a liquid feeding wall, integrated feed downpipes and a hygienic trough into one coordinated structure.

Compared with separately installed pen walls and feeding equipment, the integrated concept simplifies the feeding area and allows liquid feed pipelines to be routed directly to the trough. Properly designed downpipe geometry helps maintain reliable feed discharge and supports fast distribution during feeding cycles.

The nursery pen can be combined with automatic liquid feed preparation and distribution equipment, plastic slatted flooring, drinking systems, heating equipment and environmental control systems. Modular construction makes it suitable for new steel-structure pig houses, prefabricated livestock buildings and renovation of existing nursery facilities.

• Integrated nursery pen and liquid feeding wall for efficient commercial piglet housing.
• Feed downpipes can be incorporated directly into the partition structure.
• Direct feed discharge helps simplify pipe routing around the feeding area.
• Stainless steel trough options provide corrosion resistance and reliable service in demanding pig-house environments.
• Trough geometry can be designed to reduce feed accumulation and unnecessary feed waste.
• Closed and smoothly formed trough edges support effective washing and sanitation.
• Optional feeding-space separators can improve access organization during group feeding.
• Suitable for controlled meal feeding or ad-libitum liquid feeding according to project design.
• Compatible with centralized automatic liquid feeding systems.
• Modular pen dimensions allow flexible adaptation to different barn layouts.
• Compatible with plastic slatted flooring and under-floor manure management systems.
• Suitable for repetitive installation in large commercial nursery houses.

• Nursery Pen Partitions: PVC, plastic, fiber panel, galvanized steel grid or combined partition structures according to project requirements.

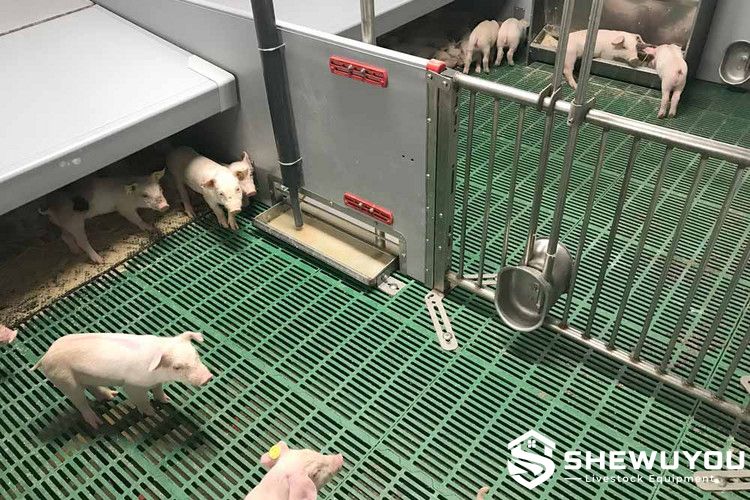

• Integrated Feeding Wall: Structural partition section designed to incorporate liquid feed delivery components.
• Feed Downpipes: One or multiple feed discharge pipes can be integrated according to trough length and feeding-system design.
• Liquid Feeding Trough: Stainless steel or other livestock-grade trough options designed for hygienic feed distribution.
• Feeding-Space Separators: Optional head or shoulder dividers help organize access to the trough in group-housed piglets.
• Support Profiles: Galvanized or stainless steel structural profiles provide stability for the feeding wall and pen partitions.
• Access Gate: Allows efficient animal movement, inspection, sorting and cleaning.
• Flooring System: Plastic slatted flooring or project-specific nursery flooring can be integrated with the pen layout.
• Water Supply Equipment: Nipple drinkers or drinking cups can be positioned according to pen capacity and farm requirements.
• Liquid Feed Pipeline: Connects the feeding wall to the central mixing, pumping and distribution system.

Liquid feed is prepared in a centralized mixing system according to the farm's selected feed formulation. A pump transports the prepared feed through the main distribution pipeline to individual nursery pens.

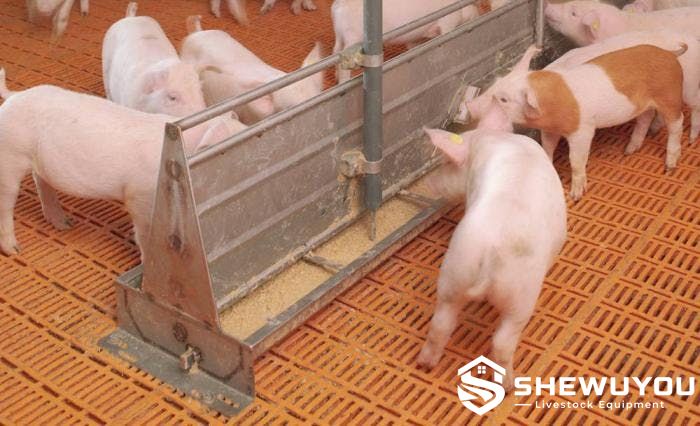

At each feeding location, liquid feed passes through the integrated downpipe and is discharged directly into the trough. A direct-flow layout can reduce unnecessary fittings around the outlet and help maintain reliable feed movement.

Piglets consume feed simultaneously along the trough. Where required, feeding-space separators can be installed to organize access and reduce competition around individual eating positions.

After each feeding cycle, the liquid feeding system can be operated according to the selected cleaning, rinsing and hygiene program. The pen and trough surfaces are designed for convenient washing between production batches.

Product Type: Nursery pen with integrated liquid feeding wall

Application: Weaned piglets and nursery-stage pigs

Pen Dimensions: Customizable

Pen Capacity: According to piglet weight, pen dimensions and local stocking requirements

Partition Material: PVC, plastic panel, fiber panel, galvanized steel grid or combined structure

Metal Components: Galvanized steel or stainless steel options available upon request

Feeding Method: Automatic liquid feeding

Feeding Mode: Controlled meal feeding or ad-libitum configuration according to project requirements

Integrated Downpipes: Quantity and diameter according to liquid feeding system design

Trough Material: Stainless steel or project-specific livestock-grade material

Trough Length: Customizable according to pen width and feeding strategy

Feeding Separators: Available upon request

Water Supply: Nipple drinker or drinking cup

Flooring: Plastic slatted floor or project-specific nursery flooring

Liquid Feed Preparation: Centralized mixing and pumping system

Feed Distribution: Pipeline distribution according to project requirements

Installation: Modular installation according to pig house layout

• Commercial piglet nursery houses
• Weaner production facilities
• Automatic liquid feeding pig farms
• Large-scale integrated swine farms
• Batch-production nursery units
• Wean-to-finish projects
• Steel-structure pig houses
• Prefabricated livestock buildings
• Existing pig farm renovation and modernization
• Turnkey pig farm construction projects
• Livestock projects for agricultural contractors, distributors and farming groups

• Pen length, width and height
• Number of piglets per pen
• PVC, plastic, fiber or galvanized grid partitions
• Integrated feeding-wall length and height
• Single or multiple liquid feed downpipes
• Feed downpipe diameter according to system design
• Single-sided or double-sided trough configuration
• Stainless steel trough specifications
• Feeding-space separator quantity and spacing
• Controlled feeding or ad-libitum feeding configuration
• Liquid feed preparation and mixing equipment
• Feed pump and pipeline configuration
• Automatic valves, sensors and control equipment
• Plastic slatted flooring configuration
• Drinking equipment and water-line arrangement
• Heating and microclimate equipment interfaces
• Single-row, double-row or multi-row nursery layouts
• Designed according to local climate and farm conditions

Installation:

• Confirm the nursery-house layout, pig capacity, pen dimensions and feeding strategy.
• Determine the locations of the liquid feed kitchen, main pipeline, branch lines and individual feeding walls.
• Install flooring, structural posts, pen partitions and access gates according to the project drawing.
• Position and secure the integrated liquid feeding wall.
• Install the stainless steel trough and feeding-space separators where required.
• Connect the integrated downpipes to the liquid feed distribution pipeline.
• Install feed valves, pumps, sensors and control equipment according to the selected feeding system.
• Install drinking equipment and water pipelines.
• Flush and test the feeding pipeline before commissioning.
• Check all anchors, fittings, trough edges and animal-contact surfaces before pigs enter the facility.

Maintenance:

• Inspect feed outlets and downpipes regularly for residue or blockage.
• Clean trough surfaces after feeding according to the farm hygiene program.
• Operate pipeline rinsing and cleaning procedures according to the liquid feeding system design.
• Inspect pumps, valves, sensors and pipeline connections periodically.
• Check stainless steel trough joints, fasteners and supports for damage.
• Remove accumulated feed residues before they affect feed hygiene.
• Wash and disinfect the nursery pen thoroughly between production batches.
• Inspect drinkers, flooring, gates and structural components as part of routine maintenance.

Q: What is an integrated liquid feeding wall?
A: It is a pen partition and feeding structure that incorporates liquid feed downpipes and a trough into one coordinated installation, simplifying the feeding area inside the nursery pen.

Q: What pigs is this system designed for?
A: It is primarily designed for weaned piglets and nursery-stage pigs. The configuration can also be adapted to different production stages according to project requirements.

Q: Can the feeding wall have more than one feed downpipe?
A: Yes. The number and diameter of downpipes can be selected according to trough length, pen capacity and liquid feeding system design.

Q: Can feeding-space separators be added?
A: Yes. Head or shoulder separators can be incorporated where required to organize feeding positions and improve access during group feeding.

Q: Can the system be used for ad-libitum liquid feeding?
A: Yes. An ad-libitum configuration can be developed for nursery piglets according to the feeding strategy, trough design and farm management requirements.

Q: Can SHEWUYOU supply the complete liquid feeding system?
A: The project can be configured with liquid feed preparation tanks, mixing equipment, pumps, distribution pipelines, valves, control equipment and feeding-wall interfaces according to project requirements.

Q: Can the nursery pen dimensions be customized?
A: Yes. Pen dimensions, partition materials, feeding-wall size, trough configuration, flooring, gates and related equipment can be customized according to the pig house layout.

Q: Is the system suitable for large commercial pig farms?
A: Yes. Its modular configuration allows repeated installation throughout large nursery buildings and integration with centralized feeding, drinking, climate control and manure-management systems.

Q: What information is required for a quotation?
A: Please provide the pig house dimensions, total nursery capacity, number of piglets per pen, preferred pen size, feeding strategy, feed ingredients, flooring type, project location and available layout drawings.
