Wean-to-Finish Pig Pen

The Wean-to-Finish Pig Pen is a modular housing system designed to accommodate pigs from weaning through the finishing stage without requiring a conventional transfer from a separate nursery house to a finisher house.

Compared with a standard finishing pen, a wean-to-finish configuration requires greater attention to the needs of smaller newly weaned pigs. Typical design features include a protected lying area with a climate cover, suitable contact-grid spacing, appropriate flooring, accessible drinking points and a feeding system capable of serving pigs across a wide growth range.

The system can be configured with plastic boards, compact fiber panels, heavy-duty plastic panels or combined solid and open partitions. It is suitable for new commercial pig houses, steel structure livestock buildings and renovation projects, with dimensions and equipment layouts designed according to project requirements.

• Designed for continuous housing from weaning through the finishing period.
• Reduces the need to relocate pigs between separate nursery and finishing pens.
• Protected lying area can be equipped with a climate cover for young pigs.
• Contact-grid configuration can be adapted for smaller pigs at the beginning of the production cycle.
• Modular partition system supports different pen dimensions and barn layouts.
• Available with solid, ventilated or combination pen partitions.
• Smooth panel surfaces support efficient washing and disinfection.
• Compatible with dry feeding and liquid feeding systems.
• Feeding configuration can be adapted to multiple growth phases and diets.
• Suitable for integration with slatted flooring and manure-management systems.
• Corrosion-resistant fittings are available for demanding pig-house environments.
• Suitable for intensive commercial pig farms and turnkey livestock construction projects.

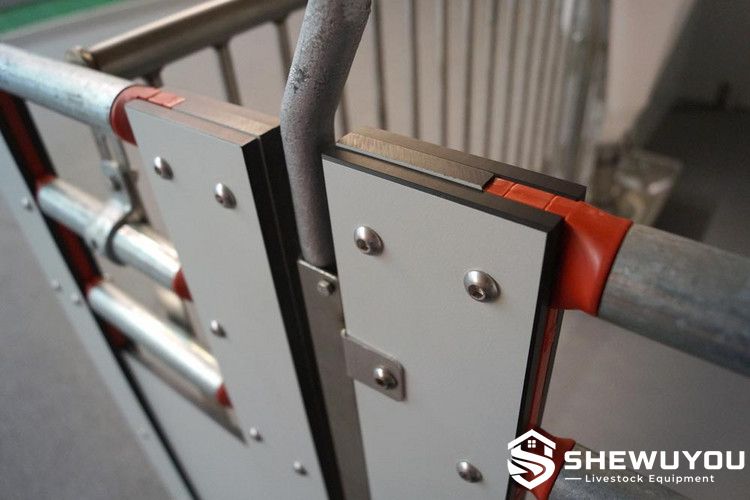

• Pen Partitions: Plastic board, compact fiber, plastic panel or combination construction according to project requirements.
• Solid Separation Sections: Provide protected resting areas and help control direct air movement at pig level.
• Open Contact Grids: Galvanized or stainless-steel sections for ventilation, observation and controlled contact between neighboring groups.
• Climate Cover: Installed above the lying area to create a warmer microenvironment during the early growth stage.
• Gate System: Small access gates or larger gates can be supplied according to pen dimensions and animal-handling requirements.
• Feeding Equipment: Dry feeder, wet/dry feeder, liquid-feeding trough or integrated feeding outlet according to farm design.
• Drinking Equipment: Water cups, drinking valves or nipple drinkers positioned according to animal size and pen layout.
• Flooring System: Slatted, partially slatted or project-specific flooring designed for the complete growth period.
• Anchoring Hardware: Stainless-steel fittings, galvanized posts or other corrosion-resistant fastening components.

The wean-to-finish system is based on housing pigs in the same production environment from weaning until they reach finishing weight. The pen therefore needs to accommodate significant changes in animal size, feeding behavior, thermal requirements and space utilization throughout the production cycle.

During the early stage, the covered lying area provides a protected microclimate for smaller pigs. Solid partitions can help reduce direct drafts, while appropriately designed contact grids and flooring support safe movement and practical pen zoning.

As pigs grow, the same pen continues to function as grower and finisher accommodation. Feeding equipment, trough access and drinking systems are selected to remain practical across the larger weight range. Multi-phase feeding can be incorporated to provide different diets during the growth period.

The combination of resting, feeding, drinking and dunging zones supports organized animal behavior while allowing farm staff to manage cleaning, observation and pig movement efficiently.

Product Type: Wean-to-finish pig pen / grower-finisher penning system

Production Stage: From weaning through finishing

Reference Production Range: Approximately 7-120 kg in typical wean-to-finish applications; final design according to farm production requirements

Penning Material Options: 35 mm plastic board, 10 mm compact fiber panel, 50 mm plastic panel or project-specific combination

Penning Height: According to selected material, animal weight range and project requirements

Partition Configuration: Solid, ventilated or combined solid/open design

Contact Grid: Galvanized steel or stainless steel

Contact Grid Spacing: Designed according to pig size and applicable farm requirements

Gate Configuration: Customizable

Climate Cover: Available above the lying area

Feeding System: Dry feeding, wet/dry feeding or liquid feeding

Feeding Program: Compatible with multi-phase feeding according to growth stage

Drinking System: Water cup, drinking valve or nipple drinker

Water Pipeline: Plastic or project-specified livestock water line

Flooring: Designed according to animal age, manure system and project requirements

Pen Length and Width: Customizable

Overall Configuration: Designed according to local climate and farm conditions

• Commercial wean-to-finish pig farms
• Integrated swine production facilities
• Large-scale pig farming groups
• Contract growing facilities
• New pig-house construction projects
• Steel structure pig houses
• Prefabricated livestock buildings
• Existing pig-barn renovation projects
• Turnkey livestock equipment projects
• International agricultural and livestock development projects

• Pen length and width
• Number of pigs per pen
• Pen partition material
• Partition height and configuration
• Solid and open partition arrangement
• Galvanized or stainless-steel contact grids
• Contact-grid spacing according to pig size
• Gate dimensions and opening direction
• Climate-cover material and dimensions
• Dry, wet/dry or liquid feeding system
• Multi-phase feeding configuration
• Drinking-system layout
• Slatted-floor and manure-system configuration
• Integration with ventilation and environmental-control systems
• Complete system designed according to local climate and farm conditions

Project Planning: Before installation, the pen layout should be coordinated with pig-house dimensions, structural columns, service aisles, manure channels, flooring, ventilation, feeding lines and drinking pipelines.

Pen Installation: Panels, gates and contact grids are assembled according to the approved layout and fixed securely with stainless-steel fittings, galvanized posts or project-specific anchoring components.

Feeding and Drinking Installation: Feeders, troughs, feed drops and water points should be positioned for easy access by pigs throughout the intended growth range while preserving practical resting and dunging zones.

Climate Cover Installation: The cover is positioned above the designated lying area and configured according to the required microclimate and farm-management system.

Cleaning: Remove organic material after each production batch and thoroughly wash and disinfect panels, gates, feeders, drinkers and flooring according to the farm biosecurity program.

Routine Maintenance: Regularly inspect gate locks, hinges, posts, panel joints, contact grids, feeders, water valves and anchoring points. Worn or damaged components should be replaced before the next production cycle.

Technical Support: Installation drawings, equipment layouts and project-specific technical guidance are available upon request.

Wean-to-finish penning can be incorporated into complete commercial pig-house projects together with steel structure buildings, slatted flooring, dry or liquid feeding systems, drinking equipment, ventilation, environmental control and manure-management systems.

For new construction and renovation projects, the final pen arrangement can be developed according to building drawings, production capacity, stocking strategy, feeding method, local climate and customer requirements.

Q: What is a wean-to-finish pig pen?
A: It is a penning system designed to house pigs from weaning through the finishing stage, reducing the need for a separate transfer between nursery and conventional finishing accommodation.

Q: How is it different from a standard finisher pen?
A: A wean-to-finish pen must also accommodate smaller newly weaned pigs. It therefore typically requires suitable climate protection, contact-grid spacing, flooring, feeding access and drinking equipment for the early production stage.

Q: Can the pen dimensions be customized?
A: Yes. Pen dimensions, group size, gates and partition arrangements can be customized according to the pig-house layout and production plan.

Q: What materials are available?
A: Common options include plastic boards, compact fiber panels and heavy-duty plastic panels. Material selection depends on project requirements and preferred pen design.

Q: Is a climate cover required?
A: A covered lying area is commonly used in wean-to-finish systems to provide a suitable microenvironment for pigs during the early post-weaning stage. Final configuration depends on local climate and farm conditions.

Q: Can liquid feeding be integrated?
A: Yes. The pen can be configured for dry feeding, wet/dry feeding or liquid feeding according to project requirements.

Q: Can the system support phase feeding?
A: Yes. Feeding equipment can be coordinated with multi-phase feeding programs to accommodate changing nutritional requirements during the growth period.

Q: Can the system be installed in an existing pig house?
A: Yes. Modular penning is suitable for many renovation projects after confirming the existing floor, manure channels, building dimensions and equipment interfaces.

Q: Can SHEWUYOU supply a complete wean-to-finish house solution?
A: Yes. Complete project configurations can include penning, flooring, feeding, drinking, climate control, ventilation, manure handling and related livestock equipment according to project requirements.
