Product Showcase	Content

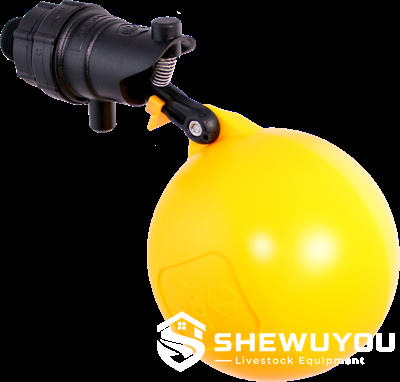

Product Name	Multi-Position Automatic Float Valve
Product Image
Product Overview	The Multi-Position Automatic Float Valve is a compact mechanically operated valve designed to maintain a preset water level in livestock drinking troughs, storage tanks, cisterns and agricultural water vessels. Its versatile mounting arrangement allows installation from the top, side or bottom of compatible tanks, making it suitable for different trough structures and farm piping layouts. The corrosion-resistant construction, adjustable float position and simple serviceable valve body make it suitable for commercial livestock facilities where dependable automatic filling and straightforward maintenance are required. It operates without electricity and can be integrated into pig farm, cattle farm and general livestock water-supply systems.
Key Features	Top, side or bottom mounting for flexible livestock trough and tank installation. Automatic float-operated water-level control without electrical power. Compact non-corrosive construction for humid agricultural environments. Fully adjustable float angle for setting the required operating water level. Built-in check valve incorporated into the valve assembly. Valve body can be opened by hand for convenient inspection and servicing. Water flow automatically stops when the service section is unscrewed. Manual lock-off function allows the valve to be held in the closed position. Multiple inlet sizes, thread standards, float sizes and extension arms available. Suitable for livestock equipment projects, replacement installations and new farm construction.
Structural Components	Valve Body: Compact engineering-polymer housing containing the mechanical water-control mechanism. Inlet Tail and Backnut: Secure the valve through the trough or tank mounting surface. Seal Washer: Provides sealing between the valve connection and tank wall. Float: HDPE float detects changes in water level and mechanically actuates the valve. Extension Arm: Connects the float to the operating mechanism and allows different installation geometries. Adjustable Float Mechanism: Allows the float angle and shut-off level to be configured during installation. Internal Filter Components: Help protect the internal valve mechanism against larger contaminants. Stainless Steel Hardware: Springs, bolts and nuts are designed for corrosion resistance in livestock environments. Check Valve: Integrated into the assembly for controlled water-flow operation.
Working Principle	As livestock consume water, the liquid level in the trough or tank falls and the float moves downward. This movement mechanically opens the valve, allowing fresh water to enter the vessel. When the required water level is restored, the rising float moves the operating mechanism toward the closed position and stops the incoming water. The float angle can be adjusted during installation to establish the required shut-off level. The system is entirely mechanical and does not require electrical sensors, controllers or power supplies.
Technical Specifications	Product Type Automatic mechanical float valve Reference Flow Class 20 L/min valve range Standard Operating Pressure 0-10 bar / 0-150 psi Low-Pressure Option 0-5 bar / 0-75 psi Maximum Operating Temperature 60°C / 140°F Available Inlet Sizes 8 mm / 1/4", 15 mm / 1/2", 20 mm / 3/4" Thread Options BSP or NPT Mounting Positions Top, side or bottom Standard Extension Arm 75 mm Available Extension Arms 25 mm, 50 mm, 75 mm, 100 mm Standard Float Width 125 mm Optional Float Widths 70 mm and 95 mm for suitable top-entry installations Float Material HDPE Internal Seals Nitrile O-rings Hardware 304 stainless steel springs, bolts and nuts Power Requirement None Additional Specifications Available upon request / According to project requirements
Applications	Pig and swine drinking-water troughs Sow, nursery and finishing-house auxiliary water tanks Cattle and dairy livestock drinking troughs Sheep and goat watering systems Horse and equine water troughs Livestock water storage tanks Agricultural cisterns and header tanks Process and utility water vessels Commercial livestock buildings and steel structure farm projects Replacement and retrofit farm water-supply installations
Customization Options	1/4", 1/2" and 3/4" inlet configurations. BSP or NPT thread standards according to destination market. Standard or low-pressure valve configuration according to available supply pressure. 25 mm, 50 mm, 75 mm or 100 mm extension arms according to trough geometry. Different float sizes for compatible mounting arrangements. Top, side or bottom installation according to tank structure and piping layout. Compatible connectors and installation accessories available upon request. Final configuration customizable according to project requirements.
Installation & Maintenance	Select the appropriate top, side or bottom mounting position before drilling or preparing the trough connection. Install the backnut and seal washer correctly to provide a secure, leak-resistant connection. Flush new farm water lines before commissioning to reduce debris entering the valve. Ensure that the float and extension arm can move freely without contacting trough walls, pipework or other equipment. Adjust the float angle to obtain the required operating water level. Use the manual lock-off function when the valve must remain closed during servicing. Inspect the filter, seals, float mechanism and inlet connection periodically. The valve body can be opened by hand for routine servicing without complicated disassembly procedures. Clean mineral deposits or sediment according to local water quality. Protect exposed farm water equipment from freezing where required by local climate conditions.
Product FAQ	Q: Can the valve be installed from different directions? A: Yes. The valve is designed for top, side or bottom mounting, allowing it to adapt to different livestock trough and tank structures. Q: Does the valve require electricity? A: No. It is a mechanically operated float valve and controls water level without electrical power, sensors or electronic controllers. Q: What inlet sizes are available? A: Reference inlet sizes include 1/4", 1/2" and 3/4", with BSP and NPT thread options available. Q: Can it operate with low water pressure? A: A dedicated low-pressure configuration is available for applications operating up to approximately 5 bar / 75 psi. The most suitable configuration should be selected according to actual farm water pressure and required flow. Q: Is the water level adjustable? A: Yes. The float angle can be adjusted to establish the required shut-off water level for the trough or tank. Q: Is it suitable for commercial pig farms? A: Yes. It can be used for appropriate troughs, tanks and auxiliary watering points in sow, nursery and finishing facilities where its flow capacity matches the required water demand. Q: Is the valve easy to maintain? A: Yes. The serviceable valve body can be opened by hand, and the water flow stops when the service section is unscrewed, simplifying routine inspection and cleaning. Q: Can it be supplied for international livestock projects? A: Yes. Thread standard, inlet size, pressure configuration, extension arm and mounting arrangement can be selected according to project requirements.
