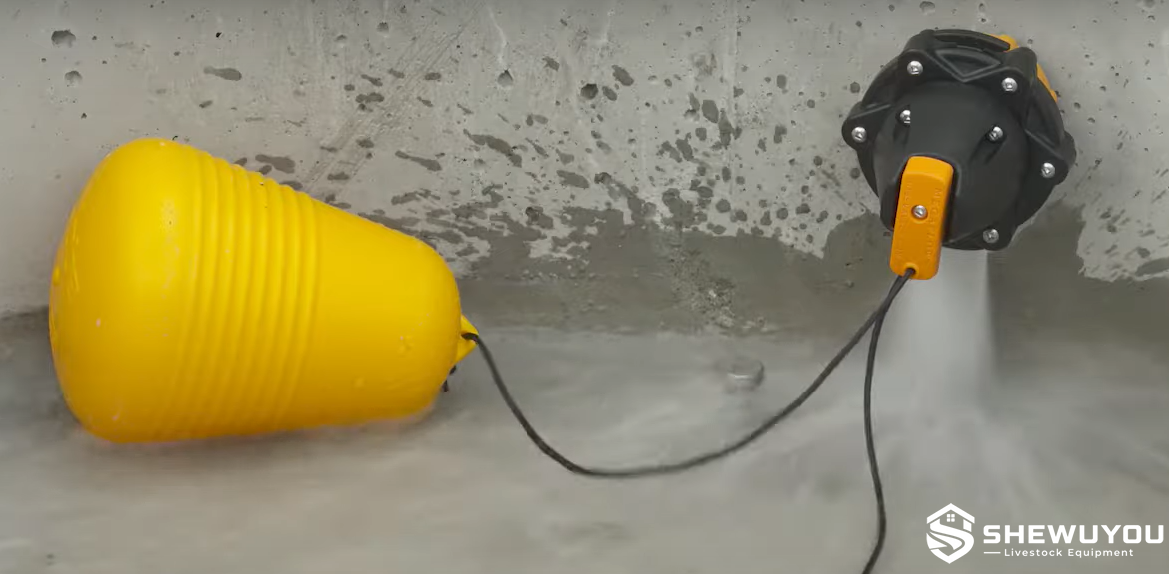

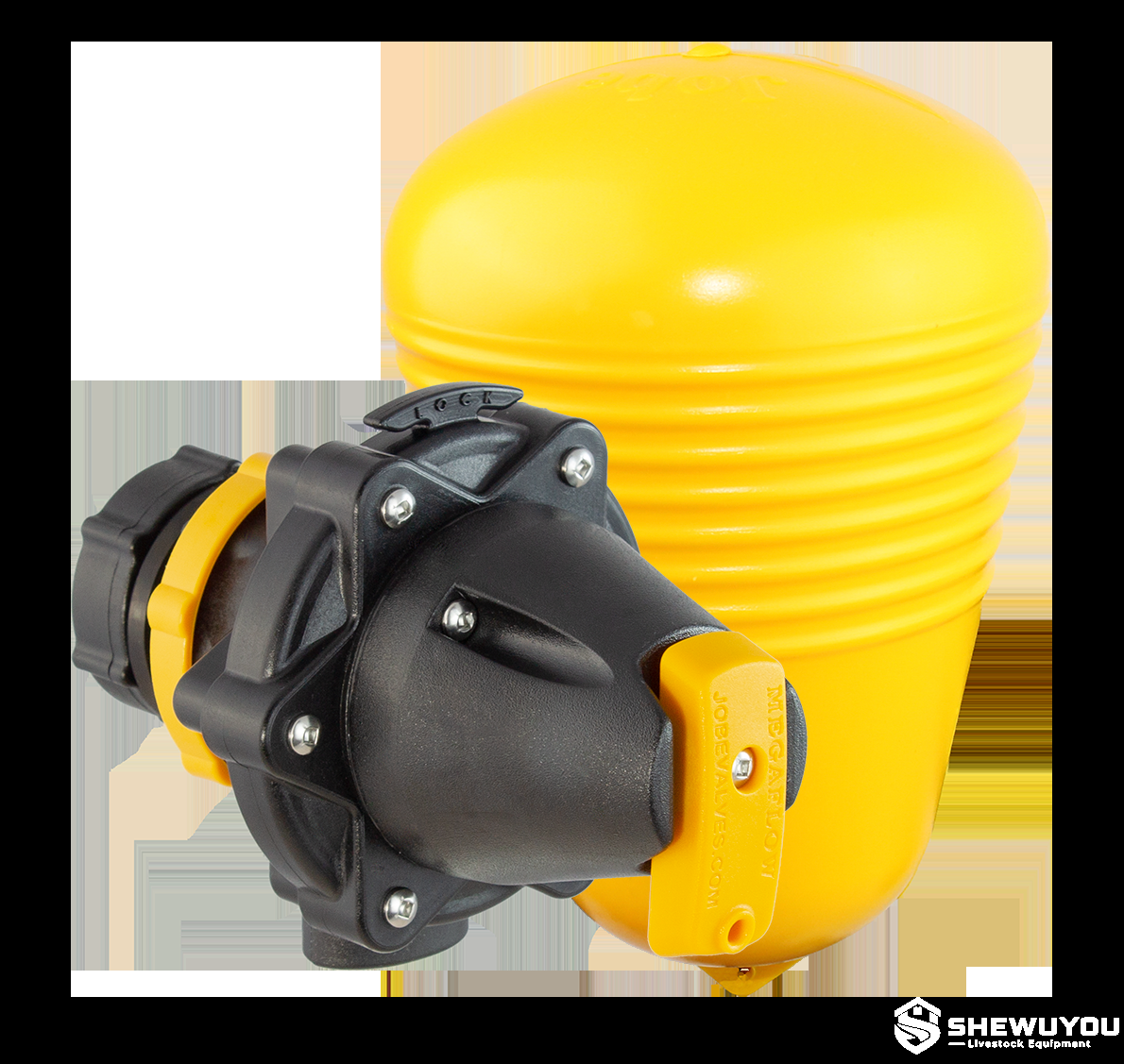

High-Flow Livestock Trough Float Valve

• High-flow design for rapid automatic refilling of livestock drinking troughs.
• Pilot-operated diaphragm mechanism provides positive on/off water control.
• Underwater mounting keeps the main valve assembly protected inside the trough.
• Compact design reduces obstruction around the livestock drinking area.
• Corrosion-resistant non-metallic body is suitable for demanding agricultural environments.
• Remote float connected by cord allows flexible water-level positioning.
• Integrated inlet filter helps reduce contamination entering the valve mechanism.
• Cord-lock function allows the water supply to be shut off during servicing.
• Side or bottom mounting provides flexibility for different trough structures.
• Reduced exposed mechanism helps minimize accidental livestock damage.

• Valve Body: Reinforced corrosion-resistant housing designed for submerged livestock applications.
• Main Diaphragm: Controls the primary water flow through the valve.
• Pilot Valve: Uses float movement to activate or deactivate the main diaphragm.
• Remote Float: Responds to changing trough water levels.
• Float Cord: Transfers float movement to the pilot mechanism while allowing flexible positioning.
• Inlet Filter: Helps prevent larger debris from entering the internal valve components.
• Cord Lock: Provides convenient manual shut-off during inspection or maintenance.
• Threaded Inlet: Available in multiple connection sizes and thread configurations.

• Commercial cattle drinking troughs
• Dairy farm water supply systems
• Beef cattle production facilities
• Sheep and goat watering systems
• Livestock water storage and header tanks
• Commercial pig farms using compatible open drinking troughs or water tanks
• Pig farm construction and renovation projects
• Steel structure livestock buildings
• Large-scale agricultural and livestock engineering projects
• Livestock equipment distribution and replacement markets

• Different inlet diameters according to water-line requirements
• BSP or NPT thread configurations available upon request
• Short-tail or long-tail inlet configurations according to installation structure
• Detach-base configuration available according to project requirements
• Accessories and connection solutions can be matched to trough and pipeline layouts
• Bulk packaging and project supply configurations available upon request

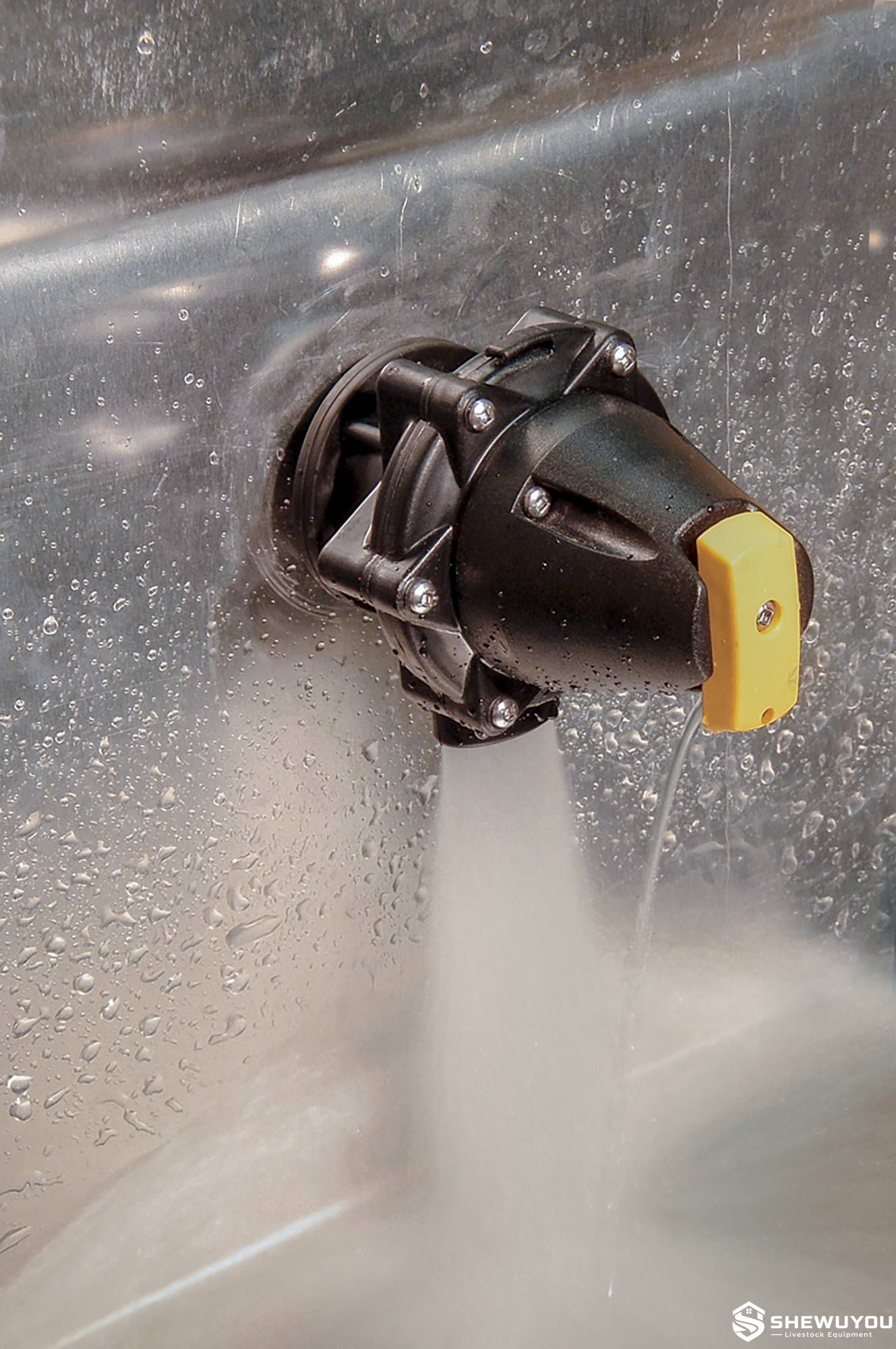

• Install the valve below the normal trough water level using the specified side-mount or bottom-mount configuration.
• Confirm that underwater installation complies with applicable local plumbing and livestock-water regulations.
• Flush new water supply lines before connecting the valve to remove installation debris.
• Select the correct inlet size according to required flow rate, available pressure and pipeline diameter.
• Position the float and cord so they can move freely without contacting trough fittings or other equipment.
• Check the valve for positive opening and closing before livestock are introduced.
• Inspect and clean the inlet filter periodically, especially where sediment is present in the farm water supply.
• Inspect the diaphragm, seals and float cord during scheduled livestock equipment maintenance.
• Use the cord-lock function to isolate the valve when inspection or servicing is required.

Q: Why use a pilot-operated diaphragm valve instead of a conventional float-arm valve?
A: The pilot-operated design provides high water flow from a compact valve body and eliminates the need for a large exposed mechanical float arm.

Q: Can this valve be installed above the water level?
A: No. This valve type is designed specifically for underwater mounting. Side or bottom underwater installation should be used.

Q: What determines the actual flow rate?
A: Actual water delivery depends mainly on inlet diameter, supply pressure, pipeline capacity and installation conditions.

Q: Is the valve suitable for high-demand livestock troughs?
A: Yes. Its high-flow diaphragm design is intended for applications where fast trough recovery is required after livestock consume large quantities of water.

Q: Is it suitable for commercial pig farms?
A: It can be integrated into suitable open-trough or water-tank systems within commercial pig farms. Final selection should be based on drinking-system design, animal group size, water pressure and required refill capacity.

Q: Are different connection sizes available?
A: Yes. Multiple inlet sizes and thread configurations can be supplied according to project requirements.
