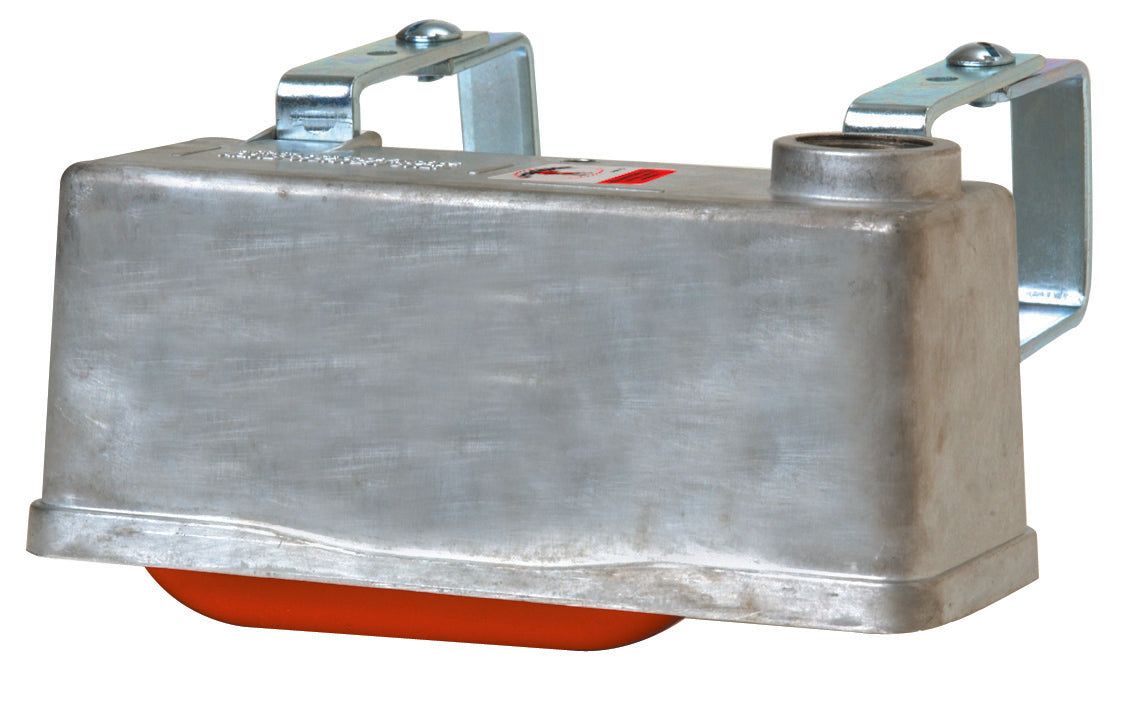

Metal Trough Float Valve with Expansion Brackets

• Automatic float-operated water-level control reduces manual trough filling.
• Durable aluminum housing suitable for demanding livestock environments.
• Nylon valve orifice provides reliable water-flow control.
• Expansion brackets accommodate wider or thicker trough and stock-tank rims.
• Suitable for both plastic and metal livestock watering containers.
• Standard hose connection simplifies connection to farm water supplies.
• Compact mechanical design requires no electricity or electronic controller.
• Well suited to commercial livestock farms, replacement projects, and equipment distribution.

• Valve Housing: Durable aluminum enclosure protecting the internal mechanism.
• Float Mechanism: Water-level-responsive component that opens and closes the inlet valve.
• Valve Orifice: Nylon orifice designed for controlled water admission.
• Expansion Brackets: Adjustable mounting brackets for installation on wider or thicker tank rims.
• Water Inlet: Connection designed to accept a standard 3/4-inch garden hose.
• Mounting Hardware: Mechanical fastening components for secure attachment to the trough or tank edge.

• Commercial pig farms and livestock production facilities
• Cattle and dairy farm drinking troughs
• Sheep and goat watering systems
• Plastic or metal stock tanks
• Open livestock water troughs, barrels, and pans
• Outdoor pens, holding areas, and farm service zones
• Replacement and renovation of existing livestock watering systems
• Integrated livestock housing and farm construction projects

• Mounting configuration: Customizable according to trough or tank structure.
• Water inlet connection: Available upon request.
• Bracket dimensions: According to project requirements.
• Valve material and component configuration: Available upon request.
• Flow requirements: Selected according to farm water pressure and drinking demand.
• OEM packaging and bulk supply: Available for distributors, dealers, and livestock equipment projects.

• Install the expansion brackets securely over the trough or stock-tank rim.
• Connect the water supply to the valve inlet and verify that the supply pressure is suitable for the selected valve.
• Position the float mechanism so the desired operating water level can be maintained without interference.
• Flush new water lines before commissioning to reduce debris entering the valve.
• Inspect the orifice, float movement, hose connection, and mounting hardware periodically.
• Remove sediment or mineral deposits when necessary to maintain stable water flow.
• Protect exposed water lines and valves against freezing where required by local climate conditions.

Q: What does this float valve control?
A: It automatically controls the water level in open livestock troughs, stock tanks, barrels, and similar watering containers.

Q: Why are expansion brackets used?
A: The expanded mounting range allows the valve to be installed on tank rims that are wider or thicker than those suitable for standard mounting brackets.

Q: Does the valve require electricity?
A: No. Water-level control is entirely mechanical and operated by the float mechanism.

Q: Can it be installed on both plastic and metal troughs?
A: Yes. The mounting design is suitable for many plastic and metal stock tanks and livestock troughs, provided the rim dimensions and water-supply conditions are compatible.

Q: Is this product suitable for commercial pig farms?
A: Yes. It can be used for suitable open drinking troughs, service water tanks, livestock holding areas, and other farm applications requiring automatic water replenishment.

Q: Can specifications be customized for livestock projects?
A: Yes. Connection, bracket, material, packaging, and project-specific configurations are available upon request.
