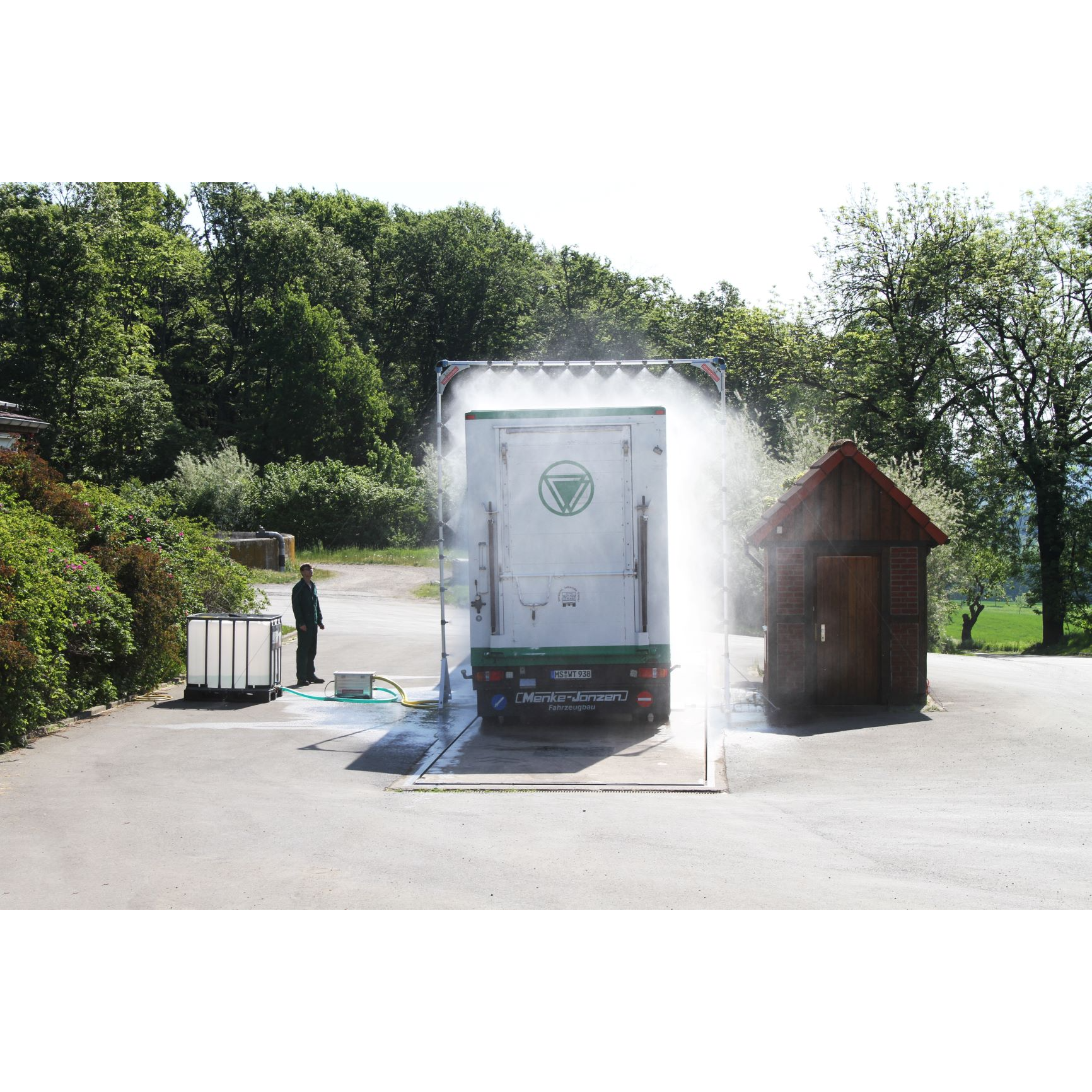

Farm Vehicle Biosecurity Disinfection System

• Automatic Vehicle Detection: Entry sensors can detect vehicle movement and initiate the programmed disinfection cycle.
• Drive-Through Operation: Vehicles pass through a defined treatment area without requiring operators to manually spray the vehicle.
• Wheel and Undercarriage Coverage: Strategically positioned nozzles can target tyres, wheels and underbody areas.
• Adjustable Chemical Dosing: Chemical dosing can be configured according to the selected compatible disinfectant and farm biosecurity procedure.
• Controlled Spray Cycle: Operating sequence and spray duration can be configured according to site traffic and application requirements.
• Galvanized Steel Construction: Structural components are suitable for demanding agricultural environments and regular vehicle traffic.
• Surface-Mounted Installation: Suitable configurations can be installed on an existing concrete, asphalt or prepared compacted base.
• Inset Installation Option: The platform can be integrated into a prepared foundation where a low-profile permanent installation is preferred.
• Wastewater Collection: A collection tray and drainage connection can help control contaminated liquid generated during disinfection.
• Heavy Vehicle Capability: Structural loading can be engineered according to truck, livestock transporter and agricultural vehicle requirements.
• Two-Way Traffic Option: Entry and exit detection can be configured for sites requiring vehicle treatment in both directions.
• Modular Engineering: Platform size, spray arrangement, control system and auxiliary equipment can be adapted to the farm layout.

• Drive-Through Spray Platform: Heavy-duty platform forms the vehicle treatment area and supports the lower spray system.
• Access Ramps: Low-profile ramps can be supplied for surface-mounted configurations.
• Side Spray Assemblies: Vertical spray bars or nozzle assemblies provide targeted treatment around vehicle sides and wheels.
• Undercarriage Spray Line: Lower nozzles can be positioned beneath the vehicle passage for wheel and chassis coverage.
• Disinfectant Tank: Tank capacity can be selected according to traffic volume and project requirements.
• High-Pressure or Spray Pump: Pump performance is selected according to the required spray pattern and disinfectant application method.
• Chemical Dosing System: Metering equipment provides controlled introduction of compatible disinfectant into the spray circuit.
• Vehicle Detection Sensors: Sensors initiate automatic operation when a vehicle enters the treatment zone.
• Control Panel: The control system manages automatic activation, spray cycles and manual operation according to configuration.
• Galvanized Side Screens: Optional side screens can help define the treatment zone and control spray and runoff.
• Collection Tray: A tray beneath the spray platform can collect contaminated wastewater.
• Drainage Connection: Drain valves and outlet connections can be coordinated with the farm's wastewater management system.

Comparable commercial systems use surface-mounted platforms, galvanized structural components, automatic sensors, chemical dosing and contained wastewater collection for farm vehicle biosecurity applications. :contentReference[oaicite:2]{index=2}

The reference values above are based on published specifications for comparable automatic farm vehicle disinfection systems. Final specifications should be confirmed according to the selected configuration, vehicle fleet, local electrical standards and project design. :contentReference[oaicite:4]{index=4}

• Commercial Pig Farms: Vehicle sanitation at controlled farm entrances for feed trucks, livestock transporters and service vehicles.
• Poultry Farms: Vehicle biosecurity treatment for feed delivery, poultry transport and farm service traffic.
• Cattle and Dairy Farms: Treatment of livestock transport vehicles, feed trucks, agricultural machinery and authorized service vehicles.
• Breeding Farms: Controlled vehicle disinfection between external traffic areas and production zones.
• Livestock Transport Facilities: Dedicated sanitation stations for trucks and trailers operating between farms and livestock facilities.
• Abattoirs and Food Production Sites: Vehicle biosecurity at controlled-access entrances and service areas.
• Feed Mills and Agricultural Logistics: Vehicle treatment for controlled traffic entering sensitive production or storage areas.
• Quarantine and Biosecurity Stations: Integration into controlled vehicle access procedures.
• New Pig Farm Construction: Coordination with farm roads, drainage, electrical infrastructure, clean and dirty zones and other biosecurity equipment.
• Existing Farm Upgrades: Surface-mounted configurations can be used where limited civil modification is preferred.
• Agricultural Engineering Projects: Suitable for engineering contractors, livestock equipment distributors and farm infrastructure projects.

Comparable systems are used across pig and poultry farms, livestock facilities, abattoirs, cattle markets, border control points and other sites where vehicle-borne biosecurity is required. :contentReference[oaicite:5]{index=5}

• Platform Dimensions: Width, length and vehicle clearance can be designed according to the largest vehicle using the treatment station.
• Spray Coverage: Nozzle quantity, spray-bar arrangement and spray direction can be configured for tyres, wheels and undercarriage areas.
• Pump Performance: Pressure and flow can be selected according to the required spray pattern and chemical application method.
• Tank Capacity: Tank size can be selected according to vehicle traffic volume and available water supply.
• Chemical Dosing: Dosing equipment can be configured according to the selected compatible disinfectant and farm SOP.
• Control Logic: Entry-only, exit-only or two-way vehicle detection can be configured according to site traffic flow.
• Installation Type: Surface-mounted or inset installation can be selected according to the civil construction plan.
• Wastewater Collection: Collection trays, drain valves and outlet connections can be coordinated with the site's wastewater system.
• Structural Materials: Galvanized steel and other suitable corrosion-resistant materials can be selected according to local climate and chemical exposure.
• Heavy Vehicle Configuration: Platform structure and loading capacity can be designed according to truck and livestock transporter requirements.
• Optional Washing Module: A separate high-pressure cleaning stage can be integrated where pre-disinfection cleaning is required.
• Project Documentation: Technical drawings, spare parts, installation guidance and other project documentation are available upon request.

Installation: The surface-mounted configuration can be installed on a suitable concrete, asphalt or compacted base without extensive excavation. For permanent projects, an inset installation can be incorporated into a prepared foundation. :contentReference[oaicite:6]{index=6}

1. Confirm vehicle width, wheelbase, ground clearance and maximum axle load before finalizing the system design.
2. Prepare a stable and level foundation suitable for the selected platform and expected vehicle traffic.
3. Position and secure the spray platform, ramps and side structures according to the approved installation drawing.
4. Install spray bars and nozzles according to the required wheel and undercarriage coverage.
5. Connect the water supply, pump, chemical dosing system and control equipment.
6. Install vehicle detection sensors at positions providing reliable entry and exit detection.
7. Connect the control panel and electrical supply according to local electrical standards.
8. Connect the collection tray and drainage outlet to the approved wastewater management system.
9. Test spray pressure, flow, nozzle performance, sensor activation and automatic cycle operation before commissioning.
10. Configure chemical dosing and spray duration according to the farm biosecurity SOP and disinfectant manufacturer's instructions.
11. Clean filters and spray nozzles regularly to prevent blockage and maintain uniform spray performance.
12. Inspect hoses, fittings, valves, pump components and electrical connections for wear or leakage.
13. Remove accumulated mud, manure and organic material from the platform and surrounding treatment zone.
14. Inspect galvanized structural components, fasteners, ramps and side screens periodically.
15. Keep drainage channels, collection trays and outlet connections free from sediment and debris.
16. In cold climates, protect or drain liquid-handling components according to local winterization requirements.

Q: What is a Farm Vehicle Biosecurity Disinfection System?
A: It is an automatic drive-through system designed to apply a compatible disinfectant solution to vehicle tyres, wheels and undercarriage areas at controlled farm entrances.

Q: Is it suitable for commercial pig farms?
A: Yes. The system can be configured for commercial pig farms, poultry farms, cattle farms, breeding facilities, livestock transport sites and other agricultural operations requiring controlled vehicle sanitation.

Q: How does the automatic disinfection cycle work?
A: An entry sensor detects the vehicle and activates the programmed spray cycle. The pump and dosing system then deliver the prepared disinfectant solution through strategically positioned nozzles.

Q: Which vehicle areas can be treated?
A: The system can be configured to treat tyres, wheels, underbody and accessible chassis areas. Additional spray assemblies can be included according to the required coverage.

Q: Does the system require excavation?
A: Not necessarily. Surface-mounted configurations can be installed on suitable existing or prepared bases. An inset installation is also available for projects requiring a permanent flush platform. :contentReference[oaicite:7]{index=7}

Q: Can contaminated wastewater be collected?
A: Yes. A collection tray beneath the platform and drainage connections can be incorporated to collect and direct contaminated liquid toward the site's approved wastewater management system. :contentReference[oaicite:8]{index=8}

Q: Can the system handle heavy livestock vehicles?
A: Yes. Platform structure and loading capacity can be engineered according to vehicle type and axle load. Comparable configurations are specified for loads up to 10,000 kg per axle. :contentReference[oaicite:9]{index=9}

Q: Can the system operate in both directions?
A: Yes. Entry and exit sensors can be configured for two-way vehicle activation where the site traffic plan requires treatment in both directions.

Q: Can different disinfectants be used?
A: The dosing system can be configured for compatible disinfectants. Chemical compatibility, concentration, application rate and contact time should follow the disinfectant manufacturer's approved instructions and the farm biosecurity SOP. :contentReference[oaicite:10]{index=10}

Q: Can vehicle washing be added?
A: Yes. A separate high-pressure washing module can be integrated where the project requires cleaning before the disinfection stage. Effective cleaning should be coordinated with the farm's biosecurity procedure. :contentReference[oaicite:11]{index=11}

Q: Can the system be customized for an international livestock project?
A: Yes. Platform dimensions, vehicle clearance, spray layout, pump performance, tank capacity, dosing system, electrical configuration, drainage interface, traffic direction and control functions can be designed according to local climate, farm layout and project requirements.
