Vehicle Disinfection Tunnel Drying Module

The Vehicle Disinfection Tunnel Drying Module is a non-contact air-drying section designed for integration with automated vehicle washing and biosecurity tunnels.

Positioned after the washing, rinsing or disinfection stage, the module uses high-volume, directed airflow to remove residual water from accessible exterior surfaces of livestock transporters, feed trucks, trailers and agricultural service vehicles.

Its modular arrangement allows blower units, air outlets, supporting frames and controls to be engineered around vehicle dimensions, tunnel geometry, traffic flow and local farm conditions. The drying stage can be incorporated into new pig farm construction projects or added to existing vehicle sanitation facilities.

• Automated Drying Stage: Designed to operate as part of a programmed vehicle wash and biosecurity sequence.
• High-Volume Airflow: Uses powerful blowers to move residual water away from vehicle surfaces.
• Non-Contact Operation: Removes surface moisture without brushes or wiping materials.
• Tunnel Integration: Suitable for installation at the exit section of a vehicle disinfection or wash tunnel.
• Vehicle Detection: Optional sensors can trigger the drying cycle according to vehicle position.
• Flexible Airflow Layout: Top, side and angled air outlets can be configured according to the vehicle profile.
• Heavy-Duty Structure: The support frame can be engineered for demanding agricultural and commercial vehicle environments.
• Reduced Manual Labor: Helps reduce the need for manual water removal after washing and sanitation.
• Project-Based Design: Suitable for commercial livestock farms, agricultural fleets and engineered biosecurity facilities.

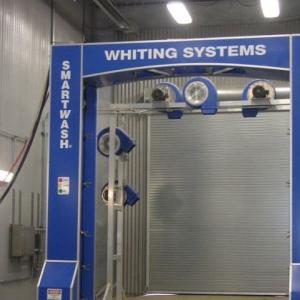

• Drying Arch or Support Frame: Provides the structural framework for blower and air-delivery components.
• High-Speed Blower Units: Generate the airflow required for surface drying.
• Air Delivery Nozzles: Direct concentrated airflow toward the vehicle exterior.
• Air Manifolds or Ducting: Distribute airflow between multiple drying positions where required.
• Top Air Assemblies: Can target roof, upper body and trailer surfaces.
• Side Air Assemblies: Can be positioned to address side panels, doors and lower exterior surfaces.
• Electrical Control Cabinet: Coordinates blower operation and automatic drying sequences.
• Vehicle Detection Sensors: Available upon request for automatic cycle activation.
• Protective Guards: Can be incorporated around motors, impellers and other moving components.

After a vehicle passes through the washing and disinfection stages, it enters the drying section of the tunnel. A vehicle sensor or programmed control sequence activates the blower units according to the configured operating cycle.

High-volume airflow is directed from the top and sides of the drying structure toward the vehicle body. The airflow helps displace residual water from accessible exterior surfaces and directs it away from the vehicle as it continues through the tunnel.

The drying module can operate as a dedicated final process or as part of a complete automated vehicle biosecurity line. Blower quantity, position, nozzle direction and operating time are determined according to vehicle dimensions, tunnel length, desired drying performance and project requirements.

Final blower performance, motor power, airflow distribution, tunnel dimensions and electrical configuration should be confirmed through project engineering rather than treated as fixed standard specifications.

• Commercial Pig Farms: Drying livestock transporters and service vehicles after automated sanitation.
• Poultry Farms: Integration into controlled vehicle biosecurity and sanitation tunnels.
• Dairy and Cattle Farms: Drying feed, livestock and agricultural transport vehicles after washing.
• Breeding Facilities: Final drying stage for controlled vehicle entry and exit routes.
• Feed Mills: Drying delivery vehicles after cleaning and disinfection.
• Livestock Transport Facilities: Supporting high-frequency vehicle processing after sanitation.
• Abattoirs and Food Production Sites: Integration into vehicle hygiene and biosecurity workflows.
• Farm Engineering Projects: Installation within purpose-built steel structure wash and disinfection tunnels.
• Agricultural Vehicle Wash Bays: Suitable for new construction or retrofit applications.

Wheelwash describes automated drive-through biosecurity systems for farms that treat vehicle tyres, wheels and undercarriage and can be surface-mounted or integrated into permanent installations. InterClean likewise describes automated vehicle cleaning and sanitation systems for livestock trailers, feed trucks, tankers and other agricultural vehicles. :contentReference[oaicite:0]{index=0}

• Blower Configuration: Customizable according to vehicle dimensions, tunnel length and required airflow coverage.
• Airflow Direction: Top, side and angled outlets can be arranged according to vehicle profile.
• Tunnel Dimensions: Designed according to local vehicle fleet dimensions and traffic requirements.
• Automation: Optional vehicle sensors, timers, PLC controls and automatic start/stop functions.
• Electrical Configuration: According to local voltage, frequency and project requirements.
• Material Selection: Designed according to local climate, humidity, corrosion exposure and farm conditions.
• Steel Structure: Galvanized steel, stainless steel or other project-specified construction.
• Wash and Disinfection Integration: Can be coordinated with washing, rinsing, chemical dosing, wheel cleaning and undercarriage disinfection stages.
• Existing Tunnel Retrofit: Drying components can be engineered for suitable existing wash or disinfection infrastructure.
• OEM/ODM: Available upon request.

Commercial vehicle drying systems commonly allow blower quantity and arrangement to be adapted to fleet size and vehicle profile, while automated controls can coordinate drying with the wider wash sequence. :contentReference[oaicite:1]{index=1}

The drying module should be installed on a properly engineered foundation or steel support structure with sufficient clearance for the intended vehicle fleet. The installation should allow safe access for inspection, cleaning and blower maintenance.

1. Confirm maximum vehicle width, height and overall tunnel clearance.
2. Determine required drying coverage and blower positions.
3. Verify foundation, drainage, electrical supply and maintenance access.
4. Install the steel support frame, blowers and air-delivery components.
5. Connect the control cabinet and vehicle detection system where specified.
6. Test airflow direction, operating sequence and safety functions.
7. Verify the drying process using representative farm vehicles.

Maintenance:

• Keep blower inlets, outlets and air passages clean and unobstructed.
• Inspect blower housings, impellers and protective guards regularly.
• Check motor bearings, mounting points and electrical connections according to the selected equipment manufacturer's schedule.
• Inspect steel frames, anchors, fasteners and vibration points.
• Check sensors, control panels and automatic cycle functions.
• Remove accumulated water, dirt and organic debris from the drying area and drainage system.
• Replace wear components according to actual operating conditions and manufacturer recommendations.

Commercial vehicle drying equipment is commonly designed as a dedicated wash-exit module, with blower systems positioned to remove water from the vehicle before it leaves the wash bay. :contentReference[oaicite:2]{index=2}

Pig Farm Biosecurity Tunnel: A drying module can be positioned after automated vehicle washing and disinfection to reduce residual surface water before livestock transporters proceed into controlled farm areas.

Poultry Farm Vehicle Entrance: The module can be integrated into a drive-through biosecurity route together with wheel, undercarriage and exterior disinfection equipment.

Feed Delivery Fleet: A dedicated drying stage can support repeat vehicle processing after cleaning and sanitation, particularly where consistent vehicle turnaround is required.

New Farm Construction: The drying tunnel can be incorporated into the steel structure, drainage, electrical and traffic-flow design of a purpose-built vehicle sanitation building.

These are representative engineering applications based on established vehicle biosecurity and commercial vehicle drying configurations; final system design should be developed according to the individual project.

Q: What is a Vehicle Disinfection Tunnel Drying Module?
A: It is a dedicated air-drying section installed within or after a vehicle washing and disinfection tunnel to remove residual surface water.

Q: Can it be used for livestock transport vehicles?
A: Yes. The module can be engineered for livestock trailers, feed trucks, agricultural service vehicles and other commercial farm vehicles.

Q: Where is the drying module installed?
A: It is normally positioned after washing, rinsing or disinfection stages, typically near the tunnel exit or final processing section.

Q: How does automatic drying work?
A: Vehicle detection sensors or a programmed control sequence can activate the blowers when the vehicle reaches the drying zone.

Q: Can the airflow arrangement be customized?
A: Yes. Blower quantity, mounting position, air outlet direction and drying-zone dimensions are customizable according to project requirements.

Q: Can it be integrated with a vehicle disinfection tunnel?
A: Yes. The drying module can be coordinated with vehicle washing, chemical disinfection, wheel treatment and undercarriage sanitation stages.

Q: Can it be installed in a new pig farm project?
A: Yes. The module can be incorporated into the vehicle sanitation building, steel structure, drainage, electrical and traffic-flow design from the engineering stage.

Q: Can it be added to an existing facility?
A: Retrofit installation is available upon request, subject to tunnel dimensions, structural capacity, electrical supply and available maintenance space.

Q: Does the drying module replace vehicle washing or disinfection?
A: No. It is a downstream drying stage. Vehicle cleaning and disinfection should be completed using appropriately designed equipment and site-specific biosecurity procedures.
