Product Name	UV-C Veterinary Tool Disinfection Cabinet
Product Image
Product Overview	The UV-C Veterinary Tool Disinfection Cabinet is designed for controlled surface disinfection of cleaned veterinary instruments, livestock treatment tools and small farm equipment used in veterinary rooms, breeding centers, laboratories and commercial livestock facilities. The cabinet uses enclosed UV-C irradiation to treat exposed tool surfaces without applying heat or liquid chemicals during the UV cycle. UV-C lamps positioned within the reflective stainless steel chamber help distribute germicidal radiation across the loaded items, while the enclosed structure protects operators from direct UV-C exposure during normal use. The system is suitable for livestock veterinary stations, pig farm treatment rooms, poultry facilities, cattle farms and other agricultural projects requiring a compact supplementary hygiene process for reusable tools.
Key Features	UV-C Surface Disinfection: Uses germicidal ultraviolet radiation to reduce microorganisms on directly exposed tool surfaces. Enclosed Treatment Chamber: Keeps UV-C radiation contained inside the cabinet during normal operation. Opposed Lamp Arrangement: Upper and lower UV-C lamp positions help reduce untreated shadow areas. Reflective Interior: Stainless steel internal surfaces improve distribution of UV-C energy inside the chamber. Automatic Door Safety Interlock: UV-C lamps switch off when the cabinet door is opened. Timed Operation: Treatment duration can be set according to the selected operating procedure. UV-Protective Viewing Window: Allows visual inspection of cabinet operation while helping block UV-C exposure. Stainless Steel Construction: Suitable for frequent cleaning in veterinary and livestock environments. No Heat During UV-C Treatment: Suitable for many heat-sensitive tools when compatible with UV exposure. Tool Rack Options: Shelves, holders and instrument racks can be configured according to tool type.

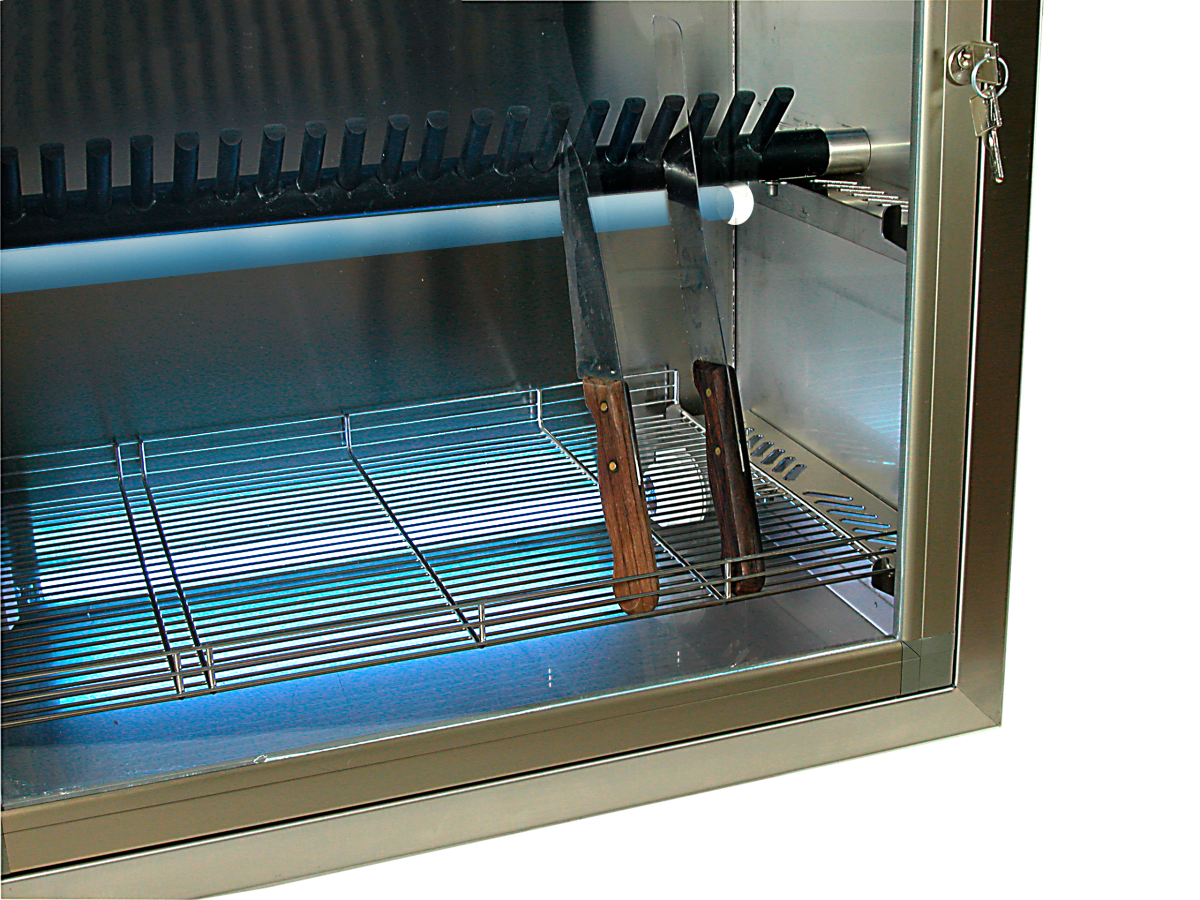

Structural Components	Stainless Steel Cabinet: Provides a durable and cleanable enclosure for UV-C treatment. UV-C Lamps: Installed in multiple positions to irradiate exposed instrument surfaces. Reflective Internal Chamber: Supports more uniform UV-C distribution. UV-Protective Window: Allows visual inspection during operation. Door Safety Switch: Interrupts UV-C lamp operation when the door is opened. Timer Control: Controls treatment duration and operating cycle. Instrument Shelves: Hold tools while allowing UV-C exposure around loaded items. Tool Holder: Optional rack for knives, forceps or other elongated instruments. Electronic Ballast: Controls UV-C lamp operation according to the selected configuration.
Working Principle	Veterinary tools should first be properly cleaned to remove visible dirt, organic material and residues. Clean items are then placed inside the cabinet with sufficient spacing to minimize shadowing. After the door is closed, the UV-C lamps operate for the programmed treatment time. Germicidal UV-C radiation reaches exposed surfaces and damages the genetic material of susceptible microorganisms, reducing their ability to reproduce. Internal reflective surfaces and multiple lamp positions help improve irradiation around the tools. When the door is opened, the safety interlock automatically switches off the UV-C lamps. UV-C treatment is a surface-disinfection process and is strongly affected by distance, exposure time, shadowing, surface condition and microorganism type.
Technical Specifications	Product Type UV-C Veterinary Tool Disinfection Cabinet Disinfection Method Enclosed UV-C surface irradiation Reference UV-C Wavelength Approximately 253.7 nm Cabinet Material AISI 304 stainless steel reference configuration Lamp Arrangement Multiple UV-C lamps positioned to improve surface exposure Viewing Window UV-protective transparent window Door Safety Automatic lamp shut-off when door opens Timer Programmable or adjustable according to configuration Tool Capacity According to cabinet and rack configuration Reference Tool Holder Rack configurations for approximately 11–16 narrow tools are available on the reference platform Electrical Supply According to destination market and project requirements Installation Tabletop, wall-mounted or project-specific configuration available
Applications	Pig farm veterinary treatment rooms Poultry farm veterinary service areas Dairy and beef cattle veterinary rooms Livestock breeding and reproduction centers Farm laboratories Artificial insemination preparation rooms Veterinary clinics and animal hospitals Livestock quarantine facilities Farm tool preparation areas Agricultural research institutions New livestock farm construction projects Steel structure livestock buildings with veterinary service rooms
Customization Options	Cabinet Size: Available according to tool dimensions and project requirements. Internal Shelves: Shelf quantity and spacing can be customized. Tool Holders: Knife, forceps and elongated instrument racks are available. UV-C Lamp Configuration: Lamp quantity and arrangement can be selected according to cabinet dimensions. Control System: Timer, cycle settings and operating indicators are available according to configuration. Installation Method: Tabletop, wall-mounted or floor-standing versions are available upon request. Electrical Configuration: Adaptable according to destination-market electrical requirements. Stainless Steel Specification: Alternative material configurations are available upon request.
Installation & Maintenance	Install the cabinet on a stable surface or approved wall structure according to the selected model. Keep the equipment in a clean, dry veterinary or service area and provide suitable clearance for loading, maintenance and lamp replacement. Tools should be cleaned and dried before UV-C treatment. Avoid tightly stacking instruments because areas hidden from direct or reflected UV-C radiation may receive an insufficient dose. Routine maintenance includes cleaning the internal reflective surfaces, inspecting the door safety interlock, checking UV-C lamp operation and replacing lamps according to their rated service interval. UV-C lamps should not be viewed directly or operated outside the protected cabinet. Damaged safety interlocks or protective windows should be repaired before further use.
Project Cases	The UV-C Veterinary Tool Disinfection Cabinet can be incorporated into livestock veterinary rooms as a supplementary hygiene step after physical cleaning of reusable tools. In commercial pig farms, it can be installed near veterinary workstations for treatment tools, forceps, scissors and other compatible reusable equipment. In cattle breeding centers, the cabinet can support hygiene procedures for selected reproduction and examination tools between uses. For new farm projects, the cabinet can be integrated into veterinary service rooms together with sinks, instrument storage, cleaning stations and other biosecurity equipment.
Product FAQ	Q: Does the cabinet use UV-C light? A: Yes. The reference equipment uses germicidal UV-C lamps with a peak emission around 253.7 nm. Q: Must veterinary tools be cleaned before UV-C treatment? A: Yes. Visible dirt and organic material should be removed first because contamination and shadowing can reduce UV-C effectiveness. Q: Does the UV-C lamp switch off when the door is opened? A: Yes. A door interlock can automatically interrupt lamp operation when the cabinet is opened. Q: Can the cabinet treat tools without liquid chemicals? A: The UV-C cycle itself does not require liquid disinfectant, although normal cleaning procedures may still require detergents or other approved products. Q: Can treatment time be adjusted? A: Yes. Timer-controlled operation is available according to the selected model and application. Q: Can shelves and instrument holders be customized? A: Yes. Internal racks, shelves and tool holders can be configured according to the instruments being treated. Q: Does this cabinet replace an autoclave or validated surgical sterilization process? A: No. UV-C cabinets are intended for surface disinfection and hygiene maintenance. Instruments requiring validated sterilization must be processed using the method specified by applicable veterinary, medical and regulatory procedures. Q: Is it suitable for commercial livestock farms? A: Yes. It can be installed in veterinary rooms, breeding centers, laboratories and other controlled service areas within pig, poultry and cattle farms.
Product Gallery
