Product Name	Chemical Injection Odor Control Fogging System
Product Image

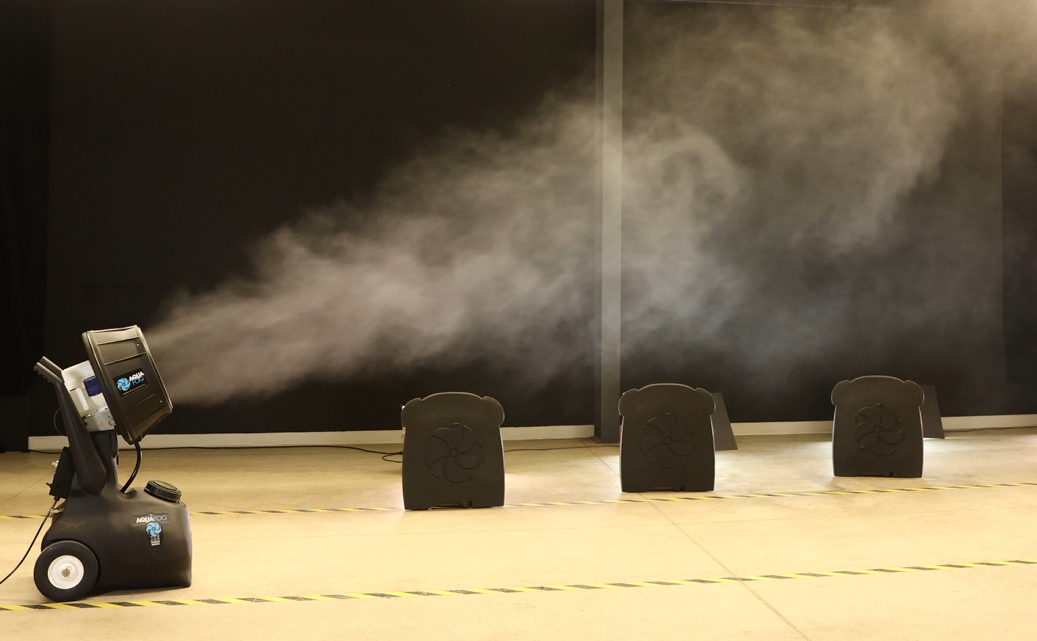

Product Overview	The Chemical Injection Odor Control Fogging System is a mobile ULV fogging unit designed for odor-control and environmental-treatment applications in commercial pig farms, poultry facilities, cattle farms, manure handling areas and other agricultural environments. The system combines a high-output centrifugal atomizer with strong air propulsion and chemical injection capability. Concentrated odor-control product can be accurately introduced into the water feed through a metering pump, allowing the treatment solution to be mixed immediately before atomization. Unlike conventional high-pressure nozzle systems, the centrifugal atomization design produces fine fog without multiple small spray nozzles, helping reduce clogging-related maintenance. The mobile wheeled structure allows one unit to be repositioned between livestock buildings, manure areas or other treatment zones. The equipment can be incorporated into livestock odor-management programs, farm environmental-control projects and agricultural building renovation according to local climate and farm conditions.
Key Features	Chemical Injection Capability: Compatible concentrate can be introduced through a metering pump for controlled dosing into the water stream. ULV Fogging Technology: Produces fine airborne droplets for broad-area odor-control and environmental-treatment applications. Nozzle-Free Centrifugal Atomization: Reduces dependence on small high-pressure nozzles and minimizes common nozzle-blockage issues. Strong Air Propulsion: High airflow helps project fog over a larger treatment area. Mobile Wheeled Design: Allows convenient movement between farm buildings and treatment locations. Pivoting Fogging Head: Multiple head-angle positions allow fog direction to be adjusted according to the treatment area. Adjustable Liquid Output: Flow controls allow operators to adapt fogging output to the selected treatment program. Automatic Shut-Off: Low-liquid protection can stop the system before the pump operates dry. Continuous Supply Option: The system can be connected to a continuous water source for longer treatment cycles. Corrosion-Resistant Options: Stainless steel plumbing is available for selected aggressive or oxidizing treatment chemicals.

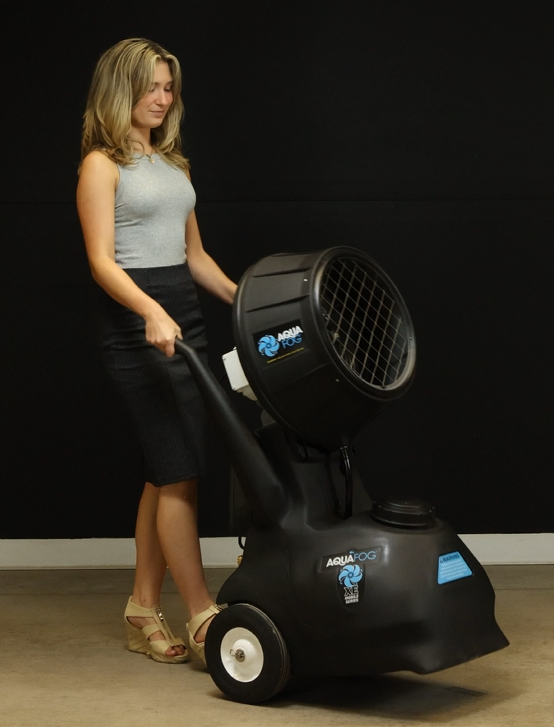

Structural Components	Centrifugal Atomizing Head: Produces the fine fog and provides strong air movement. Pivoting Head Support: Allows the discharge angle to be adjusted for different treatment zones. Water Supply Connection: Provides the carrier water required for fog generation. Chemical Injection Port: Allows connection of an external metering pump for treatment concentrate. Internal Feed Pump: Delivers liquid toward the atomizing head according to the selected configuration. Liquid Level Protection: Monitors tank level and can stop operation when liquid becomes insufficient. Flow Control Valves: Allow liquid delivery to be adjusted to the operating requirement. Control Panel: Provides manual operation and automatic shut-off functions. Mobile Tank Base: Supports the fogging system and provides liquid storage. Large Transport Wheels: Allow convenient movement around livestock and agricultural facilities.
Working Principle	Water is supplied to the fogging system from the internal reservoir or an external continuous water source. When chemical injection is required, a metering pump draws concentrated odor-control product from a separate chemical container and introduces it into the liquid feed before the atomizing head. The centrifugal atomizer converts the treated liquid into fine droplets while a high-volume airflow projects the fog into the treatment area. The airborne mist disperses through the surrounding air and can contact odor-generating zones according to airflow conditions and equipment positioning. Chemical dosage, flow rate and treatment duration should be adjusted according to the selected odor-control product, farm environment and application procedure. Only chemicals approved for the intended application should be used. Compatibility with animals, personnel, equipment and building materials must be confirmed before operation.
Technical Specifications	Product Type Chemical Injection Odor Control Fogging System Atomization Method Nozzle-free centrifugal ULV atomization Chemical Dosing External metering-pump injection available Reference Net Fogging Output Approximately 2.4–7.9 GPH at 60 Hz; configuration dependent Reference Airflow Approximately 3,000 CFM at 60 Hz Reference Particle Size Approximately 5–10 microns at lower output and 10–20 microns at higher output Tank Capacity Reference configuration: 18 US gal / 68 L Fogging Head Positions 0°, 15°, 30° and 45° on the reference configuration Reference Dimensions Approximately 53 × 65 × 112 cm Reference Unit Weight Approximately 36.3 kg Electrical Configuration 115 V / 60 Hz or 230 V / 50 Hz reference versions; other configurations available according to project requirements Plumbing Material Standard configuration or optional stainless steel plumbing Installation Type Mobile floor-standing unit
Applications	Commercial pig houses Poultry production buildings Dairy and beef cattle facilities Manure storage and handling areas Livestock waste collection points Farm composting areas Feed storage and processing areas Animal housing service corridors Livestock equipment cleaning areas Agricultural processing facilities Farm odor-management projects Environmental treatment applications
Customization Options	Chemical Injection: Metering-pump configuration can be selected according to the required dosing rate. Electrical Supply: Available according to destination-market voltage and frequency requirements. Stainless Steel Plumbing: Available for corrosive or oxidizing treatment chemicals. Flow Adjustment: Liquid feed can be configured according to desired particle size and treatment intensity. Continuous Water Supply: Automatic filling can be incorporated for extended operation. Timer or External Control: Automatic operating schedules can be integrated according to project requirements. Chemical Supply Drum: External concentrate containers can be sized according to operating duration. Farm Deployment: System configuration can be designed according to treatment area, airflow and odor source location.
Installation & Maintenance	Position the unit on a stable surface where the fogging head can discharge toward the required treatment area without obstruction. For large livestock buildings, existing circulation fans can help distribute the mist more evenly. Where chemical injection is used, connect the metering pump to the designated chemical inlet and calibrate the dosing rate according to the chemical supplier's instructions. The concentrate container should be clearly labeled and positioned in a safe service area. Routine maintenance includes checking the atomizing head, liquid lines, strainer, flow-control valves, pump, level switch, electrical connections and transport wheels. Chemical residue should be flushed from the system when required by the chemical manufacturer's maintenance procedure. Personnel should use appropriate personal protective equipment when handling concentrated odor-control chemicals. Treatment procedures must follow the chemical label, farm safety rules and applicable regulations.

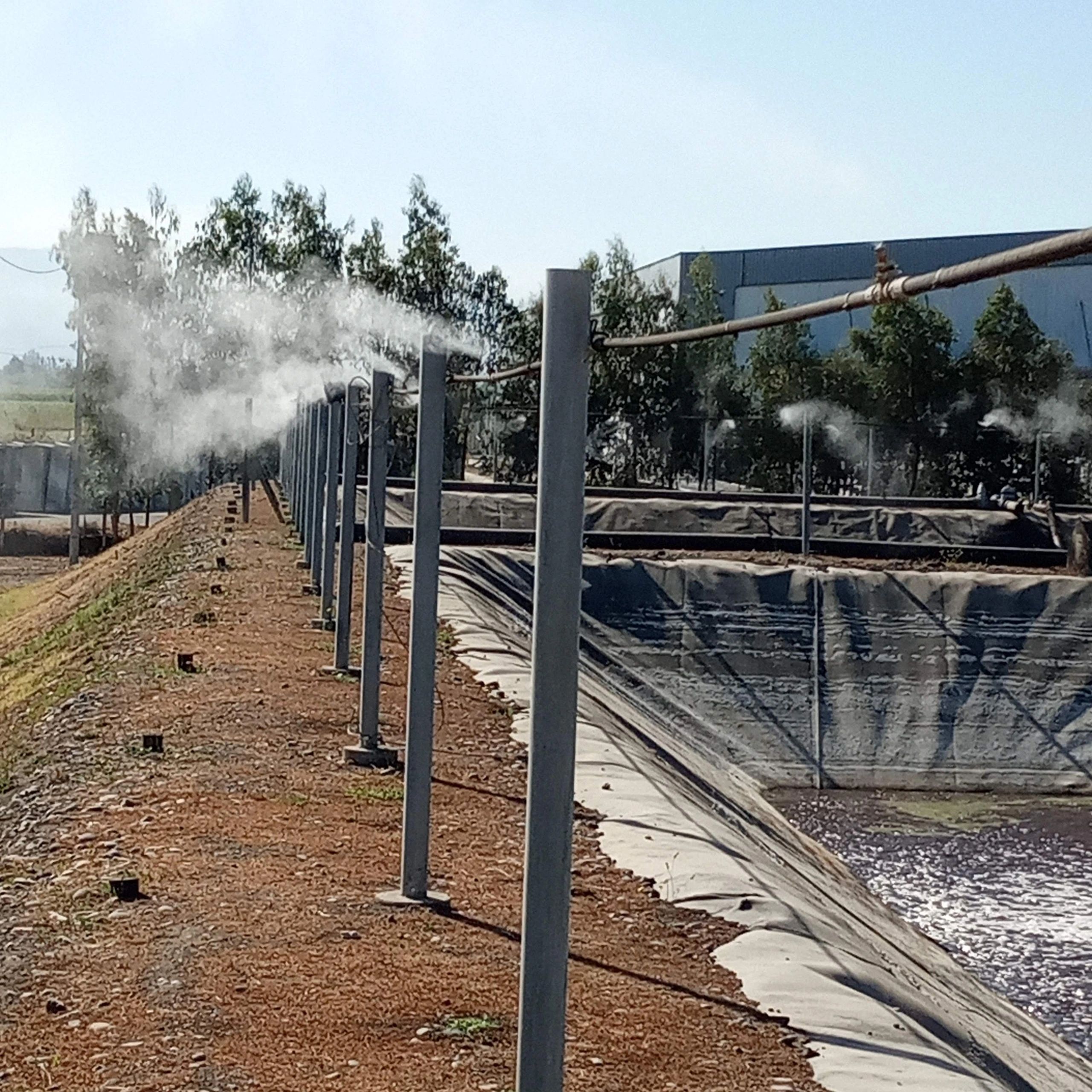

Project Cases	The Chemical Injection Odor Control Fogging System is suitable for livestock facilities where localized or mobile odor treatment is preferred over a permanently installed high-pressure fogging network. In commercial pig farms, the unit can be positioned near manure handling areas, service corridors or selected exhaust-air zones to disperse compatible odor-neutralizing solutions. In poultry and cattle projects, the same mobile platform can be moved between treatment areas according to farm operating schedules. Where longer unattended treatment is required, the fogger can be connected to a continuous water supply and an external metering pump drawing concentrate from a larger chemical drum.
Product FAQ	Q: Can concentrated odor-control chemical be injected automatically? A: Yes. The system can connect to an external metering pump that injects a controlled quantity of concentrate into the water feed. Q: Does the system use conventional spray nozzles? A: The reference equipment uses centrifugal atomization rather than a conventional network of high-pressure spray nozzles. Q: Can it operate for extended periods? A: Yes. A continuous water supply and external chemical dosing system can be configured for longer operating cycles. Q: Is the fogging direction adjustable? A: Yes. The reference fogging head can be positioned at multiple angles to suit different treatment areas. Q: Is the system suitable for pig farms? A: Yes. It can be used for suitable odor-control applications around livestock buildings, manure handling areas and farm service zones. Q: Can stainless steel plumbing be supplied? A: Yes. Stainless steel plumbing is available for applications involving compatible corrosive or oxidizing chemicals. Q: What chemical should be used? A: Only products specifically approved for the intended odor-control application should be used. Compatibility, dilution, animal exposure restrictions and personnel safety requirements must follow the chemical manufacturer's instructions.
