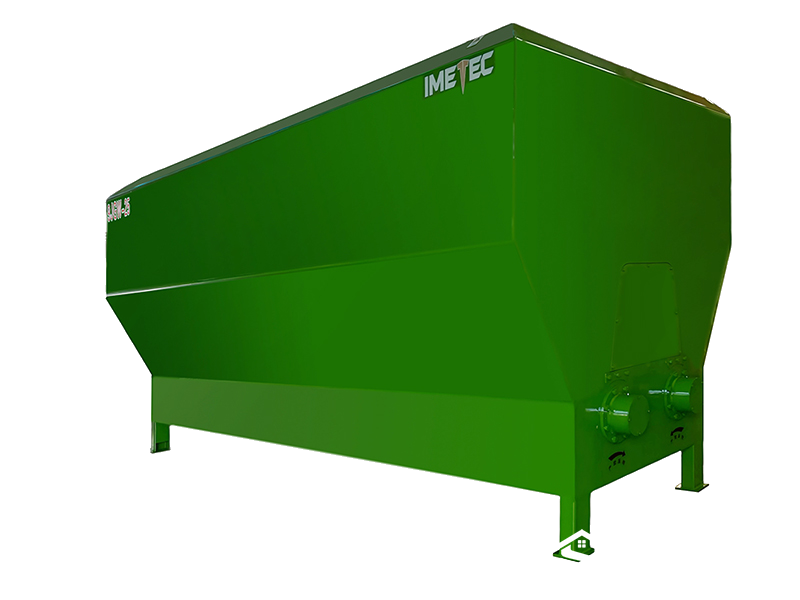

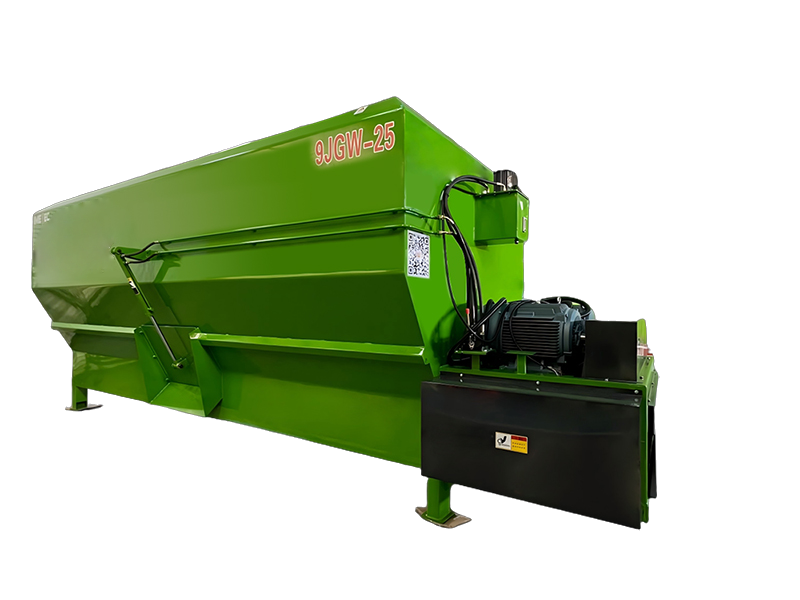

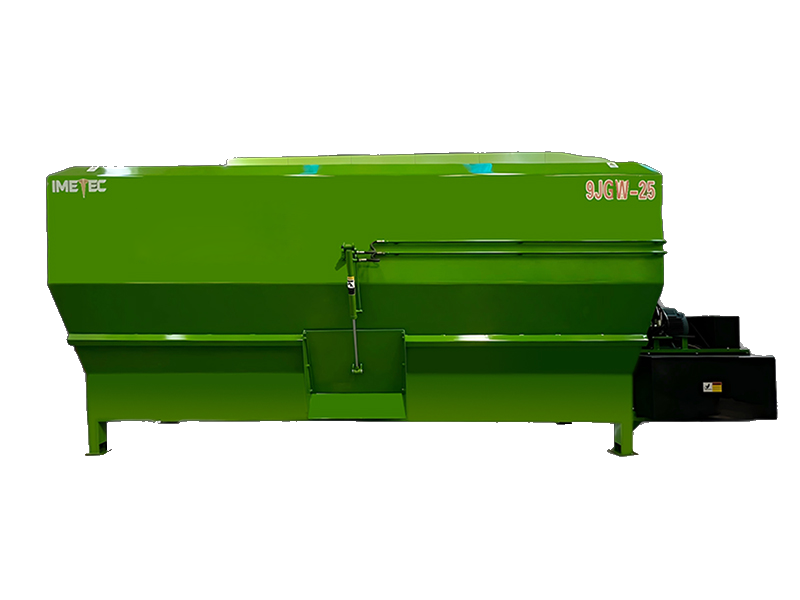

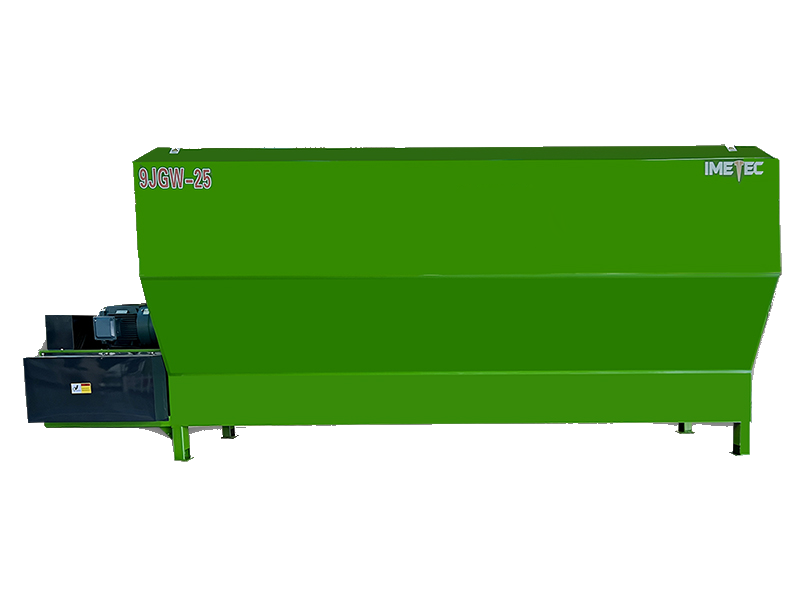

Stationary Horizontal TMR Feed Mixer

• Stationary horizontal mixing design for centralized TMR preparation.
• Suitable for silage, hay, straw, alfalfa, concentrates and feed additives.
• Horizontal auger and blade system combines cutting, conveying and mixing functions.
• Serrated main auger design supports efficient processing of fibrous feed materials.
• Wear-resistant manganese steel blades are designed for intensive livestock-farm operation.
• Heavy-duty gearbox provides stable torque transmission during continuous mixing.
• Hydraulic discharge system simplifies unloading into downstream feed handling equipment.
• Optional electronic weighing system supports controlled ingredient loading.
• Fixed installation reduces dependence on tractor power during daily feed preparation.
• Capacity, discharge arrangement and control configuration are customizable.

• Mixing Tank: Reinforced steel chamber designed for repeated loading of silage, roughage and concentrated feed.
• Horizontal Auger System: Cuts and circulates feed ingredients through the mixing chamber.
• Cutting Blades: Wear-resistant manganese steel knives process long-fiber forage and assist homogeneous blending.
• Heavy-Duty Gear Reducer: Transfers motor power to the auger system with high torque and stable operation.
• Electric Drive: Provides stationary power for dedicated feed-processing installations.
• Hydraulic Discharge Door: Controls unloading of the completed TMR batch.
• Weighing System: Optional load-cell system for ration ingredient measurement.
• Control Cabinet: Centralizes equipment start, stop and operating controls.
• Supporting Frame: Fixed structural base for installation on a prepared concrete foundation.

• Commercial dairy farms and dairy cattle feeding centers.
• Beef cattle breeding and finishing farms.
• Sheep and goat farms using TMR feeding programs.
• Centralized feed kitchens and livestock feed-processing centers.
• Large farms integrating loaders, mixers, feed wagons and spreading equipment.
• Automated or semi-automated livestock feeding systems.
• New livestock farm construction and existing farm modernization projects.

• Mixing Capacity: Customizable according to herd size and daily ration volume.
• Motor Power: Selected according to mixer capacity and feed characteristics.
• Voltage and Frequency: Configurable for different destination markets.
• Weighing System: Available upon request.
• Discharge Height: Customizable to match feed wagons or conveying equipment.
• Discharge Direction: According to project requirements.
• Control System: Standard or upgraded control configurations available.
• Tank and Wear Components: Material and thickness options available upon request.
• Paint and Branding: Customizable for distributors and project orders.
• Environmental Configuration: Designed according to local climate and farm conditions.

• Install the mixer on a level reinforced-concrete foundation capable of supporting the operating load.
• Provide sufficient clearance for loaders, conveyors, feed wagons and maintenance access.
• Connect electrical and hydraulic systems according to the approved project layout.
• Verify motor rotation direction, gearbox operation and discharge-door movement before production.
• Inspect augers and cutting blades regularly for wear, deformation or loose fasteners.
• Maintain gearbox lubrication according to the recommended service interval.
• Inspect bearings, seals and transmission components during routine maintenance.
• Clean residual feed from the mixing chamber to reduce material buildup and corrosion.
• Check weighing sensors periodically when the optional weighing system is installed.
• Disconnect and isolate electrical power before inspection or maintenance inside the mixing chamber.

Q: What materials can the stationary horizontal TMR mixer process?
A: It is suitable for common ruminant ration ingredients such as corn silage, hay, straw, alfalfa, concentrates, minerals and nutritional additives.

Q: What is the main difference between a stationary mixer and a trailed mixer?
A: A stationary mixer remains installed in a dedicated feed-processing area and normally uses electric power, while a trailed mixer is tractor-powered and can move around the farm.

Q: Can the machine process long-fiber forage?
A: Yes. The horizontal auger and cutting-blade system is designed to cut and mix fibrous feed such as hay, straw and silage.

Q: Is a weighing system available?
A: Yes. An electronic weighing system can be supplied according to ration-management and project requirements.

Q: Can the discharge height be customized?
A: Yes. The discharge arrangement can be designed to match feed wagons, spreaders, conveyors and other downstream equipment.

Q: Can SHEWUYOU configure a complete TMR feeding system?
A: Yes. Mixer capacity, loading method, discharge system, weighing equipment and downstream feed handling can be configured according to farm layout and project requirements.
