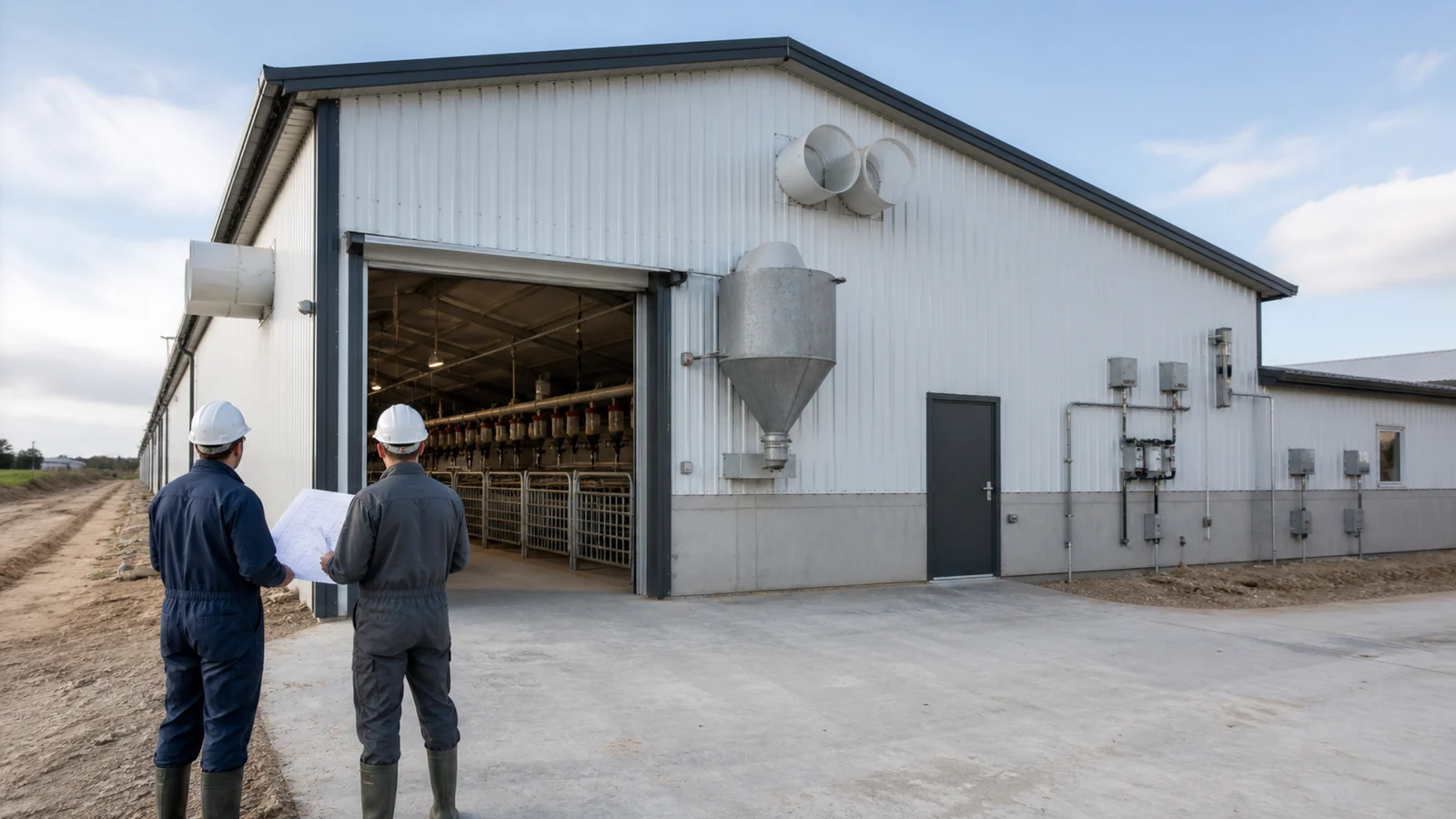

Steel Structure Farrowing Sow House

The Steel Structure Farrowing Sow House is a specialized prefabricated livestock building designed for sow delivery, lactation and early piglet care in commercial swine production. The building combines an engineered steel structure with farrowing pens, feeding and drinking equipment, localized piglet heating, ventilation, flooring, drainage and manure management systems.

Farrowing facilities require coordinated environmental design because lactating sows and newborn piglets have different thermal and management requirements. The building can therefore incorporate a comfortable sow area together with protected creep zones where piglets receive localized heating without unnecessarily heating the entire room.

The internal layout can be divided into independent farrowing rooms or sections according to the farm's batch production schedule. This arrangement can support organized animal flow, washing, drying, disinfection and room preparation between production groups.

Major steel members can be prefabricated in the factory and assembled on site. Building dimensions, insulation, room arrangement, ventilation strategy, farrowing pen configuration and equipment interfaces are customizable according to breeding herd size, local climate and project requirements.

• Purpose-Built for Farrowing: Designed specifically for sow delivery, lactation, piglet nursing and early-life management.
• Prefabricated Steel Structure: Main structural members can be factory fabricated for accurate dimensions, efficient transportation and faster site assembly.
• Flexible Farrowing Layout: Room count, pen arrangement, service aisles and equipment positions can be designed around the farm's farrowing batch schedule.
• Sow and Piglet Zoning: Farrowing pens can provide separate functional areas for the sow and protected creep areas for piglets.
• Localized Piglet Heating: Heat lamps, heating pads or other creep-heating solutions can be incorporated according to project requirements.
• Ventilation Integration: Compatible with mechanical ventilation, controlled air inlets, ducts, exhaust fans and environmental controllers.
• Corrosion-Resistant Options: Galvanized steel and suitable protective coatings can be specified for high-humidity livestock environments.
• Hygienic Interior Design: Washable wall surfaces, appropriate flooring and drainage layouts can support routine cleaning and disinfection.
• Equipment Compatibility: Can integrate farrowing crates, feeders, drinkers, creep feeders, piglet drinking equipment, flooring and manure systems.
• Commercial Farm Application: Suitable for breeding farms, multiplier farms and large integrated swine production projects.
• Expansion-Friendly Design: Modular building planning can accommodate future additional farrowing rooms or parallel buildings where site conditions permit.

• Main Steel Frame: Engineered steel columns, rafters and beams selected according to project loads and structural requirements.
• Secondary Steel Members: C-section or Z-section purlins, wall girts, tie members and supporting steel components.
• Bracing System: Roof bracing, column bracing, tie rods and related members designed to maintain overall structural stability.
• Roof System: Color-coated steel roofing or insulated sandwich panels according to climate and insulation requirements.
• Wall and Ceiling System: Steel cladding or insulated, washable panel systems according to environmental control requirements.
• Farrowing Pens: Farrowing crates or project-specific farrowing pen systems designed for sow management and piglet protection.

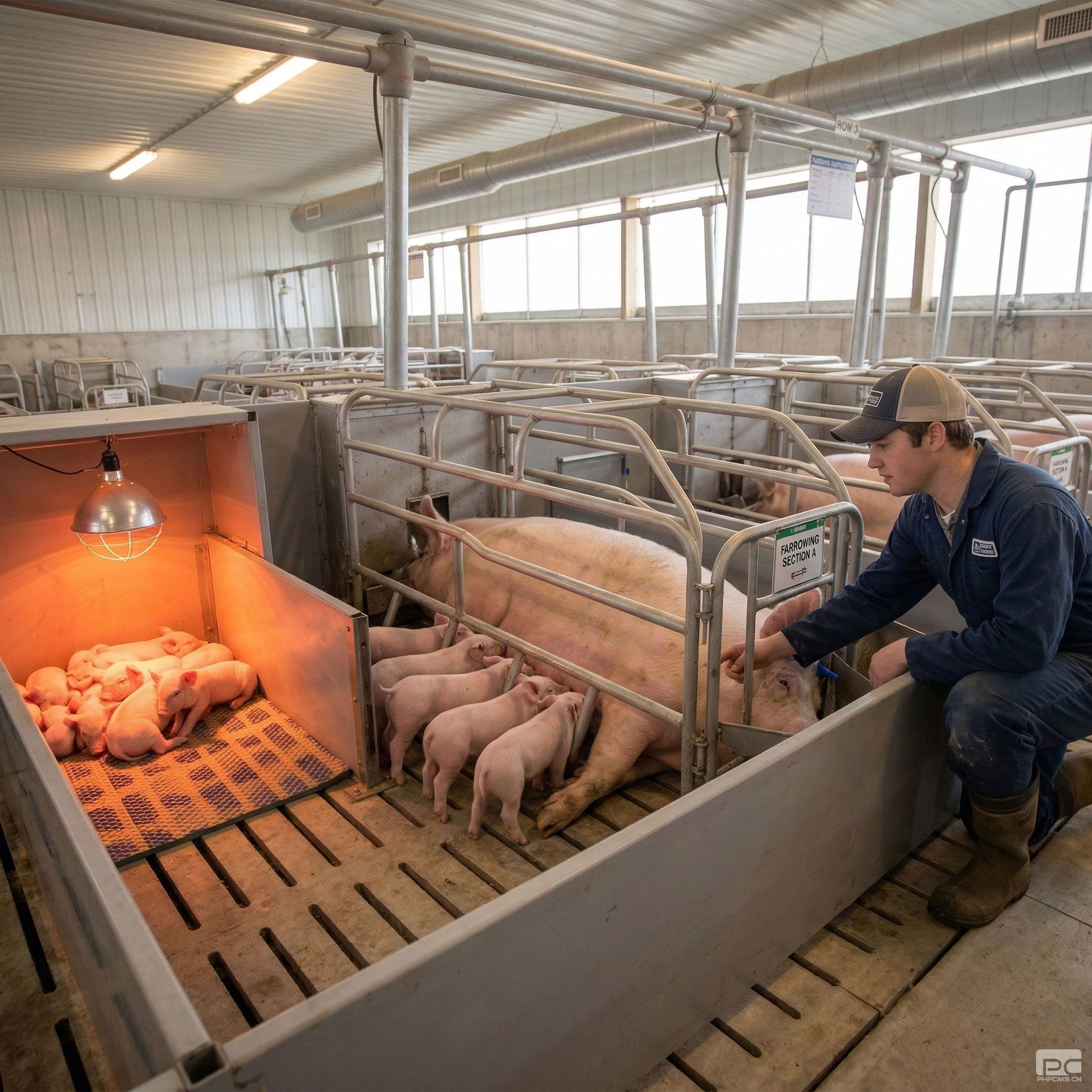

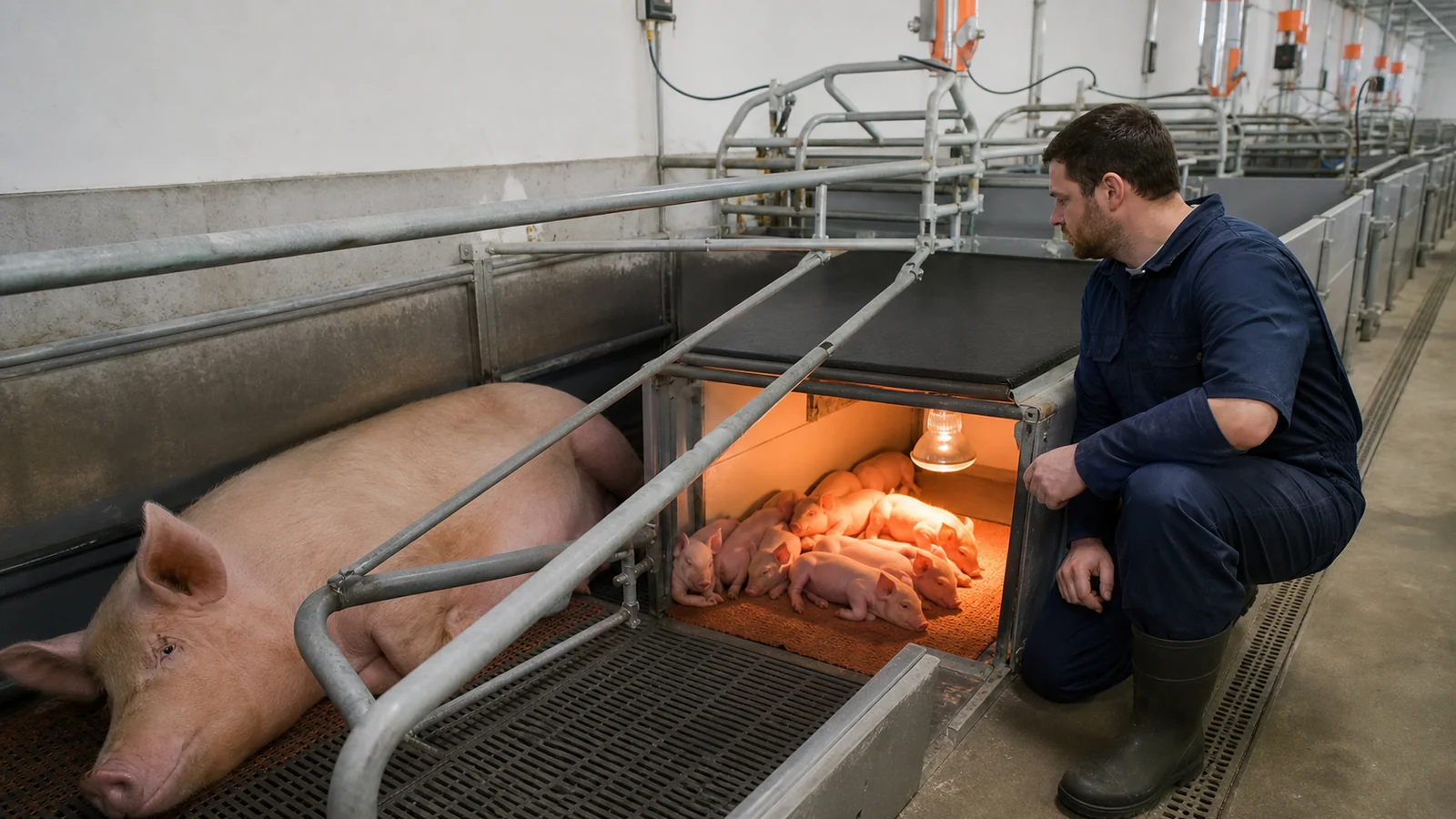

• Piglet Creep Area: Protected area beside the sow equipped with localized heating according to the selected production system.
• Feeding Equipment: Sow feeder, feed drop or automatic feeding line, with optional creep feeding equipment for piglets.
• Drinking Equipment: Sow drinking equipment and separate piglet drinking points according to the selected pen configuration.
• Flooring System: Solid, partially slatted or fully slatted arrangements designed according to animal requirements and manure management.
• Ventilation System: Air inlets, ducts, fans and environmental control equipment according to local climate and room configuration.
• Drainage and Manure System: Floor drainage, manure channels, pits or other waste-handling systems according to project requirements.
• Foundation Interface: Steel columns are connected to engineered reinforced concrete foundations through base plates and anchor bolts.

Structural Principle: The main steel frame transfers roof, wall, wind and other applicable loads through the columns to the foundations. Secondary framing and bracing stabilize the building and support the roof, wall and service systems.

Farrowing Management Principle: Each sow is housed in a dedicated farrowing pen or approved alternative system where staff can access the sow, litter, feeder, drinker and creep area. Pen layouts are coordinated with service aisles to simplify observation, treatment and routine management.

Dual-Zone Environmental Principle: The farrowing room provides the general environment required by the sow, while piglets receive localized warmth in a protected creep area. This helps create different functional thermal zones within the same room.

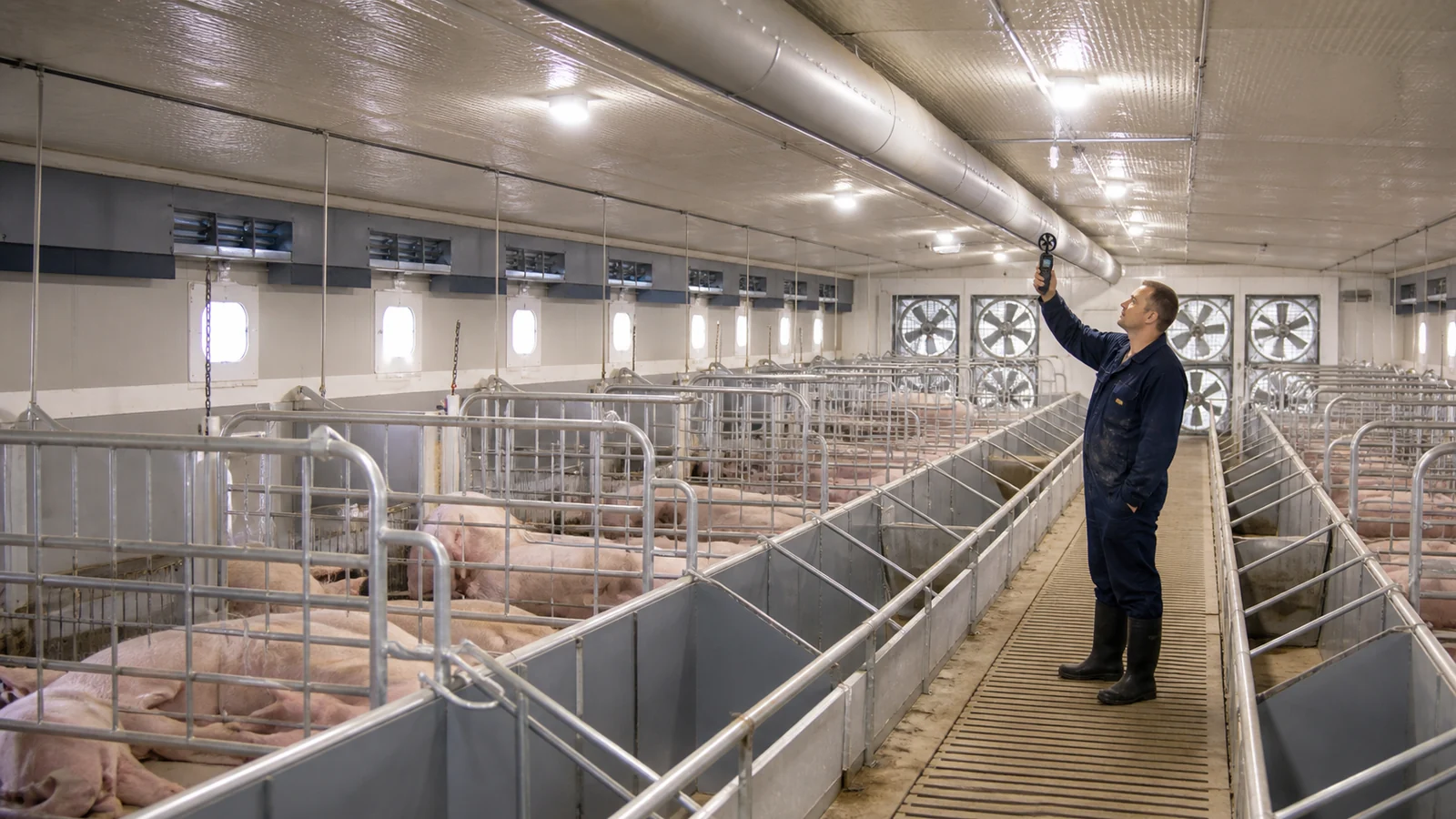

Ventilation Principle: Controlled airflow removes excess humidity, heat, gases and airborne contaminants while reducing uncomfortable drafts around newborn piglets. The actual ventilation capacity and airflow distribution should be calculated for each project.

Waste Management Principle: Slatted or combined flooring allows manure and wash water to move toward the selected collection system. Floor gradients, channels and drainage points are coordinated to facilitate cleaning and minimize stagnant water.

• Product Type: Prefabricated steel structure farrowing sow house
• Primary Application: Sow farrowing, lactation and piglet nursing
• Building Length: Customizable
• Building Width / Span: According to project requirements
• Building Height: Customizable
• Main Structure: Engineered structural steel frame
• Secondary Structure: C-section or Z-section steel available
• Steel Surface Protection: Galvanized or protective coating system available upon request
• Roof Material: Color-coated steel sheet or insulated sandwich panel
• Wall Material: Steel cladding, insulated sandwich panel or project-specific enclosure system
• Ceiling / Internal Lining: Available according to insulation, hygiene and ventilation requirements
• Farrowing Pen System: According to farm management and project requirements
• Pen Arrangement: Customizable according to sow capacity and batch production system
• Piglet Creep Area: Available according to selected farrowing pen design
• Piglet Heating: Heat lamp, heat pad or other localized heating solution available upon request
• Feeding System: Manual, semi-automatic or automatic according to project requirements
• Drinking System: Sow and piglet drinking equipment available upon request
• Floor System: Solid, partially slatted or slatted system according to project design
• Ventilation: Mechanical, negative-pressure, ducted or combined system according to project requirements
• Cooling: Designed according to local climate and farm conditions
• Heating: Room heating and localized piglet heating available according to project requirements
• Manure Management: Designed according to the selected farm waste management system
• Building Insulation: According to local climate and environmental control requirements
• Foundation: Engineered according to structural loads and site conditions
• Wind Load: Designed according to local project requirements
• Snow Load: Designed according to local project requirements
• Seismic Design: According to applicable local requirements
• Building Color: Customizable

• Commercial sow farms
• Farrowing and lactation units
• Breeding pig farms
• Multiplier and genetic breeding farms
• Farrow-to-finish pig farms
• Large-scale integrated swine farms
• New commercial pig farm construction
• Existing farrowing house expansion
• Old pig farm modernization projects
• Livestock engineering and turnkey pig farm projects

The Steel Structure Farrowing Sow House can be engineered around breeding herd size, farrowing batch schedule, local climate, equipment preference and farm management requirements.

• Building length, width and height
• Steel frame span and column spacing
• Number of farrowing rooms
• Number of farrowing positions per room
• Room arrangement according to batch production schedule
• Farrowing crate or alternative farrowing pen configuration
• Pen dimensions according to equipment and local requirements

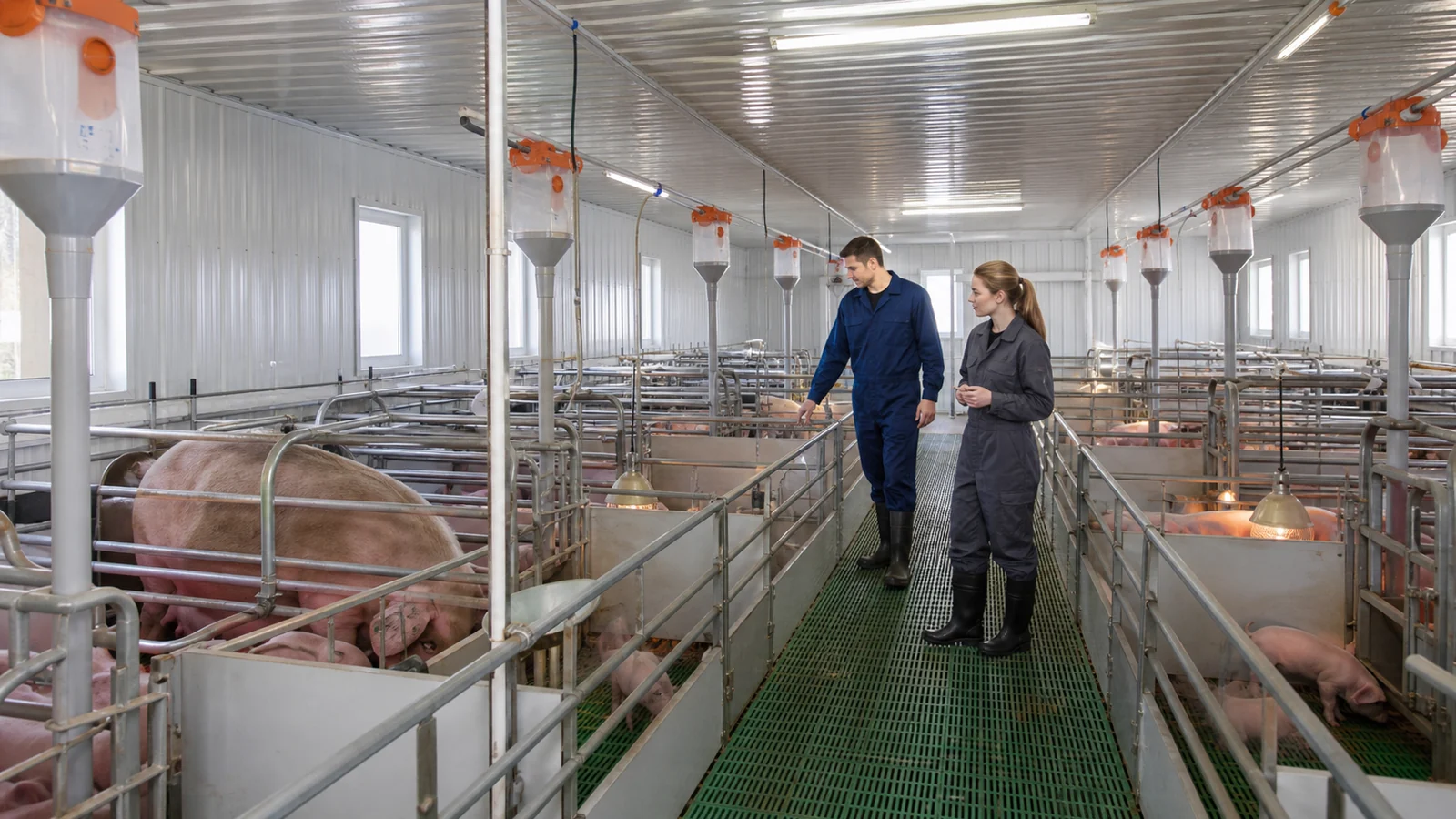

• Service aisle arrangement
• Piglet creep-area configuration
• Heat lamps or heat-pad system
• Sow feeding system
• Piglet creep feeding system
• Sow and piglet drinking systems
• Solid, partially slatted or slatted flooring
• Floor and manure channel arrangement
• Mechanical or negative-pressure ventilation
• Ceiling air inlets or ducted air distribution
• Cooling equipment for hot climates
• Additional heating for cold climates
• Roof and wall insulation level
• Washable interior panel system
• Steel galvanizing or protective coating specification
• Automatic environmental control system
• Alarm and backup-system interfaces
• Biosecurity entrance and personnel-flow arrangement
• Future building expansion provisions

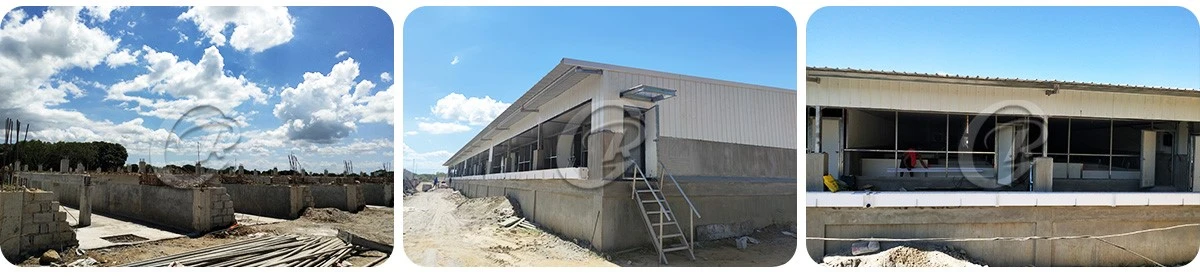

Typical Installation Process

1. Confirm breeding capacity, farrowing schedule, room arrangement and equipment layout.
2. Complete site preparation, drainage planning and reinforced concrete foundations.
3. Verify anchor bolt positions before steel erection.
4. Erect primary steel columns and roof framing.
5. Install bracing, purlins, girts and other secondary steel members.
6. Install roof panels, insulated walls, ceilings, doors and building accessories.
7. Complete floor structures, manure channels and drainage systems.
8. Install farrowing pens, flooring panels and piglet creep areas.
9. Install feeding and drinking systems.
10. Install piglet heating equipment.
11. Install ventilation, air distribution and environmental control systems.
12. Complete electrical, lighting, alarm and other service interfaces.
13. Inspect structural connections, coatings, drainage and equipment installation.
14. Commission ventilation, heating and control systems before introducing animals.

Routine Maintenance

• Inspect steel connections, bolts and bracing periodically.
• Check galvanized or coated surfaces for damage or corrosion.
• Repair damaged protective coatings promptly.
• Keep gutters, drains and manure channels unobstructed.
• Inspect washable wall and ceiling joints for damage.
• Clean exhaust fans, air inlets and ventilation ducts regularly.
• Check heating equipment and protective guards before each farrowing batch.
• Inspect feeders and drinking systems for leakage or malfunction.
• Check flooring and supporting components for damage or unsafe edges.
• Inspect farrowing crates, gates and fasteners regularly.
• Wash, disinfect and dry farrowing rooms according to the farm's biosecurity program.
• Test environmental controls, alarms and backup systems according to the maintenance schedule.

Steel structure farrowing houses can be supplied as standalone farrowing units or as part of integrated commercial sow farms containing breeding, gestation, farrowing, nursery and supporting service facilities.

For batch-production farms, the building can be divided into multiple independent farrowing rooms. Room capacity, service aisles and sanitation periods can be coordinated with the farm's production schedule to support controlled animal movement and room turnover.

Large projects can integrate the steel building, farrowing equipment, feed delivery, water supply, ventilation, heating, flooring, manure management and environmental controls during the engineering stage. This reduces conflicts between structural members and livestock equipment during installation.

Project-specific layouts, structural drawings and equipment configurations are available upon request according to farm capacity, local climate, site dimensions and project requirements.

Q: What is a Steel Structure Farrowing Sow House?
A: It is a prefabricated pig farm building specifically designed for sow delivery, lactation and piglet nursing. The facility can integrate farrowing pens, feeding, drinking, piglet heating, ventilation, flooring and manure management systems.

Q: Can the building dimensions be customized?
A: Yes. Building length, span, height, room arrangement and column spacing can be designed according to herd size, site conditions and project requirements.

Q: Can the number of farrowing rooms be customized?
A: Yes. The number and capacity of farrowing rooms can be planned according to the farm's batch schedule, expected room occupancy and cleaning requirements.

Q: Can farrowing crates and piglet creep areas be included?
A: Yes. Farrowing pens, protected piglet creep areas and related livestock equipment can be integrated according to the selected production system.

Q: Can separate heating be provided for piglets?
A: Yes. Localized creep heating using heat lamps, heating pads or another suitable system can be designed according to project requirements.

Q: Why is ventilation important in a farrowing house?
A: Proper ventilation helps control humidity, heat, gases and air quality while reducing uncomfortable drafts around newborn piglets. The ventilation system should be designed according to room capacity, local climate and equipment layout.

Q: Can insulated wall and roof panels be used?
A: Yes. Insulated sandwich panels and washable internal surfaces can be selected according to local climate, hygiene requirements and environmental control strategy.

Q: Can slatted flooring and manure pits be integrated?
A: Yes. Slatted or combined flooring, manure channels, pits and other waste-management systems can be coordinated with the building and farrowing pen layout.

Q: Can automatic feeding be included?
A: Yes. Individual sow feeders, feed drops and automatic feed delivery systems can be incorporated according to the farm's preferred feeding method.

Q: Is the steel structure suitable for humid pig farm environments?
A: Galvanized steel or appropriate protective coating systems can be specified according to the expected exposure to moisture, manure gases and routine washing.

Q: Can the building be designed for different countries and climates?
A: Yes. Structural loads, insulation, ventilation, cooling and heating can be designed according to local climate, site conditions and applicable project requirements.

Q: What information is required for a quotation?
A: Please provide the project location, breeding herd size, expected farrowing capacity, batch schedule, available site dimensions, preferred pen system, ventilation concept, flooring and manure system, insulation requirements and applicable local structural conditions when available.
