Light Steel Structure Pig House | Prefabricated Commercial Pig Farm Building

The Light Steel Structure Pig House is a prefabricated livestock building solution designed for modern commercial swine production. It combines an engineered lightweight steel framing system with roof and wall enclosures, ventilation provisions, insulation options and interfaces for pig farming equipment.

A properly designed pig house must provide suitable conditions for temperature, humidity, air movement, indoor air quality and manure management. The light steel building system provides a flexible structural platform that can be coordinated with mechanical ventilation, cooling, heating, feeding, drinking and waste-management systems.

Compared with heavy conventional construction, prefabricated light steel structures can reduce on-site fabrication, simplify transportation and accelerate installation. Building dimensions and internal layouts can be customized according to herd size, production stage, local climate and farm management requirements.

• Lightweight Steel Structure: Optimized structural members provide reliable load-bearing performance while helping control material weight and construction requirements.
• Prefabricated Building System: Major steel components are manufactured in the factory and assembled on site according to engineering drawings.
• Fast Installation: Bolted structural connections and standardized components help shorten on-site erection time.
• Flexible Building Dimensions: Length, width, height, structural span and bay spacing can be customized according to project requirements.
• Commercial Pig Farm Application: Suitable for breeding, gestation, farrowing, nursery, growing and finishing facilities.

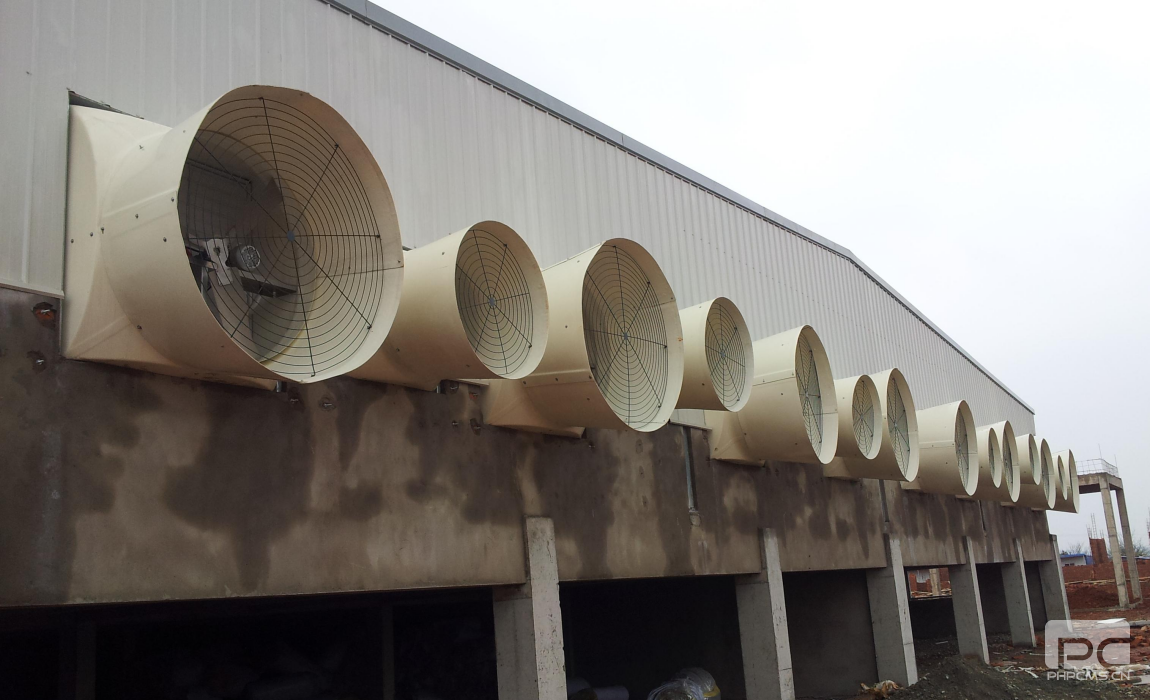

• Ventilation Compatibility: Building openings can be coordinated with exhaust fans, air inlets, curtains and evaporative cooling systems.
• Insulation Options: Insulated roofing and wall systems can be selected according to local climate and production requirements.
• Equipment Integration: Compatible with pig pens, automatic feeding, drinking, climate control, lighting and manure-management systems.
• Corrosion Protection Options: Galvanized or coated steel components are available according to the livestock environment and project requirements.
• Expandable Farm Design: Modular layouts can support phased development and future expansion when considered during initial planning.

The light steel pig house uses a coordinated structural system consisting of primary frames, secondary purlins and girts, bracing members and foundations. Roof, wind and other design loads are transferred through the steel frame into the foundation system.

The roof and wall enclosure protect the internal production area from external weather, while insulation and ventilation systems help maintain an appropriate livestock environment. Airflow design can be based on natural ventilation, mechanical ventilation or a combined system depending on climate and farm requirements.

The building structure also provides installation support and reserved space for internal pig pens, feeding lines, drinking systems, environmental-control equipment, lighting and manure-management facilities.

• Commercial pig farms
• Breeding pig farms
• Sow and gestation houses
• Farrowing houses
• Nursery and weaner houses
• Grower pig houses
• Finishing pig houses
• Farrow-to-finish swine farms
• Large-scale integrated livestock projects
• New pig farm construction
• Existing pig farm expansion
• Swine housing modernization projects

The Light Steel Structure Pig House can be customized according to farm capacity, production process, climate conditions, available land and equipment requirements.

• Building length, width and height
• Structural span and bay spacing
• Roof slope and roof configuration
• Steel member specification
• Galvanized or painted corrosion protection
• Roof and wall insulation
• Masonry lower-wall configuration
• Personnel and equipment access doors
• Ventilation inlet arrangement
• Exhaust fan locations
• Cooling-pad locations
• Pig pen zoning
• Central service aisle design
• Feed-line routing
• Drinking-line arrangement
• Slatted-floor and manure-management interfaces
• Biosecurity zoning
• Future expansion provisions

Final specifications are designed according to local climate and farm conditions, applicable engineering standards and individual project requirements.

Typical Installation Process:

1. Confirm the site plan, building orientation and civil engineering conditions.
2. Complete foundation and floor works according to approved drawings.
3. Check anchor bolt positions, levels and foundation dimensions.
4. Erect the primary light steel columns and roof frames.
5. Install purlins, girts, tie members and bracing components.
6. Align the structure and tighten engineered connections.
7. Install roof sheets or insulated roof panels.
8. Install wall panels, masonry sections, doors and openings.
9. Install ventilation fans, air inlets, cooling equipment and other environmental-control components as required.
10. Coordinate pig pens, feeding, drinking and manure-management equipment.
11. Complete final inspection and commissioning.

Recommended Maintenance:

• Inspect structural connections and fasteners periodically.
• Check galvanized or painted surfaces for damage and corrosion.
• Repair damaged protective coatings promptly.
• Maintain effective ventilation to control humidity and aggressive gases.
• Keep manure and wet organic material away from structural components where possible.
• Inspect roof panels, wall cladding and flashing after severe weather.
• Keep gutters and drainage channels clear.
• Maintain feeding, drinking and climate-control equipment according to manufacturer recommendations.

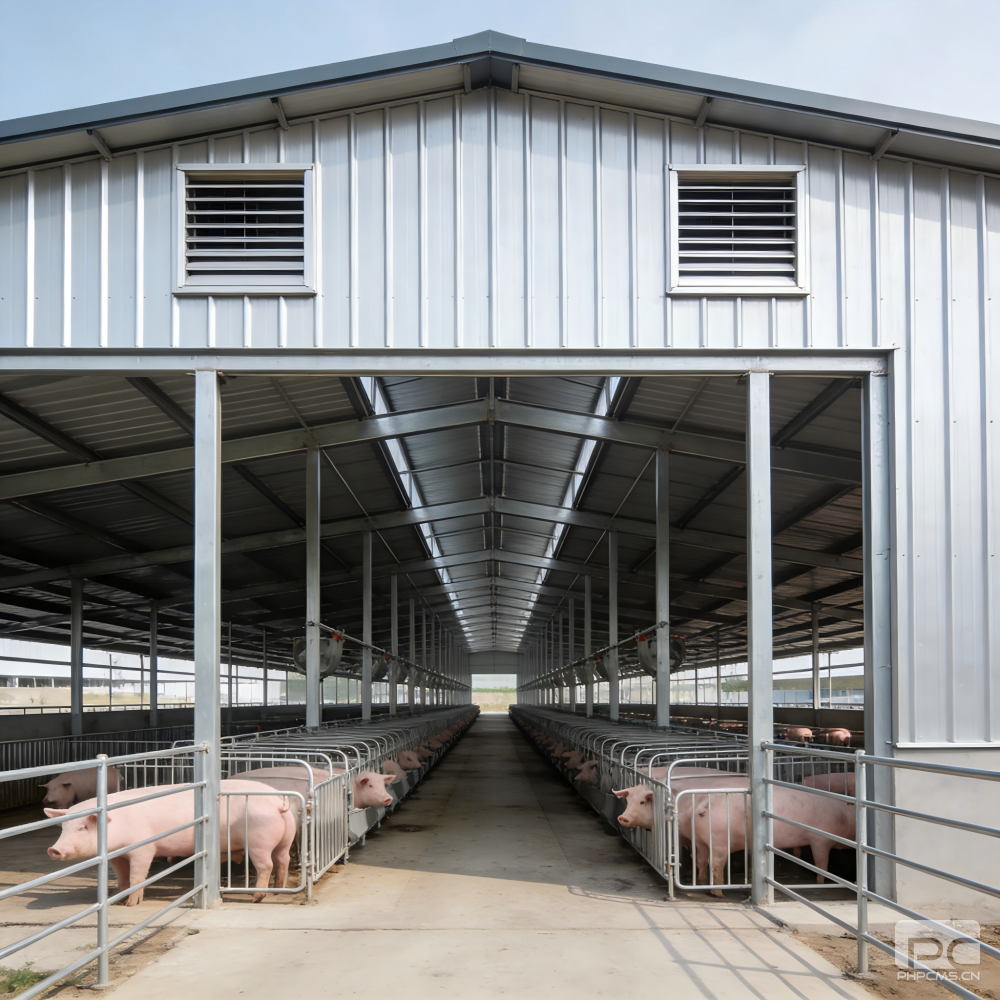

Light steel pig house systems can be applied to both individual swine buildings and multi-house commercial farm developments. Reference configurations include parallel pig houses with centralized road access, external ventilation equipment and integrated livestock production systems.

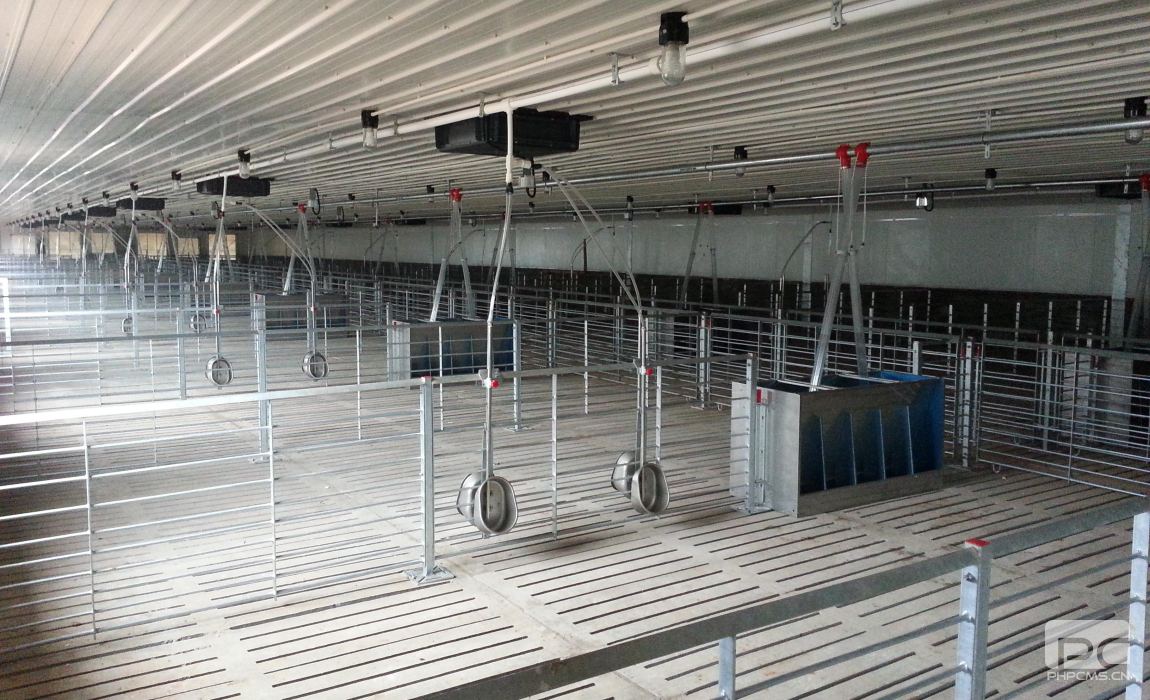

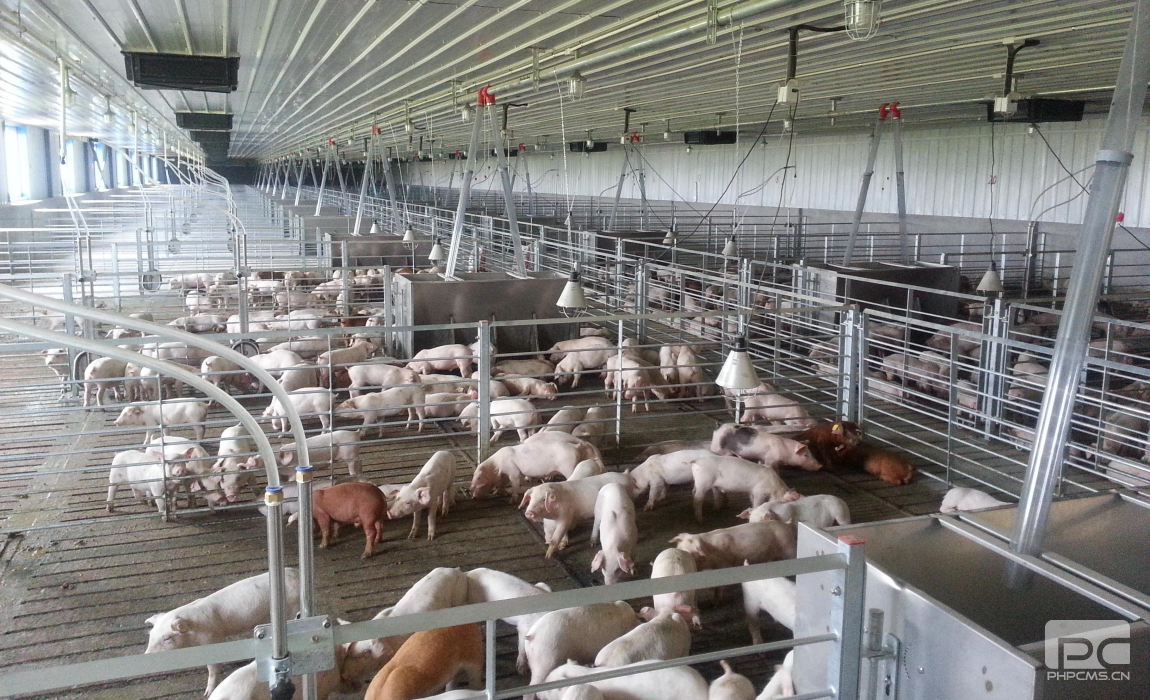

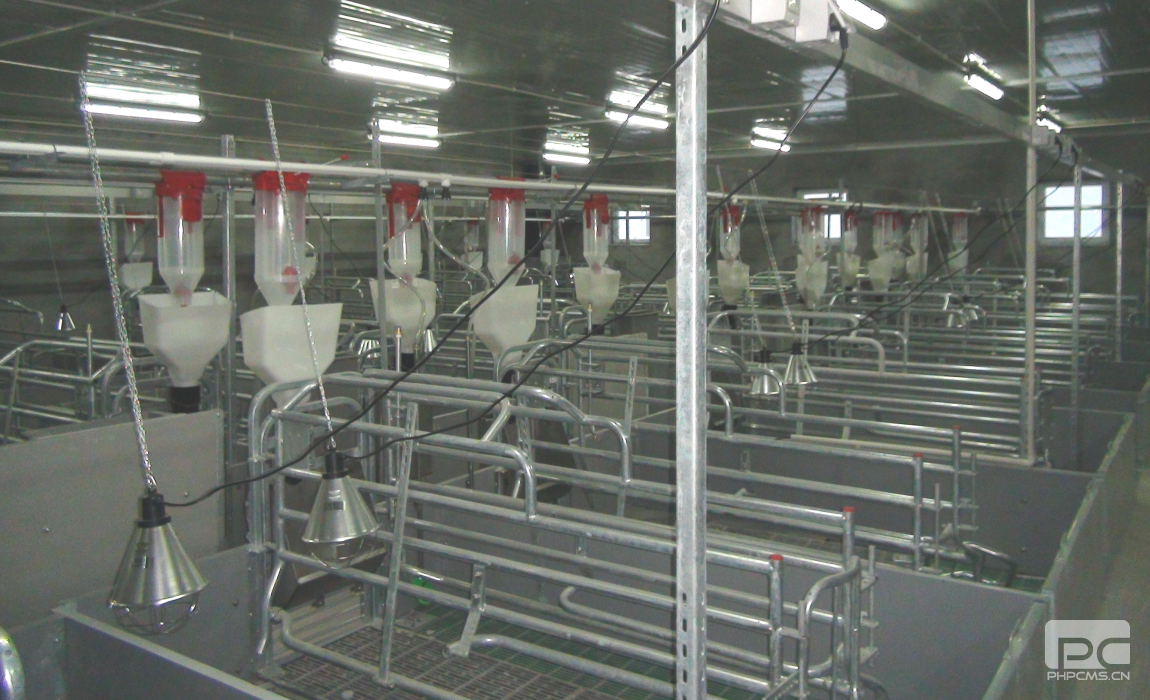

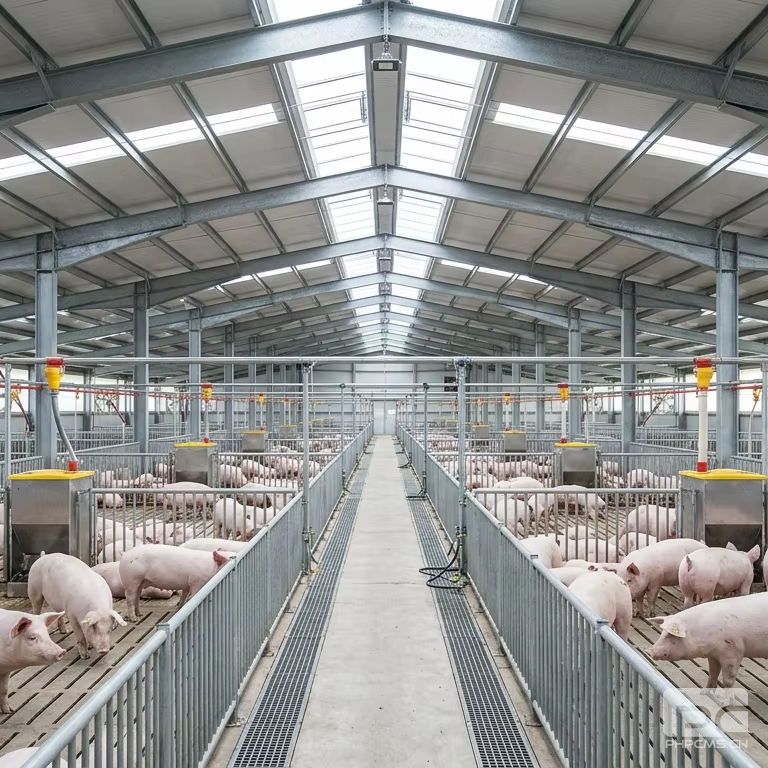

Interior configurations can include group pens, galvanized penning, feeding equipment, drinking systems, ventilation equipment and slatted-floor manure-management systems.

Each project should be engineered individually according to herd capacity, production stage, local environmental conditions, building regulations and required equipment configuration.

Q1: What is a light steel structure pig house?

It is a prefabricated livestock building using engineered lightweight steel framing as the main structural system, combined with roofing, walls, ventilation and pig farming equipment.

Q2: Can the building size be customized?

Yes. Building length, width, height, structural span and internal layout can be customized according to project requirements.

Q3: Is light steel construction suitable for commercial pig farms?

Yes. It can be used for individual pig houses or large multi-building commercial swine projects.

Q4: Can galvanized steel components be supplied?

Yes. Galvanized structural and secondary steel components are available according to project requirements and the livestock environment.

Q5: Can insulated sandwich panels be used?

Yes. Insulated roof and wall panels can be selected according to local temperature, humidity and thermal-performance requirements.

Q6: Can ventilation fans and cooling pads be integrated?

Yes. Fan openings, air inlets, cooling pads and other environmental-control equipment can be coordinated during the building design stage.

Q7: Can pig farming equipment be designed together with the building?

Yes. Pig pens, feeding systems, drinking systems, ventilation, lighting and manure-management interfaces can be coordinated with the building layout.

Q8: Is the structure suitable for different climates?

Yes. Structural loading, insulation and ventilation can be designed according to local climate and farm conditions.

Q9: Can the pig house be expanded later?

Future extension can be considered during initial master planning and structural engineering, subject to site and design conditions.

Q10: What information is required for a quotation?

Recommended information includes project country and location, pig capacity, production stage, required building dimensions, local climate, insulation requirements, ventilation concept and required livestock equipment.
