PU Sandwich Panel Insulated Pig House | Steel Structure Commercial Pig Farm

The PU Sandwich Panel Insulated Pig House is a prefabricated steel structure livestock building designed for commercial swine farms requiring improved thermal insulation and controlled indoor conditions. The building combines an engineered steel frame with polyurethane sandwich-panel roof and wall systems to form an insulated enclosure suitable for modern pig production.

PU sandwich panels typically consist of exterior and interior metal facings bonded to a rigid polyurethane insulation core. This composite construction provides thermal insulation while maintaining a lightweight building envelope that is convenient to transport and install.

The insulated building system can be coordinated with exhaust fans, air inlets, evaporative cooling pads, heating systems and environmental controllers to help manage temperature, humidity and airflow throughout different seasons.

Building dimensions, insulation configuration, ventilation layout and internal pig production systems can be customized according to herd capacity, production stage, local climate, site conditions and project requirements.

• PU Sandwich Panel Insulation: Polyurethane-core roof and wall panels help reduce heat transfer through the building envelope.
• Improved Indoor Climate Control: An insulated enclosure supports more stable temperature management during hot and cold seasons.
• Prefabricated Steel Structure: Factory-fabricated components simplify transportation, site organization and building erection.
• Commercial Pig Farm Application: Suitable for intensive breeding, nursery, growing and finishing operations.
• Lightweight Enclosure System: Sandwich panels combine insulation and exterior cladding in a single prefabricated component.
• Ventilation System Compatibility: Suitable for integration with mechanical ventilation, tunnel ventilation, air inlets and cooling-pad systems.
• Flexible Building Layout: Internal space can be coordinated with pig pens, feeding lines, drinking systems and service aisles.
• Corrosion Protection Options: Galvanized or coated steel components are available according to livestock-house conditions.
• Efficient On-Site Installation: Bolted steel frames and prefabricated enclosure panels help shorten construction time.
• Customizable Project Design: Structural dimensions, panel configuration and equipment interfaces can be adapted to individual farm requirements.

The steel structure provides the primary load-bearing framework of the pig house. Columns, beams or trusses transfer structural loads to the foundations, while purlins, girts and bracing systems support the building envelope and maintain overall structural stability.

PU sandwich panels are installed over the roof and wall framing to form a continuous insulated enclosure. The rigid polyurethane core reduces heat transfer between the exterior environment and the livestock area, while metal facings provide weather protection and structural rigidity to the panel system.

In hot climates, insulation helps reduce solar heat gain through roofs and walls. In colder climates, it helps reduce heat loss from the livestock building. The insulation system must work together with properly designed ventilation, heating and cooling equipment rather than replacing environmental control.

Ventilation equipment removes excess moisture, heat and contaminated air while controlled air inlets distribute fresh air through the pig house. The final airflow strategy is designed according to local climate and farm conditions.

• Commercial pig farms
• Climate-controlled swine facilities
• Breeding pig farms
• Sow and gestation houses
• Farrowing houses
• Nursery and weaner houses
• Grower pig houses
• Finishing pig houses
• Farrow-to-finish pig farms
• Pig farms in hot climates requiring reduced solar heat gain
• Pig farms in cold climates requiring improved thermal insulation
• Large-scale integrated livestock projects
• New pig farm construction
• Existing pig farm expansion and modernization

The insulated pig house can be engineered according to pig capacity, local climate, farm management system and available construction site. Typical customization options include:

• Building length, width and height
• Structural span and column spacing
• Steel frame configuration
• Roof slope and drainage arrangement
• Corrosion-protection treatment
• PU sandwich-panel thickness
• Roof and wall panel configuration
• External and internal panel colors
• Masonry or concrete lower-wall sections
• Personnel doors and service doors
• Ventilation inlet positions
• Exhaust fan configuration
• Cooling-pad installation areas
• Heating equipment interfaces
• Pig pen zoning
• Central and side service aisles
• Automatic feeding system layout
• Drinking water line routing
• Slatted-floor and manure pit interfaces
• Drainage and washing systems
• Biosecurity zoning
• Future farm expansion provisions

Final specifications are designed according to local climate and farm conditions, applicable construction standards and individual project requirements.

Typical Installation Procedure:

1. Confirm the site plan, building orientation and civil engineering conditions.
2. Complete foundations, floors, manure channels and drainage works according to approved drawings.
3. Check anchor bolt positions, foundation levels and dimensions.
4. Erect the primary steel columns, beams or roof trusses.
5. Install purlins, wall girts, tie members and structural bracing.
6. Align the complete steel structure and tighten engineered connections.
7. Install PU sandwich roof panels with appropriate joints, flashing and sealing components.
8. Install PU sandwich wall panels and lower-wall interfaces.
9. Install doors, windows, gutters and downpipes.
10. Install air inlets, exhaust fans, cooling pads and heating systems where required.
11. Coordinate pig pens, feeding, drinking, lighting and manure-management equipment.
12. Complete final inspection, sealing checks and environmental-control commissioning.

Recommended Maintenance:

• Inspect sandwich-panel joints, sealants and flashing periodically.
• Repair damaged external panel coatings to prevent corrosion.
• Inspect roof fasteners and panel connections after severe weather.
• Prevent damage to internal wall panels during pressure washing or equipment movement.
• Maintain ventilation equipment to prevent excessive humidity and condensation.
• Keep manure and corrosive contaminants away from steel framing where practical.
• Inspect structural bolts, bracing and steel protective coatings periodically.
• Keep gutters, downpipes and site drainage systems clear.

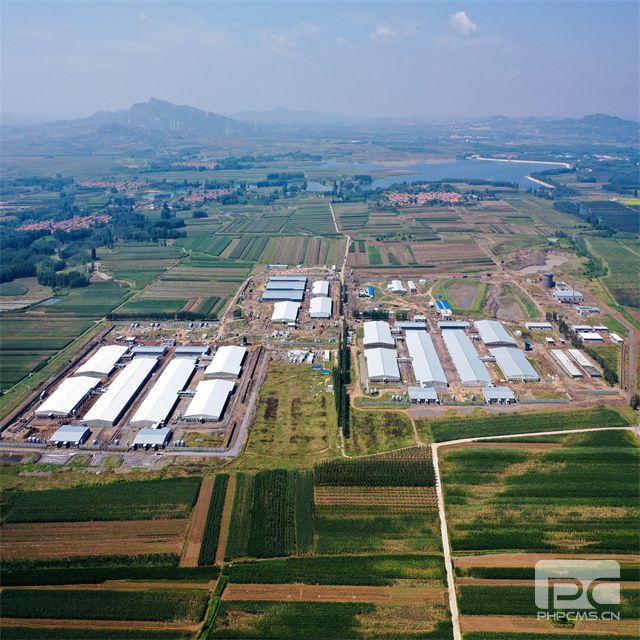

PU sandwich-panel pig houses can be developed as individual insulated livestock buildings or as part of a large commercial swine production complex. Multi-building farms may include separate facilities for gestation, farrowing, nursery, growing and finishing stages.

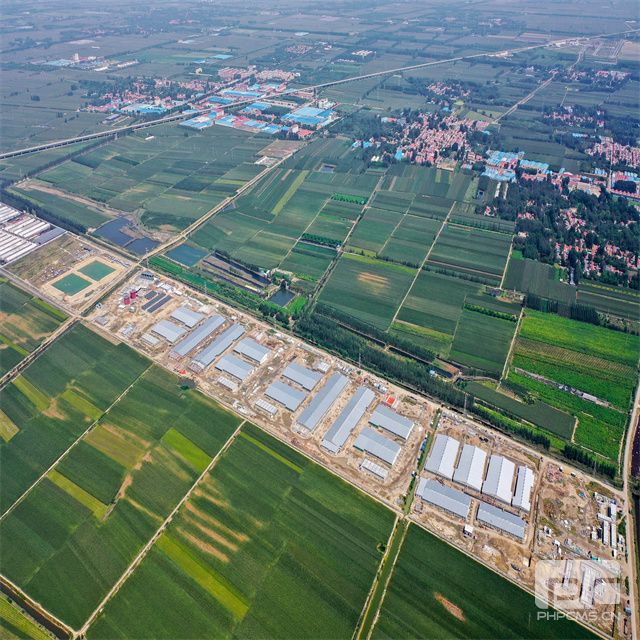

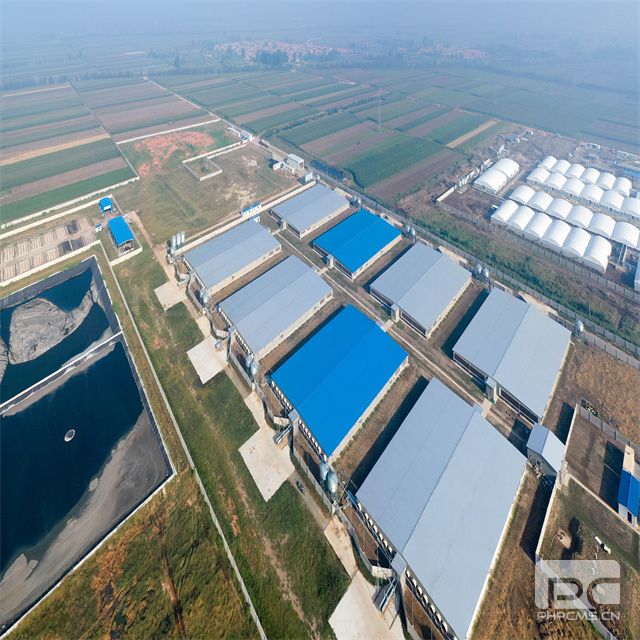

A reference steel structure pig farm project in China uses steel columns and beams together with PU sandwich-panel roofing and wall systems. Large projects can combine multiple parallel buildings with feed distribution, ventilation, environmental control and manure-management infrastructure.

Project dimensions, structural configuration, insulation thickness and livestock equipment are customized according to farm capacity and local operating conditions.

Q1: What is a PU sandwich panel pig house?

It is an insulated livestock building using a steel structural frame together with metal-faced polyurethane sandwich panels for the roof, walls or both.

Q2: Why use PU sandwich panels for a pig house?

PU sandwich panels provide effective thermal insulation while remaining lightweight and easy to install. They help reduce heat transfer through the roof and walls and support efficient environmental control.

Q3: Is this pig house suitable for hot climates?

Yes. Insulated roof and wall panels can help reduce external heat transfer. For hot climates, the building can also incorporate tunnel ventilation, exhaust fans and evaporative cooling pads.

Q4: Is it suitable for cold climates?

Yes. Insulated sandwich panels help reduce heat loss. Panel thickness, heating equipment and ventilation strategy should be selected according to local winter conditions.

Q5: Can the PU panel thickness be customized?

Yes. Panel thickness can be selected according to insulation requirements, local climate and project specifications.

Q6: Can the building dimensions be customized?

Yes. Building length, width, eave height, structural span and internal layout can be customized according to farm requirements.

Q7: Can ventilation and cooling systems be integrated?

Yes. The building can be designed with air inlets, exhaust fans, cooling pads and other environmental-control equipment.

Q8: Can automatic feeding and drinking systems be installed?

Yes. Feed delivery lines, feeders, drinking systems and related equipment can be coordinated with the building and internal pen layout.

Q9: Can galvanized steel be used for the structural frame?

Yes. Galvanized structural and secondary steel components are available according to project requirements and the corrosive conditions inside the livestock building.

Q10: Can masonry or concrete lower walls be used?

Yes. Durable lower-wall sections can be combined with PU sandwich panels in areas exposed to animal contact, manure or intensive washing.

Q11: Is the building supplied as prefabricated components?

Yes. Steel components and sandwich panels can be factory prepared and shipped for on-site assembly according to installation drawings.

Q12: What information is required for a quotation?

Recommended information includes project country and location, pig capacity, production stage, building dimensions, local wind and snow conditions, insulation requirements, ventilation concept and required livestock equipment.
