Commercial Steel Structure Pig House | Prefabricated Swine Farm Building

The Commercial Steel Structure Pig House is a prefabricated agricultural building system developed for intensive and large-scale swine production. It combines an engineered steel load-bearing structure with roofing, wall enclosure, thermal insulation, ventilation, drainage and livestock equipment interfaces to create an efficient environment for modern pig farming.

The building can be configured for breeding sows, gestation, farrowing, nursery, growing and finishing operations. Clear-span or optimized portal-frame layouts provide flexible internal space for pens, feeding lines, drinking systems, service aisles, environmental-control equipment and manure-management systems.

Each project can be customized according to pig capacity, production process, local climate, land conditions and applicable structural standards. Factory-prefabricated steel components reduce field fabrication and support efficient on-site erection for commercial farm developments.

• Commercial-Grade Steel Structure: Engineered for long-term agricultural use and project-specific structural loads.
• Prefabricated Construction: Main steel members are factory fabricated for dimensional accuracy and efficient field assembly.
• Flexible Clear-Span Layout: Interior space can be arranged around different pen systems, feeding routes and production zones.
• Customizable Dimensions: Building length, width, height, structural span and bay spacing can be adapted to project requirements.
• Corrosion Protection Options: Galvanized steel, epoxy coating or other protective systems are available according to livestock-house conditions.
• Thermal Insulation Options: Roof and wall systems can incorporate insulated sandwich panels for hot or cold climates.
• Ventilation Integration: Compatible with natural ventilation, cross ventilation, tunnel ventilation, air inlets, fans and evaporative cooling systems.

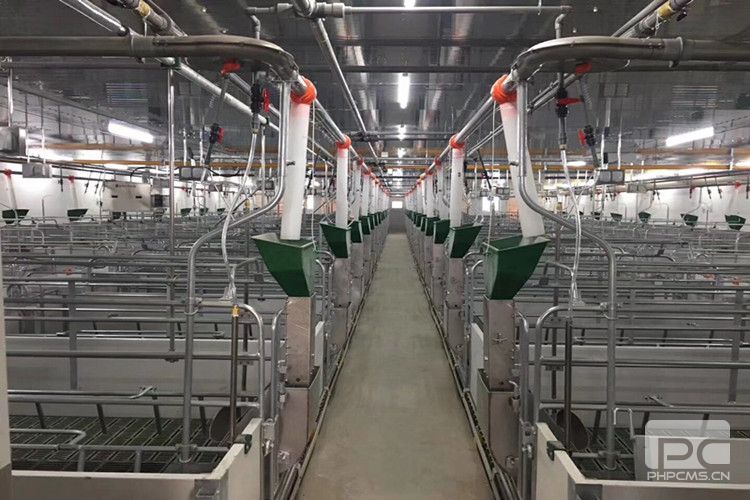

• Livestock Equipment Compatibility: Layouts can accommodate pens, feeders, drinkers, feed delivery, lighting, climate control and manure systems.
• Efficient Installation: Bolted connections reduce unnecessary on-site welding and help shorten erection time.
• Expandable Farm Planning: Future extensions can be considered during the initial structural and master-planning stage.

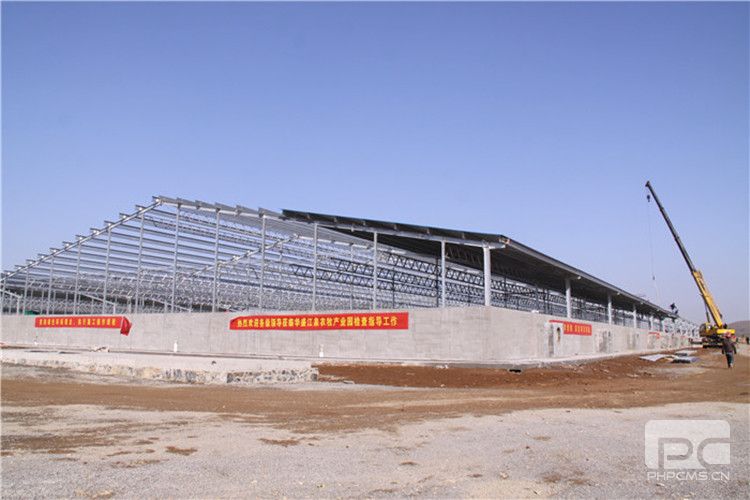

The commercial pig house uses an engineered steel framing system to transfer roof, wind, snow and other design loads through beams, columns and foundations. Secondary purlins, girts and bracing stabilize the building and support the roof and wall enclosure.

A clear-span or optimized portal-frame arrangement minimizes internal structural obstructions, providing flexibility for pig pens, automatic feeding equipment and service aisles.

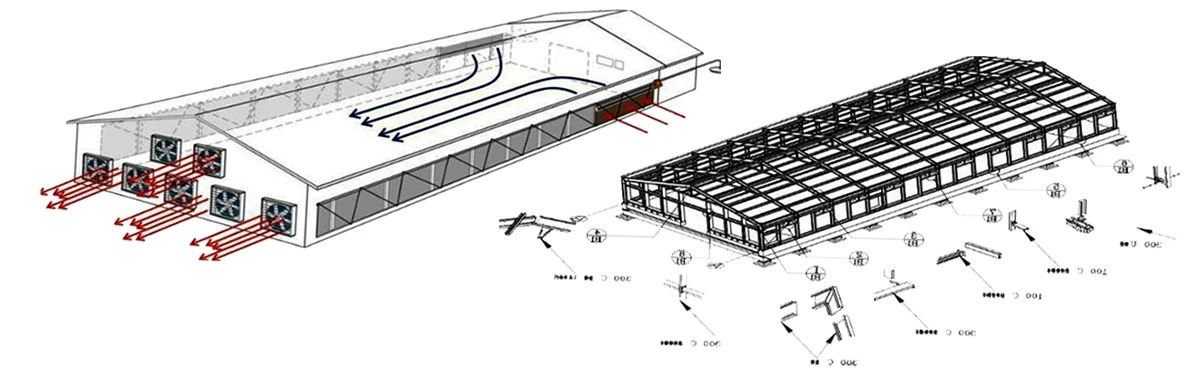

The building envelope works together with ventilation and insulation systems to control temperature, humidity, airflow and indoor air quality. Climate-control equipment can be selected according to local weather conditions and the requirements of different pig production stages.

• Commercial pig farms
• Large-scale swine production bases
• Breeding sow farms
• Gestation houses
• Farrowing houses
• Nursery and weaner houses
• Grower pig facilities
• Finishing pig houses
• Farrow-to-finish farms
• Integrated livestock projects
• New pig farm construction
• Existing pig farm expansion and modernization

The building system can be customized according to production capacity, farm management strategy, site conditions and local climate. Typical options include:

• Building length, width and eave height
• Structural span and bay spacing
• Portal-frame and clear-span configuration
• Roof slope and roof profile
• Steel grade and structural member sizes
• Galvanized or coated corrosion-protection systems
• Roof and wall insulation thickness
• Masonry lower-wall configuration
• Door and window layout
• Ventilation inlet locations
• Exhaust fan arrangement
• Cooling-pad installation areas
• Internal pig pen zoning
• Automatic feeding system layout
• Drinking water line arrangement
• Slatted floor and manure pit interfaces
• Drainage and cleaning systems
• Biosecurity and personnel circulation planning
• Future farm expansion provisions

Final specifications are designed according to local climate and farm conditions, applicable codes and individual project requirements.

Typical Installation Procedure:

1. Confirm farm master plan, building orientation and site conditions.
2. Complete site grading, foundations, floors and drainage works according to approved drawings.
3. Check anchor bolt positions, levels and foundation dimensions.
4. Erect primary steel columns and roof beams or portal frames.
5. Install purlins, girts, tie rods and bracing members.
6. Align the structure and tighten engineered bolted connections.
7. Install roof panels, wall systems and insulation.
8. Install doors, windows, ventilation openings and drainage accessories.
9. Install pig pens, feeding, drinking and environmental-control equipment.
10. Complete structural inspection, equipment testing and commissioning.

Recommended Maintenance:

• Inspect steel members, bolts and structural connections periodically.
• Check painted or galvanized surfaces for mechanical damage and corrosion.
• Repair damaged protective coatings when required.
• Maintain effective ventilation to limit excessive humidity and corrosive gases.
• Keep manure and wet organic material away from structural members where practical.
• Inspect roofing, wall cladding, flashing and fasteners after severe weather.
• Keep gutters and drainage systems clear.

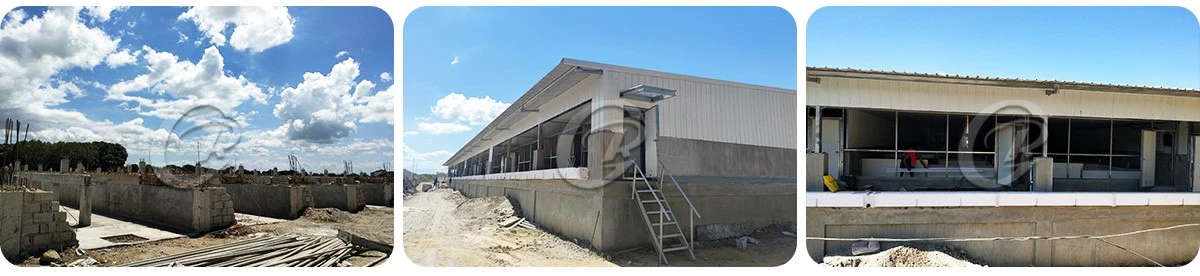

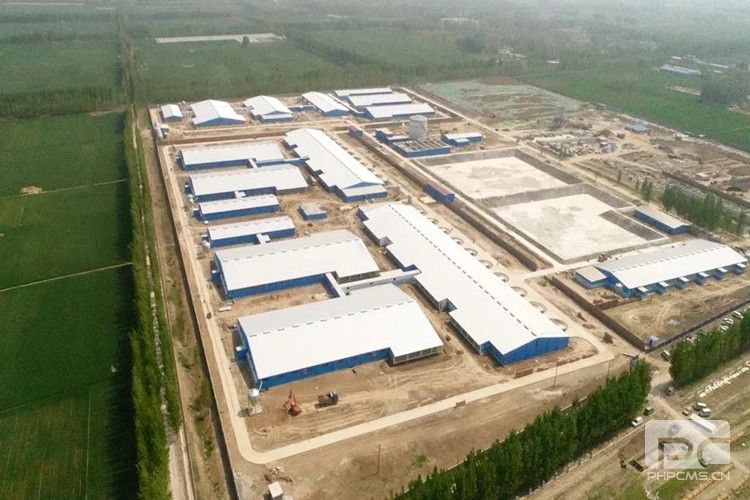

Commercial steel pig houses can be developed as individual buildings or as complete multi-house swine production complexes. Typical projects combine steel structural frames with insulated roofing, wall or curtain systems, ventilation equipment, automated feeding, drinking systems and manure-management facilities.

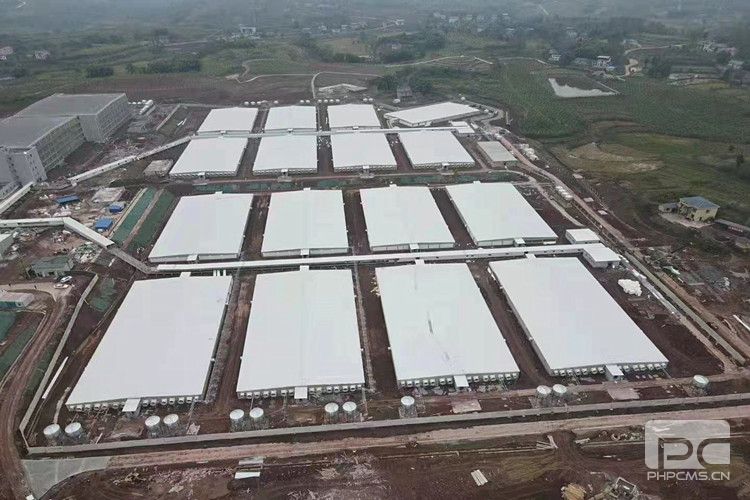

Large projects may use multiple specialized buildings for gestation, farrowing, nursery and finishing stages, allowing biosecurity zones and animal flows to be organized according to the farm production process.

Building dimensions, pig capacity, structural loading and equipment configuration are project-specific and are available upon request.

Q1: Can the dimensions of the pig house be customized?

Yes. Length, width, height, structural span and internal arrangement can be customized according to farm capacity, site conditions and production requirements.

Q2: Is this building suitable for large commercial pig farms?

Yes. The prefabricated steel structure system is suitable for individual buildings as well as large multi-house commercial swine projects.

Q3: Can galvanized steel be supplied?

Yes. Galvanizing and other corrosion-protection systems are available according to livestock-house conditions and project requirements.

Q4: Can insulated sandwich panels be used?

Yes. EPS, PU/PIR, rock wool and other insulation systems can be selected according to climate and thermal-performance requirements.

Q5: Can the building use a clear-span design?

Yes. Clear-span or optimized portal-frame configurations can provide flexible interior space for pens and livestock equipment, subject to structural engineering requirements.

Q6: Can ventilation and cooling equipment be integrated?

Yes. Exhaust fans, air inlets, ventilation curtains and evaporative cooling pads can be coordinated during building design.

Q7: Can feeding and drinking systems be planned together with the building?

Yes. Feed lines, water lines, pen systems and service routes can be coordinated with the structural layout.

Q8: Can the pig house be designed for different climates?

Yes. Structural loading, enclosure, insulation and ventilation can be designed according to local climate and farm conditions.

Q9: Can the farm be expanded in the future?

Future extensions can be considered during the initial site planning and structural design stage.

Q10: What information is required for quotation?

Recommended information includes project location, planned pig capacity, production stage, building dimensions, local climate, insulation requirements, ventilation concept and required livestock equipment.
