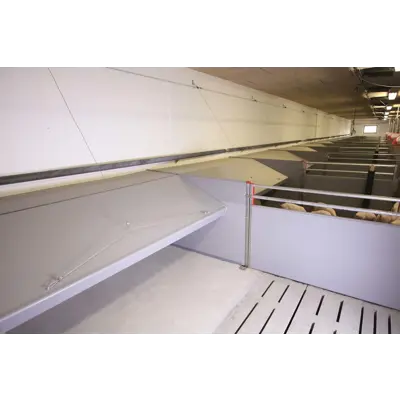

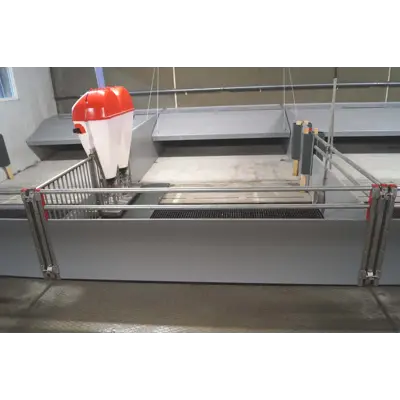

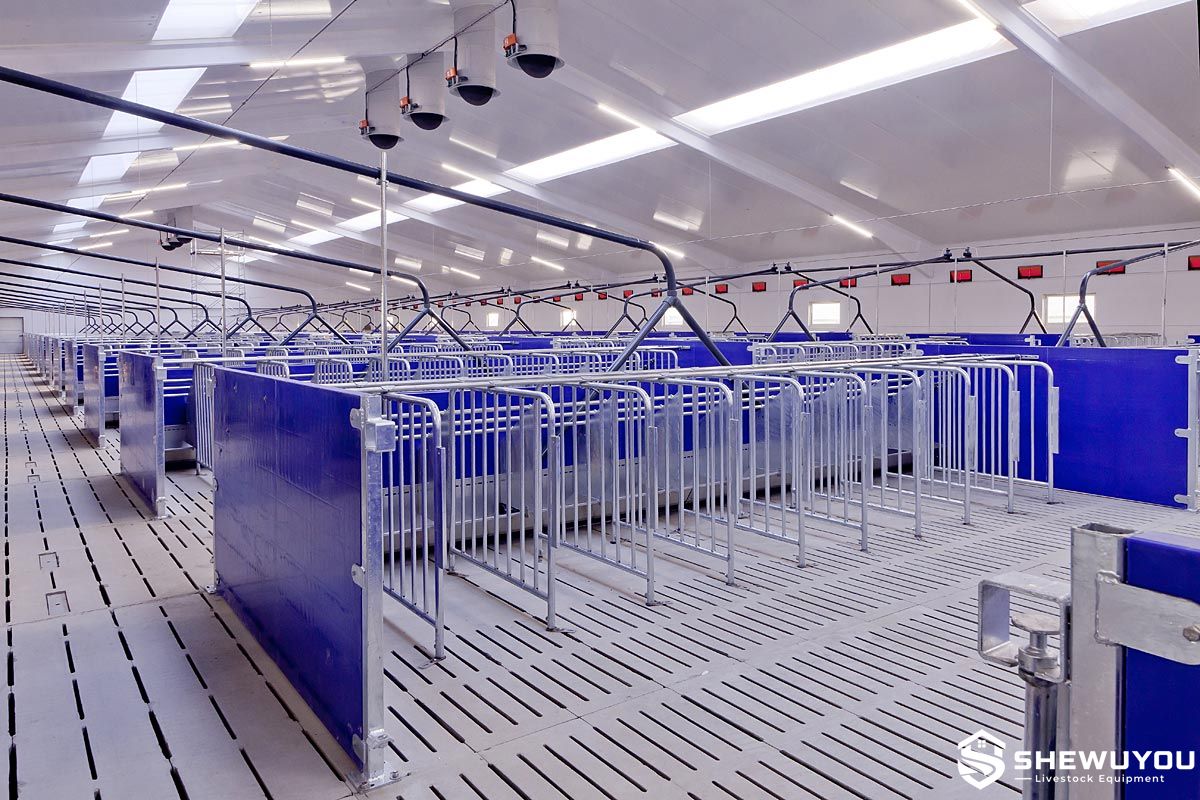

Heavy-Duty Fiber Panel Sow Gestation Pen

The Heavy-Duty Fiber Panel Sow Gestation Pen is a modular housing system developed for pregnant sows, breeding females and commercial group-housing facilities. Solid compact fiber panels create strong separation between adjacent pens while galvanized steel posts, top rails and corrosion-resistant fittings provide the structural strength required for intensive sow housing.

Compared with conventional open-bar partitions, solid fiber panels can help create clearly defined resting and management zones, reduce direct contact between neighboring groups and provide smooth surfaces that are convenient to wash and disinfect. Their relatively slim construction also allows efficient use of available barn space.

The system can be configured for group gestation pens, gilt pens, breeding areas, boar separation zones and other sow-management applications. It is suitable for new steel-structure pig houses, prefabricated livestock buildings and renovation of existing commercial sow barns.

• Heavy-duty solid fiber panel construction for commercial sow housing.
• Impact-resistant partition material suitable for mature sows and breeding animals.
• Smooth panel surfaces support efficient washing and disinfection.
• Solid partitions help reduce manure transfer and direct contact between adjacent pens.
• Galvanized steel posts and rails provide reliable structural support.
• Stainless steel U-profiles and corrosion-resistant fittings are available upon request.
• Closely fitted panel and profile connections help reduce dirt accumulation in difficult-to-clean areas.
• Modular configuration allows adaptation to different barn dimensions and group sizes.
• Compatible with static or dynamic sow group-management concepts.
• Compatible with dry feeding, liquid feeding and individual feeding systems.
• Compatible with solid, partially slatted and fully slatted flooring.
• Gate width, location, locking method and opening direction can be customized.
• Suitable for both new-build projects and existing sow-house renovation.

• Fiber Partition Panels: Heavy-duty compact panels form strong and space-efficient solid pen walls.
• Galvanized Support Posts: Reinforced steel posts transfer horizontal loads from the partitions to the barn floor structure.
• Stainless Steel U-Profiles: Secure panel edges and help create durable, hygienic joints.
• Top Rails: Horizontal or vertical galvanized tubes reinforce the upper section of the partition.
• Lower Reinforcement: Steel profiles can be incorporated near floor level to improve resistance to impact from mature animals.

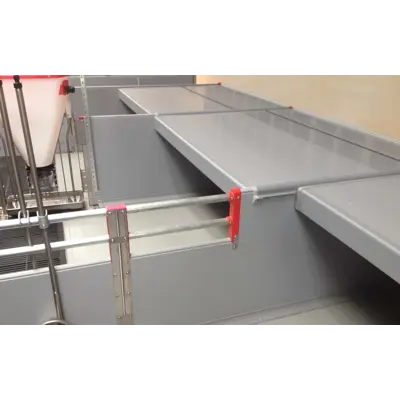

• Access Gates: Full-width, sectional or project-specific gates provide controlled animal movement.
• Gate Locks: Twist-lock, pin-lock or other livestock-grade locking mechanisms are available according to project requirements.
• Floor Anchors: Mechanical anchors and corrosion-resistant fasteners secure posts and gate assemblies to the prepared floor.
• Feeding Interface: Pen layouts can incorporate troughs, feed dispensers, liquid feeding walls or electronic feeding areas.
• Drinking Equipment: Nipple drinkers, drinking bowls and centralized water lines can be integrated.

The system divides the gestation barn into controlled sow groups using rigid solid-panel partitions. Structural loads generated by animal contact are transferred from the fiber panels through the metal profiles and galvanized posts into the floor anchoring system.

Solid walls create defined boundaries between adjacent sow groups, while gates and open management sections provide controlled movement between feeding, resting, drinking and service areas. Depending on the project, the pen can be designed for static groups, dynamic groups or dedicated breeding and gilt-management areas.

Feeding equipment can be installed inside or adjacent to the group pen. Automatic dry feeding, liquid feeding, free-access feeding stalls or electronic sow feeding systems can be coordinated with the pen layout according to the required management concept.

• Commercial sow gestation houses
• Group-housed pregnant sow facilities
• Breeding sow and gilt management areas
• Static sow group housing
• Dynamic sow group housing
• Boar separation and collection pens
• Large-scale breeding and multiplier farms
• Integrated commercial pig farms
• Steel-structure pig houses
• Prefabricated livestock buildings
• Existing gestation-barn renovation
• Turnkey sow farm construction projects

• Overall pen length, width and height
• Fiber panel thickness and dimensions
• Panel color according to project requirements
• Galvanized post size and structural reinforcement
• Stainless steel or galvanized panel profiles
• Horizontal or vertical top-bar configuration
• Solid-panel and open-grid combinations
• Gate width, height and opening direction
• Twist-lock, pin-lock or customized gate hardware
• Static or dynamic sow group layout
• Resting and activity-zone configuration
• Automatic dry feeding integration
• Liquid feeding integration
• Free-access feeding stall integration
• Electronic sow feeding station integration
• Drinking system and water-line arrangement
• Solid and slatted flooring configuration
• Manure-management system coordination
• Designed according to local climate and farm conditions

Installation:

• Confirm the sow-house dimensions, group size, feeding method, aisle arrangement and manure-management layout.
• Mark partition lines, support-post locations and gate positions according to the approved equipment drawing.
• Check the floor structure and anchoring zones before drilling or fixing support posts.
• Install galvanized posts and align them vertically before final tightening.
• Fit stainless steel or galvanized U-profiles and install the fiber partition panels.
• Install top rails and lower reinforcement components according to the structural configuration.
• Install gates, hinges, locking devices and animal-flow control components.
• Connect feeding and drinking equipment where required.
• Check panel joints, exposed edges, fasteners and gate operation before commissioning.

Maintenance:

• Remove manure, feed residues and organic contamination regularly.
• Wash and disinfect panels according to the farm biosecurity program.
• Pay particular attention to panel joints, floor connections and gate areas during cleaning.
• Inspect galvanized posts, top rails and floor anchors periodically.
• Check stainless steel profiles and panel edges for mechanical damage.
• Inspect gate locks, hinges and moving components for reliable operation.
• Avoid unnecessary mechanical impact from cleaning equipment.
• Replace severely damaged panels or hardware promptly to maintain structural integrity and animal safety.

Q: Why use fiber panels for sow gestation pens?
A: Compact fiber panels provide a strong, impact-resistant and space-efficient solid partition. Their smooth surfaces are also suitable for routine washing and disinfection in commercial sow barns.

Q: Is the system suitable for mature sows?
A: Yes. Heavy-duty fiber panel configurations can be engineered for mature breeding and gestating sows using reinforced posts, metal profiles and suitable floor anchoring.

Q: Can fiber panels be combined with galvanized steel grids?
A: Yes. Solid panels and open-grid sections can be combined according to ventilation, animal contact, observation and management requirements.

Q: Can the dimensions be customized?
A: Yes. Pen dimensions, panel sizes, post spacing, gate configuration and structural reinforcement can be designed according to project requirements.

Q: What feeding systems can be integrated?
A: The layout can be coordinated with automatic dry feeding, liquid feeding, protected feeding stalls or electronic sow feeding systems.

Q: Can the system be installed over slatted flooring?
A: Yes. Installation can be coordinated with solid, partially slatted or fully slatted flooring, provided that appropriate structural anchoring points are incorporated.

Q: Is the pen suitable for renovation projects?
A: Yes. Modular fiber-panel penning can be adapted to existing sow houses after reviewing building dimensions, floor conditions, feeding equipment, manure systems and animal-flow requirements.

Q: Can it be used for boar pens?
A: Heavy-duty configurations can also be developed for boar separation or collection areas according to project requirements and structural load considerations.

Q: What information is required for a quotation?
A: Please provide the pig-house dimensions, number of sows, required group size, preferred pen dimensions, feeding method, floor type, manure system, project location and available layout drawings.
