Product Name

PVC Panel Sow Gestation Pen

Product Image

Product Overview

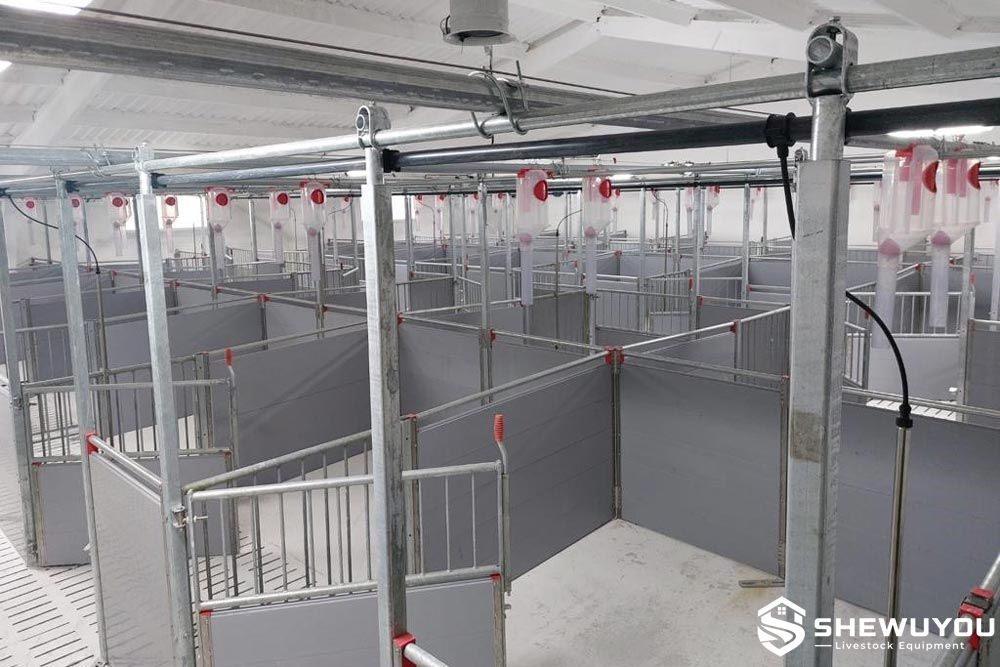

The PVC Panel Sow Gestation Pen is a modular housing system designed for pregnant sows, replacement gilts and breeding animals in commercial pig farms. The system combines smooth PVC partition boards with galvanized steel posts, stainless steel profiles and durable gate components to create stable, hygienic and easy-to-manage group pens.

Solid PVC panels provide visual separation between adjacent pens while helping reduce direct contact, manure transfer and drafts at animal level. Their smooth, non-porous surfaces are suitable for routine washing and disinfection, making the system particularly practical for intensive pig production environments where hygiene and labor efficiency are important.

The modular structure can be configured for gestation areas, gilt pens, boar pens, recovery pens and other sow-management zones. Pen dimensions, panel height, gate arrangement, feeding equipment, floor interface and service alleys can be customized according to project requirements.

Key Features

Durable PVC Partitions: Smooth PVC board profiles provide a strong and corrosion-resistant barrier for commercial sow housing.
Galvanized Steel Support Structure: Heavy-duty posts and upper rails provide structural stability in demanding livestock-house environments.
Hygienic Pen Surfaces: Non-porous partition surfaces are easy to wash, disinfect and dry between production cycles.
Reduced Manure Accumulation: Tight-fitting board and profile connections help minimize gaps where manure and dirt can collect.
Flexible Layout: Modular panels can be adapted to different barn widths, group sizes and management systems.
Visual Separation: Solid panels can reduce direct visual contact between adjacent groups and support calmer pen organization.
Easy On-Site Assembly: Prefabricated posts, panels, U-profiles and gates simplify installation and future modification.
Corrosion-Resistant Materials: PVC, galvanized steel and stainless steel components are suitable for humid pig house conditions.
New Build and Retrofit Applications: Suitable for newly constructed steel-structure pig houses and renovation of existing gestation barns.
System Integration: Compatible with dry feeding, liquid feeding, drinking equipment, slatted floors and manure-management systems.

Structural Components

PVC Board Profiles: Form the main solid partition surfaces between sow pens.
Galvanized Steel Posts: Support the panels and transfer structural loads to the pig house floor.
Stainless Steel U-Profiles: Hold PVC boards securely and help protect panel edges.
Upper Structural Rails: Horizontal or vertical steel tubes reinforce the upper section of the partition.
Lower Reinforcement: Steel profiles can be incorporated at the base for additional resistance to animal pressure.
Entrance Gates: Galvanized steel or combined steel-and-panel gates provide controlled sow movement.
Gate Locks: Pin-lock, twist-lock or other livestock gate locking systems are available upon request.
Feed Trough Interface: Can be coordinated with stainless steel, polymer or concrete feeding troughs.
Drinking Equipment: Nipple drinkers or drinking bowls can be positioned according to pen layout.
Floor Anchoring Components: Base plates, anchor bolts and brackets secure posts to the structural floor.

Working Principle / Structural Principle

The pen is constructed from modular PVC partition boards installed between galvanized or stainless steel supporting profiles. Structural posts are anchored to the pig house floor, while upper rails and reinforcement members stabilize the complete pen system.

Solid partitions form defined housing zones for individual animals or sow groups. Gates control movement between feeding, resting, treatment and service areas, allowing farm personnel to organize animals according to production stage and management requirements.

PVC boards fit closely inside supporting profiles to create relatively smooth surfaces with fewer exposed recesses. This construction helps simplify cleaning while reducing areas where manure and organic material may accumulate.

The modular principle also allows panels and gates to be rearranged during barn renovation or future production expansion, subject to the structural and floor conditions of the project.

Technical Specifications

Product Type	PVC panel pen system for gestating sows
Animal Application	Gestating sows, gilts and breeding animals
Partition Material	PVC board profile or project-specific solid panel
Panel Thickness	Available upon request according to structural requirements
Pen Height	Customizable according to animal type and project requirements
Support Posts	Galvanized steel or stainless steel according to project requirements
Panel Profiles	Stainless steel or corrosion-resistant profile system
Gate Configuration	Swing gate, full-width gate or customized configuration
Gate Lock	Pin lock, twist lock or customized livestock gate lock
Pen Dimensions	Customizable according to herd size and barn layout
Feeding Compatibility	Dry feeding, liquid feeding or project-specific system
Floor Compatibility	Solid concrete, partially slatted or compatible gestation-house flooring
Installation	Modular bolted assembly with floor anchoring

Applications

Commercial sow gestation barns
Group housing areas for pregnant sows
Replacement gilt pens
Boar housing and holding pens
Breeding and mating departments
Recovery and temporary separation pens
Large-scale integrated pig farms
New steel-structure pig house projects
Existing sow barn renovation projects
Biosecurity-oriented livestock housing upgrades

Customization Options

The PVC Panel Sow Gestation Pen can be engineered according to the dimensions, production system and environmental conditions of each commercial pig farm.

PVC board thickness and profile design
Panel color and surface configuration
Pen height and partition length
Galvanized or stainless steel support posts
Horizontal or vertical upper reinforcement
Gate width and opening direction
Pin-lock or twist-lock gate system
Feed trough arrangement
Dry or liquid feeding integration
Drinker position and water-line layout
Solid or slatted flooring interface
Service alley and animal movement routes
Individual, small-group or large-group pen layouts
New-build or renovation applications

Final specifications can be designed according to local climate and farm conditions, animal size, barn dimensions, feeding strategy and applicable livestock-housing requirements.

Installation & Maintenance

Installation:

Confirm the approved barn layout, pen dimensions, feeding positions, service alleys and gate locations.
Mark the centerline and anchoring positions for all structural posts.
Install the first galvanized post accurately and use it as the reference point for subsequent sections.
Insert PVC boards into the specified supporting profiles and ensure tight, consistent alignment.
Install upper rails and structural reinforcement components.
Install gates, hinges and locking mechanisms according to the required animal movement direction.
Secure all posts to the structural floor using suitable anchor bolts.
Install troughs, drinking equipment and feeding-system interfaces.
Check panel edges, gate movement, lock operation and fastener tightness before commissioning.

Maintenance:

Wash and disinfect PVC panel surfaces according to the farm biosecurity program.
Inspect panel joints and supporting profiles for manure or feed accumulation.
Check gates, locks, hinges and floor anchors regularly.
Inspect galvanized and stainless steel components for mechanical damage.
Keep gate mechanisms free from manure, bedding and other obstructions.
Replace damaged PVC boards or structural components when required.
Check drinkers and feeding equipment as part of routine pen maintenance.

Product FAQ

Q: Why use PVC panels for sow gestation pens?
A: PVC panels provide smooth, corrosion-resistant and easy-to-clean partition surfaces. They are particularly suitable for humid livestock environments where frequent washing and disinfection are required.

Q: Can the pen dimensions be customized?
A: Yes. Pen dimensions, partition height, gate positions and internal layout can be designed according to herd size, sow body size and barn dimensions.

Q: Are PVC panels strong enough for adult sows?
A: The complete system combines PVC boards with reinforced steel posts, supporting profiles and upper structural rails. The final panel and frame specifications should be selected according to the animal category and structural requirements.

Q: Can stainless steel components be supplied?
A: Yes. Stainless steel U-profiles, fasteners and other components are available according to project requirements.

Q: Can the system be used for group-housed sows?
A: Yes. PVC panel systems can be configured for group gestation pens, resting areas, relief pens, gilt pens and other sow-management zones.

Q: Is the pen compatible with automatic feeding?
A: Yes. The layout can be coordinated with automatic dry feeding, liquid feeding, feed dispensers and different trough systems.

Q: Can the system be installed in an existing pig house?
A: Yes. Modular PVC penning is suitable for many renovation projects after checking the existing building dimensions, floor structure, manure channels and equipment layout.

Q: Can damaged panels be replaced individually?
A: In a modular design, individual panels and associated components can generally be replaced without rebuilding the complete pen, subject to the selected connection system.

Q: What information is required for quotation?
A: Recommended information includes barn drawings, sow quantity, group size, pen dimensions, feeding method, flooring system, gate requirements and preferred partition configuration.
