Sow Mating Stall

The Sow Mating Stall is a specialized breeding and insemination housing system designed for gilts and sows during the mating stage of commercial pig production. It provides controlled individual positioning for artificial insemination, heat detection, feeding, inspection and routine reproductive management.

The open steel-bar structure provides convenient access to the sow while allowing visual and physical stimulation from a boar positioned in a dedicated front aisle. Practical gate arrangements help operators move animals efficiently and provide access for insemination without unnecessary disturbance.

The stall is typically manufactured from corrosion-resistant galvanized steel and can be integrated with feeding troughs, drinking systems, slatted flooring, boar stimulation aisles, blocking gates and automatic feed distribution equipment. Dimensions and layouts can be customized for new steel-structure pig houses or renovation of existing breeding facilities.

• Designed for sow and gilt mating, heat detection and artificial insemination procedures.
• Open-bar construction supports effective boar stimulation and convenient sow observation.
• Heavy-duty galvanized steel structure provides strength and corrosion resistance in demanding pig-house environments.
• Practical rear gate or saloon-style gate options simplify sow entry and operator access.
• Front bar or front gate configurations are available according to project requirements.
• Individual stall arrangement supports controlled feeding and body-condition management.
• Compatible with polymer, concrete or suspended stainless steel feeding troughs.
• Compatible with nipple drinkers and centralized water supply systems.
• Can be integrated with boar aisles and blocking gates for controlled boar movement during heat detection.
• Suitable for solid, partially slatted or fully slatted flooring according to barn design.
• Modular row installation simplifies large commercial breeding-unit construction.
• Individual, row-based or free-access configurations are available upon request.

• Side Frames: Galvanized steel tubular frames form the main individual sow positioning area.

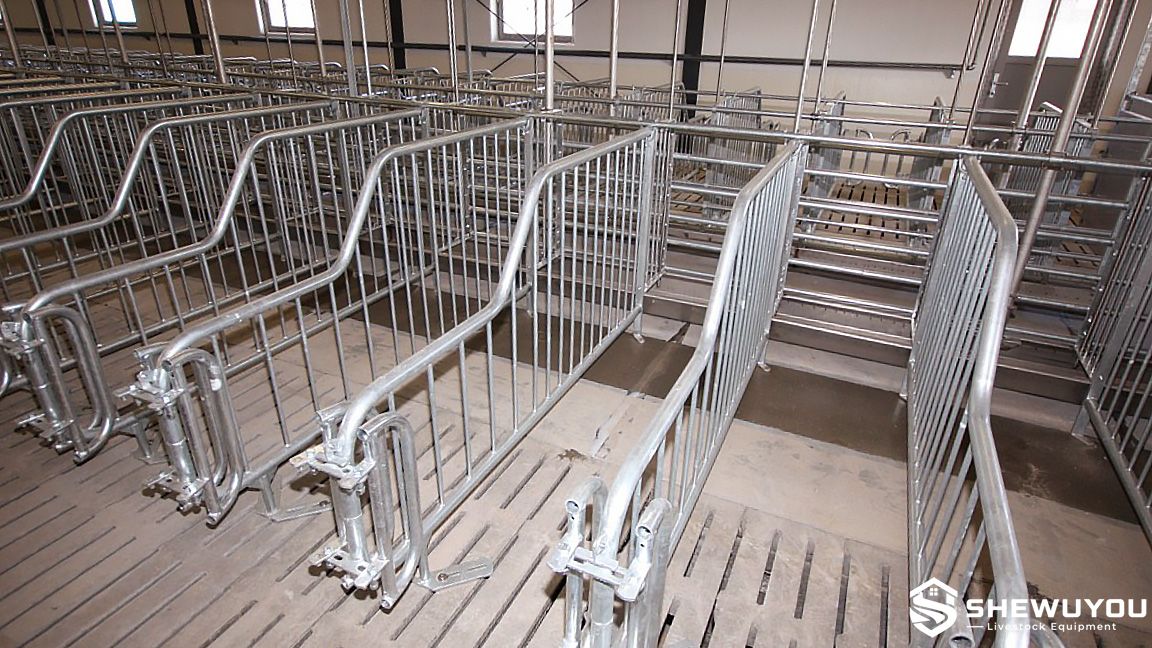

• Rear Gate: Saloon-style, swing or project-specific gate configuration provides convenient sow entry and operator access.
• Front Section: Prefabricated front bars or an optional front gate can be selected according to feeding and handling requirements.
• Support Legs: Reinforced structural legs provide stability under intensive commercial use.
• Floor Anchors: Corrosion-resistant bolts and brackets secure the stall to the prepared floor structure.
• Feeding Trough: Polymer, stainless steel or project-specific trough options can be integrated at the front of each stall.
• Water Supply: Stainless steel or galvanized water pipes can supply nipple drinkers according to the project layout.
• Boar Stimulation Aisle: A front aisle can be incorporated to allow controlled boar movement during heat detection and insemination.
• Blocking Gates: Optional gates divide the boar aisle into controlled sections for more efficient stimulation of selected sows.

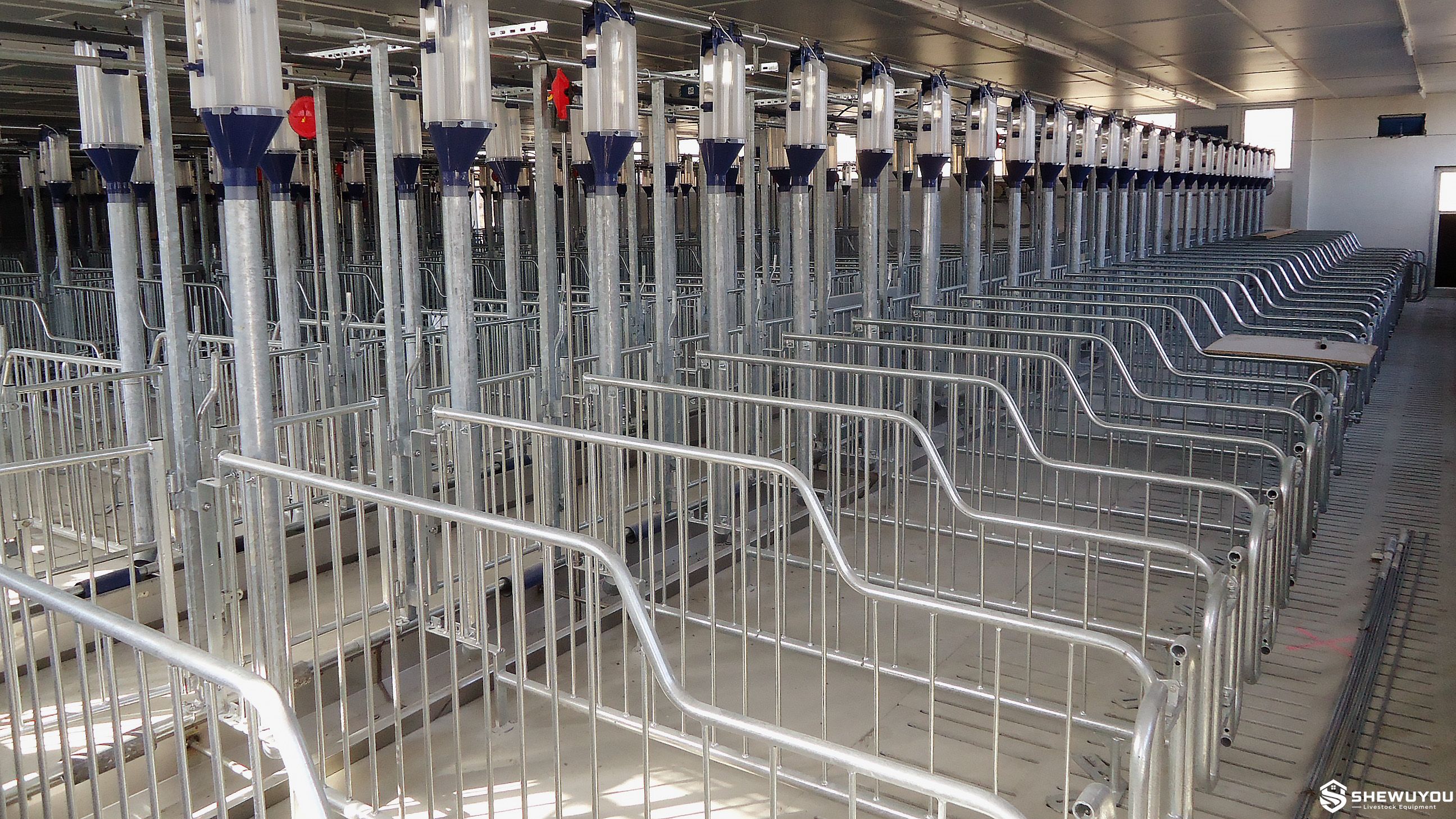

• Feeding Equipment: Individual feed dispensers or centralized dry feeding systems can be installed above the stalls.

Each sow or gilt is positioned individually during breeding management, allowing farm staff to monitor reproductive status, feed intake and body condition. Individual positioning also provides a controlled working area for artificial insemination and veterinary procedures.

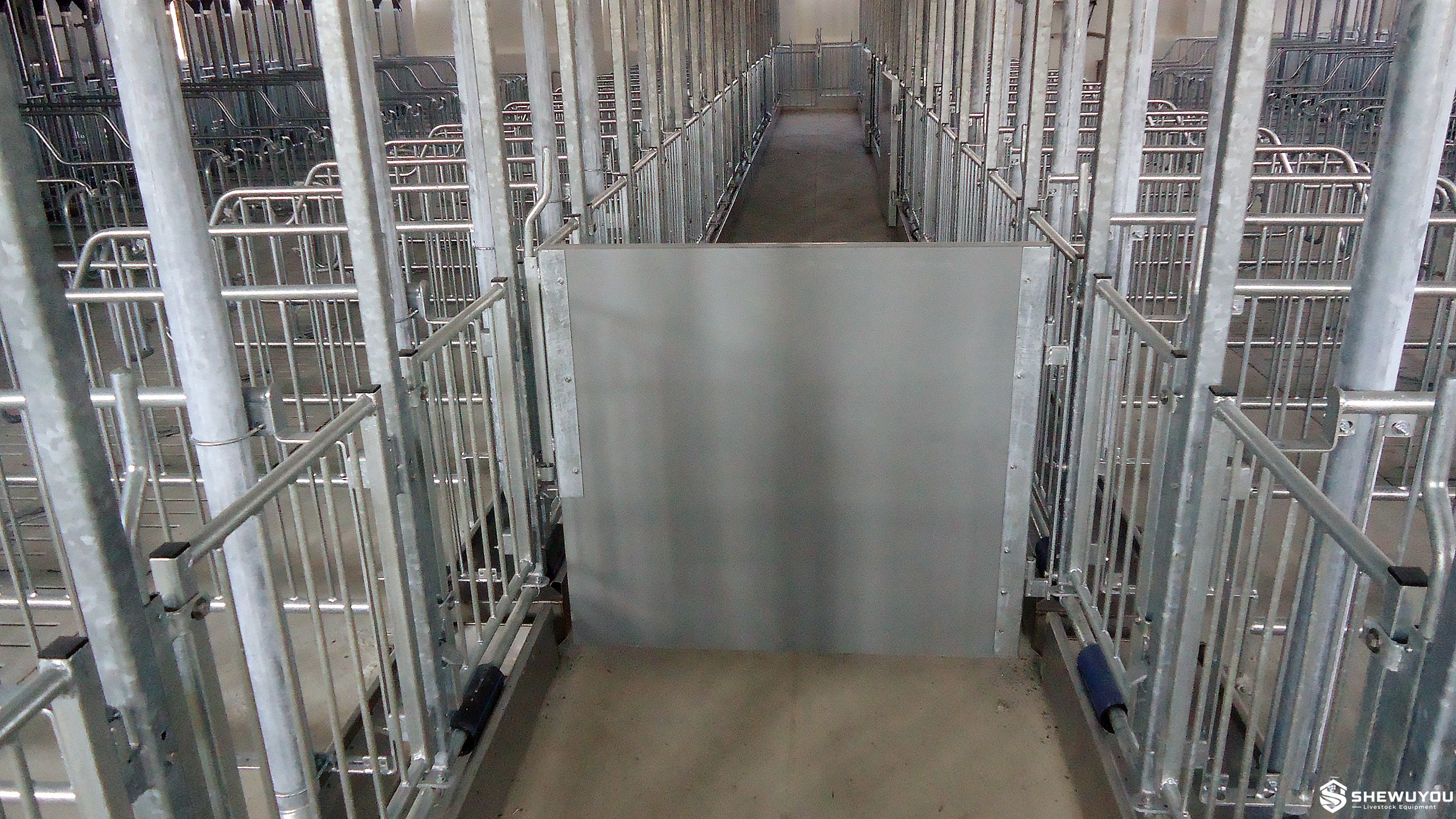

During heat detection or insemination, a boar can be moved along the aisle in front of the stalls. Blocking gates can keep the boar near selected females, supporting effective estrus stimulation while allowing staff to identify animals ready for insemination.

Open side bars and practical rear access provide operators with convenient access to the sow during insemination. Feed and water are supplied individually or through centralized farm systems.

Depending on local animal welfare requirements, the mating area can be designed as conventional individual stalls, temporary insemination stalls or free-access systems connected to group housing.

• Sow mating and artificial insemination units
• Gilt breeding facilities
• Commercial sow farms
• Breeding and multiplier farms
• Large-scale integrated pig production facilities
• Steel-structure sow houses
• Prefabricated pig breeding buildings
• Existing mating-house renovation projects
• Turnkey commercial pig farm construction projects
• Automatic feeding and reproductive-management projects

• Stall length, width and height
• Steel tube dimensions and structural reinforcement
• Hot-dip galvanized or alternative corrosion-resistant finish
• Saloon-style or conventional rear gate
• Front bar or front gate configuration
• Individual or row-locking arrangements
• Polymer or stainless steel feeding trough
• Individual feed dispenser integration
• Automatic dry feeding system integration
• Nipple drinker and water-line arrangement
• Boar stimulation aisle dimensions
• Blocking gate locations and quantities
• Solid or slatted flooring integration
• Free-access mating stall configuration
• Single-row, double-row or multi-row barn layout
• Designed according to local climate, farm conditions and applicable animal welfare requirements

Installation:

• Confirm the breeding-house layout, number of stalls, sow-flow direction, aisle widths and feeding-system arrangement.
• Mark stall centerlines and floor anchoring positions according to the approved project drawing.
• Install side frames, support legs and structural connecting components.
• Secure the stalls to the floor with suitable corrosion-resistant anchors.
• Install rear gates, front bars or front gates and verify smooth operation.
• Install feeding troughs and individual feed dispensers where required.
• Connect drinking pipes, nipple drinkers and water supply lines.
• Install the front boar aisle and blocking gates according to the breeding management plan.
• Inspect all gates, bolts, welds and animal-contact surfaces before commissioning.

Maintenance:

• Remove manure, feed residues and organic material regularly.
• Wash and disinfect the stalls according to the farm biosecurity program.
• Inspect gates, hinges, locks and anchoring bolts periodically.
• Check galvanized surfaces for mechanical damage or excessive corrosion.
• Inspect feeding troughs and feed dispensers for residue or blockage.
• Check nipple drinkers and water pipelines for leakage.
• Keep boar aisles and blocking gates clean and fully operational.
• Replace damaged components promptly to maintain sow and operator safety.

Q: What is a sow mating stall used for?
A: It is used for controlled breeding management, including heat detection, artificial insemination, individual feeding, observation and routine handling of gilts and sows.

Q: Can a boar stimulation aisle be included?
A: Yes. A dedicated boar aisle with blocking gates can be incorporated in front of the stalls to support controlled boar contact during heat detection and insemination.

Q: Can the stall dimensions be customized?
A: Yes. Stall width, length, height and gate configuration can be designed according to sow size, barn layout and project requirements.

Q: What material is normally used for the stall?
A: Heavy-duty steel with hot-dip galvanized surface protection is commonly used because it provides strength and corrosion resistance in commercial pig houses.

Q: Can automatic feeding be installed?
A: Yes. Individual feed dispensers and centralized dry feeding systems can be integrated according to the breeding-house design.

Q: Can stainless steel troughs be supplied?
A: Yes. Suspended or fixed stainless steel troughs, polymer troughs and other feeding arrangements are available according to project requirements.

Q: Can the system be adapted for free-access sow housing?
A: Yes. Free-access or group-housing-compatible mating configurations can be developed where required by farm management or local animal welfare regulations.

Q: Is the stall suitable for new and existing pig houses?
A: Yes. Modular construction allows the system to be used in new steel-structure pig houses and in renovation or expansion of existing breeding facilities.

Q: What information is required for a quotation?
A: Please provide the breeding-house dimensions, required number of stalls, sow size, preferred stall configuration, flooring type, feeding method, boar-aisle arrangement, project location and available layout drawings.
