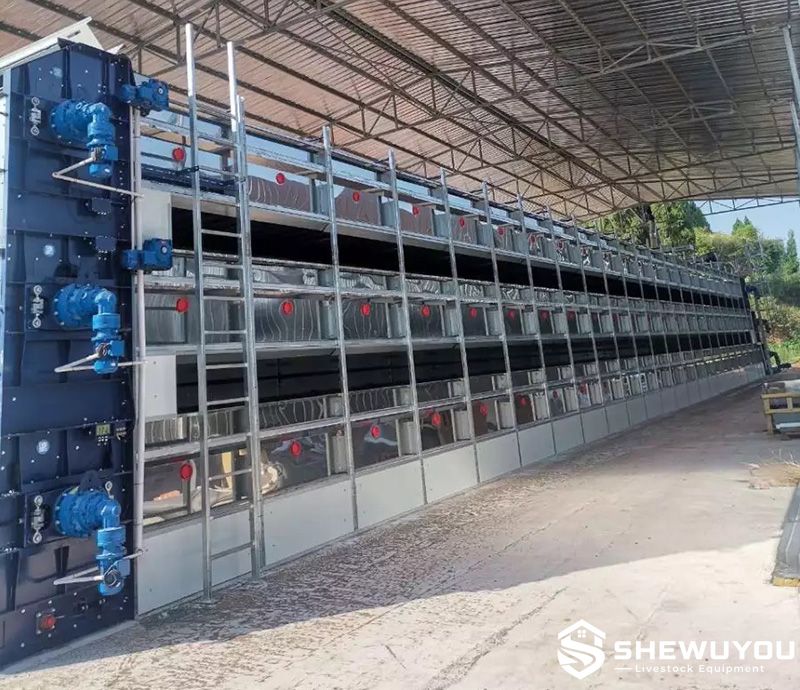

Multi-Tier Poultry Manure Belt Dryer

The Multi-Tier Poultry Manure Belt Dryer is an automatic manure treatment system designed to reduce moisture in fresh poultry manure by combining vertically arranged perforated conveyor belts with controlled airflow.

Fresh manure is distributed across the upper drying level and gradually transferred through multiple tiers. Air passes through the perforated belt surface and manure layer, promoting evaporation while the material moves through successive drying stages.

The system can utilize ventilation air from poultry houses and can also be integrated with independent fans where additional airflow is required. SHEWUYOU can configure dryer size, tier quantity, belt width, airflow arrangement and discharge equipment according to farm capacity and project requirements.

• Multi-tier drying structure: Stacked conveyor levels provide a large drying area within a compact footprint.
• Perforated drying belts: Allow controlled airflow to pass through the manure layer for effective moisture removal.
• Ventilation-air utilization: Poultry-house exhaust air can be used as a drying energy source where project conditions permit.
• Uniform manure distribution: The inlet distributor spreads fresh manure across the belt to support consistent drying.
• Staged material transfer: Manure moves progressively from upper to lower belts for extended air contact.
• Reduced manure volume: Moisture removal lowers material weight and storage volume.
• Improved manure handling: Drier manure is easier to transport, store and process further.
• Automatic operation: Belt movement, filling and discharge can be controlled as part of an integrated manure management system.
• Corrosion-resistant structure: Suitable galvanized or coated metal components can be selected for poultry manure environments.
• Modular configuration: Dryer dimensions and processing capacity can be adapted according to project requirements.

• Main Dryer Frame: Supports the complete vertical multi-tier conveyor structure.
• Perforated Drying Belts: Carry manure while allowing drying air to pass through the material.
• Manure Distributor: Spreads incoming manure evenly across the first drying belt.
• Drive Units: Move individual belt levels according to the programmed drying cycle.
• Drive and Return Rollers: Guide continuous belt movement.
• Tensioning Assemblies: Maintain suitable belt tension and tracking.

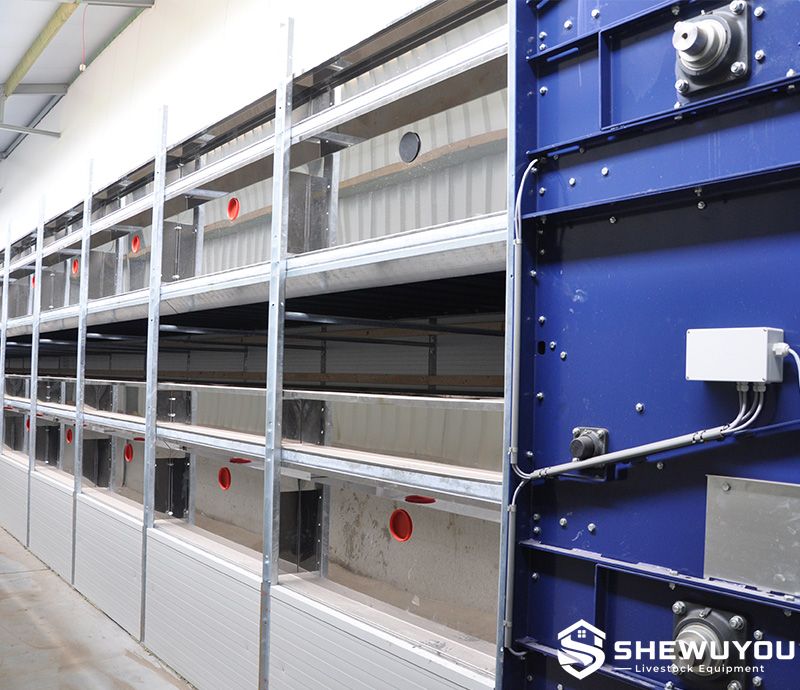

• Air Distribution System: Directs ventilation air through the drying belts and manure layer.
• Tier Transfer Sections: Move manure between successive drying levels.
• Discharge Conveyor: Transfers dried manure toward storage or downstream processing equipment.
• Electrical Control System: Coordinates loading, belt movement, sensors and discharge operations.

Fresh poultry manure is transferred from the manure collection system to the dryer inlet. A distribution unit spreads the material evenly across the upper perforated belt.

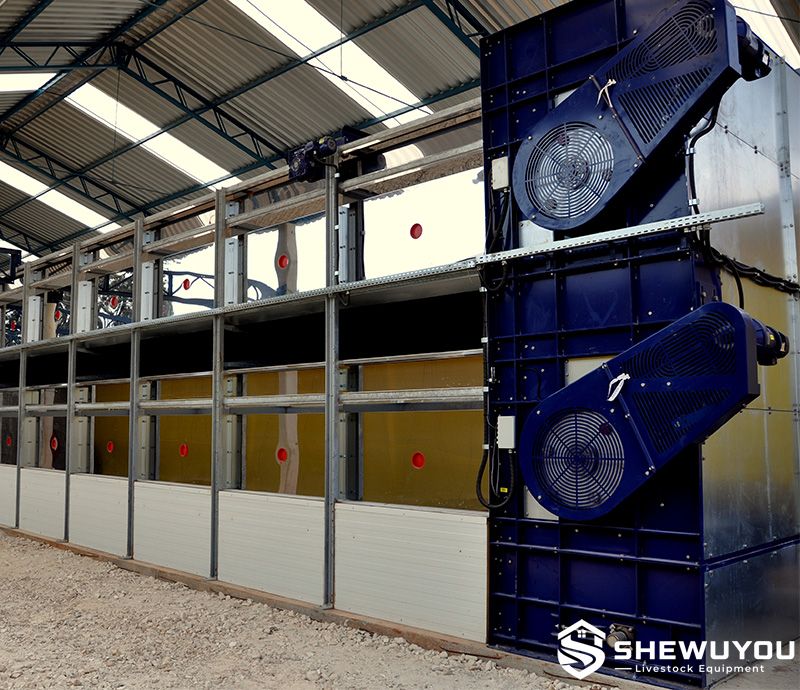

Ventilation air passes through the perforated belt and manure layer, allowing moisture to evaporate. The drying process can use poultry-house exhaust airflow and can be supplemented by independent fans where required.

At programmed intervals, the conveyor belts move and transfer the manure to the next tier. This staged transfer redistributes the material and exposes additional surfaces to the drying airflow.

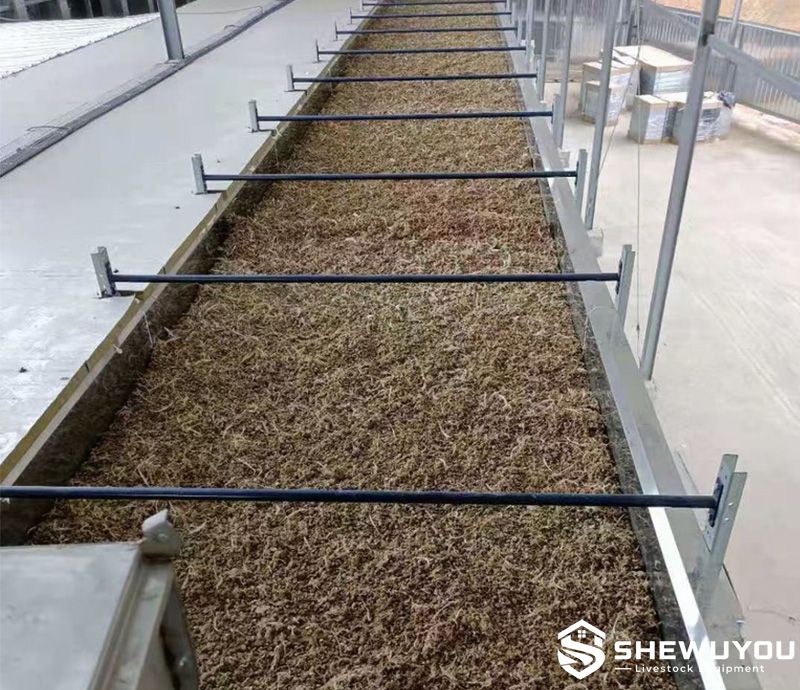

After passing through the required drying stages, the manure reaches the bottom level and is discharged onto a cross conveyor for storage, transportation, composting or fertilizer processing.

• Product Type: Multi-tier poultry manure belt drying system
• Application: Fresh poultry manure drying and volume reduction
• Drying Structure: Vertically stacked motorized conveyor belts
• Belt Type: Perforated drying belt
• Tier Quantity: Customizable according to project requirements
• System Length: According to project requirements
• Belt Width: Customizable
• Frame: Corrosion-resistant metal structure according to configuration
• Air Supply: Poultry-house exhaust air, independent fans or combined configuration
• Manure Distribution: Automatic spreading system
• Drive Method: Electric motor-driven conveyor system
• Discharge Method: Cross conveyor or project-specific manure transport system
• Processing Capacity: Designed according to flock size and manure production
• Final Moisture Level: Depends on initial moisture, airflow, humidity, temperature and residence time
• Control Mode: Automatic control available upon request
• Operating Environment: Designed according to local climate and farm conditions

• Commercial layer farms
• Multi-tier poultry cage houses
• Pullet rearing facilities
• Aviary poultry farms
• Centralized poultry manure treatment facilities
• Organic fertilizer production projects
• Manure storage and transport systems
• Poultry farm environmental management projects
• New poultry farm construction
• Steel structure poultry buildings

• Tier quantity: Selected according to manure production and required drying capacity.
• Dryer length: Customizable according to processing demand and installation space.
• Belt width: Designed according to manure throughput requirements.
• Airflow configuration: Can use poultry-house ventilation air, independent fans or a combined system.
• Manure distributor: Configured according to incoming manure volume and material characteristics.
• Discharge arrangement: Available for storage, truck loading, composting or fertilizer processing.
• Control system: Manual, semi-automatic or automatic configuration available upon request.

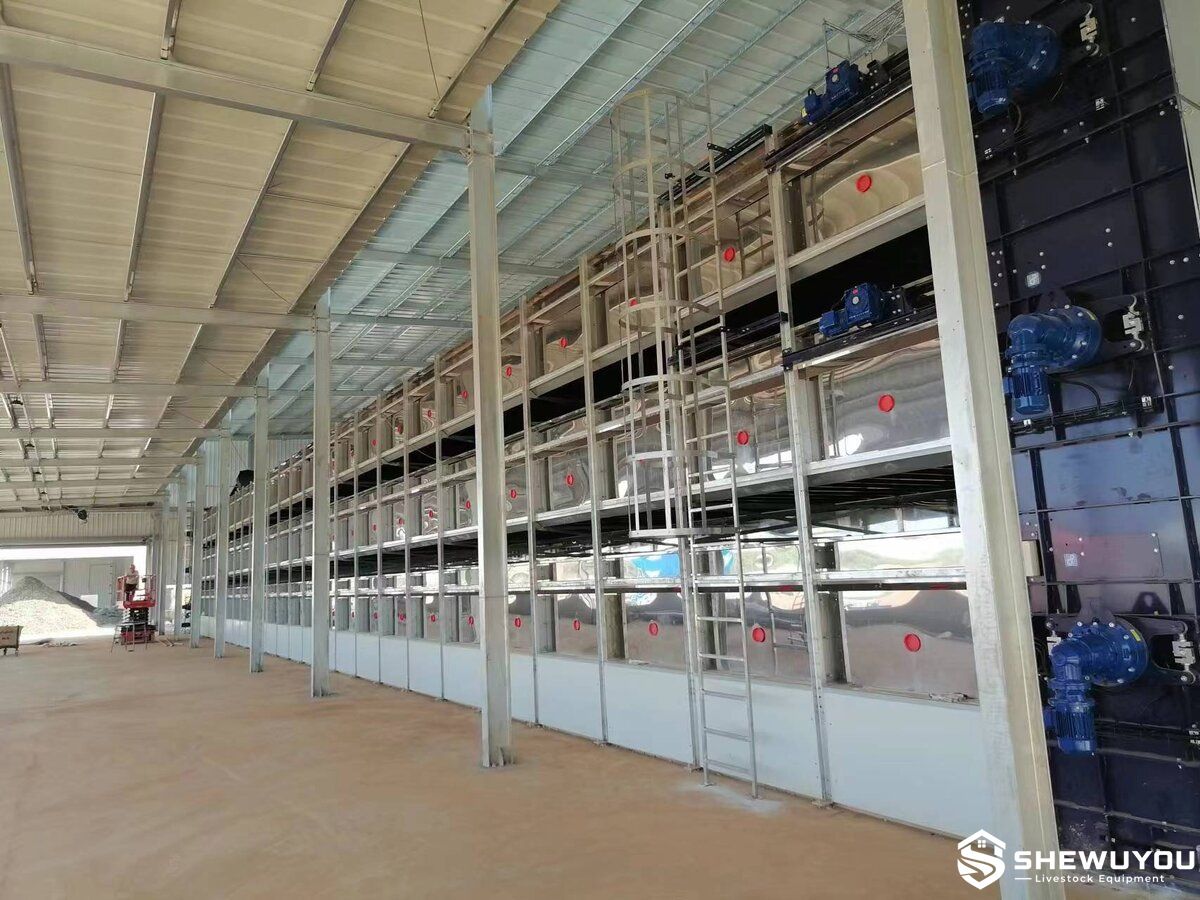

• Building integration: Can be installed beside poultry houses or inside dedicated manure treatment buildings.
• Complete manure management line: Manure belts, collection conveyors, drying equipment and discharge conveyors can be integrated according to project requirements.

Installation

1. Confirm manure production volume, dryer location, available building space and ventilation interface.
2. Prepare foundations and support structures according to approved project drawings.
3. Assemble and level the main multi-tier dryer frame.
4. Install perforated belts, drive rollers, return rollers and tensioning components.
5. Install the manure inlet conveyor and distribution unit.
6. Connect ventilation ducts or independent fan equipment.
7. Install tier transfer sections and final discharge equipment.
8. Connect motors, sensors and electrical controls.
9. Run the system without manure and verify belt tracking.
10. Complete a controlled drying test and adjust airflow, manure distribution and belt timing before continuous operation.

Maintenance

• Inspect perforated belts and keep airflow openings clear.
• Check belt tension and tracking on each drying tier.
• Remove accumulated manure around rollers and transfer sections.
• Inspect motors, bearings and transmission components regularly.
• Clean ventilation ducts and fan assemblies when required.
• Inspect structural components for corrosion or mechanical damage.
• Verify sensors and control functions periodically.
• Replace worn belts, rollers and other operating components when necessary.

Multi-tier poultry manure belt dryers are suitable for commercial poultry projects where manure moisture and volume must be reduced before storage, transportation or fertilizer processing. SHEWUYOU can prepare a customized drying system according to flock capacity, manure output, ventilation volume, building dimensions and downstream treatment requirements.

Q1: What is a Multi-Tier Poultry Manure Belt Dryer?

It is a manure drying system that uses several vertically arranged perforated conveyor belts and controlled airflow to remove moisture from poultry manure.

Q2: Why are perforated belts used?

The perforations allow drying air to pass through the manure layer and support moisture evaporation.

Q3: Can poultry-house exhaust air be used?

Yes. Poultry-house ventilation air can be used as the primary drying airflow when the farm layout and operating conditions are suitable.

Q4: Can additional fans be installed?

Yes. Independent fans can be incorporated when additional airflow is required.

Q5: Why use multiple drying tiers?

Multiple tiers increase the available drying surface while keeping the overall equipment footprint relatively compact.

Q6: Can the dryer size be customized?

Yes. Belt width, dryer length, tier quantity and processing capacity can be selected according to project requirements.

Q7: What affects the final manure moisture level?

Initial moisture, manure layer thickness, airflow, temperature, humidity and residence time all affect drying performance.

Q8: Can dried manure be used for fertilizer production?

Yes. Dried poultry manure can be easier to store, transport, compost and process into organic fertilizer products.

Q9: Can the dryer be installed beside an existing poultry house?

Yes. Suitable systems can be installed beside an existing poultry house or inside a dedicated manure treatment building.

Q10: Can SHEWUYOU supply the complete manure treatment system?

Yes. Manure collection belts, transfer conveyors, drying equipment and final discharge systems can be configured according to project requirements.
