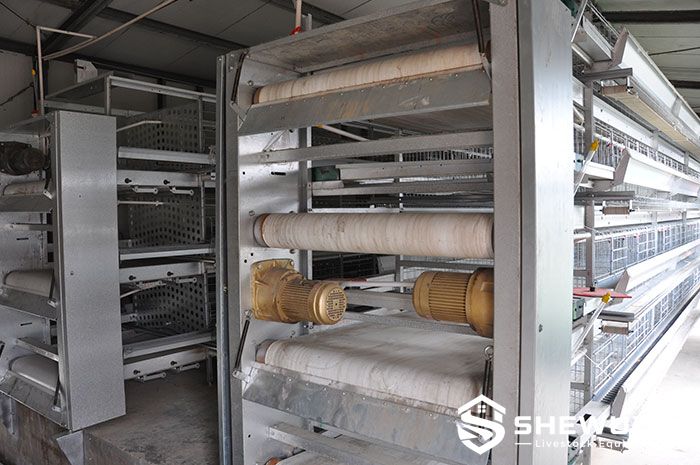

Automatic Manure Belt Scraper for Poultry Systems

The Automatic Manure Belt Scraper is a belt-end cleaning component designed for poultry manure removal systems. Installed near the drive or discharge end of the manure conveyor, the scraper maintains controlled contact with the moving belt and separates adhering poultry manure before the belt returns beneath the cage system.

Effective belt cleaning reduces residual manure around rollers and return sections, helps maintain cleaner poultry-house equipment and supports reliable operation of automatic manure management systems. The scraper can be integrated with PP manure belts used in multi-tier layer, pullet and chick cage installations.

Depending on project requirements, the system can use adjustable scraper pressure, automatic engagement mechanisms, secondary cleaning blades and self-cleaning configurations. SHEWUYOU can match scraper dimensions and mounting structures to different manure belt widths, cage systems and existing poultry equipment.

• Automatic belt cleaning: Removes manure residue from the moving conveyor belt during the manure discharge cycle.
• Controlled scraper contact: Adjustable pressure helps maintain effective cleaning without unnecessary belt wear.
• Reduced manure buildup: Helps prevent material from accumulating around drive rollers and return sections.
• Corrosion-resistant construction: Galvanized or stainless steel components can be selected for demanding poultry-house environments.
• Replaceable scraper blade: Wear components can be replaced without changing the complete manure removal assembly.
• Automatic engagement option: Powered or mechanically controlled engagement can be supplied according to system design.
• Secondary cleaning option: Multiple scraper stages can improve removal of manure, feathers and other residues.
• Low maintenance design: Simple mechanical construction provides convenient inspection and servicing.
• Compatible with PP manure belts: Suitable for common poultry manure belt installations.
• Project customization: Scraper width, blade material, mounting structure and operating mechanism can be customized.

• Scraper Blade: Main cleaning element that separates manure from the belt surface.
• Scraper Support Beam: Maintains blade position across the manure belt width.
• Adjustment Mechanism: Controls blade angle and contact pressure.
• Mounting Brackets: Connect the scraper assembly to the manure belt end frame.
• Spring or Tension Components: Help maintain consistent scraper contact during operation.
• Automatic Actuator: Optional motorized or linear-drive mechanism engages and releases the scraper.
• Secondary Scraper: Optional additional blade removes remaining material from the belt.
• Inner Belt Cleaner: Optional component prevents feathers and debris from entering the drive roller area.
• Protective Frame: Supports the complete assembly and protects operating components.

During a manure removal cycle, the PP manure belt transports poultry droppings toward the drive and discharge end of the cage row. As the belt passes over the discharge roller, most manure separates from the belt and falls onto a transverse conveyor or other collection equipment.

The scraper blade maintains controlled contact with the returning belt surface and removes manure that remains attached after the primary discharge. Scraped material falls into the same manure collection area instead of being carried back underneath the cages.

Advanced automatic configurations can engage the scraper without manual handling. Self-cleaning or vibration-assisted mechanisms may also be used to reduce manure accumulation on the scraper profile.

After cleaning, the belt returns beneath the cage tier and is ready for the next manure collection cycle.

• Product Type: Automatic manure belt cleaning scraper
• Application: Poultry manure conveyor belt cleaning
• Scraper Material: Galvanized steel, stainless steel or wear-resistant material according to project requirements
• Scraper Width: Customizable according to manure belt width
• Blade Thickness: Available according to project requirements
• Contact Pressure: Adjustable
• Installation Position: Manure belt drive or discharge end
• Compatible Belt Material: PP and other poultry manure belt materials according to system design
• Operation: Mechanical, spring-loaded or automatic configuration available
• Secondary Scraper: Available upon request
• Self-Cleaning Function: Available according to system configuration
• Mounting Structure: Customizable according to existing manure removal equipment
• Operating Environment: Designed according to local climate and farm conditions

• H-type layer cage systems
• Pullet cage systems
• Chick cage systems
• Broiler cage manure removal systems
• Aviary manure belt systems
• Broiler breeder manure belt systems
• Multi-tier poultry cage houses
• Automatic PP manure conveyor systems
• Replacement manure belt cleaning projects
• Commercial poultry farm modernization
• Steel structure poultry buildings

• Scraper width: Customized according to the manure belt dimensions.
• Blade material: Selected according to wear resistance, corrosion conditions and project requirements.
• Blade angle: Adjustable according to belt characteristics and manure consistency.
• Contact pressure: Configured to balance cleaning efficiency and belt protection.
• Mounting brackets: Designed for new or existing manure belt end frames.
• Automatic engagement: Available according to automation requirements.
• Secondary cleaning: Double-scraper or inner-cleaning arrangements available upon request.
• Control integration: Automatic operation can be coordinated with manure belt drive controls.
• Complete manure removal system: Scrapers, PP belts, drive units, transverse conveyors and inclined conveyors can be configured together.

Installation

1. Confirm manure belt width, drive-end structure and discharge direction.
2. Install scraper support brackets on the manure belt end frame.
3. Position the scraper blade evenly across the complete belt width.
4. Adjust blade angle and contact pressure according to belt material.
5. Install spring, tension or automatic engagement components where applicable.
6. Check clearance around the drive roller and manure discharge area.
7. Operate the belt without manure and verify smooth contact.
8. Run a loaded manure-removal cycle and inspect cleaning performance.
9. Fine-tune scraper pressure if excessive residue or unnecessary belt friction is observed.

Maintenance

• Inspect scraper blade wear regularly.
• Remove compacted manure from the scraper and support structure.
• Check blade contact across the entire manure belt width.
• Inspect springs, pivots and adjustment components for corrosion or wear.
• Check automatic actuators and limit switches where installed.
• Maintain correct manure belt tracking to prevent uneven scraper loading.
• Replace worn scraper blades before they damage cleaning performance.
• Clean and inspect the scraper assembly during poultry-house sanitation cycles.

Automatic manure belt scrapers are suitable for poultry projects where frequent manure removal requires consistent belt cleaning with minimal manual intervention. SHEWUYOU can prepare scraper configurations according to manure belt width, cage-row design, drive-end dimensions, manure characteristics and required automation level.

Q1: What does a manure belt scraper do?

It removes manure that remains attached to the conveyor belt after the belt passes through the discharge area.

Q2: Where is the scraper installed?

It is normally installed at the drive or discharge end of the poultry manure belt system.

Q3: Can the scraper work automatically?

Yes. Automatic engagement mechanisms can be integrated with the manure removal cycle according to system configuration.

Q4: Can scraper pressure be adjusted?

Yes. Proper adjustment maintains effective belt cleaning while avoiding unnecessary friction and wear.

Q5: Can two scraper blades be installed?

Yes. Multi-stage or secondary scraper configurations can be used when more thorough belt cleaning is required.

Q6: Can it clean PP poultry manure belts?

Yes. The scraper can be configured for commonly used PP manure belts according to belt width and thickness.

Q7: Can the scraper be fitted to an existing cage system?

Yes. Retrofit configurations can be prepared after confirming the existing belt width, end-frame dimensions and drive arrangement.

Q8: Why is an inner belt scraper useful?

An inner scraper can help prevent feathers, shell fragments and other debris from entering the drive roller area.

Q9: Does automatic scraping improve poultry-house hygiene?

Consistent belt cleaning helps reduce residual manure around the conveyor system and supports cleaner manure management.

Q10: Can SHEWUYOU supply the complete manure belt system?

Yes. PP manure belts, drive and tension units, scraper assemblies, transverse conveyors and inclined discharge conveyors can be configured according to project requirements.
