PP Poultry Manure Removal Belt for Cage Systems

The PP Poultry Manure Removal Belt is a polypropylene conveyor belt designed for automatic manure collection beneath poultry cage tiers. It continuously receives droppings from the cages and transports them toward the manure discharge end of the poultry house.

Polypropylene provides a practical combination of tensile strength, dimensional stability, chemical resistance and low surface adhesion. These characteristics make the belt suitable for continuous operation in layer houses where manure, ammonia, moisture, disinfectants and regular washing create demanding operating conditions.

The belt can be supplied for new cage systems or replacement projects. SHEWUYOU can customize belt width, thickness, roll length and matching manure-removal components according to cage dimensions, poultry-house length and project requirements.

• Polypropylene construction: PP material provides good rigidity, tensile strength and dimensional stability for long conveyor runs.
• Chemical resistance: Suitable for poultry-house environments containing ammonia, moisture, cleaning chemicals, acids, alkalis and salts.
• Low manure adhesion: Smooth belt surfaces help reduce sticking and simplify scraper cleaning.
• Wear-resistant design: Suitable for repeated movement over rollers and regular contact with manure scrapers.
• Reliable manure transport: Carries poultry manure from cage tiers toward transverse or inclined discharge conveyors.
• Easy sanitation: The PP surface can be washed and disinfected during routine poultry-house cleaning.
• Reduced manual cleaning: Supports automatic manure management in commercial poultry houses.
• Replacement compatibility: Belt dimensions can be produced to match different poultry cage systems.
• Custom production: Width, thickness, roll length and related belt specifications are available according to project requirements.

• PP Manure Belt: Continuous polypropylene sheet installed underneath each poultry cage tier.
• Drive Roller: Transfers motor power to the manure belt.
• Tension Roller: Maintains suitable belt tension during operation.
• Guide Rollers: Support belt alignment and stable return movement.
• Scraper Assembly: Removes adhering manure from the belt surface at the discharge end.
• Drive Unit: Gear motor and transmission components power the belt system.
• Support Frame: Galvanized structural components support the belt underneath the cage tiers.
• Discharge Interface: Transfers manure to a transverse conveyor, inclined conveyor, manure pit or collection vehicle.

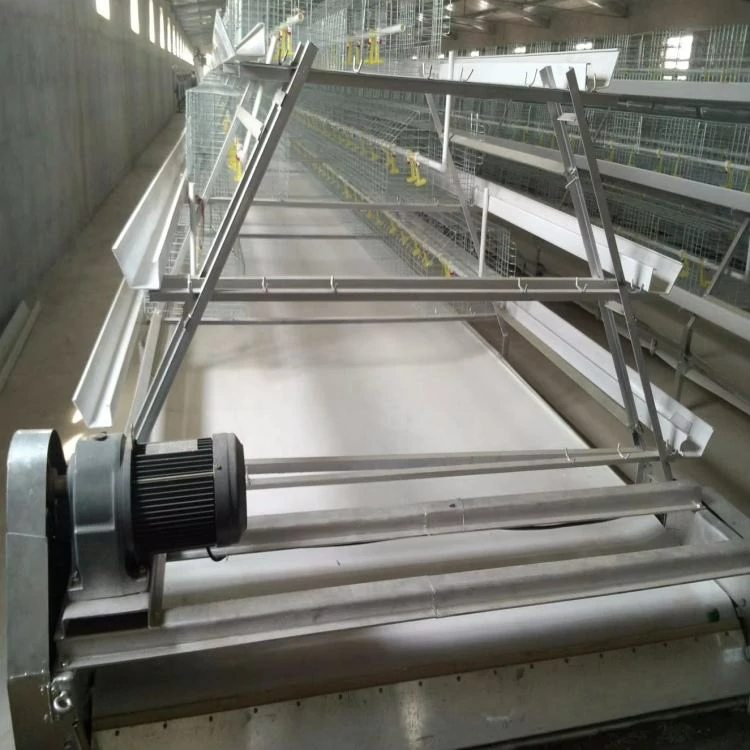

The PP manure belt is installed horizontally beneath each cage tier. Poultry droppings fall through the cage floor and accumulate directly on the belt surface instead of remaining underneath the cages.

During a manure-removal cycle, the drive unit moves the belt toward the end of the cage row. Manure is transported together with the belt and separated from the belt surface by the scraper assembly.

The removed manure is then discharged onto a transverse or inclined conveyor for transportation outside the poultry house. Regular removal helps limit manure accumulation and supports cleaner conditions inside the production building.

• Product Type: Poultry manure removal conveyor belt
• Material: Polypropylene
• Color: Natural white or according to project requirements
• Surface: Smooth
• Belt Width: Customizable according to cage-system dimensions
• Belt Thickness: Available according to project requirements
• Roll Length: Customizable
• Installation Position: Under poultry cage tiers
• Drive Method: Motor-driven manure removal system
• Cleaning Method: Mechanical scraper with periodic wash-down
• Suitable Cage Systems: H-type layer cages, pullet cages and other compatible multi-tier poultry cage systems
• Replacement Application: Available according to existing belt dimensions
• Operating Environment: Designed according to local climate and farm conditions

• Commercial layer farms
• Layer battery cage systems
• H-type poultry cage systems
• Pullet rearing cage systems
• Breeder poultry houses
• Multi-tier poultry equipment
• Automatic manure removal projects
• Replacement manure belt projects
• Large-scale poultry farm modernization
• Steel structure poultry buildings

• Belt width: Customized according to cage-row and manure tray dimensions.
• Belt thickness: Selected according to conveyor length and operating requirements.
• Roll length: Produced according to poultry-house length and installation layout.
• Material formulation: Available according to project and operating conditions.
• Belt edge specification: Customized according to guide and roller configuration.
• Replacement belts: Can be produced according to dimensions of existing poultry equipment.
• Drive and tension components: Available according to complete manure-removal system requirements.
• Complete manure handling line: PP belts, drive units, scrapers, transverse conveyors and inclined discharge conveyors can be configured together.

Installation

1. Confirm cage-row length, belt width and manure-removal system dimensions.
2. Inspect drive rollers, tension rollers and supporting components before belt installation.
3. Feed the PP belt through the complete cage row while avoiding sharp folds or excessive twisting.
4. Connect the belt ends using the specified joining method.
5. Adjust tension evenly across the complete belt width.
6. Check that the belt runs centrally over the rollers without lateral deviation.
7. Adjust scraper pressure to remove manure effectively without excessive belt wear.
8. Run several unloaded and loaded cycles before full operation.

Maintenance

• Inspect belt tracking regularly and correct lateral deviation promptly.
• Maintain suitable belt tension to prevent slipping or excessive stretching.
• Remove stones, wire pieces and other sharp objects that may damage the belt.
• Inspect scraper edges and replace worn scraper components when required.
• Check drive rollers, bearings and transmission components according to the maintenance schedule.
• Clean the belt after production cycles using suitable poultry-house sanitation procedures.
• Avoid unnecessary exposure to sharp structural edges during installation and maintenance.

PP poultry manure belts are widely used in multi-tier cage houses where manure must be collected underneath each level and removed at regular intervals. SHEWUYOU can prepare replacement or new-installation specifications according to cage drawings, belt dimensions, poultry-house length, manure discharge direction and required automation level.

Q1: Why is polypropylene used for poultry manure belts?

Polypropylene combines useful rigidity, tensile strength, chemical resistance and low surface adhesion, making it suitable for poultry manure handling systems.

Q2: Can the belt width be customized?

Yes. Belt width can be produced according to cage dimensions and existing manure-removal equipment.

Q3: Can the belt length be customized?

Yes. Roll length is available according to poultry-house length and project requirements.

Q4: Can this belt replace an existing manure conveyor belt?

Yes. Replacement belts can be produced after confirming the existing belt material, width, thickness and required length.

Q5: Is the belt resistant to poultry-house chemicals?

Polypropylene offers good resistance to many acids, alkalis, salts, organic contaminants and common poultry-house cleaning conditions.

Q6: How is manure removed from the belt surface?

A scraper installed near the drive end separates manure from the moving belt before the material enters the discharge conveyor.

Q7: Can the belt be used in multi-tier H-type cages?

Yes. PP manure belts are commonly installed underneath individual tiers of compatible H-type poultry cage systems.

Q8: What information is required for a replacement belt quotation?

Please provide belt width, thickness, total length, material and existing cage or manure-removal system information.

Q9: Can SHEWUYOU supply a complete manure removal system?

Yes. Manure belts, drive and tension units, scrapers, transverse conveyors and inclined discharge equipment can be configured according to project requirements.
