Duck Drinking System

The Duck Drinking System is designed for commercial Pekin duck, Muscovy duck and waterfowl production where reliable drinking-water supply must be combined with the specific behavioral requirements of ducks.

A complete system can combine conventional nipple drinking lines for hygienic daily water supply with deeper cup-style drinking points that allow ducks to immerse their bills and, in suitable configurations, submerge the head. This arrangement supports practical water management while providing waterfowl with more natural drinking and bill-cleaning opportunities.

The system can include nipple pipes, special duck cups, pendulum-operated water controls, pressure regulators, flushing units, support profiles and suspension equipment. Line dimensions, cup spacing, water capacity and installation layout can be designed according to bird age, stocking density, house dimensions and project requirements.

• Duck-Specific Water Access: Cup-style drinking points can provide deeper water access than conventional poultry nipples alone.
• Automatic Water Refill: Pendulum or valve-controlled systems replenish water as ducks drink.
• Nipple Line Integration: Can be combined with conventional automatic nipple drinkers for hygienic primary water supply.
• Bill and Head Access: Deep cup configurations allow ducks to wash their bills and support natural water-related behavior.
• Reduced Overflow: Return rims and controlled refill mechanisms can help reduce unnecessary water loss.
• Water-Saving Design: Proper flow control minimizes excessive wetting compared with unrestricted open-water sources.
• Pressure Regulation: Low-pressure regulators help stabilize drinking-line operation.
• Flushable System: Drinking lines can be equipped with flushing units for water replacement and routine sanitation.
• Adjustable Suspension: Line height can be adapted according to duck age and body size.
• Commercial Farm Integration: Suitable for large duck houses, steel structure poultry buildings and automated livestock projects.

• Duck drinking water pipe
• Automatic nipple drinkers
• Deep duck drinking cups
• Pendulum-operated refill mechanism
• Water return / overflow-control rim
• Pressure regulator
• End-of-line flushing unit
• Water inlet assembly
• Water filter
• Support profile
• Suspension wires and hangers
• Central lifting winch
• Pipe connectors and end fittings
• Optional water meter
• Optional medicator connection

Filtered water enters the drinking system through a pressure-control unit and is distributed along the main water pipe.

Conventional nipple drinkers provide closed, bird-actuated water access. When a duck touches the nipple pin, the internal valve opens and releases water. The valve closes automatically when the bird stops actuating it.

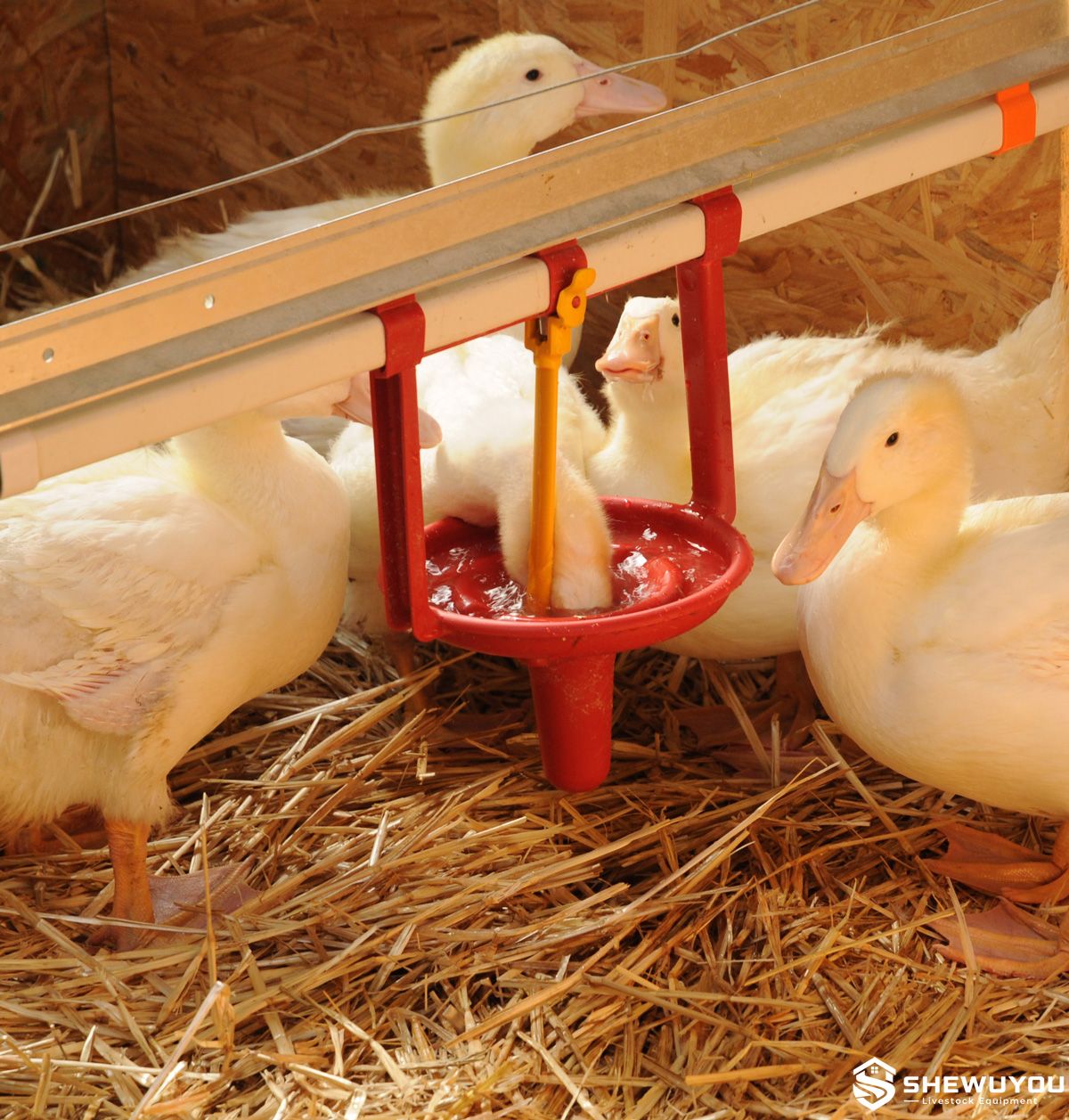

Duck-specific cup drinkers use a deeper drinking bowl and a movable pendulum or similar valve mechanism. When the duck operates the pendulum, additional water flows into the cup. The cup geometry allows the bird to place its bill deeply into the water and, in suitable designs, immerse the head.

Overflow-control features return excess water toward the cup and help limit unnecessary spillage. For optimum house hygiene, duck drinking points are commonly positioned over suitable drained or slatted areas where project conditions permit.

• Commercial Pekin duck houses
• Muscovy duck production facilities
• Duckling rearing houses
• Duck finishing houses
• Parent-stock duck farms
• Indoor waterfowl production
• Partially slatted duck houses
• Environmentally controlled poultry houses
• Steel structure duck buildings
• New duck farm construction projects
• Existing drinking-system renovation projects

The system is particularly suitable for intensive duck production where the farm requires both hygienic drinking-water distribution and water access adapted to the biological behavior of waterfowl.

For complete duck-farm projects, the drinking system can be integrated with automatic feeding lines, plastic slatted flooring, drainage systems, ventilation, lighting, heating and environmental-control equipment.

• Nipple-only drinking line
• Nipple line plus duck cup drinking points
• Deep cup size and geometry
• Pendulum valve configuration
• Nipple pipe diameter
• Nipple type and flow characteristics
• Cup spacing
• Line length
• Pressure regulator type
• Manual or automatic flushing
• Water filtration system
• Water meter
• Medication dosing connection
• Suspension and lifting system
• Steel structure mounting hardware
• OEM configuration available upon request

The complete system can be configured according to duck breed, bird age, flock density, water demand, house dimensions, flooring design, drainage conditions and local climate.

System Layout: Determine drinking-line position, cup quantity and nipple spacing according to flock size and house layout.

Drainage Planning: Position deeper duck drinking points over drained or slatted areas wherever possible to control moisture around the water source.

Pipe Installation: Support the water pipe at suitable intervals to maintain a straight and stable drinking line.

Pressure Adjustment: Set the regulator according to duck age, water demand and selected drinking valves.

Height Setting: Adjust the drinking line so birds can comfortably access nipples, pendulums and cups without excessive splashing.

Initial Flushing: Flush the water supply and drinking pipes before birds enter the house.

Routine Cleaning: Remove feed particles, suspended material and organic residue from drinking cups regularly.

Pipeline Sanitation: Flush and sanitize nipple lines according to farm water-quality and biosecurity procedures.

Valve Inspection: Periodically inspect nipples, pendulum mechanisms, regulators and fittings for leakage, blockage or wear.

Between Flocks: Thoroughly clean and disinfect drinking cups, lines, filters and water-control equipment before the next production cycle.

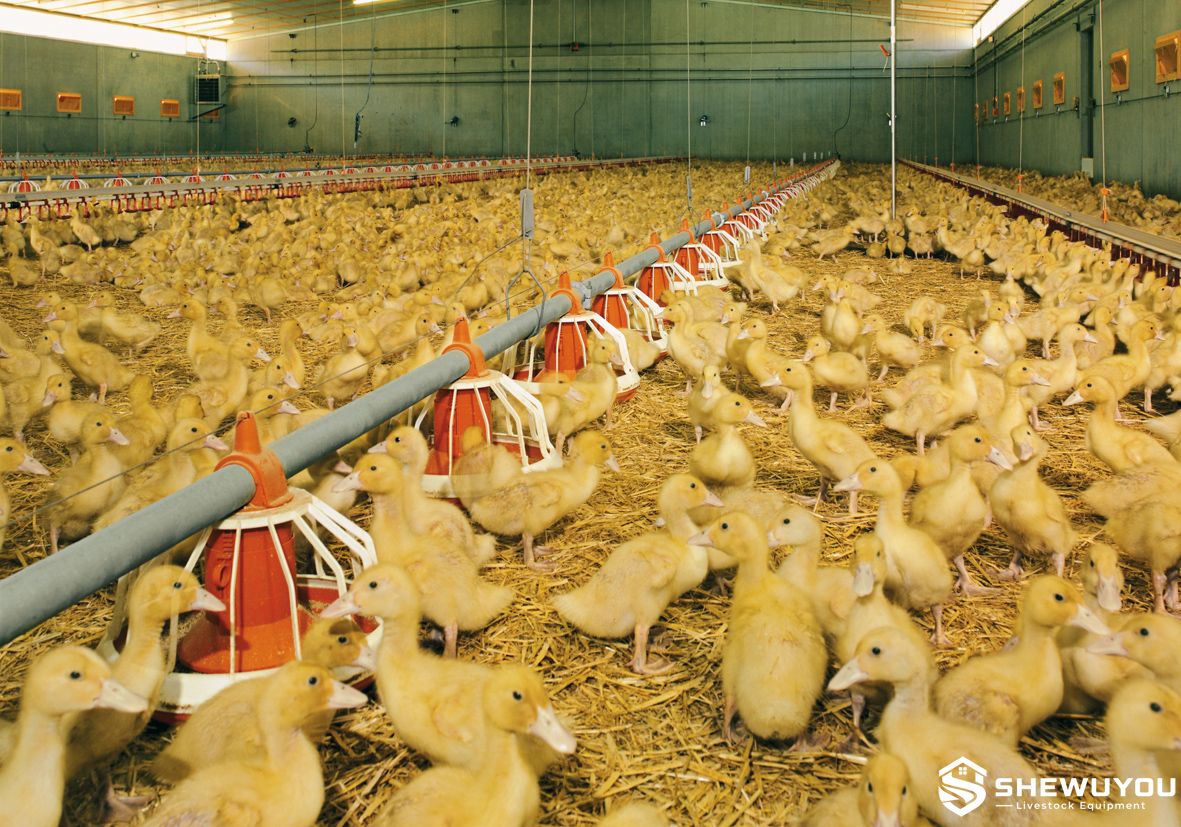

In a commercial Pekin duck house, conventional nipple drinking lines can provide the primary hygienic water source while additional deep cup drinkers provide enhanced bill and head access from the appropriate production stage.

Where plastic slatted flooring is used, specialized duck drinking points can be positioned above the slatted zone so spilled water drains away more effectively from the occupied floor area.

For new steel structure duck houses, drinking-line routing, slatted-floor zones, drainage channels, water connection equipment and suspension points can be coordinated during project design.

Q1: Is a conventional poultry nipple system enough for ducks?
Nipple drinkers provide a hygienic water supply, but specialized duck cup drinkers can provide additional water access for bill washing and other natural water-related behaviors.

Q2: Why are deep cup drinkers useful for ducks?
A deeper cup allows ducks to immerse the bill more completely and, in suitable designs, submerge the head for cleaning.

Q3: How does the duck cup refill automatically?
A movable pendulum or similar valve mechanism allows the bird to activate additional water flow into the cup.

Q4: Can the system reduce water wastage?
Yes. Controlled refill valves and overflow-return rims help reduce unnecessary water loss compared with unrestricted open-water sources.

Q5: When can a specialized deep duck cup be introduced?
A comparable professional Pekino system is used as an additional water source from approximately day 14 while conventional nipple drinking remains available.

Q6: What pipe size is used in comparable duck systems?
A 28 mm nipple pipe is recommended in the comparable Pekino system to support higher duck water requirements.

Q7: Where should duck drinkers be installed?
Where possible, higher-water-use drinking points should be positioned above suitable drained or slatted areas to control floor moisture.

Q8: Can the line be flushed?
Yes. Manual or automatic flushing can be incorporated for routine water replacement and drinking-line sanitation.

Q9: Can the system be used in large commercial duck houses?
Yes. Line length, pipe size, cup quantity and water-control components can be designed for commercial production facilities.

Q10: Can the duck drinking system be customized?
Yes. Nipple type, cup design, pipe diameter, spacing, pressure control, flushing and suspension equipment can be configured according to project requirements.
