Turkey Nipple Drinking System

The Turkey Nipple Drinking System is a specialized automatic poultry watering solution developed for turkey rearing and finishing. Compared with standard chicken nipple lines, turkey drinking systems require higher water availability, stronger drinker components and easier access for large birds.

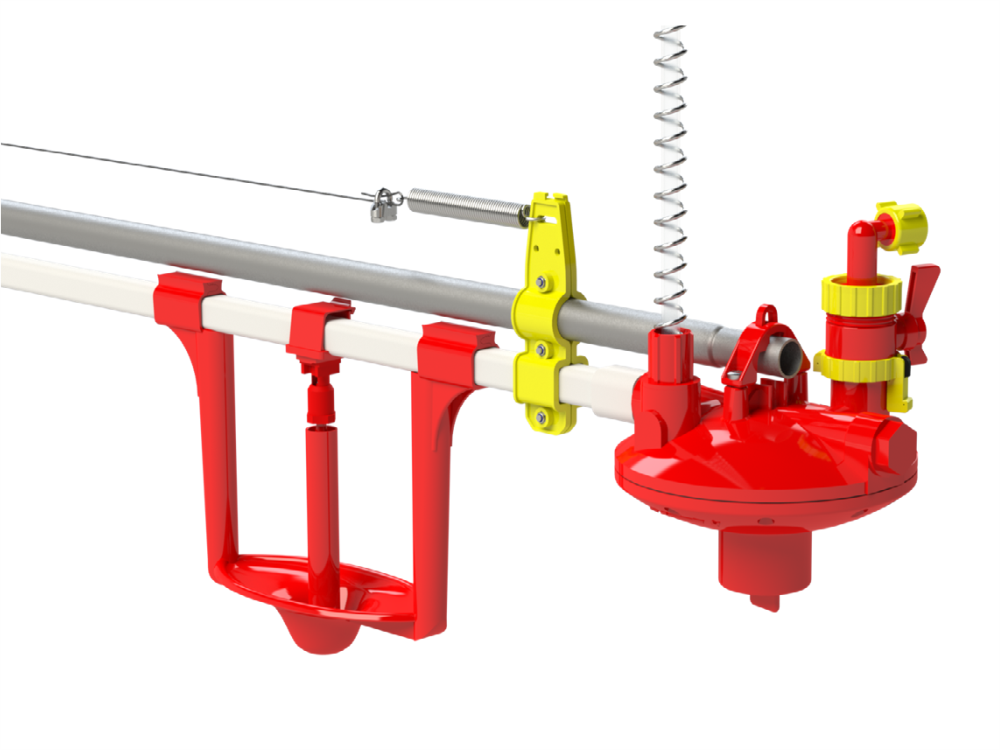

The system typically combines a large-diameter nipple pipe with pendulum-operated nipple valves and reinforced drinking cups. When a turkey moves the pendulum with its head, one or more nipple valves are actuated and water flows down the pendulum into the cup, providing an accessible open-water source while limiting unnecessary overflow.

The complete drinking line can incorporate pressure regulators, flushing equipment, support rails, anti-roost protection and adjustable suspension. It is suitable for commercial turkey houses, breeder farms and steel structure poultry buildings from brooding through heavy finishing stages. System dimensions and hydraulic performance can be configured according to flock size, house layout and local climate conditions.

• Designed for Turkeys: Drinking geometry is suitable for poults, growing turkeys and heavy finishing birds.
• Pendulum-Activated Water Supply: Bird head movement activates the nipple valves and delivers water directly into the drinking cup.
• Dual-Nipple Option: Two nipple valves can provide reliable water availability and greater flow capacity for large birds.
• Open Drinking Cup: The cup provides an accessible water source while reducing uncontrolled spillage.
• Heavy-Duty Construction: Reinforced cups and stainless steel valve components are suitable for intensive turkey production.
• Large-Diameter Water Pipe: High-demand turkey applications commonly use larger nipple pipes to improve water delivery along long houses.
• Dry-Litter Management: Correct height adjustment and controlled cup filling help reduce excessive water loss onto litter.
• Adjustable Line Height: Suspension systems allow the drinking line to follow bird growth from brooding to finishing.
• Pressure Regulation: Dedicated regulators maintain suitable operating conditions throughout the drinking line.
• Flushing Capability: Manual or automatic flushing can be integrated to improve internal water-line hygiene.
• Anti-Roost Protection: Support rails and anti-roost wire can help prevent birds from sitting on the drinking line.
• Commercial Project Design: Line quantity, drinker spacing and hydraulic configuration can be customized for individual poultry houses.

• Turkey drinking cup

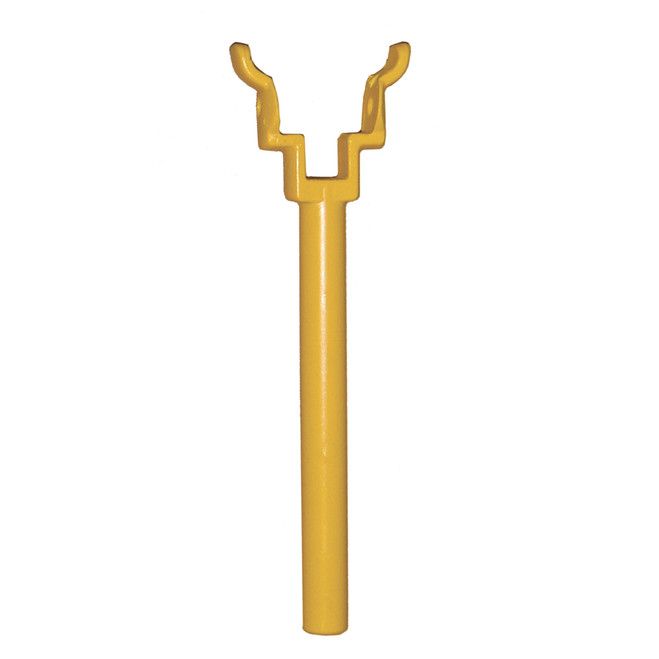

• Central pendulum actuator
• Single or dual stainless steel nipple valves
• Large-diameter nipple water pipe
• Drinker mounting bracket
• Pressure regulator
• Water-column indicator
• End-of-line breather unit
• Flushing valve or automatic flushing assembly
• Aluminum or galvanized steel support profile
• Anti-roost wire
• Suspension cable
• Pulley and hanger components
• Manual or compatible automatic winch
• Front water-supply unit
• Optional filter, water meter and medicator

Filtered and pressure-regulated water enters the drinking line through the front water-supply system and flows through the nipple pipe above each turkey drinking cup.

When a turkey places its head in the cup and moves the pendulum sideways, the pendulum actuates the nipple valve. Water flows along the pendulum and is directed into the cup where the bird can drink comfortably.

When sufficient water remains in the cup, birds can drink directly without continuously operating the nipple. This helps limit unnecessary overflow. Once water demand increases again, movement of the pendulum reactivates the water supply.

Correct drinking-line height is essential. The cup should be positioned so birds can drink naturally while minimizing splashing. During flock growth, the suspended drinking line is progressively raised to maintain the correct relationship between bird height and drinking cup position.

Final pipe diameter, drinker spacing, flow capacity, birds-per-drinker ratio, pressure setting and line length should be determined according to turkey age, live weight, stocking density, climate and poultry-house design.

• Turkey brooding houses
• Turkey rearing facilities
• Heavy turkey finishing houses
• Turkey breeder farms
• Floor-reared turkey production
• Environmentally controlled turkey houses
• Large commercial poultry farms
• New turkey farm construction projects
• Poultry-house modernization projects
• Steel structure poultry buildings
• Integrated feeding and drinking projects

SHEWUYOU can configure turkey drinking lines according to flock size, bird age, poultry-house dimensions, water quality and local production conditions.

• Rearing or finishing drinking cup
• Single or dual nipple configuration
• Nipple pipe diameter
• Drinker spacing
• Water flow characteristics
• Pressure regulator specification
• Gradient regulator configuration
• Manual or automatic flushing
• Aluminum or galvanized support profile
• Single or double anti-roost wire
• Suspension and winching system
• Drinking-line quantity and length
• Water filtration and metering
• Medication dosing system
• OEM and project packaging

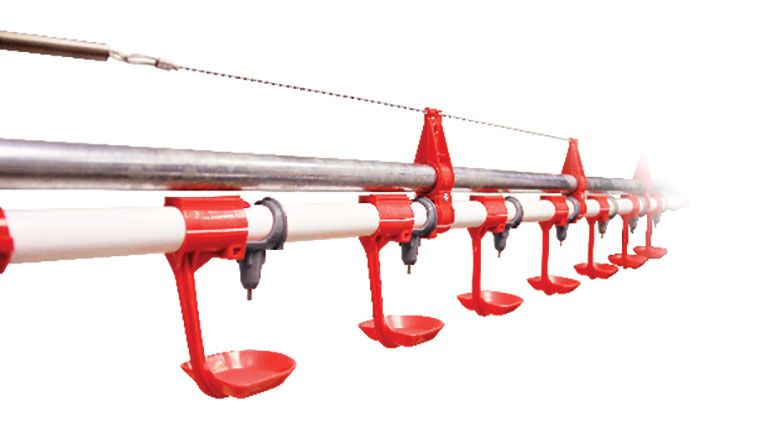

The turkey drinking line should be suspended straight and level throughout the poultry house. Suspension points must be attached to structurally suitable roof members or designated steel structure components.

• Determine drinking-line quantity and spacing according to house width and flock density.
• Install suspension cables, pulleys and support hangers at the specified locations.
• Keep the nipple pipe and drinking cups correctly aligned.
• Connect the front water-supply unit and pressure regulator.
• Flush the main water pipe before commissioning the drinking lines.
• Set the initial cup height for convenient poult access.
• Raise the system progressively as the flock grows.
• Adjust water pressure according to turkey age and water demand.
• Check pendulum movement and nipple operation regularly.
• Clean the drinking cups and remove accumulated contamination.
• Flush nipple pipes routinely according to the farm water-management program.
• Inspect regulators, filters, nipples, suspension components and anti-roost equipment between flocks.

Q1: Why use a dedicated turkey drinking system instead of a standard chicken nipple line?

Turkeys, especially heavy finishing birds, require greater water availability and stronger drinker components. Dedicated pendulum-and-cup systems provide easier drinking access and higher water capacity.

Q2: How does the pendulum drinker work?

The turkey moves the pendulum with its head, which actuates the nipple valve and allows water to flow into the drinking cup.

Q3: Can young poults use the same system?

Yes. Suitable rearing cups and starter accessories can improve water accessibility during the first days of production.

Q4: Can the system also serve heavy finishing toms?

Yes. Heavy-duty cup configurations and appropriate hydraulic sizing are designed for the higher water requirements of mature turkeys.

Q5: Why is correct drinking-line height important?

Correct height provides comfortable bird access while helping reduce splashing and excessive water loss onto the litter.

Q6: Can the drinking line be flushed automatically?

Yes. Compatible automatic flushing equipment can be incorporated into the drinking-line system.

Q7: Can medication be supplied through the drinking line?

Yes. A proportional medication dosing unit can be incorporated into the water connection system according to farm requirements.

Q8: Can SHEWUYOU design the complete system for a turkey house?

Yes. Drinking-line quantity, pipe diameter, drinker spacing, pressure regulators, suspension equipment, filtration and flushing components can be configured according to poultry-house dimensions and flock capacity.
