Poultry Nipple Drinking Pipe Line

The Poultry Nipple Drinking Pipe Line is a modular water-distribution system designed for broilers, layers, pullets, breeders and other commercial poultry applications. The system combines a rigid drinking-water pipe with precision nipple drinkers to deliver water directly at bird level while minimizing exposure to litter, feed and environmental contamination.

Square-profile drinking pipes are widely used in professional poultry watering systems because the pipe geometry helps maintain nipple orientation and prevents unwanted pipe rotation. Compatible nipple valves can be installed at predetermined spacing according to bird type, stocking density and house layout.

The pipe line can be supplied as individual drilled pipe sections, pre-assembled sections with nipple drinkers, or as part of a complete automatic poultry drinking system including pressure regulators, drip cups, connectors, flushing components, support profiles and suspension equipment.

• Closed Water Distribution: Delivers drinking water through a closed pipe system to reduce exposure to litter, dust and feed contamination.
• Square Pipe Structure: Square-profile pipe helps prevent rotation and keeps nipple drinkers correctly oriented.
• Precision Nipple Positioning: Nipple holes can be produced at consistent intervals for uniform drinking access along the poultry house.
• 360-Degree Nipple Option: Compatible multidirectional nipple drinkers provide convenient triggering for broilers and young birds.
• Corrosion-Resistant Nipples: Stainless steel internal or complete nipple components provide reliable operation in humid poultry-house environments.
• Light-Resistant Pipe: Suitable opaque PVC pipe helps limit light penetration into the water line.
• Optional Drip Cups: Drip-catching cups can be installed beneath nipples to collect occasional droplets and support dry litter management.
• Pressure Regulation: Compatible regulators maintain controlled operating pressure along the drinking line.
• Easy Modular Assembly: Pipe sections, connectors and support components simplify installation and replacement.
• Adjustable Installation Height: Suspended lines can be raised as birds grow and lifted for poultry-house cleaning.
• Custom Nipple Spacing: Hole quantity and nipple spacing can be configured according to poultry species and stocking density.
• Complete Project Integration: Suitable for coordination with feeding, ventilation, cooling, heating and environmental control equipment.

• Square PVC drinking-water pipe
• Stainless steel or stainless steel insert nipple drinkers
• Optional engineering plastic nipple housing
• Optional drip cups
• Pipe connectors
• Line-head pressure regulator
• Water-level or pressure indicator tube
• End-of-line assembly
• Flushing valve or flushing components
• Galvanized steel or aluminum support profile
• Drinking-line hangers
• Suspension cables
• Pulleys and lifting components
• Manual or compatible automatic winch
• Optional anti-perching wire
• Front-end filter and water-supply accessories

Filtered water enters the poultry drinking line through a pressure regulator. The regulator reduces and controls the incoming pressure so that suitable water conditions can be maintained inside the nipple pipe.

Water travels through the square pipe to each nipple position. Under normal conditions, the nipple valve remains closed. When a bird activates the nipple pin, the internal valve opens and releases drinking water directly to the bird.

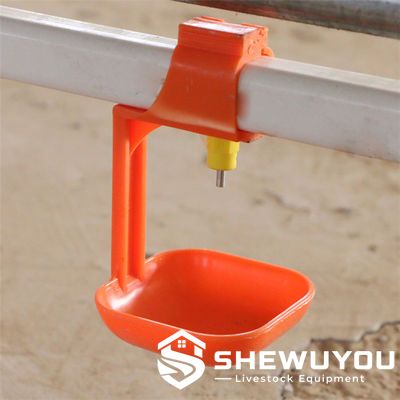

The square pipe keeps the nipple valves in a consistent downward orientation. Optional drip cups positioned below the nipples collect occasional droplets, helping reduce unnecessary moisture accumulation in poultry-house litter.

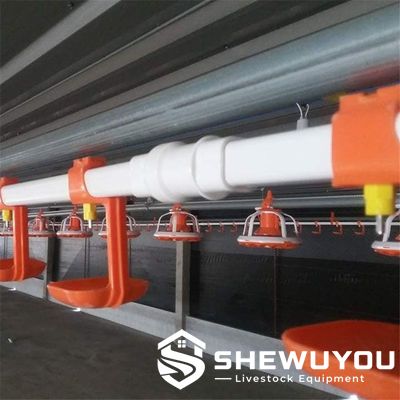

At the end of the line, a flushing assembly allows higher-volume water movement during cleaning. The complete pipe line is normally suspended from the poultry-house structure so its height can be adjusted according to bird age and production stage.

Final pipe size, section length, nipple model, nipple spacing, water flow, working pressure, drinking-line length and suspension configuration should be confirmed according to poultry species, bird population, house dimensions, water quality and project requirements.

• Commercial broiler houses
• Layer chicken houses
• Pullet-rearing facilities
• Broiler breeder houses
• Floor-reared poultry farms
• Compatible cage drinking systems
• Environmentally controlled poultry buildings
• Automatic poultry drinking systems
• Poultry-house equipment replacement projects
• Large-scale integrated poultry farms
• Steel structure poultry buildings
• New poultry farm construction and modernization projects

SHEWUYOU can supply drinking pipe sections or configure complete poultry nipple drinking lines according to poultry species, house dimensions, flock capacity and water-system requirements.

• Pipe section length
• Nipple hole spacing
• Number of nipples per section
• Nipple valve model
• Nipple activation direction
• Nipple flow characteristics
• Drip cup configuration
• Pipe connectors and end fittings
• Pressure regulator configuration
• Water filter and front-end supply components
• Manual or automatic flushing arrangement
• Support profile material
• Suspension and lifting system
• Complete drinking-line layout
• Spare parts and project packaging

The poultry nipple drinking pipe line should be installed straight and level along the poultry house. Support and suspension points should be connected to structurally suitable roof members or designated steel structure building components.

• Confirm drinking-line quantity, location and nipple spacing before installation.
• Assemble pipe sections using compatible connectors and sealing components.
• Maintain correct nipple orientation during installation.
• Install the support profile above the drinking pipe where required.
• Connect hangers, suspension cables and lifting components securely.
• Flush the main water supply before connecting the drinking lines.
• Install filtration and pressure-control equipment upstream of the lines.
• Adjust initial drinking height to provide convenient access for young birds.
• Raise the line progressively as birds grow.
• Adjust water pressure according to bird age and nipple requirements.
• Flush drinking lines routinely to help remove sediment and deposits.
• Inspect nipple valves for leakage or restricted movement.
• Clean drip cups, filters and regulator components as part of routine maintenance.
• Check connectors, suspension components and support profiles between production cycles.

Q1: Why is a square pipe commonly used for poultry nipple drinking lines?

The square profile helps prevent pipe rotation and keeps the nipple drinkers consistently positioned downward.

Q2: What pipe size is commonly used?

A 22 × 22 mm square PVC pipe is a common professional configuration, while final dimensions should be selected according to the nipple model and project requirements.

Q3: Can the nipple spacing be customized?

Yes. Nipple spacing and the number of drinking points per pipe section can be configured according to poultry species, stocking density and house layout.

Q4: Can the pipe be supplied with nipple drinkers already installed?

Yes. The product can be supplied as pipe only or as pre-assembled pipe sections with compatible nipple drinkers.

Q5: Are drip cups required?

Drip cups are optional and can be selected according to nipple design, poultry species and litter-management requirements.

Q6: Can the drinking line be flushed?

Yes. Compatible end-of-line and flushing components can be incorporated to support routine water-line cleaning.

Q7: Can the line height be adjusted?

Yes. A suspended drinking line can be raised or lowered using cable, pulley and winch components according to bird age and production stage.

Q8: Can SHEWUYOU supply a complete poultry drinking system?

Yes. Pipe sections, nipple drinkers, drip cups, connectors, regulators, filters, flushing assemblies, support profiles and suspension equipment can be configured as a complete project package.
