Poultry Drinker Line Suspension System

The Poultry Drinker Line Suspension System is designed to suspend, support, raise and lower nipple drinking lines in commercial poultry houses. The system typically combines suspension cables, pulleys, cable clamps, fixing hardware and a manual or electrically operated cable winch.

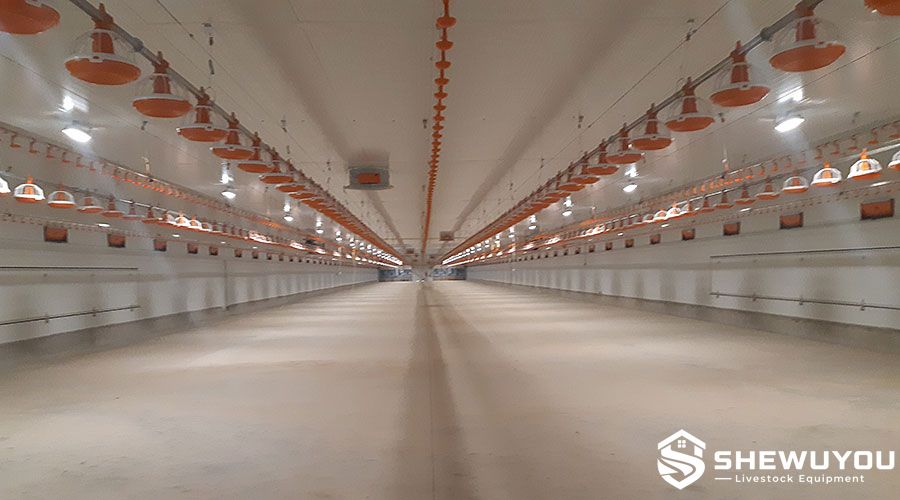

By allowing the drinking line height to be adjusted throughout the production cycle, the system helps maintain convenient access to drinking nipples as birds grow. The lines can also be raised toward the ceiling during cleaning, litter removal, catching and house preparation.

• Adjustable Drinking Height: enables nipple drinking lines to be positioned according to bird size, age and production stage.
• Centralized Lifting: a cable winch provides convenient raising and lowering of suspended drinking lines.
• Stable Multi-Point Support: distributed suspension points help maintain line alignment and reduce uneven loading.
• Improved House Cleaning: drinking lines can be raised away from the floor to provide additional working clearance.
• Manual or Electric Operation: different lifting arrangements are available according to poultry house design and project requirements.
• Flexible Structural Integration: suitable for installation below steel roof trusses, livestock building structures and other suitable ceiling systems.
• Project-Based Configuration: cable routing, suspension spacing and mounting arrangements can be customized for different poultry house layouts.

• Manual or electric cable winch
• Main lifting cable or wire rope
• Vertical suspension cables or cords
• Ceiling and guide pulleys
• Cable clamps and connectors
• Drinker line hangers and suspension fittings
• Roof truss or steel structure fixing hardware
• End anchoring and tensioning components
• Optional electrical lifting accessories

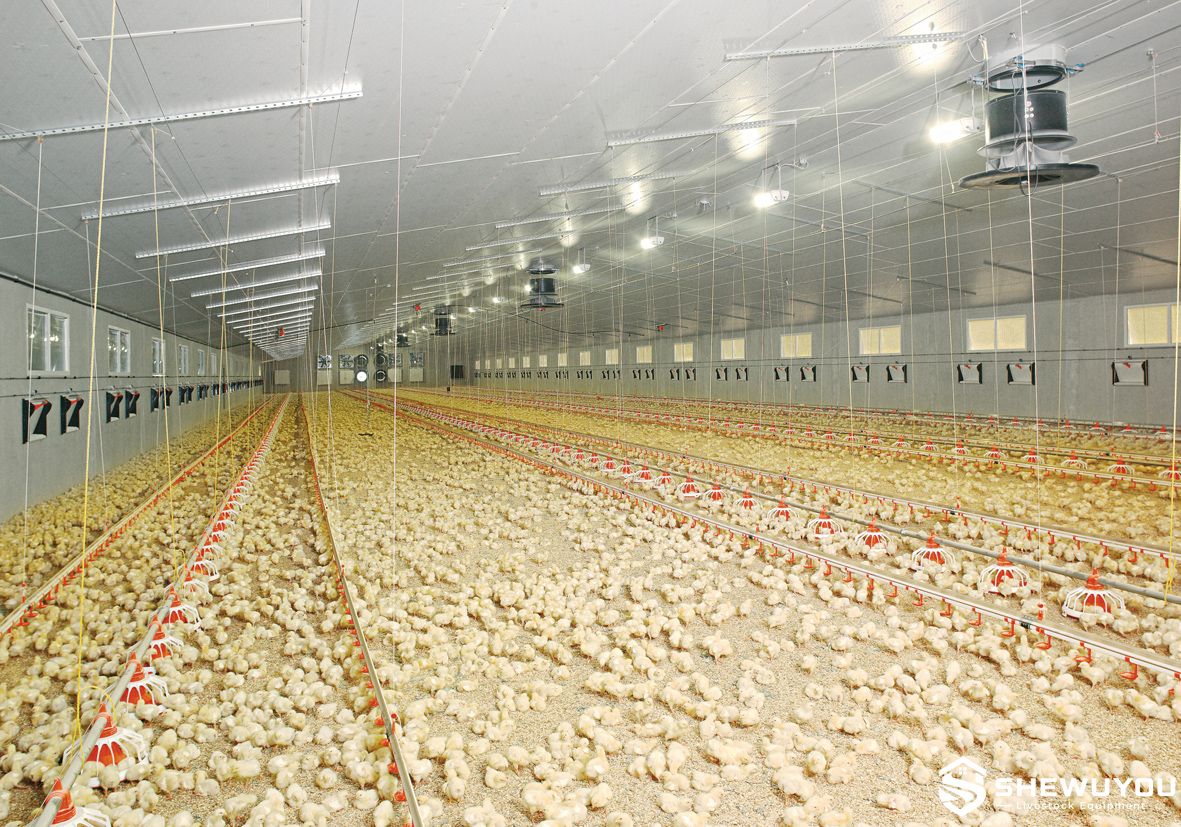

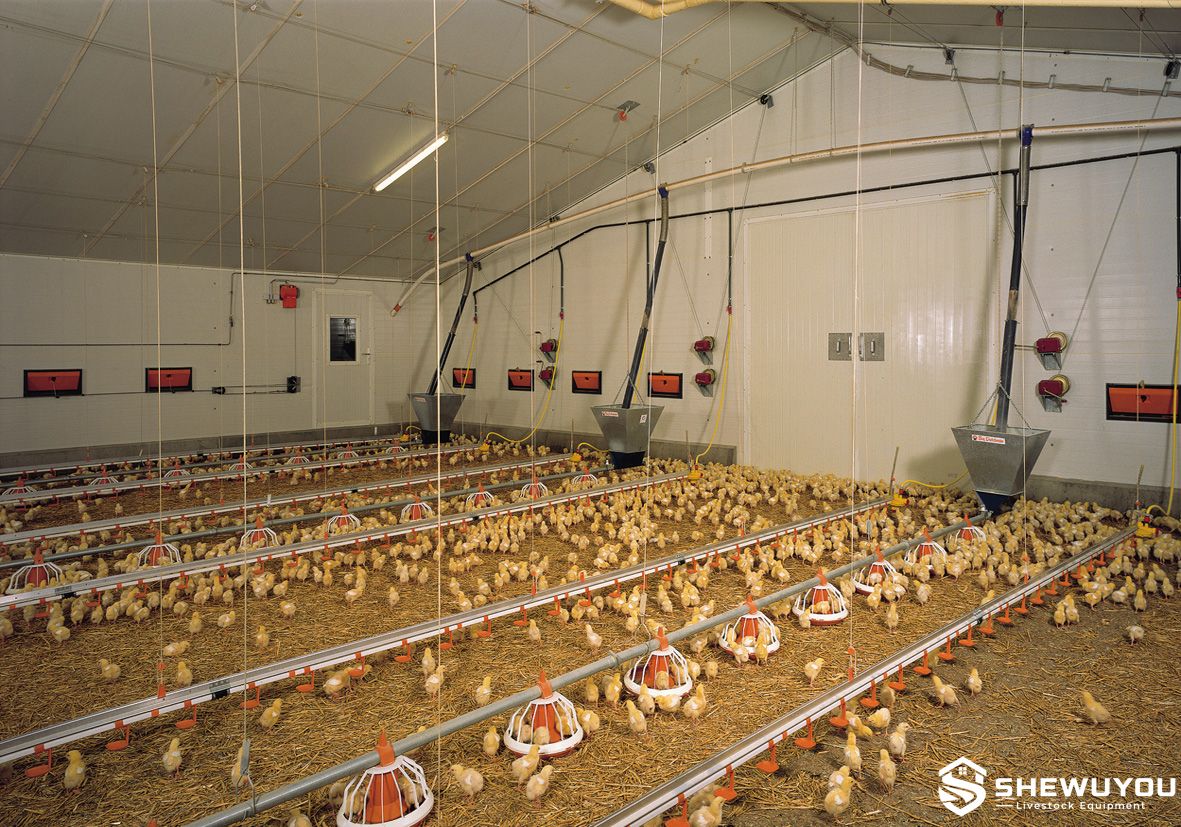

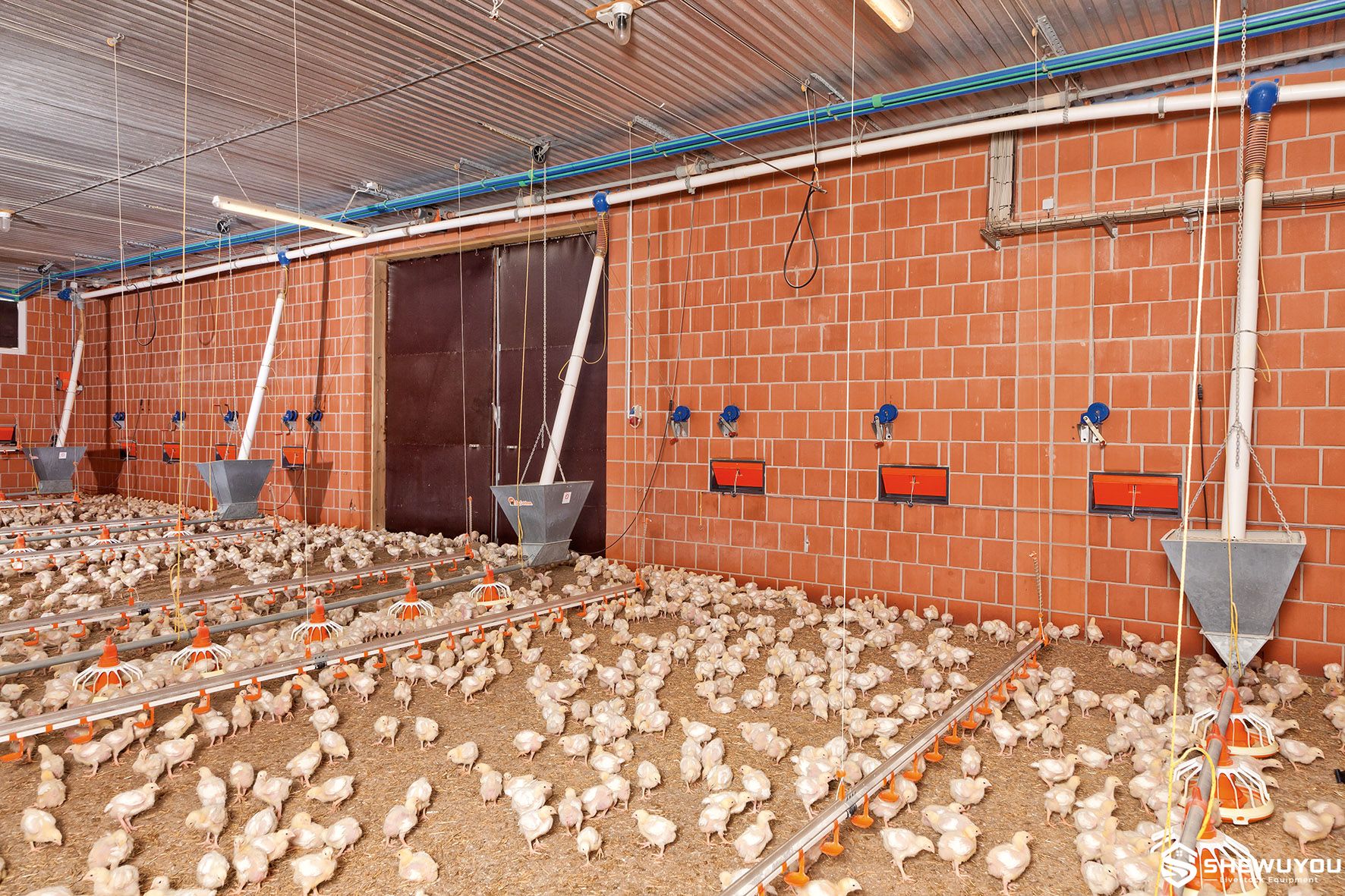

The nipple drinking line is suspended from the poultry house roof structure at multiple support points. Vertical suspension cables are routed through pulleys and connected to the main lifting arrangement.

When the cable winch is operated, the suspension cables move in a coordinated manner, raising or lowering the drinking line. Correct adjustment helps keep the nipples accessible while reducing unnecessary bird contact with the line and supporting dry litter management.

• Commercial broiler houses
• Broiler breeder houses
• Pullet rearing houses
• Floor-reared layer houses
• Turkey and other poultry houses using suspended drinker lines
• Environmentally controlled poultry buildings
• Steel structure poultry farm projects
• New poultry house construction and drinking system retrofit projects

• Manual or electric lifting system
• Cable length and suspension layout
• Suspension point quantity and spacing
• Pulley quantity and cable routing
• Wall, ceiling or steel frame mounting configuration
• Corrosion-resistant cable and hardware options
• Integration with different nipple drinking line designs
• Special configurations available upon request

Before installation, the poultry house roof truss, ceiling structure or steel building frame should be checked to ensure that suitable fixing points are available. Suspension points should be positioned according to the drinking line layout and system load.

The pulleys and suspension cables should be aligned to provide smooth lifting without excessive side loading. After installation, the drinking line should be levelled along its complete length and tested through its intended lifting range.

Routine maintenance should include inspection of the winch, wire ropes, suspension cords, pulleys, cable clamps, hooks and mounting hardware. Worn, loose or corroded components should be serviced or replaced before the next production cycle.

Q: Why should poultry drinking lines be height adjustable?

A: Drinking line height should follow bird growth so that the nipples remain easily accessible while helping limit splashing and unnecessary contact with the drinking line.

Q: Can the complete drinking line be raised for cleaning?

A: Yes. A properly designed suspension system allows the drinking line to be raised toward the ceiling, increasing floor clearance for litter removal, washing and poultry house preparation.

Q: Is an electric lifting system available?

A: Yes. Manual and electrically operated cable winch configurations can be supplied according to project requirements.

Q: Can one lifting system operate several drinking lines?

A: Multi-line lifting arrangements can be designed depending on the house layout, line quantity, system load and selected lifting equipment.

Q: Can the suspension system be used in a steel structure poultry house?

A: Yes. Mounting points and suspension layouts can be designed to suit appropriate roof trusses and steel structure building systems.
