Chick Nipple Drinker System

The Chick Nipple Drinker System is an automatic closed-line poultry watering solution designed for day-old chicks and growing birds in commercial broiler, pullet and breeder-rearing facilities. It delivers clean water directly through nipple valves while helping reduce contamination from litter, feed and dust.

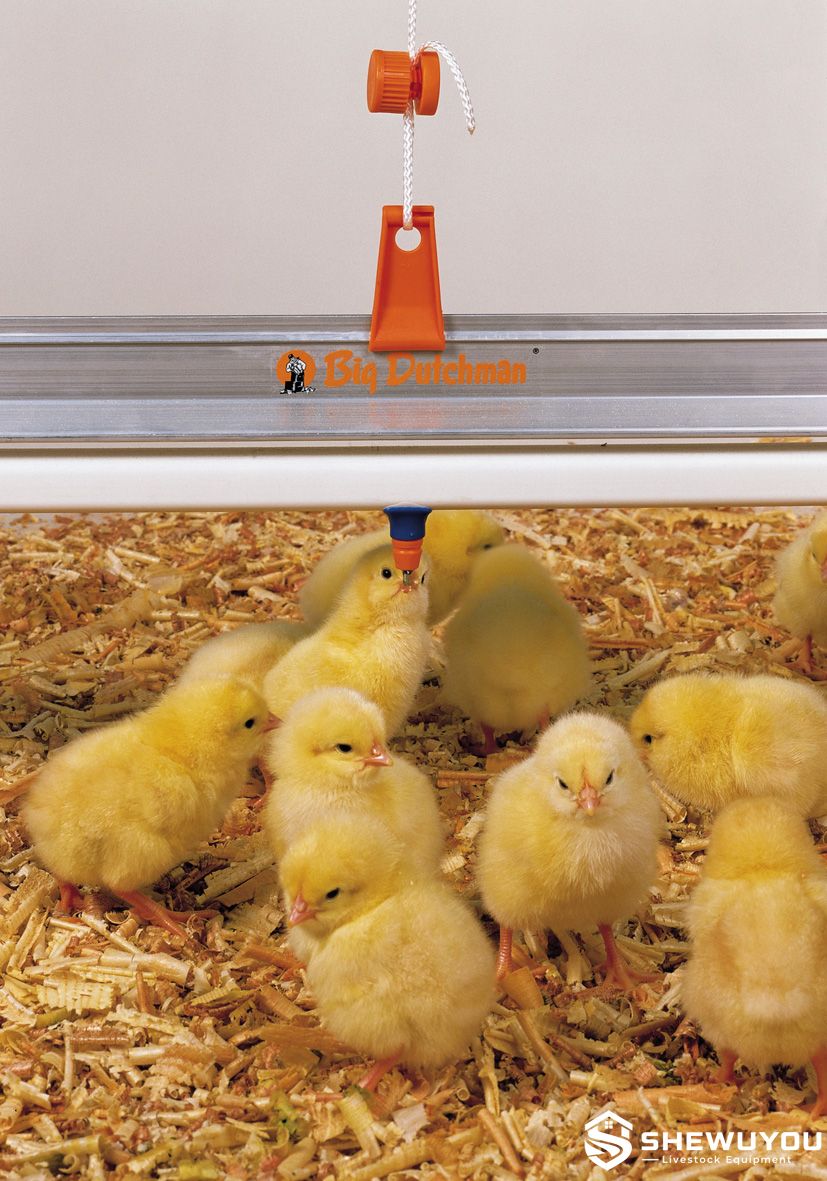

For young birds, 360-degree nipple configurations are particularly practical because chicks can activate the nipple from both vertical and lateral directions. A visible water droplet at the lower pin helps newly placed chicks locate the drinking point quickly during the first days of brooding.

The complete drinking line can include nipple valves, drinking pipes, pressure regulators, support profiles, optional drip cups, flushing units, suspension equipment and water-treatment accessories. Line length, nipple spacing and flow configuration can be selected according to flock size, bird age and poultry-house layout.

• Chick-Friendly 360° Activation: Selected nipples can be actuated vertically or laterally, making water easier to access for young chicks.
• Visible Water Drop: Suitable nipple designs create an easy-to-see droplet that helps newly placed chicks identify the drinking point.
• Closed Water Supply: Helps keep drinking water cleaner than open trough or bell-type systems.
• Automatic Water Delivery: Water is released when the chick actuates the nipple and stops when actuation ends.
• Controlled Flow: Different flow configurations can be selected according to chick age, bird weight and climate.
• Optional Drip Cup: Can collect occasional water droplets and support dry-litter management.
• Pressure Regulation: Low-pressure regulators help maintain suitable operating conditions along the drinking line.
• Flushable Pipe System: End-of-line flushing components support routine sanitation and fresh-water replacement.
• Adjustable Height: Suspended lines can be raised progressively as chicks grow.
• Commercial Farm Integration: Suitable for automatic broiler houses and steel structure poultry buildings.

• 360° poultry nipple drinkers
• Square or round drinking water pipe
• Support profile
• Low-pressure regulator
• Water inlet assembly
• End-of-line flushing unit
• Optional drip cups
• Water filter
• Pressure indicator
• Pipe connectors and end fittings
• Suspension wire and hangers
• Central lifting winch
• Anti-roost wire or profile
• Optional medicator connection

Filtered water enters the drinking line through the pressure-regulation unit. The regulator reduces the supply pressure to the low level required for poultry nipple operation.

When a chick touches the nipple pin, the internal valve opens and releases a small amount of water. On a 360-degree nipple, the bird can activate the valve by pushing upward or from the side, which makes drinking easier for young chicks.

When the bird stops actuating the nipple, the valve closes automatically. This demand-based principle limits open standing water and helps keep the brooding area drier.

The entire drinking line can be raised as birds grow, while flushing components allow higher water flow through the pipe during sanitation and water-line cleaning.

• Day-old broiler chick houses
• Commercial broiler farms
• Pullet rearing facilities
• Broiler breeder rearing houses
• Floor-reared poultry houses
• Cage-free poultry facilities
• Environmentally controlled poultry houses
• Steel structure poultry buildings
• New poultry farm construction
• Existing drinking-line replacement projects

The system is particularly suitable for commercial brooding facilities where newly placed chicks must quickly locate clean drinking water while maintaining dry litter and hygienic house conditions.

For complete poultry projects, chick nipple drinking lines can be coordinated with brooder heating, automatic pan feeding, ventilation, lighting, cooling and environmental-control systems.

• 360° nipple type
• Precise-flow or full-flow configuration
• Nipple material and valve construction
• Drip cup configuration
• Nipple spacing
• Drinking pipe specification
• Pressure regulator type
• Manual or automatic flushing
• Water filter specification
• Medication dosing connection
• Line length
• Number of lines per poultry house
• Manual or centralized lifting system
• Steel structure suspension hardware
• OEM configuration available upon request

The complete chick drinking system can be configured according to poultry breed, flock density, brooding program, house dimensions, water quality, local climate and project requirements.

Line Layout: Determine line quantity and spacing according to poultry-house width, chick numbers and drinking-access requirements.

Suspension Installation: Install support wires and hangers at suitable intervals so the drinking line remains straight and stable.

Initial Height: At chick placement, position the nipple at an easily reachable height so chicks can locate and activate the drinking point quickly.

Progressive Adjustment: Raise the line gradually as birds grow so they stretch slightly upward while drinking.

Pressure Setting: Adjust water pressure according to chick age, nipple flow characteristics and ambient temperature.

Pipeline Flushing: Flush the complete line before chick placement and regularly during production to maintain fresh water and reduce sediment.

Water Hygiene: Maintain suitable filtration and sanitation to control mineral deposits, organic contamination and biofilm.

Leak Inspection: Regularly inspect nipple valves, pipe joints, regulators and end units for dripping or abnormal flow.

Between Flocks: Clean, disinfect and flush the drinking system thoroughly before the next chick placement.

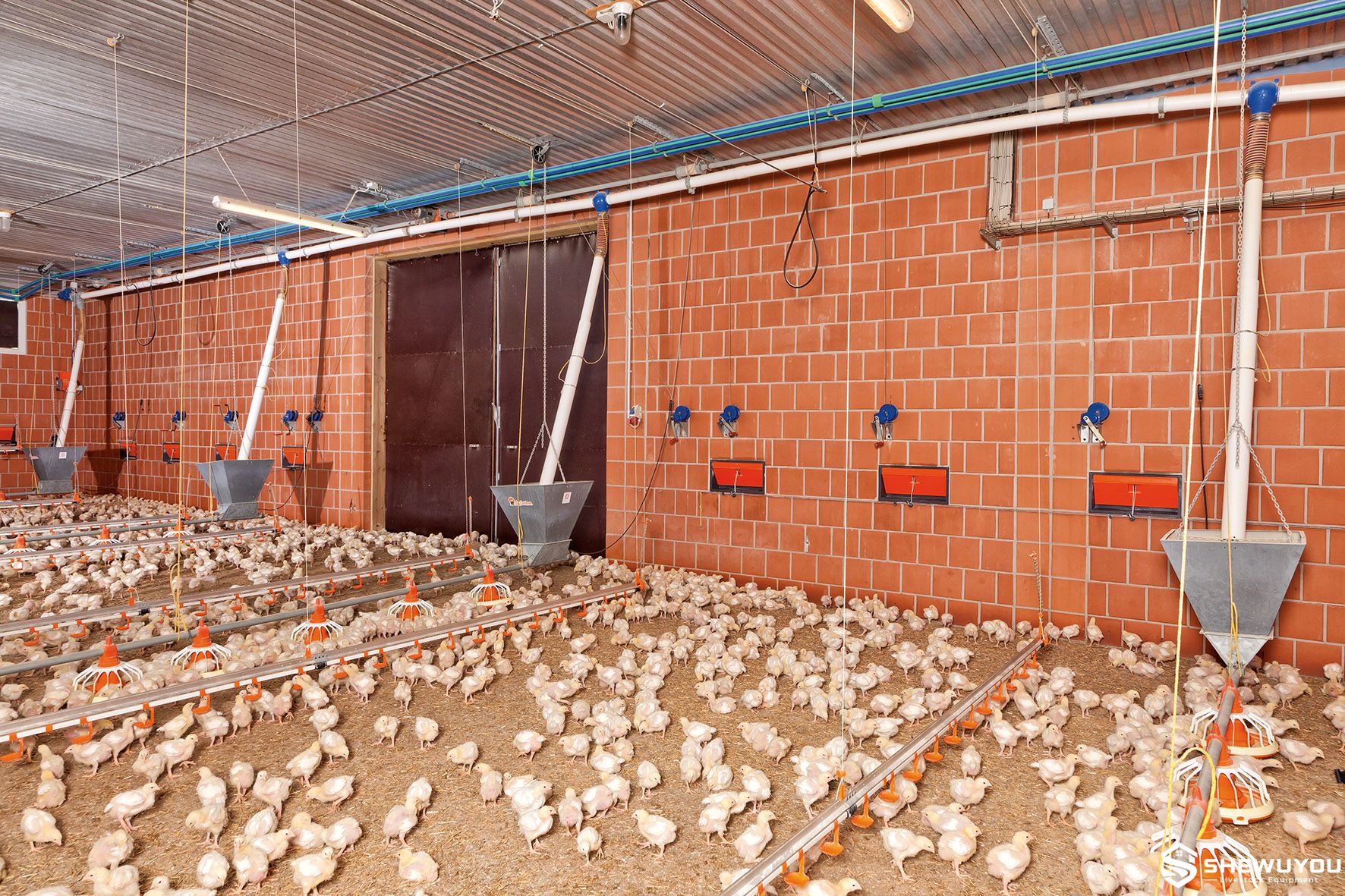

In commercial broiler houses, multiple parallel chick nipple drinking lines can be installed between automatic feed lines to provide uniform water access throughout the brooding area.

360-degree nipple configurations are especially useful during the first days because newly placed chicks can activate the valve from different directions while learning to use the automatic drinking system.

For new steel structure poultry houses, drinking-line suspension points, water supply pipes, filters, regulators and flushing components can be planned together with feeding and environmental-control equipment.

Q1: Why are 360° nipples suitable for chicks?
They can be activated from both vertical and lateral directions, which makes water easier for young chicks to obtain.

Q2: Can day-old chicks use the system immediately?
Yes. Correctly adjusted chick nipple systems are designed for use from placement, and visible water droplets help chicks identify the drinking point.

Q3: What is the reference flow rate?
Comparable professional 360-degree nipples provide approximately 25–80 cm³/min depending on nipple model and flow configuration.

Q4: Are drip cups required?
Not always. Some precise-flow nipples can operate without drip cups, while cups are available where additional splash-water collection is required.

Q5: Does the system require electricity?
No. Standard nipple valves operate mechanically using regulated water pressure.

Q6: Can water pressure be adjusted as chicks grow?
Yes. The regulator setting can be changed according to bird age, water demand and nipple characteristics.

Q7: Can the line height be adjusted?
Yes. Suspended drinking lines can be raised progressively throughout the growing cycle.

Q8: Can the system be flushed?
Yes. End-of-line flushing units allow rapid water replacement and routine pipeline sanitation.

Q9: Can medication be delivered through the drinking line?
Yes. Compatible medication dosing equipment can be integrated into the water supply system.

Q10: Can the system be customized?
Yes. Nipple type, flow rate, spacing, line length, pressure regulator, drip cups and suspension equipment can be configured according to project requirements.
