Broiler Nipple Drinking System

The Broiler Nipple Drinking System is an automatic poultry watering solution designed to provide broilers with continuous access to fresh and hygienic drinking water from placement through market age. Water is delivered directly through individual nipple valves, helping reduce open-water contamination and unnecessary water spillage inside the poultry house.

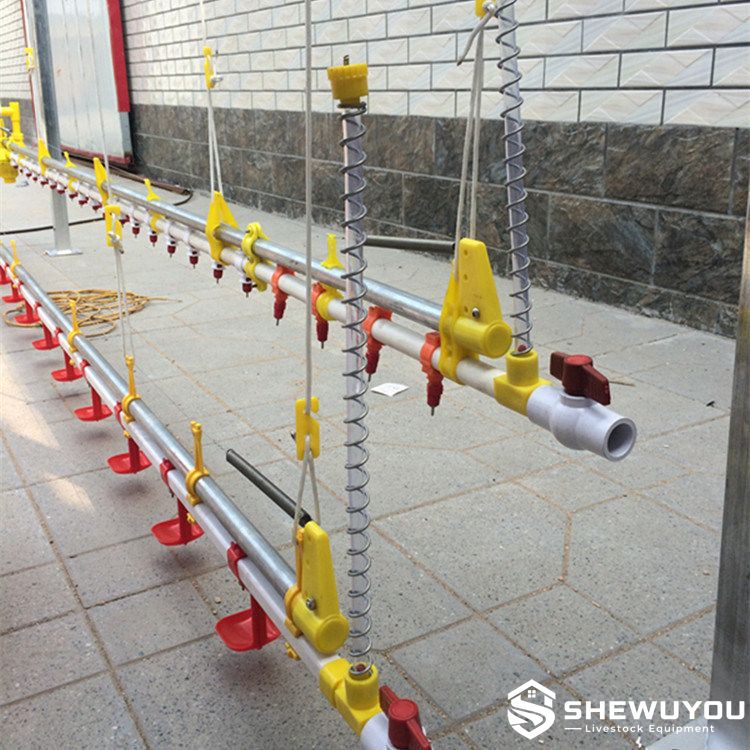

A complete drinking line typically integrates stainless steel nipple valves, drinking-water pipes, optional drip cups, pressure regulators, water-level indicators, flushing components, galvanized or aluminum support rails, suspension cables and lifting equipment. The modular configuration allows the drinking height and operating water pressure to be adjusted as birds grow.

The system is suitable for floor-reared commercial broiler houses, environmentally controlled poultry buildings and large-scale poultry farm projects. Drinking-line length, nipple spacing, nipple quantity, pressure regulation, suspension arrangement and water-treatment accessories can be configured according to flock capacity, house dimensions, climate and farm management requirements.

• Hygienic Water Delivery: Closed nipple drinking technology minimizes direct exposure of drinking water to litter, dust and other environmental contaminants.
• Bird-Activated Drinking: Broilers obtain water by actuating the nipple pin, allowing water to be delivered directly at the drinking point.
• 360-Degree Nipple Option: Multi-directional triggering can make nipple activation easier for young broilers during the starting period.
• Stainless Steel Valve Components: Corrosion-resistant nipple components provide durability under intensive poultry-house conditions.
• Pressure-Regulated Supply: Pressure regulators help maintain suitable operating pressure and more consistent water availability along the drinking line.
• Square Water Pipe Option: Square-profile pipes help maintain nipple orientation and provide a stable mounting structure.
• Optional Drip Cups: Drip-catching cups can collect occasional droplets and help maintain drier litter conditions.
• Adjustable Line Height: Suspension and winching systems allow the complete drinking line to be raised as broilers grow.
• Flushing Capability: Compatible end assemblies and regulators can support line flushing for routine water-system maintenance.
• Modular Installation: Drinking-line sections can be configured according to poultry-house width, length and flock layout.
• Commercial Farm Integration: Suitable for coordination with automatic feeding, ventilation, cooling, heating and environmental control systems.

• Stainless steel nipple drinkers
• Engineering plastic nipple housings
• Square or compatible drinking-water pipe
• Optional drip cups
• Pressure regulator
• Water-level indicator
• Front water-supply unit
• Water filter
• Optional medication or dosing unit
• End-of-line flushing assembly
• Galvanized steel or aluminum support rail
• Pipe and rail connectors
• Suspension cables
• Hangers and adjustment components
• Manual or compatible lifting winch
• Optional anti-perching wire

Water from the farm supply enters the drinking system through the front-end water treatment and pressure-control section. Depending on project configuration, this section can incorporate filtration, pressure regulation, water metering and medication dosing equipment.

Regulated water then enters the drinking pipes and is distributed along the poultry house. Each nipple remains closed until activated by a bird. When a broiler pushes the nipple triggering pin, a controlled quantity of water is released for drinking.

Modern broiler nipples can be selected for easy multidirectional actuation. Young chicks apply relatively light pressure while older birds naturally actuate the nipple more strongly, allowing the drinking system to support different growth stages when correctly adjusted.

The pressure regulator and water-level indicator are used to manage operating conditions along the line. At the end of the production cycle or during scheduled maintenance, the system can be flushed to help remove sediment and maintain water-line cleanliness.

Final nipple flow rate, nipple spacing, birds-per-nipple ratio, water pressure, line length and regulator configuration should be determined according to broiler age, stocking density, climate, water quality and poultry-house design.

• Commercial broiler houses
• Floor-reared chicken farms
• Day-old chick to market-age broiler production
• Environmentally controlled poultry houses
• Large-scale integrated poultry farms
• Automatic chicken drinking systems
• New poultry farm construction projects
• Existing poultry-house equipment upgrades
• Steel structure poultry buildings
• Complete poultry feeding, drinking and climate-control projects

SHEWUYOU can configure individual nipple drinking components or complete poultry drinking lines according to poultry-house dimensions, flock capacity, climate conditions and water-supply requirements.

• Nipple valve type and flow characteristics
• 360-degree or vertical nipple actuation
• Nipple spacing and quantity
• Drinking pipe dimensions
• Drip cup configuration
• Pressure regulator specification
• Front-end filtration system
• Water meter configuration
• Medication dosing equipment
• Manual or automatic flushing system
• Galvanized or aluminum support structure
• Suspension cable and winch arrangement
• Drinking-line quantity and length
• Anti-perching accessories
• OEM and project packaging

Drinking lines should be installed parallel to the poultry-house feeding system and suspended from structurally suitable roof members or designated steel building components. Correct alignment, pressure adjustment and drinking height are important for reliable system performance.

• Determine drinking-line quantity and spacing according to house width and stocking density.
• Install suspension cables, pulleys and hangers at the specified structural locations.
• Keep drinking pipes level and correctly aligned during installation.
• Connect the pressure regulator and front-end water supply according to system requirements.
• Flush the farm water pipeline before commissioning the nipple lines.
• Set the initial drinking-line height for easy chick access.
• Raise the line progressively as broilers grow to maintain suitable drinking posture.
• Adjust water pressure according to bird age, nipple specification and environmental conditions.
• Inspect nipples and drip cups regularly for contamination or mechanical damage.
• Flush water lines according to the farm sanitation program.
• Clean filters and inspect regulators, end assemblies and water-level indicators periodically.
• Drain or protect exposed water-system components when required by freezing-climate conditions.

Q1: Why are nipple drinking systems widely used in broiler houses?

Closed nipple systems provide water directly at the drinking point, helping reduce contamination and unnecessary spillage compared with open drinking systems.

Q2: Can day-old chicks use the nipple drinking system?

Yes. Properly selected 360-degree broiler nipples are designed for easy activation, while correct initial line height and water pressure help chicks locate and use the drinkers.

Q3: Are drip cups necessary?

The requirement depends on nipple design and farm management. Drip cups can help collect occasional droplets and support drier litter conditions.

Q4: Can the water pressure be adjusted?

Yes. A poultry pressure regulator is used to adjust operating conditions according to bird age, nipple specification and water demand.

Q5: Can the drinking line be raised as broilers grow?

Yes. The suspended line can be raised using a winch and cable system so nipple height follows flock growth.

Q6: Can medication be delivered through the drinking system?

A compatible dosing unit can be integrated into the front water-supply section when required by the farm water-management program.

Q7: How should the drinking lines be cleaned?

Routine flushing, filter maintenance and cleaning procedures should follow the farm water-quality and sanitation program and the requirements of the selected equipment.

Q8: Can SHEWUYOU design a complete system for a poultry house?

Yes. Drinking-line quantity, nipple spacing, regulators, filtration, suspension equipment and related components can be configured according to poultry-house dimensions, stocking capacity and project requirements.
